Характеристики

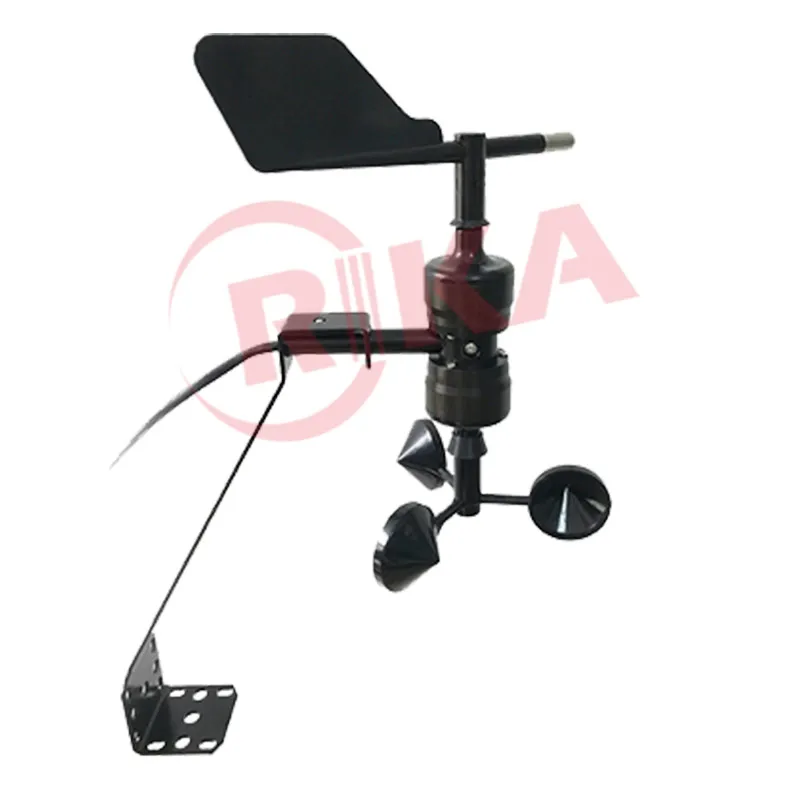

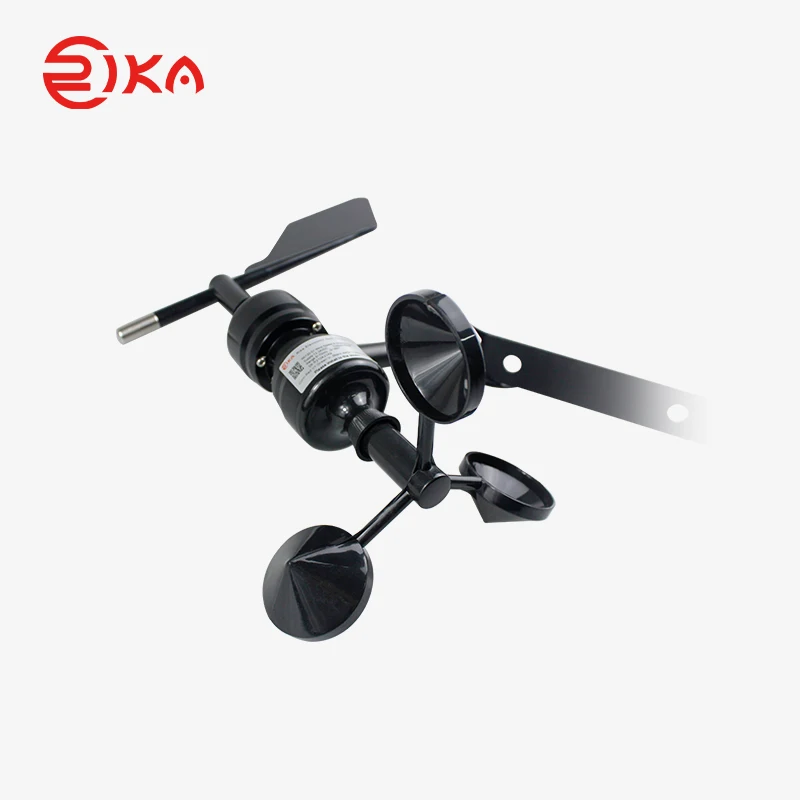

RIKA New RK120-01C RS485 RS232 Modbus Output Cup Type Wind Vane Anemometer for Weather Station
Product Description
RK120-01C Combined Wind Speed & Direction Sensor is assembled with aluminum alloy precision machined parts, which has high strength and convenient installation. The wind speed part adopts the traditional three-wind cup structure, the wind cup is made of ABS, the starting performance is good, the measuring range is large, the linearity is good, stable and reliable. The wind direction part adopts low inertia wind direction to respond to the wind direction. When the wind direction changes, the tail wheel drives the angle sensor to sense the azimuth change, thereby generating a change of electrical signal output, good linearity, high precision, and no blind zone.
FEATURES
Combined wind speed & direction sensor
- Low starting threshold
- Good corrosion resistance
- Compact and light design
- Easy installation
APPLICATIONS
- Environmental monitoring
- Bridge & Tunnel
- Solar and wind power generation
- Wind resource assessment
- Automatic weather station
- Agriculture
Technical Specification
Item | Technical Specification | |
Wind speed | Wind direction | |
Range | 0-45m/s(current or voltage ouput); 0-70m/s(pulse,RS485,RS232 output) | 0-360° |
Resolution | 0.1m/s | 1° |
Accuracy | ±(0.3+0.03V)m/s ,V is current wind speed | ≤±3° |
Acquisition Cycle | 3s | |
Starting wind speed | 0.5m/s | |
Limited wind speed | 75m/s | |
Supply | 5V(only for digital output),12-24VDC | |
Output Signal | RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed) | |
Operating Temperature | -40℃-+70℃ | |
Ingress Protection | IP65 | |
Main material | Aluminum alloy and carbon fiber Cups:PA, reinforced with carbon fibre, black | |
Storage | 10-60℃@20%-90%RH | |
Cable length | Default 2.5m,other length is optional | |

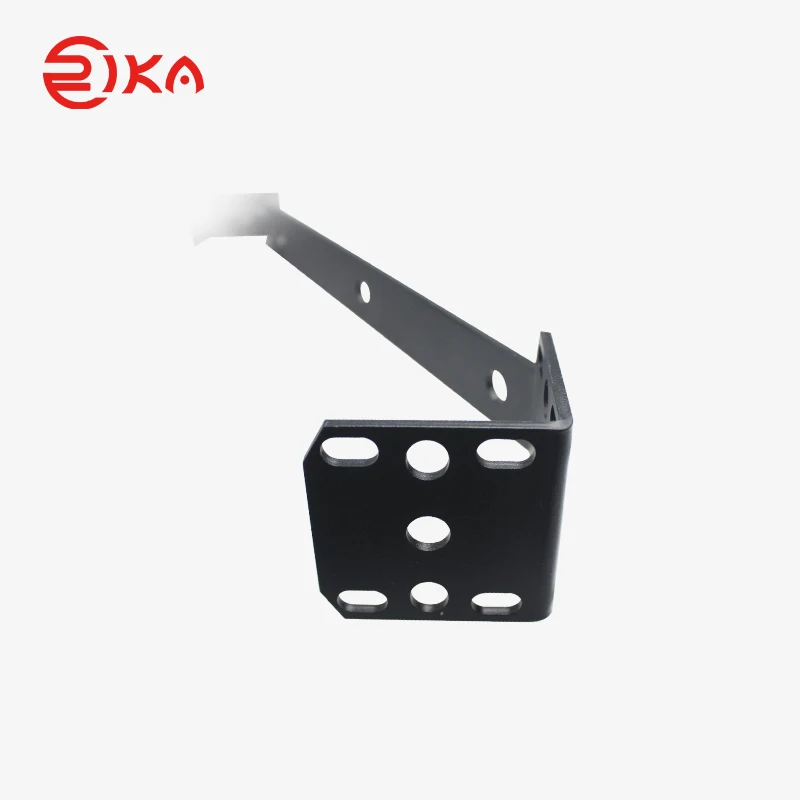

Installation bracket | attached | |
Weight(unpacked) | 700g | |
Details show
Application
Testimonial
Ordering Process:
In order to send specific price to you, please tell me your information below:
1. What’s your required power supply ? -- The standard is 12-24V.
2. What’s your required output signal ? -- We have 4-20mA,RS485 optional. Please specify.
3. What’s your required cable length ? - The standard is 2m, if you have other demands, please specify.
4. Quantity?
5. Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address for freight calculation.
6. Your complete company name,address, post code,contact person, tel, fax etc.
