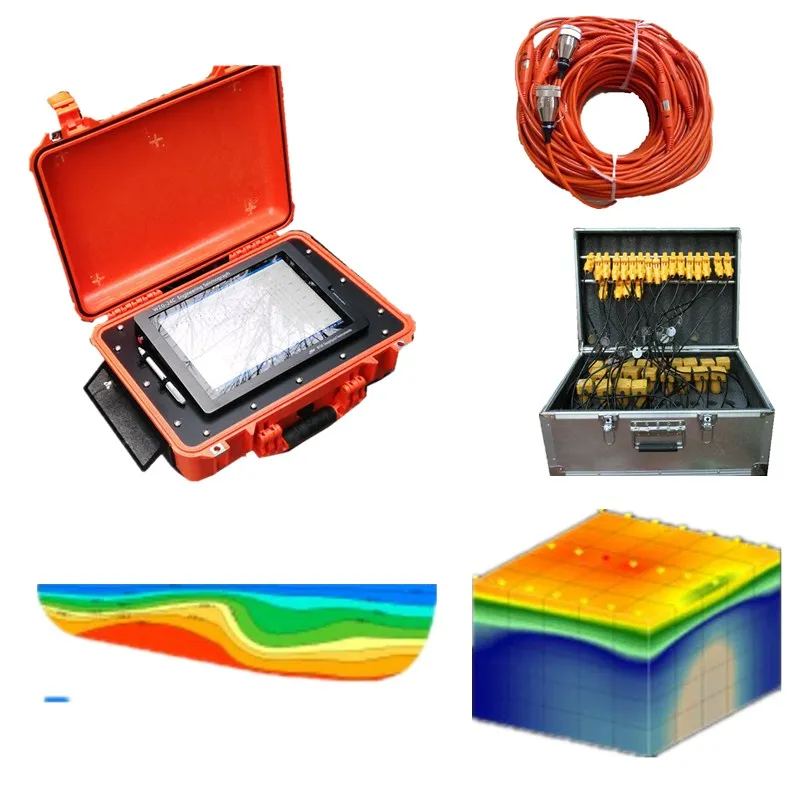

Multi Channels Seismic Instrument Reflection/Refraction/Surface Wave Velocity/MASW Seismograph

Exploration

Wave speed (sheared wave) survey
Transient multifold Rayleigh wave prospecting
Multi-wave high density seismic imaging
Shallow refraction survey
Foundation pile inspection
Civil engineering quality detection
Site constant shake survey
Shake-to-blasting survey

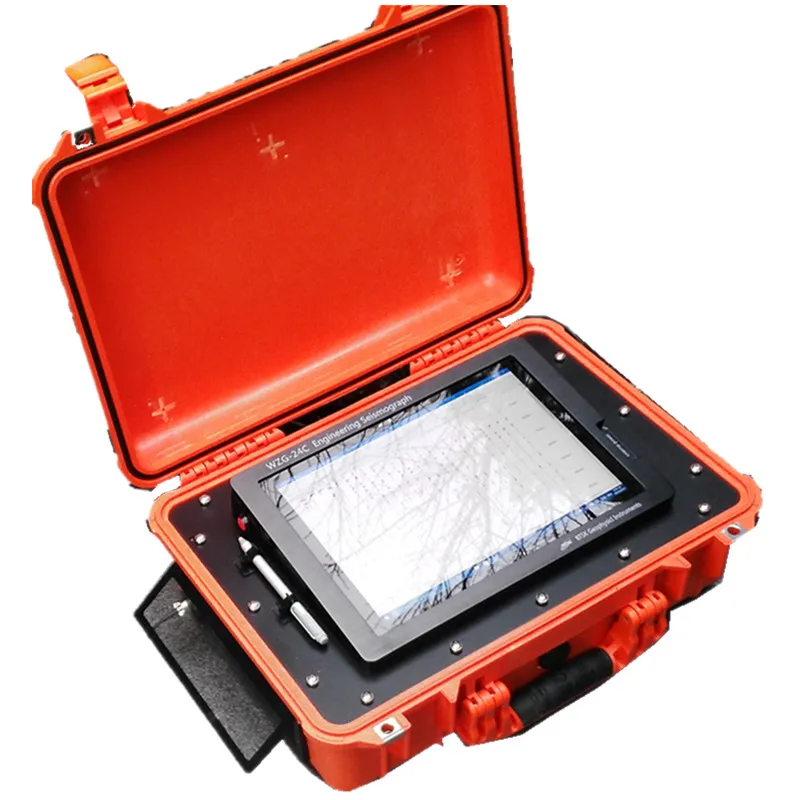

 Multi Channels Seismic Instrument Reflection/Refraction/Surface Wave Velocity/MASW Seismograph



Channel number	24
Sample stations	1024, 2048, 4096, 8192, 16384
Sample frequency	a, Generally, 10μs, 25μs, 50μs, 100μs, 200μs, 500μs, 1ms, 2ms, 5ms, 10ms, 20ms
	b, For micro-tremor survey, 1ms ~ 200ms selectable
A/D converter	24 bit
Signal stack and amplification	32 bit
Dynamic range	140dB
Frequency bandwidth	0.1Hz ~ 4000Hz
Noises	1μV(full-frequency state)
Amplitude consistency	±0.2%
Phase consistency	±0.01ms
Time lapse	0~9999ms
Date format	SEG-2
Working temperature	0℃~50℃, 90%RH
Storage temperature	-20℃ ~ +60℃





Our product:
Geo-electrical Resistivity meter
Earth Resistivity IP Meter (1-D VES SP IP Sounding)
2-D & 3-D Resistivity IP Multi Electrode Imaging System
Logging Equipments
Bore Well Logging system
Gamma Logger
Bore Well Camera
Seismographs
12 Channels /24 Channels/48 Channels (Seismic Reflection /Refraction/Surface Wave Velocity/MASW)
Transient Electromagnetic System (TEM)
Proton Precision Magnetometer
All of these products are manufactured under ISO9001: 2000 quality management system, mature and of high performance.
