Конкурентоспособная заводская цена на 8 12 16 24 струны PV строчный комбайнер с стандартом IEC
- Категория: Светильник на солнечной батарее >>>
- Поставщик: Wuxi,Longmax,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 417.18 $* | 438.71 $* |
| Aug-16-2025 | 413.52 $* | 434.87 $* |
| Jul-16-2025 | 347.89 $* | 364.82 $* |
| Jun-16-2025 | 406.94 $* | 426.24 $* |
| May-16-2025 | 354.94 $* | 372.35 $* |
| Apr-16-2025 | 399.17 $* | 419.9 $* |
| Mar-16-2025 | 396.20 $* | 416.78 $* |
| Feb-16-2025 | 392.55 $* | 412.56 $* |
| Jan-16-2025 | 389.98 $* | 408.27 $* |
Характеристики
Product Description
Longmax combiner box customization instructions
Please tell us in detail the voltage level of your power plant, the specific requirements you need, whether the component brand is specified, etc.
According to your requirements, we will design a perfect, efficient and cost-effective perfectly matching combiner box equipment for you.
For large-scale PV grid-connected power generation system, in order to reduce the connection between the PV module and the inverter, and to facilitate maintenance to improve reliability,it generally need to add DC busbar device between the PV module and the inverter. Our company's PV array lightning protection combiner box is designed to meet this requirement and can be designed to a complete PV power generation system solution with PV inverter products. Using PV combiner box, the user can put certain number of same specifications PV modules into series PV module according to input DC voltage range of the inverter, and then a number of series PV modules access to the PV array lightning protection box.
It’s convenient to facilitate the post-inverter through the output for lightning protection device and circuit breaker.
Model | LM-PVSZ-CV-8/16/24 |
PV array system voltage: | DC1000V |
Max iput ways: | 8 |
Output ways | 1 |
Input current for each way | 10A |
Total output current | 125A |
The PV array lightning protection box has the following characteristics:
(1) Meet the requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions;
(2) Access 8/12/16-way PV array, each with 10A, 1000Vdc fuse (replaceable other grades);
(3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode;
(4) Positive, negative strings into the fuse;
(5) Use quadruple PV dedicated circuit breaker with positive and negative in series;
(3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode;
(4) Positive, negative strings into the fuse;
(5) Use quadruple PV dedicated circuit breaker with positive and negative in series;
Save 20% of on-site installing and wiring work time
1. Positive and negative poles are tiled, which can reserve space for on-site wiring to the greatest extent.
2.The correspondence of cable connectors is distinguished between different colors, which improves the on-site wiring efficiency.
3.Wiring positions are higher than regular products, box uses horizontal designed, both facilitate the process of field wiring.
2.The correspondence of cable connectors is distinguished between different colors, which improves the on-site wiring efficiency.
3.Wiring positions are higher than regular products, box uses horizontal designed, both facilitate the process of field wiring.
4. The monitoring module is designed by using press keys, can be displayed on the LCD screen.
5. The layout of electric cables are well-designed and easy to maintenance.
5. The layout of electric cables are well-designed and easy to maintenance.

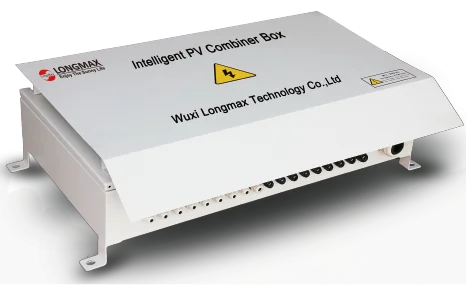

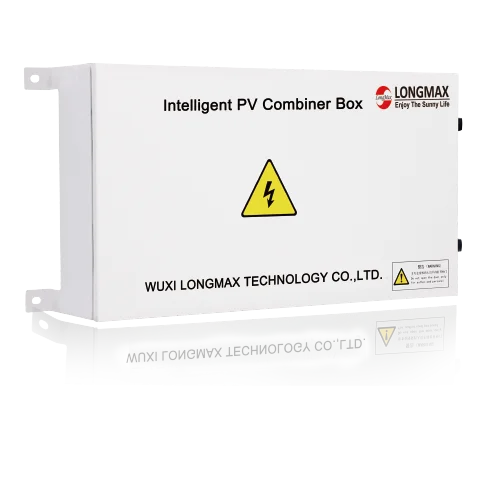

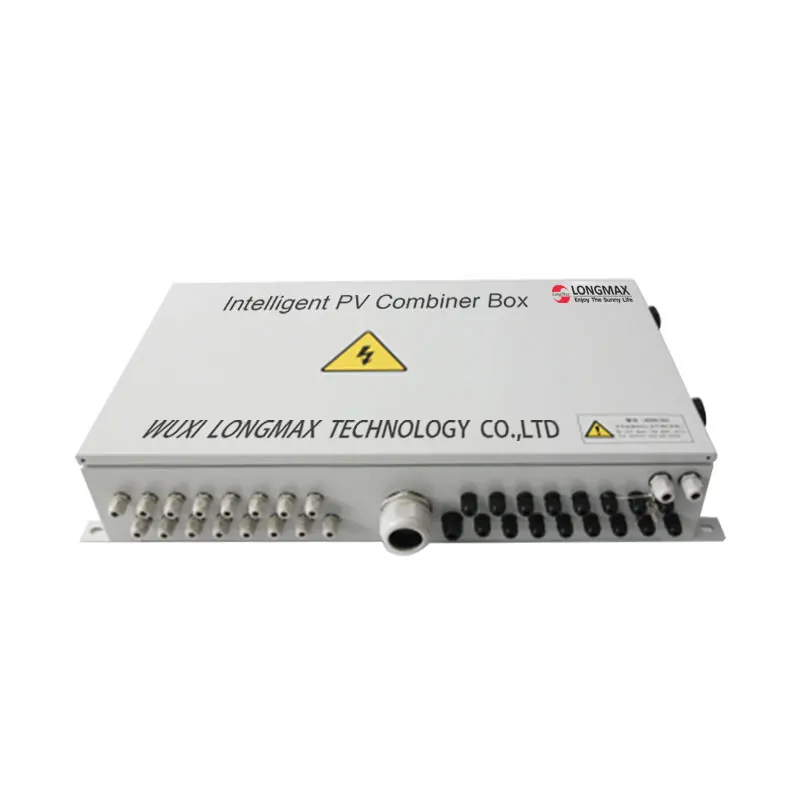

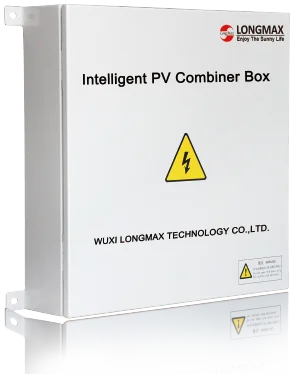

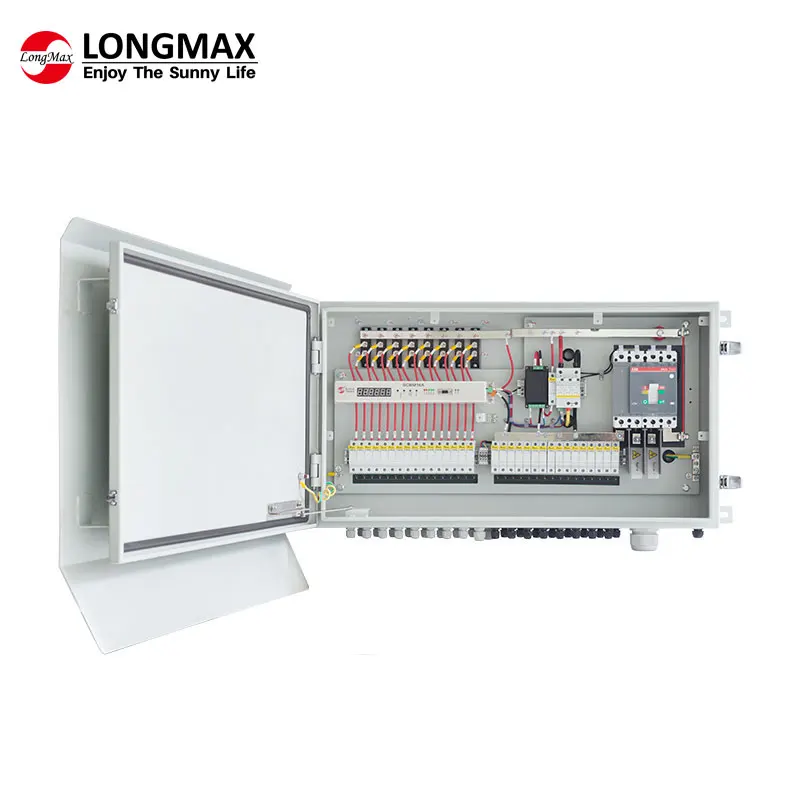

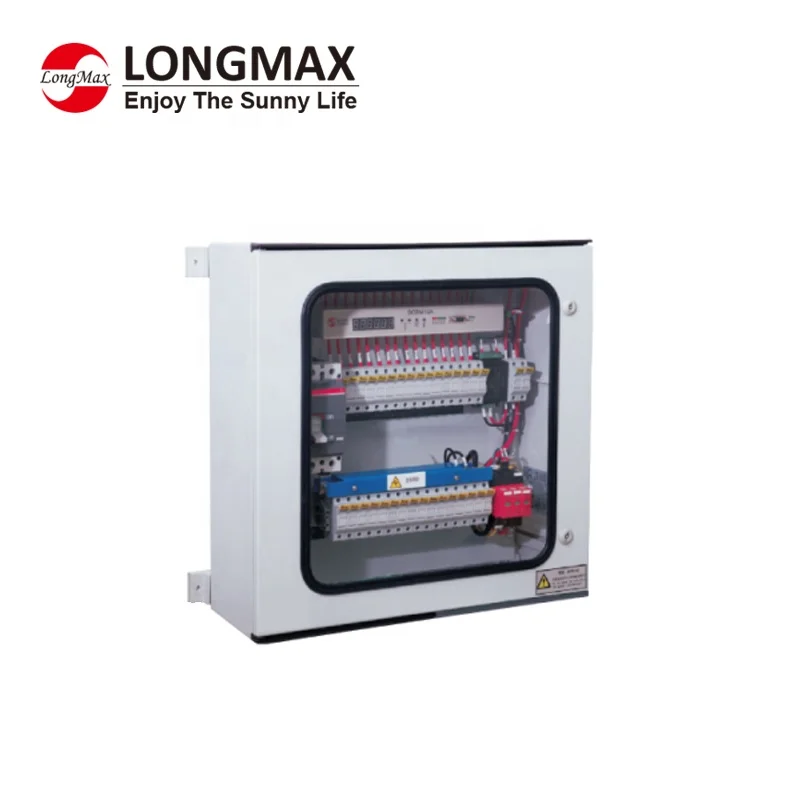

Detailed Images
Production lines
Packing&Shipping
Company Introduction
Wuxi Longmax Technology Co.,Ltd. was founded in April 28, 2002. Stock Name: Longmax Technology, stock code: 830901,who is a wholly owned subsidiary of Wuxi Longmax Technology Co.,Ltd ,Was established in August 15, 2014. Longmax New Energy is mainly engaged in project " Solar life,Happy life".
Longmax covers an area of 12000 square meters, of which the production workshop area is 8000 square meters, and Longmax now have more than 150 employees, over 80% are College degree or above.
Until now, Longmax has a total of more than 70 patents and it passed ISO9001 quality management system, CE, TUV, CQC, CCC and many other quality certifications. Longmax is committed to provide integrated solutions and service for photovoltaic solar application technology. "PV DC combiner box" and "PV AC Combiner Box" are the core products of Longmax, while "PV DC cabinet", "PV grid cabinet", "AC-DC control systems", "solar PV monitoring" are derivative two series product line of Longmax.
Longmax's products were sold to more than 40 countries and regions successfully, such as Germany, Britain, Japan, Romania, Russia, Australia, Egypt, South Africa, Thailand, United Arab Emirates, Indonesia, Philippines, Malaysia, Brazil, Chile, Mozambique, Zimbabwe, Sri Lanka and so on.
Longmax covers an area of 12000 square meters, of which the production workshop area is 8000 square meters, and Longmax now have more than 150 employees, over 80% are College degree or above.
Until now, Longmax has a total of more than 70 patents and it passed ISO9001 quality management system, CE, TUV, CQC, CCC and many other quality certifications. Longmax is committed to provide integrated solutions and service for photovoltaic solar application technology. "PV DC combiner box" and "PV AC Combiner Box" are the core products of Longmax, while "PV DC cabinet", "PV grid cabinet", "AC-DC control systems", "solar PV monitoring" are derivative two series product line of Longmax.
Longmax's products were sold to more than 40 countries and regions successfully, such as Germany, Britain, Japan, Romania, Russia, Australia, Egypt, South Africa, Thailand, United Arab Emirates, Indonesia, Philippines, Malaysia, Brazil, Chile, Mozambique, Zimbabwe, Sri Lanka and so on.
Related Products
Overseas Projects
500MW Project in Dau Tieng, Vietnam
Equipment: Intelligent Combiner Box
Model: 1500V 20 In
Qty.: 2215 Sets
Capacity: 500MW
Completion Time: Dec. 2018
Capacity: 500MW
Completion Time: Dec. 2018
YARRANLEA SOLAR FARM PROJECT
Brisbane, Australia
Brisbane, Australia
Equipment: Intelligent Combiner Box
Model: 1500V 20 In
Model: 1500V 20 In
Qty.: 664 Sets
Capacity: 133 MWp
Completion Time: Dec. 2018
Location: Australia
Capacity: 133 MWp
Completion Time: Dec. 2018
Location: Australia
FAQ
Q: How can I trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
