Цифровой вольтметр постоянного тока измерительный DC0-1000V AMC72-DV/M панель Измеритель Напряжения 4-20mA аналоговым
- Категория: Вольтметры >>>
- Поставщик: Acrel,E-Business,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.34 $* | 0.39 $* |
| Aug-17-2025 | 0.60 $* | 0.39 $* |
| Jul-17-2025 | 0.43 $* | 0.33 $* |
| Jun-17-2025 | 0.79 $* | 0.18 $* |
| May-17-2025 | 0.86 $* | 0.78 $* |
| Apr-17-2025 | 0.22 $* | 0.83 $* |
| Mar-17-2025 | 0.65 $* | 0.2 $* |
| Feb-17-2025 | 0.29 $* | 0.21 $* |
| Jan-17-2025 | 0.25 $* | 0.77 $* |
Характеристики

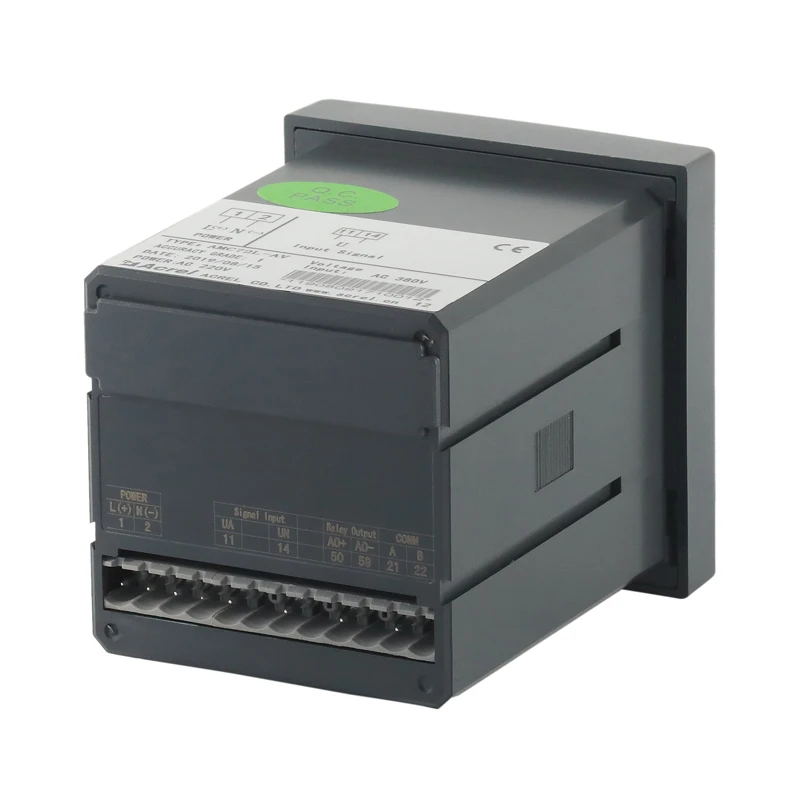

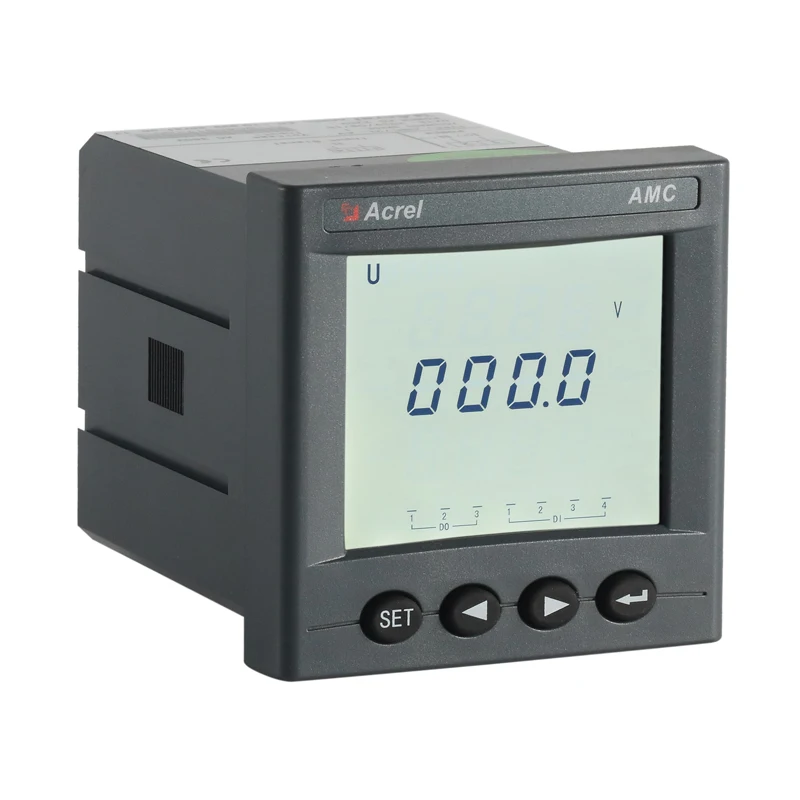

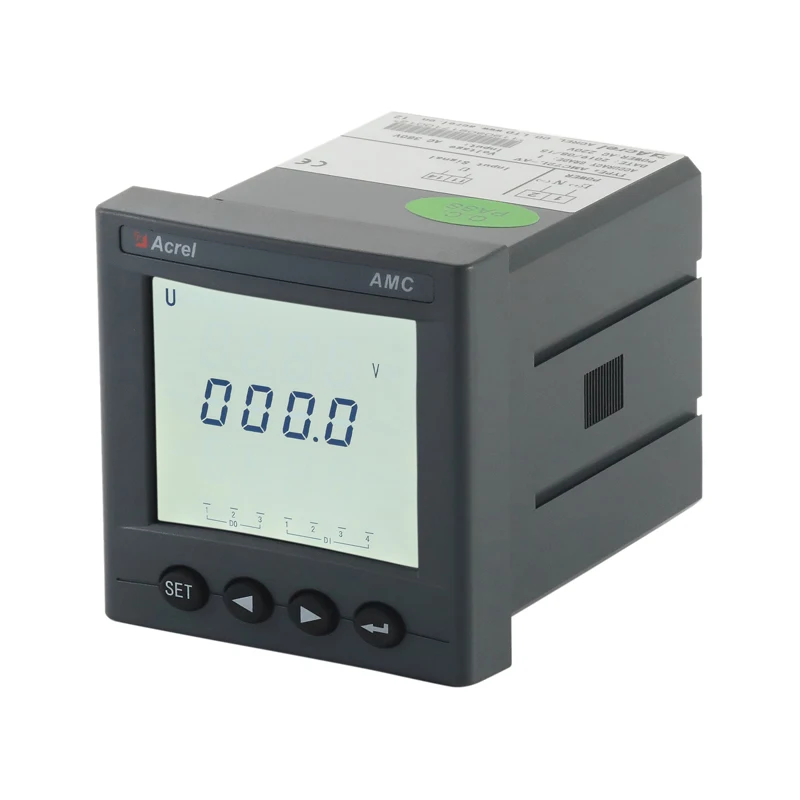

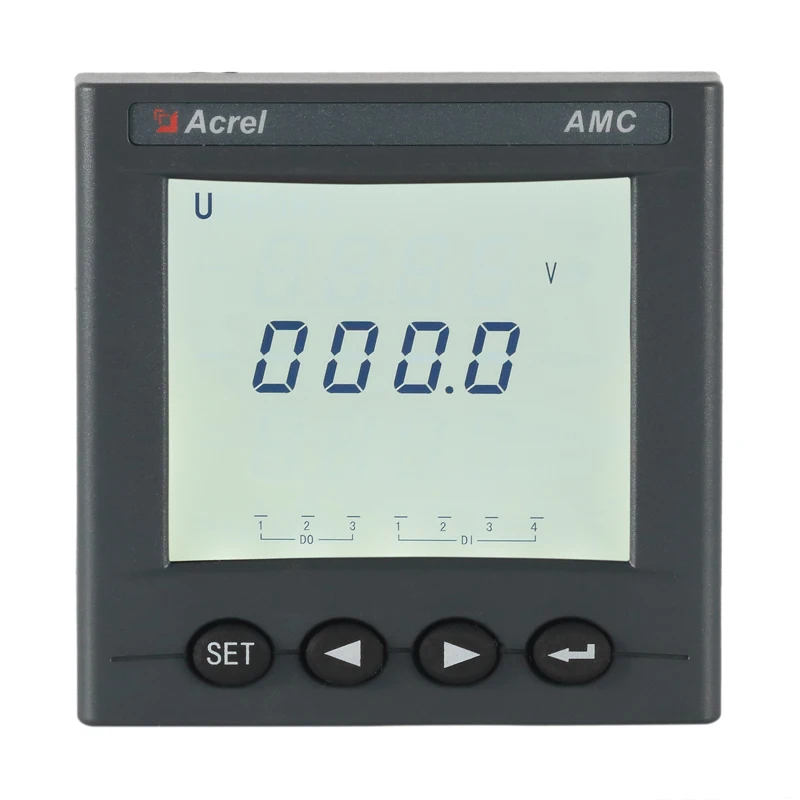

AMC72-DV
Intelligent DC voltage meter | ||
* Economic programmable meter * DC voltage measurement * Accuracy: Class 0.5 * LED display
| ||
INFORMATION
| Characteristic |
| Rated U : Voltage:DC 0-1000V |
| Display: LED display |
| Option function/M: 1 channel 4-20mA analog output |
| Option function/C: RS485(Modbus-RTU) Communication |
| Option function/J: 1 channel alarm output |
| Option function/K: 2DI/2DO Switching |
| LED diaplay |
| Function |
Accuracy Class 0.5 Frequency Range: 45-65Hz Auxiliary power supply AC/DC 85-265V Consumption Voltage:Power consumption: <0.5VA;
|  |
 |
Installation Pannel mounted Dimension(L*W*H) Pannel size(L×W):75*75mm Cutout(L×W):67*67mm Housing(L×W×H):66*66*94.3mm Relay 3A/30VDC,3A/250VAC Humidity ≤93%RH,no condensation |
| Wiring |
| Typical connection |
PARAMETER
