Высокоэффективный 1325 1530 co2 лазерная резка гравировальная машина для МДФ дерева акрила
- Категория: Laser Engraving Machines >>>
- Поставщик: Jinan,Bcamcnc,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5950.79 $* | 6248.81 $* |
| Aug-16-2025 | 5900.52 $* | 6195.1 $* |
| Jul-16-2025 | 4950.29 $* | 5198.34 $* |
| Jun-16-2025 | 5800.34 $* | 6090.36 $* |
| May-16-2025 | 5050.0 $* | 5303.14 $* |
| Apr-16-2025 | 5700.68 $* | 5985.75 $* |
| Mar-16-2025 | 5650.65 $* | 5933.54 $* |
| Feb-16-2025 | 5600.98 $* | 5880.36 $* |
| Jan-16-2025 | 5550.1 $* | 5828.19 $* |
Характеристики
High efficiency 1325 1530 co2 laser cutting engraving machine for MDF Wood acrylic etal
| Introduction |
BCJ1325 laser cutting machine is a multi-function laser process device which combines the functions of drawing, engraving and cutting. It adopts automatic stainless steel crawler platform & large scope, so it can meet the demand of large-format cutting, carving for clothing and other fields. This laser cutting machine not only have all the large scale engraving machines function, but also have mechanical design, capability, and working area perfect improved.
| Technical Parameter: |
Model | Standard Specifications BCJ1325 |
Working area | 1300x900mm |
Laser tube | 80w/100w/130w/150w CO2 Beijing Reci laser tube |
Laser life | 1000 hours |
Max cutting thickness | Different power cut different thickness |
Table | Blade table(option:honeycomb table) |
Transmission Way | Belt transmission(option:ball screw transmission) |
Guide Rail | Import HIWIN Square Guide Rail(PMI guide rail) |
Graphic format support | PLT,DST,DXF,AI,BMP |
Optional | Water chiller |
Up down table | |
rotary |
| Key Feature |
1. Adopting seamless welding and body bending technology, can make sure the machines’ stable and reliable working performance.
2. X,Y axis adopted high precision and high speed Shanghai Fulong belt transmission.
3. Red light positioning system realizes the exact position without laser.
4. Taiwan Hiwin square guide rail, high accuracy and long life time.
5. Adopting high-torque Leadshine stepper motor and drivers.
6. Special “front” and “back” open design suitable for the super-length material process.
7. Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
8. Control panel in English, convenience of operation control.
9. laser machine has the function of re-carving after break point and power failure.
10. Offline/online control system which can not only work without computer, but also connect to U disk, USB communication.
| Application: |

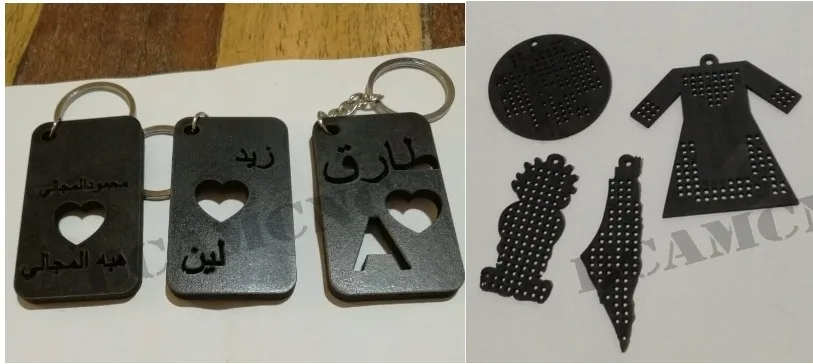

1 Applicable materials: kinds of Acrylic, wood,MDF, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials,etc.
2. Applicable industries:
1),Advertising industry:
Double-colored board carving,Organic glass carving and cutting, label carving, crystal cup carving, Warranty signed carving.
2),Carved gifts and crafts industry:
Wood, Bamboo, Ivory, Bone, Leather, paper.
3),Packing and printing industry:
Rubbery board, Plastic board, Double-layered board, Model cutting board.
4),Leather clothing industry:
Complex characters and pattern carving , Cutting on hypoderm, Synthetic leather ,Man-made leather , Cloth .
5) Production totem industry:
Appliance signs, Anti-fake commodities marking.
6), Architectural model industry:
ABS board cutting, Model carving.
| Would you like to see other models ? Click here |
 |  |
| CO2 Laser machine cutting Metal &Nonmetal | Fiber Laser Cutting Cutting Metal |
| Packaging & Shipping |
1.Standard plywood case, its compressive strength and bearing quality is better.
2.The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.When importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 15 days after received your payment
The advantages of Plywood Case Package:
--Firstly,plywood case,its compressive strength and bearing quality is better,it is the market of choice for the laser machine of high-weight packaging
--Secondly,the board area is big,the soil structure is good,and operational process is simple,So it is better in leakproofness and waterproof.
--Thirdly,when importing,the plywoodcase is with fumigation-free,the procedure is simple.
Our Services
#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#. Every laser machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
#. 18 months guarantee of the whole laser machine.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#. Lifetime maintenance free of charge.
#. We will provide the consumable parts at an agency price when you need replacement.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary
Company Information
BCAMCNC , a professional machinery manufacturing company, with 6000 square meters factory,a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.
State-of-the-Art Products
BCAMCNC comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router,laser engrving machine ,Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., Our wide variety products used in the field of Woodworking, Sign Making, Panel Furniture Production, Jewelry pieces, Packaging etc.,
High quality products with the high production efficiency. All our products are precision engineered to ensure the high standard expected from ourselves. The whole manufacturing process is meticulously and systematically controlled to guarantee the precision and quality.
Customer service excellence
BCAMCNC was established with the most discriminating customers in mind and has proven itself quality-wise by selling our products to over 90 countries worldwide successfully. We have a strong and resourceful sales and technical support teams who are well trained to provide our customer the best possible service.
For better service to our customer, BCAMCNC has already established sales & service branches in Shanghai, Dongguan, Wuhan and also foreign countries, such as Armenia, UK, Germany, Dubai.
Bring ideas to you
High quality products with the high production efficiency. All our products are precision engineered to ensure the high standard expected from ourselves. The whole manufacturing process is meticulously and systematically controlled to guarantee the precision and quality.
Q1. Delivery time of this BCJ1325 laser cutting machine ?
co2 laser cutting machine delivery time is 7 days, So we suggestion client pay 100% money, because we can can arrange machine delivery immediately.
Q2. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. This is the first time to use , is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3).We have our own after-sales service team,24 hours technical support by calling, video and email.
