Сервомотор 400 Вт с тормозом 60ST-M01330 и сервоприводом в комплекте 3000 кВт Сервосистема торможения для оси Z В переменного тока нм об/мин
- Категория: Двигатель переменного тока >>>
- Поставщик: Shenzhen,Xinlichuan,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 273.24 $* | 278.51 $* |
| Jul-17-2025 | 221.33 $* | 225.92 $* |
| Jun-17-2025 | 269.98 $* | 274.31 $* |
| May-17-2025 | 267.15 $* | 272.64 $* |
| Apr-17-2025 | 213.20 $* | 217.77 $* |
| Mar-17-2025 | 262.45 $* | 267.12 $* |
| Feb-17-2025 | 260.63 $* | 265.57 $* |
| Jan-17-2025 | 258.89 $* | 263.75 $* |
Характеристики

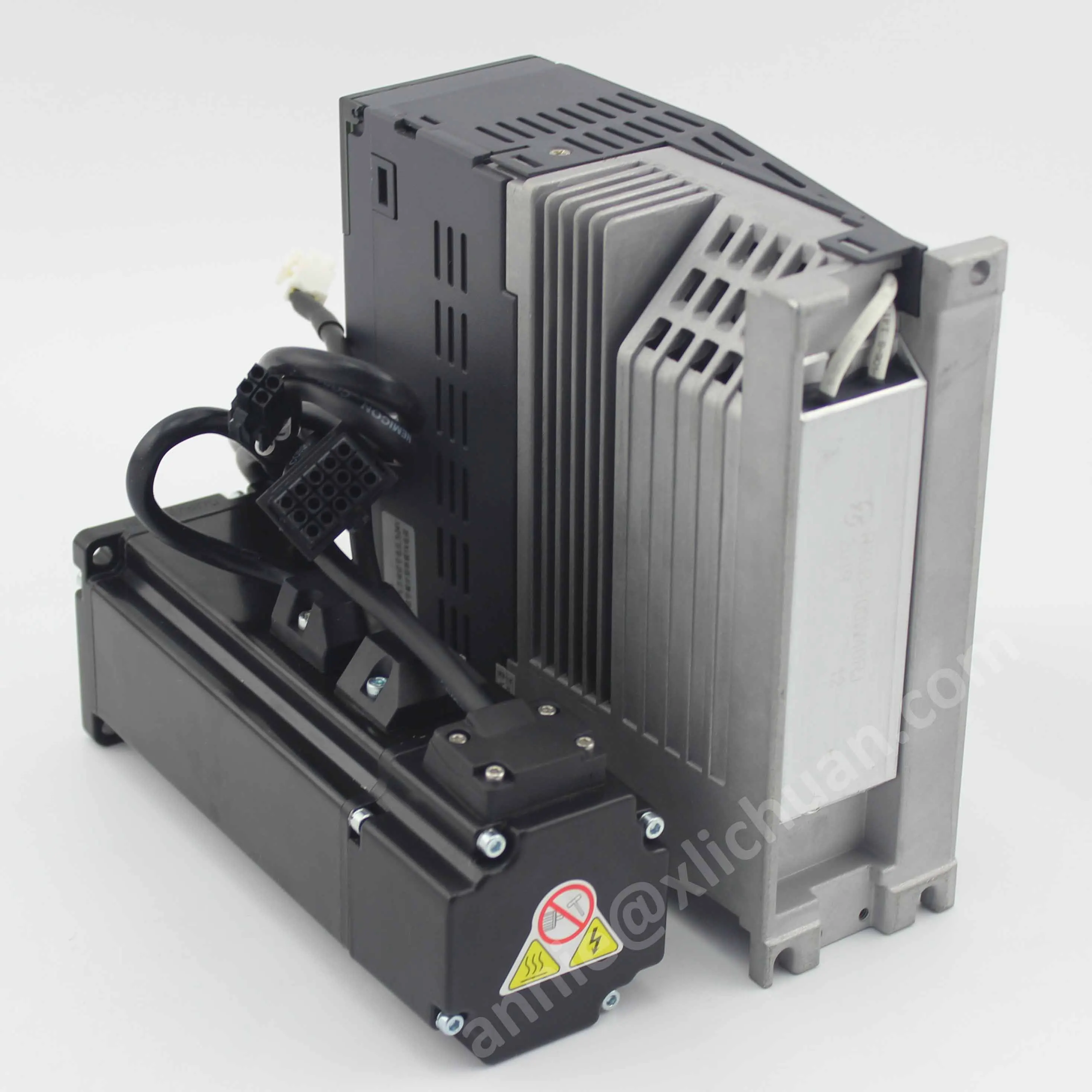

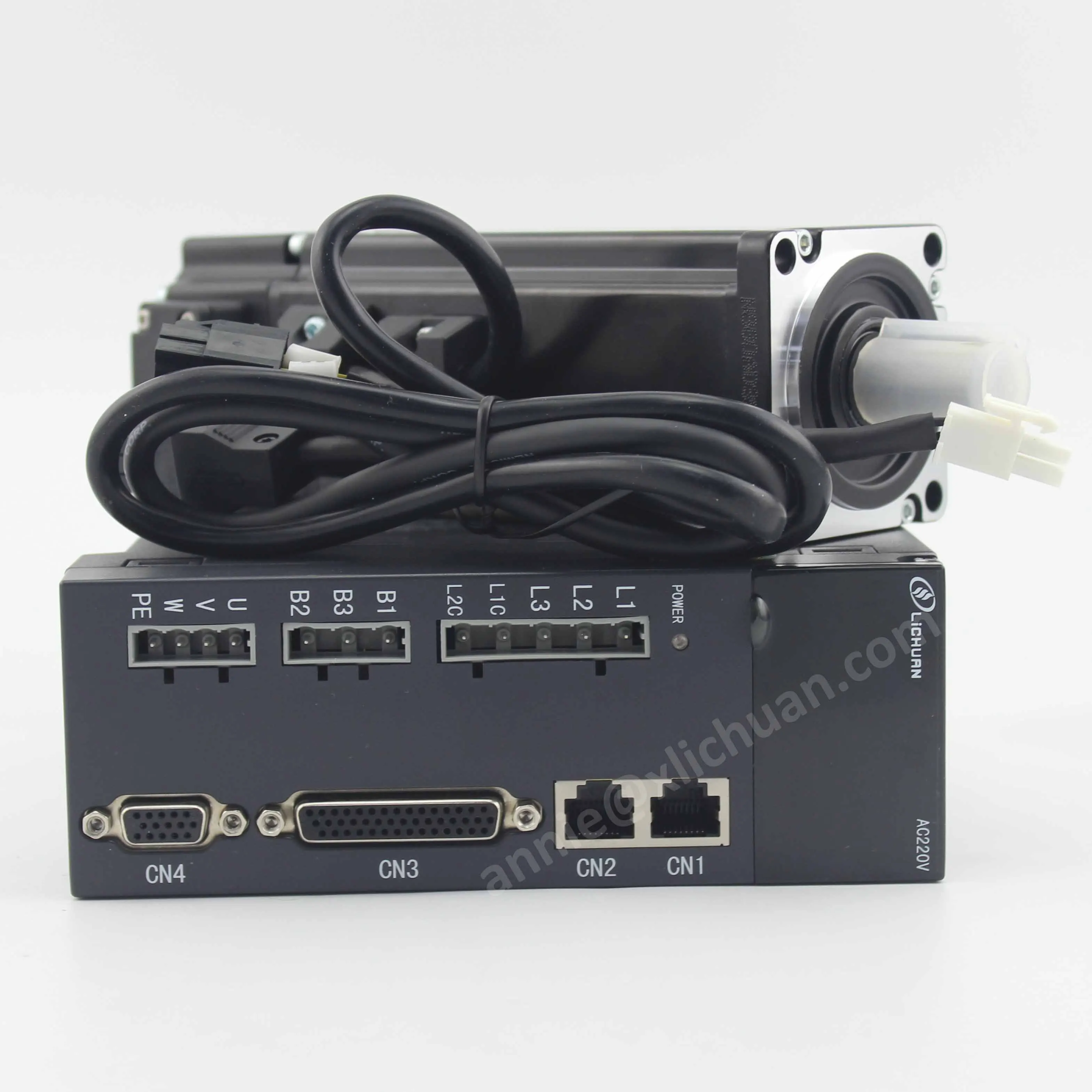

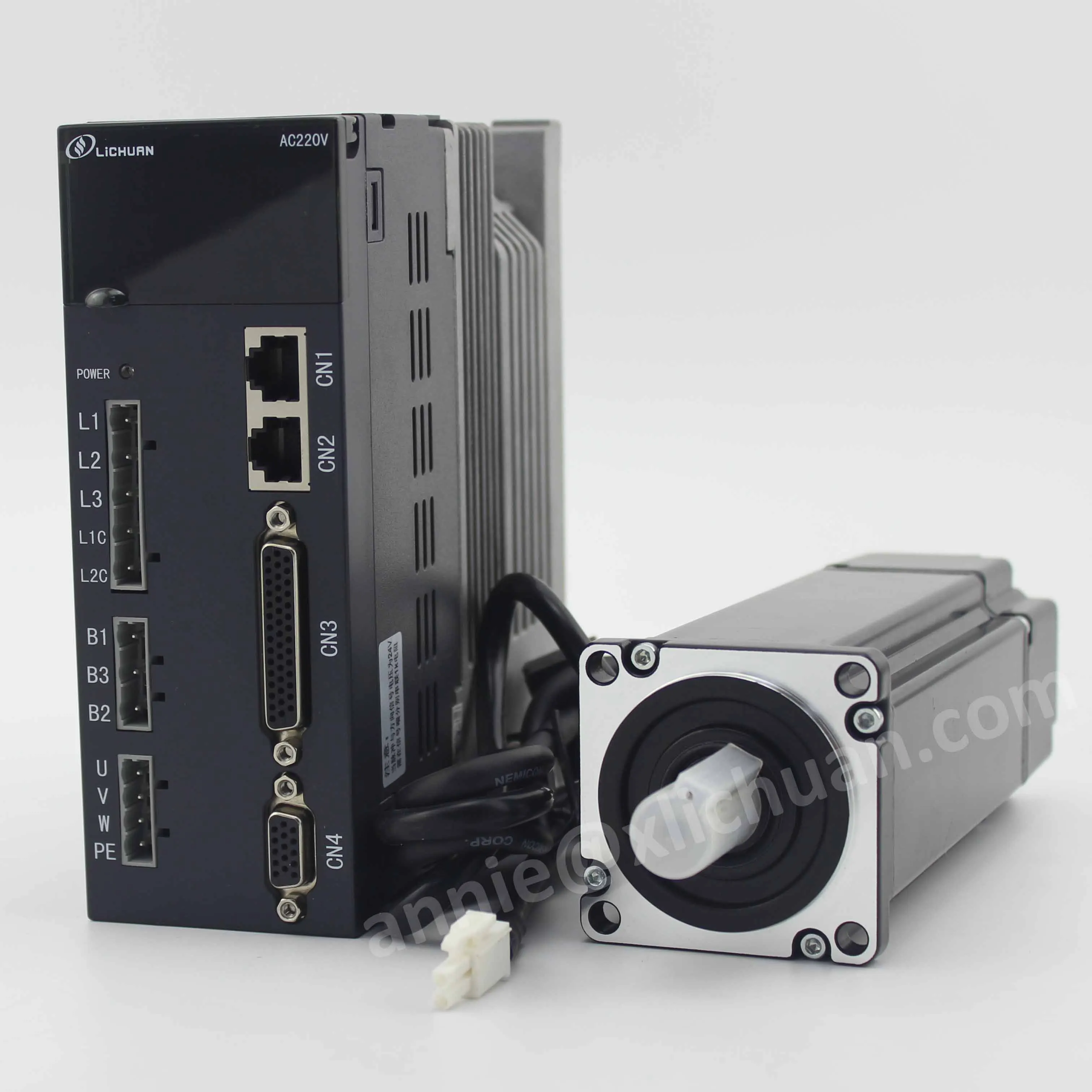

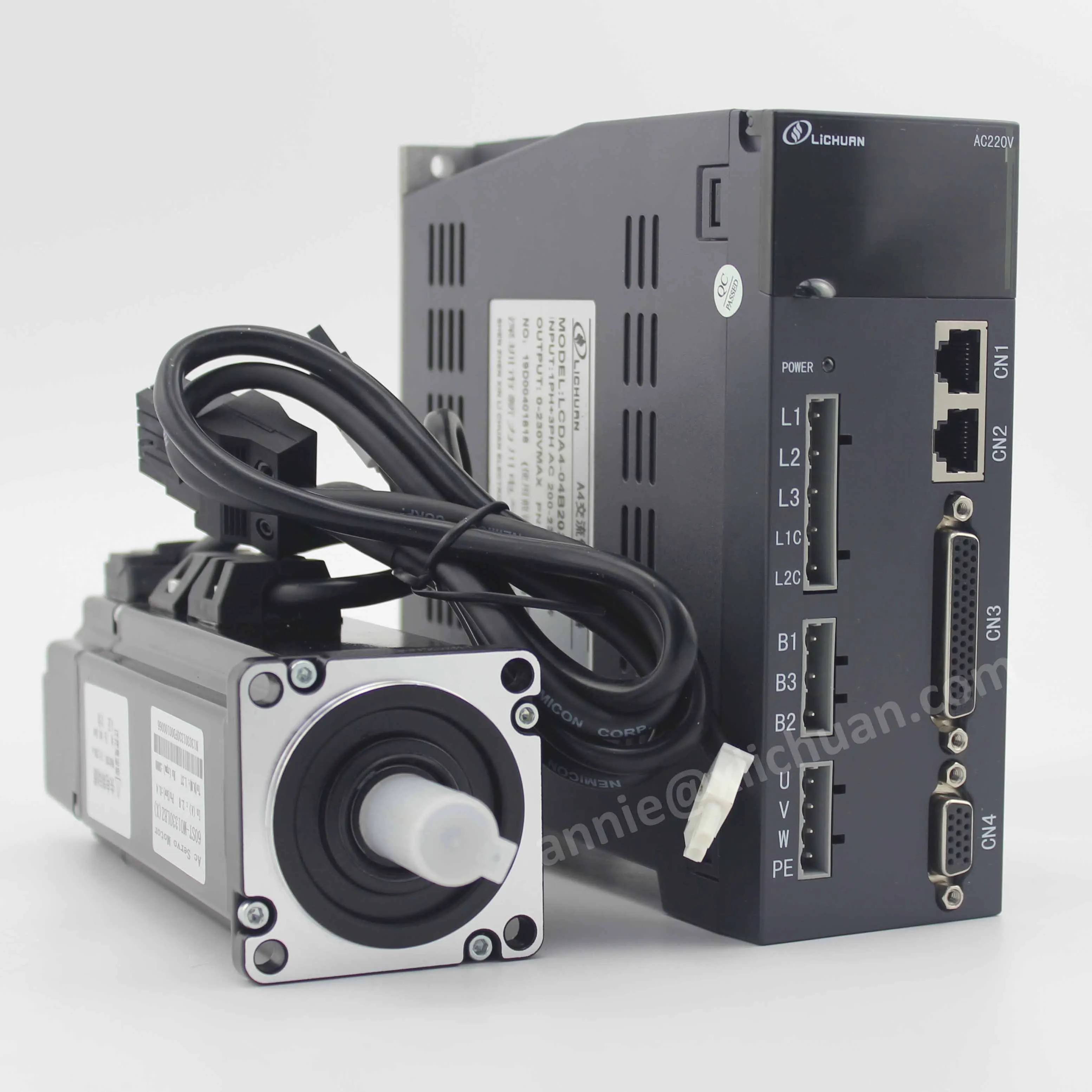

Lichuan servo motor 400W with brake 60ST-M01330 and servo driver kit 0.4kw servo motor braking for Z axis AC220V 1.27Nm 3000rpm ac servo
- Welcome to Lichuan Alibaba store!
- 1. We are factory direct sale in Shenzhen China, spepcial for Stepper and AC servo motor with driver for more then 10 years.
- 2. If you need to pruchase our products in bulk or you'd like to be our dealer, please kindly contact annie at xlichuan . com , skype: annie_5543 whatsapp: +86 13825233901
- 3. If more datasheet is needed, please visit our offical website
Packaging List
| No. | Product | Specifications | Qty |
| 1 | Lichuan 400W AC Servo Motor with brake | LCMT04L02ZB-60M01330B | 1 |
| 2 | Lichuan 400W Servo Driver | LCDA4-04B202-LB632 | 1 |
| 3 | Power Cable | 3m | 1 |
| 4 | Encoder Cable | 3m | 1 |
| 5 | Servo Driver Instruction Book | Standard | 1 |
The cable can be customized, please contact us if you need longer cable.
400W 60ST-M01330 Brake Motor Parameters Overviews
| Motor Model | LCMT04L02ZB-60M01330B | Brand | Lichuan |
| Frame Size | 60 mm * 60 mm | Motor Length | 189 mm with brake |
| Shaft Diameter | 14mm | Driving Voltage | Single / 220V |
| Rated Torque | 1.27 N.M | Rated Speed | 3000 RPM |
| Positioning Accuracy | a wire (0.01 mm) | Edcoder | Tamagawa 2500ppr |
| Weight | 2.33 kg | Matched Driver | Lichuan 400W Servo Driver |
Motor Mechanical Dimensions
400W 60ST-M01330 AC Servo Motor Specifications
400W Servo Driver Main Features
1. Three control mode support, Position control, speed control, torque control
2. With Pulse + direction, CW/CCW, AB pulse three pulse modes;
3. Support pulse feedback frequency division function;
4. ±10V analog voltage control;
5. The origin search function;
6. 24V pulse input common terminal and the 24V collector output Z signal;
7. MODBUS bus control;
8. 2500 line incremental encoder, brand new Japan encoder.
9. Brand new IGBT mode, stable and durable.
10. OEM service and Neutral Packing available.
11. Application in high precision control machine, robot control, CNC machine,ect.
12. with 2500 line incremental encoder.
13. Articles made to order: drag, oil seal
14. Axis: Circular shaft/ keyway
Lichuan Servo Motor Naming Rules
LCMT - 02 L 02 N B - 60 M006 30 B
- LCMT--- Product information
- 02-------- 200W ( 04---400W / 07---750W / 10---1KW )
- L---------- Motor inertia ( L---low / M---middle )
- 02-------- Sensing form ( 01---line saving encoder 2500 02---15 type encoder 2500 )
- N---------- Without brake ( Z---with brake )
- B--------- only keyway no oil seal ( A---only oil seal no keyway C---oil seal and keyway )
- 60-------- Frame size
- M006--- Torque
- 30-------- Speed
- B--------- B series ( A--- A series / C--- C series )
Lichuan A4 series Servo Driver Naming Rules
Lichuan Servo Motor Driver Wiring Diagram
Lichuan Servo Driver Drawing
Shipping
1. For Europe customers,generanlly send by Aliexpress standard shipping,DHL,Fedex,TNT.
Shipping not include the custom tax. If you'd like a free tax shipment, please contact us
2. Russian customers please tell us your full name;
Shipping cost is cheap,generanlly send by CDEK and Delin,Pony,less than 25 days delivery, it's door to door service, no tax fee and the forwarder will responsible for the custom clearance.
3. Brazil, Argentina, Peru customers please give us your tax number after payment.
Lichuan company information
