Щелочная батарея PKCELL AA AM3, 15 в, AA, LR6, № 5, 1,5 в
US $0.09-$0.44
18650 21700 26650 32650 производственная линия лабораторная сборка цилиндрических элементов для производства литий-ионных
- Категория: Аккумуляторы >>>
- Поставщик: Xiamen,Lith,Machine,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.65 $* | 0.0 $* |
| Aug-15-2025 | 0.28 $* | 0.19 $* |
| Jul-15-2025 | 0.78 $* | 0.80 $* |
| Jun-15-2025 | 0.29 $* | 0.26 $* |
| May-15-2025 | 0.67 $* | 0.32 $* |
| Apr-15-2025 | 0.14 $* | 0.74 $* |
| Mar-15-2025 | 0.90 $* | 0.89 $* |
| Feb-15-2025 | 0.35 $* | 0.65 $* |
| Jan-15-2025 | 0.37 $* | 0.91 $* |
Характеристики
Product Description
18650 21700 26650 32650 Production Line Cylindrical Cell Lab Assembly Making Machine for Li ion Battery Making Research
Features

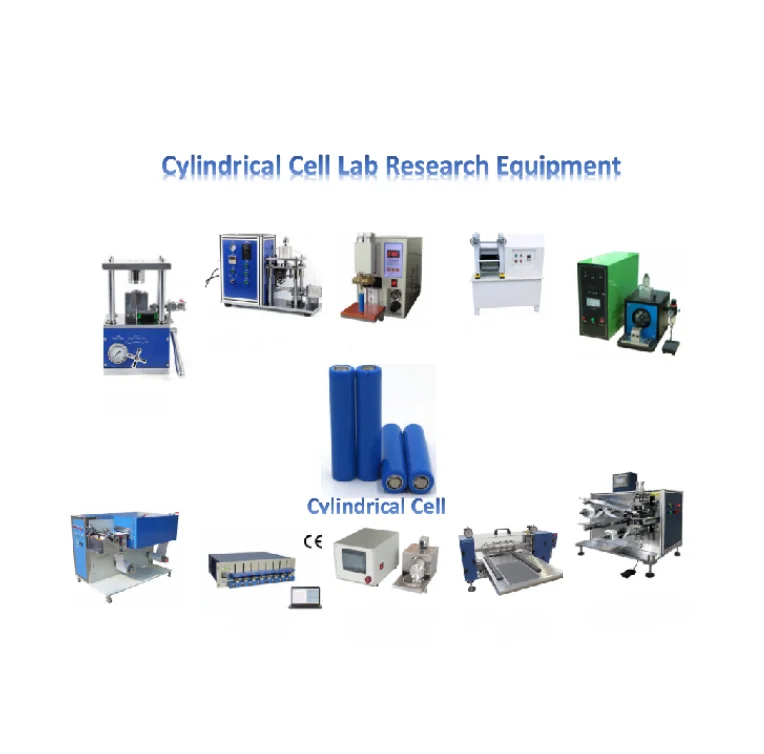

1.Cylindrical lab battery equipment is suitable for all kinds of cylindrical cells.
2. Lab scale.
3. Economic and good quality.

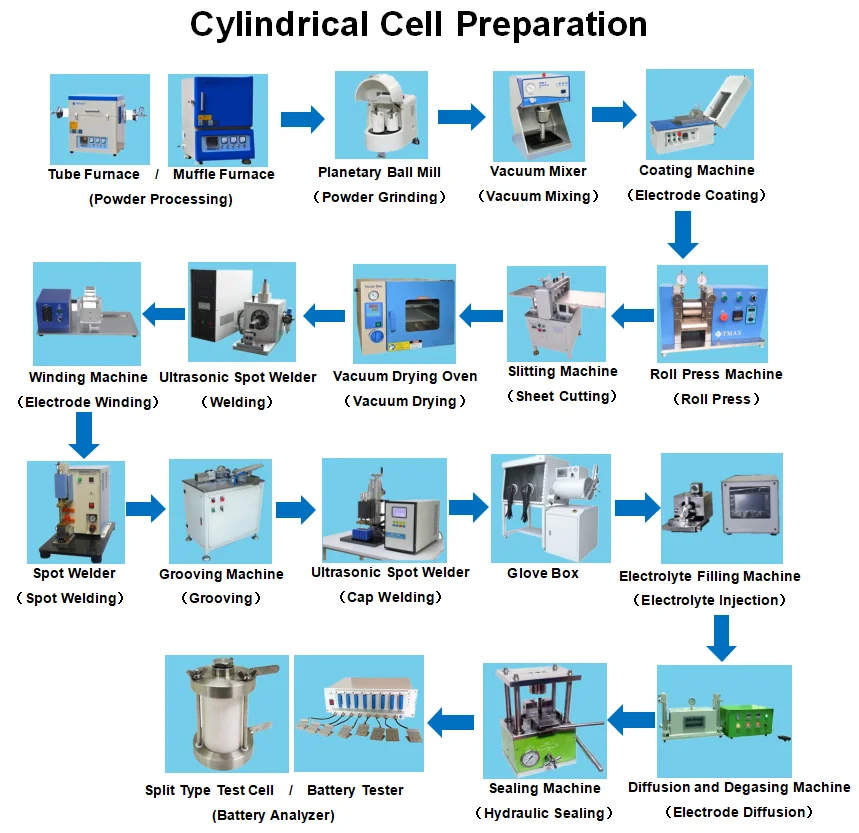

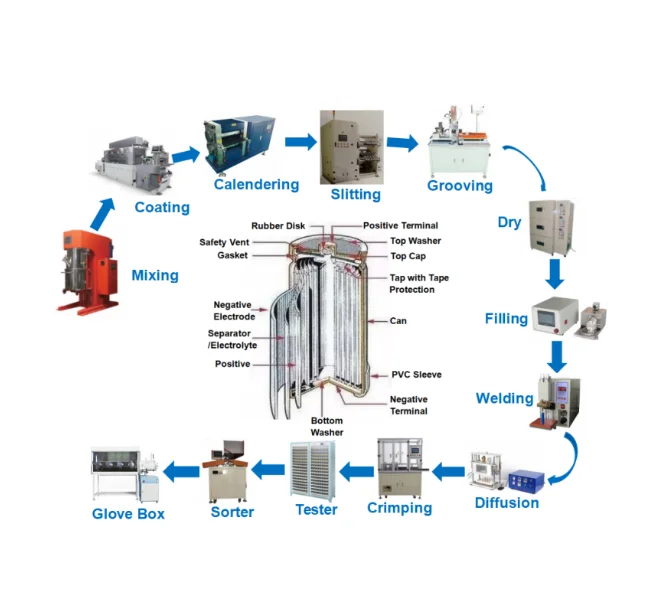

Power Processing→Power Grinding→Vacuum Mixing→Electrode Coating→Roll Press→Sheet Cutting→Vacuum Drying→Ultrasonic Welding→Electrode Winding→Spot Welding→Grooving→Glove Box→Electrolyte Injection→Electrode Diffusion→Hydraulic Sealing→Battery Analyzer
Specifications
Process | Item | Product Name | Description | Link |
Power Processing
| Furnace
| Muffle Furnace | Temerature Range:1200C-1800C | |
Tube Furnace | Temerature Range:1200C-1800C 1. Single Zone 2. Double-Zone 3. Three-Zone Vertical | |||
Power Grinding
| Ball Mill
| Planetary Ball Mill
| Vertical Planetary Ball Mill | |
Vacuum Mixing
| Mixer
| Small Lab Mixer
| Small Slurry Vacuum Mixer With Two Containers (150 & 500ml) | |
Compact Dual-Shaft Planetary Vacuum Mixer Machine With A 500 ML Container | ||||
Electrode Coating | Electrode Coating Machine | Electric Heat Film Coating Machine with Dryer | Optional Coating Size Heat Film Coating Machine | |

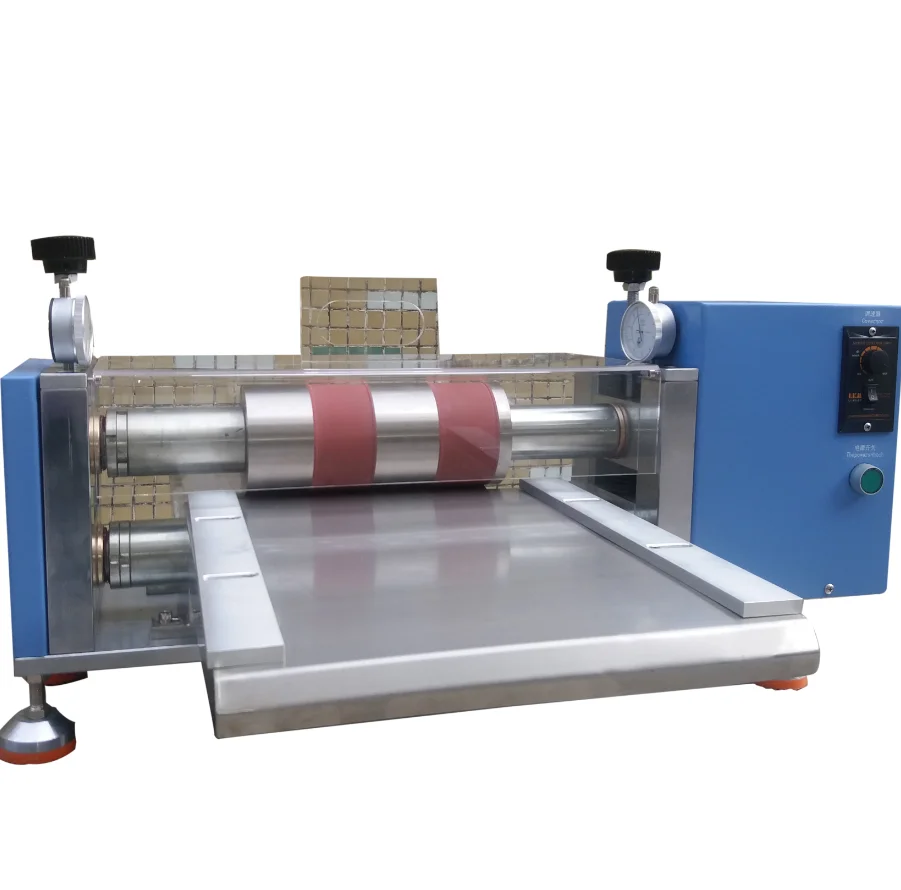

Roll press | Electrode Rolling Press Machine | Heat Roll Press Machine For Lithium Battery Production | Roller Size: | |
Sheet Cutting | Slitting Machine | Battery Electrode Roll Slitting Machine | Slitting width: 20-500mm | |
Vacuum Drying
| Dying Machine
| 100-400°C Convection Drying Oven With Digital Temperature Controller | Temperature range:100-400℃ | |
25L Digital Vacuum Ovens (12x12x11" ) With High Temperature Controller & Inner Chamber | Temperature range:RT+10~250 C | |||
Ultrasonic Welding | Ultrasonic Spot Welder | Al Tab Ni Tag Ultrasonic Welding Machine | 2000W, 40kHz, max.40 Layers | |
Electrode Winding | Winding Machine | Semi-Auto Winding Machine | Suitable battery size:Less than Φ35*L90mm, or according to your requirement |
|
Spot Welding
| Spot Welding Machine

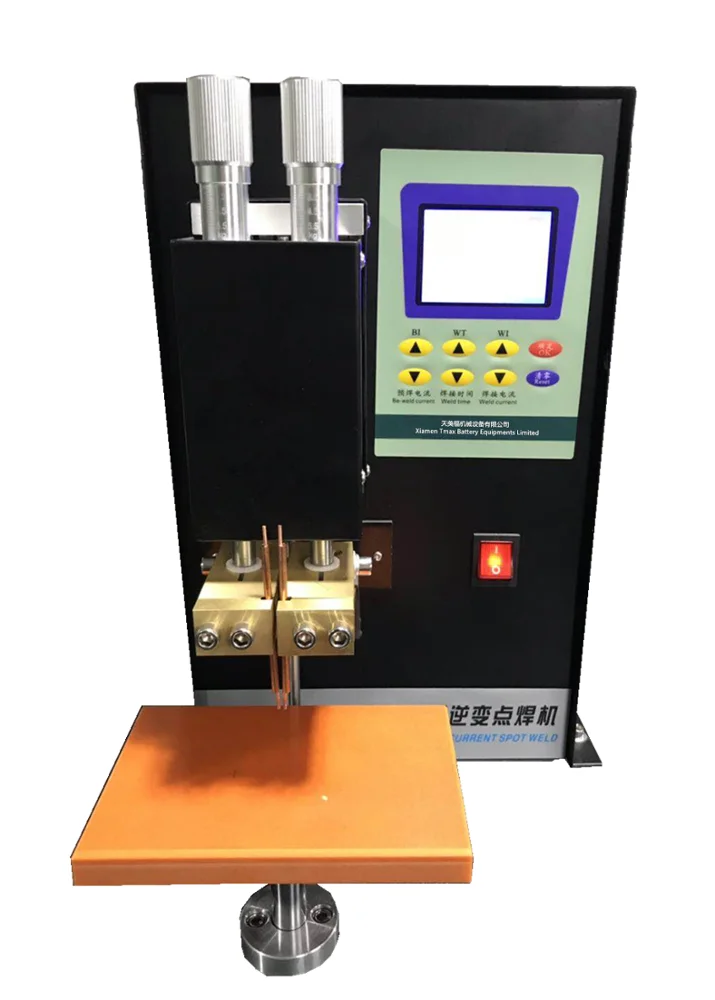

| Precise Micro Spot Welder | Welding Thickness: 0.03 - 0.25mm | |
Glove Box | Vacuum Glove Box | Single-Side(1200×750mm) Vacuum Glove Box With H2O & O2 Purification System | Environment of Box inside: H2O <1 ppm (20°C/68 ℉, 1 atm) |
|
Electrolyte Injection
| Electrolyte Filling Machine
| Laboratory Small Electrolyte Filling Machine For Li-Ion Battery | Injecting range: 0-50ml | |
Cylinder Cell Electrolyte Filling Pump System With Electronic Control Box | Speed: 1-800 rpm |
| ||
Electrode Diffusion | Electrode Diffusion Machine | Electrolyte Diffusion & Degassing Chamber | Product Dimensions: | |
Hydraulic Sealing | Hydraulic Sealing Machine | Hydraulic Sealing Machine For Cylindrical Case | Crimping Dies: Six standard die selectable: CR123 /18650 / 26650 / 32650 / 50100 / AA /AAA |
|
Battery Analysis | Battery Tester | 5V6A 8 Channel Lithium Ion Battery Tester Equipment For Experiment | Current: Range: 12mA – 6000mA |
Certifications
Company Information
Cooperative Partners
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
Packaging & Shipping
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
