77 ГГц радиолокационный датчик дальнего действия для автоматического

Описание и отзывы

Трекер стоимости

Характеристики

77GHz 250 meters Long Radar for Automotive Forward Collison Warning with ADAS and AEB functions.



When the vehicle is running in front of a sudden obstacle and other emergencies, the human response time is about 660 milliseconds, while the radar collision avoidance system response time is less than 50 milliseconds, radar is 13 times faster than people! Radar is an intelligent sensor to prevent vehicle from collision. System with radar technology can automatically detect obstacles and avoid collision of vehicles, pedestrians by alarming or braking, making the driving safety from "passive" to "active".





Radar features:

*Work in 77GHz-ISM-Band

*Long range detection 250 meters

*Accurately measure the direction, range, velocity and angle of stationary moving targets

*Protection class IP6k 9k

*Hige detection rate



Specification:



Measuring performance                                    to natural targets (non-reflector targets)
Distance range		0.20 ...250 m far range, 0.20...70m/100m@0…±45° and 0.20…20m@±60° near range
Resolution distance measuring	point targets, no tracking	1.79 m far range, 0.39 m (0.20m@standstill) near range - ability to separate targets and objects 1.5…2 x  resolution
Accuracy distance measuring	point targets, no tracking	±0.40 m far range, ±0.10 m (±0.05m@standstill) near range
Azimuth angle augmentation	(field of view FoV)	-9.0°...+9.0° far field, -60°...+60° near range
Elevation angle augmentation	(field of view FoV)	14° far range, 20° near range at 6 dBm two way
Azimuth beam width (3 dB)	6 dB values 1.4 x large	2.2° far range, 4.4°@0° / 6.2°@±45° / 17°@±60° near range
Elevation beam width	6 dB two way	14° far range, 20° near range
Resolution azimuth angle	point targets, no tracking	1.6° far range, 3.2°@0° / 4.5°@±45° / 12.3°@±60° near - ability to separate targets and objects 1.5…2 x resolution
Accuracy azimuth angle	point targets, no tracking	±0.1° far range, ±0.3°@0°/ ±1°@±45°/ ±5°@±60°near range
Velocity range		-400 km/h...+200 km/h (- leaving objects... +approximation)
Velocity resolution	target separation ability	0.37 km/h far field, 0.43 km/h near range
Velocity accuracy	point targets	±0.1 km/h
Sensitivity (min. RCS@x m)	-6dB	10m2@250m far range, 1m2@70m & 0°..±45° - 1m2@10m & ±60° near range
Cycle time		app. 60 ms near and far measurement
Antenna channels / -principle	planar	4TX/2x6RX = 24 channels = 2TX/6RX far - 2TX/6RX near / Digital Beam Forming
Operation Conditions
Radar operating frequency band	acc. ETSI & FCC	76…77GHz
Transmission capacity	average / peak EIRP	<14.1 dBm@77GHz / <35.1 dBm – sweep bandwith 500 MHz
Mains power supply	at 12 V DC / 24 V DC	+8,0 V...32 V DC
Power consumption	at 12 V DC / 10 A fuse	6.6 W / 550 mA typ. and 12 W / 1.0 A @max. peak power
Load dump protection internal		disconnection >60 V and re-start returning to <60 V
Operating-/ storage temperature		-40°C...+85°C / -40°C...+90°C
Life time	acc. LV124 part 2 - v1.3	10000 h or 10 years (for passenger cars)
Shock	mechanical	500 m/s2@6 ms half-sine (10 x shock each in +/-X/Y/Z direction)
Vibration
Interface
Interface		1xCAN- High speed 500kbit/s
Cover

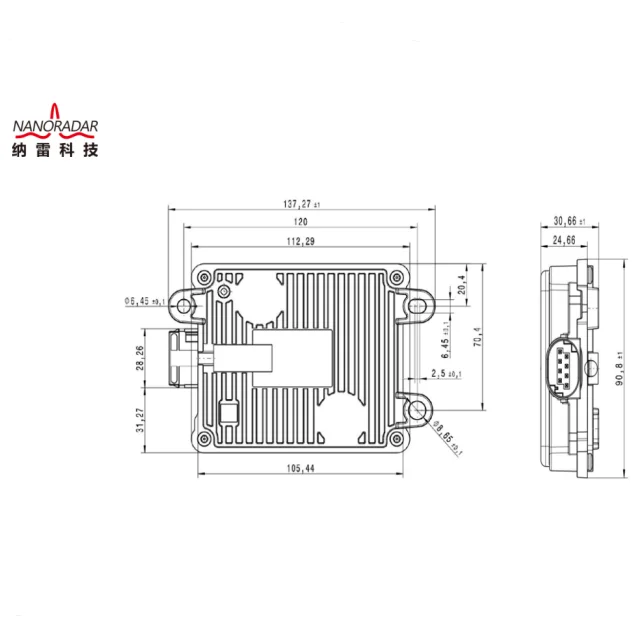

Dimension	W*L*H	140*70*35mm
Weight		200g
Material	front/back	PBT+GF30 for front shell,Dia casting aluminum for back shell.



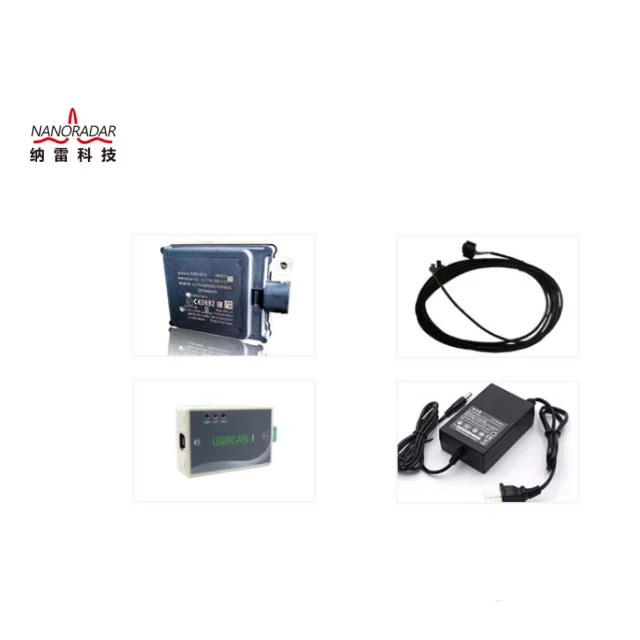

Radar description:

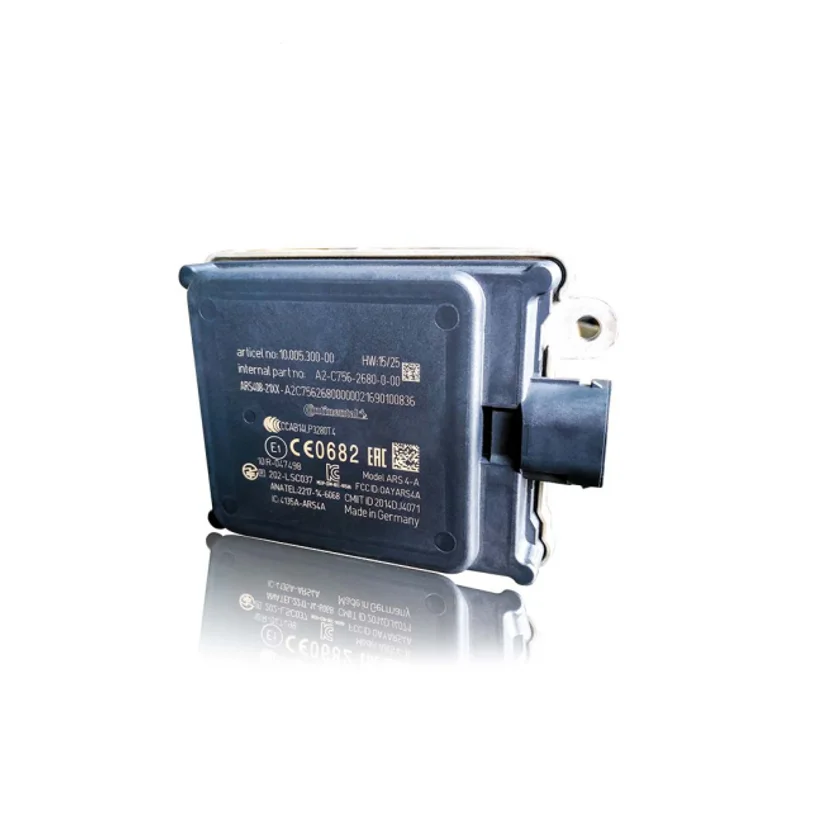

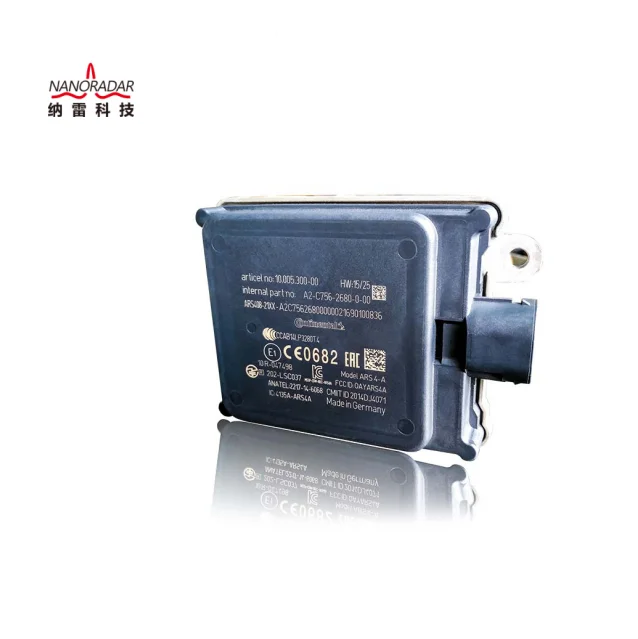

The ARS 408 are 77 GHz long range radar sensors that have been specially designed by A.D.C. GmbH for deployment in automotive applications. Its purpose is the contactfree measurement of distance, speed and position by using digital formed beams with a F.o.V. (Field of View) of up to ±45° in near range for ARS
408 and up to ±9° in far range for ARS 408. The ARS 408 are typically mounted behind a secondary plastic surface (radome).

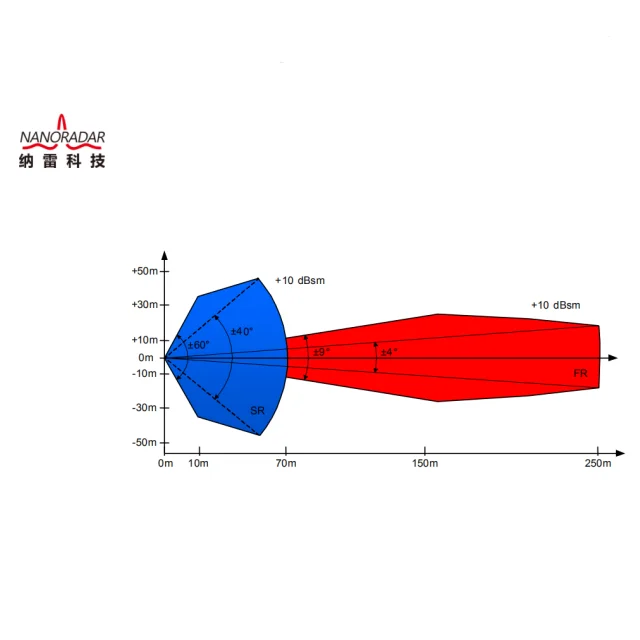

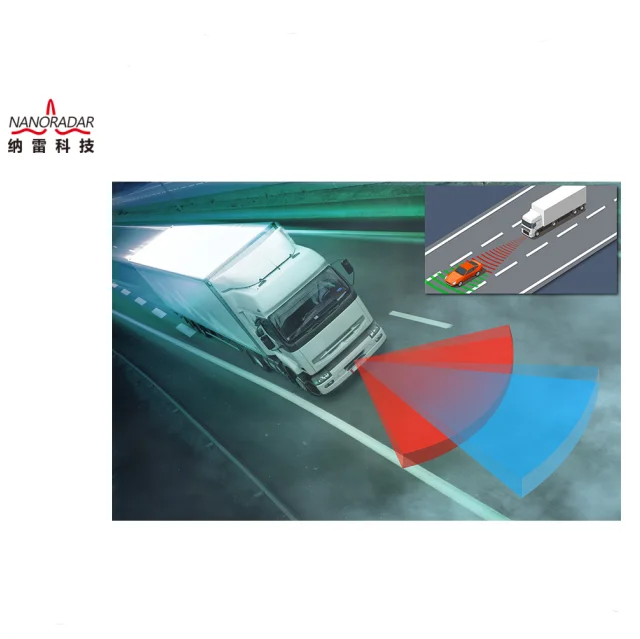

RADAR FOV picture:



ARS408 77GHz Radar for Automotive Front Collision Warning and ADAS Accurate, Effective, Safe





The ARS 408 is a 77 GHz radar sensor with digital beam-forming scanning antenna which offers two independent scans for far and short range.
ARS 408 radar systems provides following features:
• Simultaneous detection of multiple stationary and moving objects with relative speed of

-400 to 200 km/h
• Determination of advanced object attributes like RCS, geometry and orientation (RCS = Radar Cross Section – value for reflectivity)
• Classification of moving objects as vehicle, motorbike, bicycle or pedestrian
• Dual scan provides detections in far range (up to 170 resp. 250 m) and extended field of view (FoV) in short range with high range resolution
• Configurable output of up to 250 raw detections (untracked clusters) or 100 tracked objects (tracks) via CAN bus
• Optional filtering and sorting of object list based on object attributes
• Collision warnings with up to eight regions of interest that can be defined via CAN bus
• Usage both on stationary and moving platform with optional input of sensor speed and yaw rate
• Scalable family approach with different control interface options
• Internal processing unit for additional software functionality on customer request
• Sensors designed to host sensor fusion (RAM, ROM, runtime) with other sensors (e.g. camera)
• Reduced cost and size to 3rd generation radar sensor ARS 30X
• Higher level of integration
• No moving parts



Installation cases on bus for auto driving, multiple sensors fusion

Recommend products







Affordable K band surveillance           24GHz radar for proximity warning               77GHz radar sensor for

radar for perimeter protection             system on heavy duty equipment             auto front colliosn warning





 Doppler indoor and outdoor                   Radar video surveillance                          24GHz microwave radar

motion detection radar sensor           system for ground surveillance                   for parking access control
