Характеристики

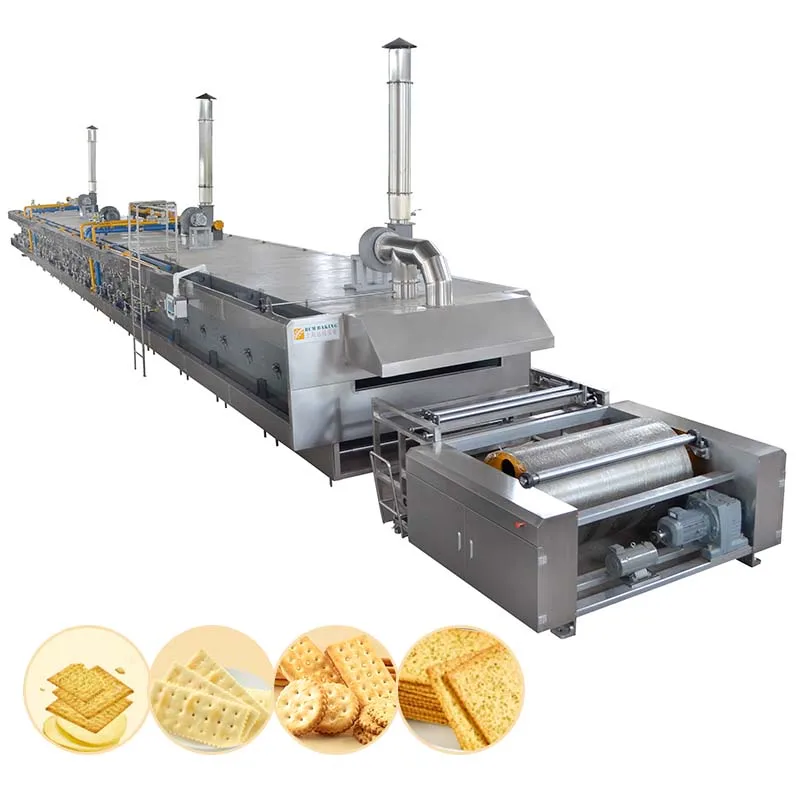

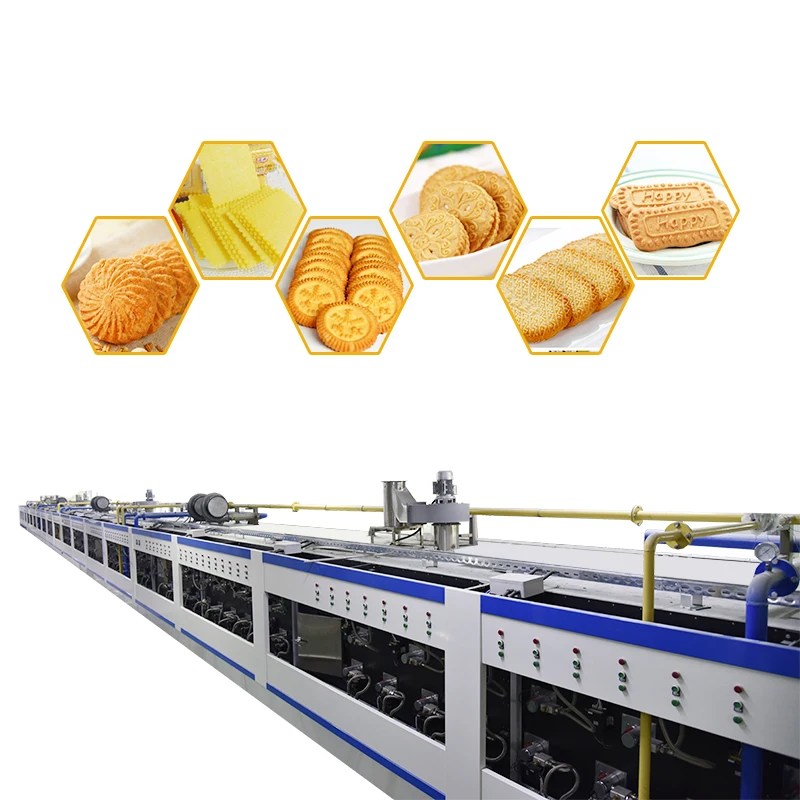

Full Automatic biscuit Production Line
The best choice for making biscuits and cookies
Production Introduction
Biscuit can be grouped into hard biscuit,cookie biscuit,according to the formula,process,and different forming method,Hard biscuit production line is generally composed of a feeding machine,a set of dough roller,through the rolling and dough sheeting ,then through the roller cutting machine ,rest material recycling device,inlet oven machine can be the whole forming process.
Automatic cookie/biscuit line thumbnail
Detailed product analysis
Vertical Dough Mixer
Function: It is equiped with separate tub that can serve as ferment tub.It has big volumn of dough storage and high production capacity.This machine is applicable for mixing both hard and soft biscuit dough.It is especially good for making soda biscuit
dough that requires fermentation.
dough that requires fermentation.
Elevator Series
Function: The dough feeding and cutting machine is used for cutting the dough into small pieces and sending them to the feeding machine (overlapping machine,three roll sheeter, rotary moulder etc.).
Roller Sheeting And Cutting Machine
(For Hard Biscuit Forming )
Function: Put the mixed dough into the machine,the dough will be one time formed into biscuit shape via the 3 guage rollers and
the roller cutter,then convey into the oven for the final baked middle grade or high grade biscuit or thin biscuit
the roller cutter,then convey into the oven for the final baked middle grade or high grade biscuit or thin biscuit
Rotary Moulder
(for soft biscuit forming)
Function:put the stirred flour powder into the machine, it is shapped at one time into unripe biscuit and finally all kina of
middle and high grade biscuits at baked boxes through rotary moulder.
middle and high grade biscuits at baked boxes through rotary moulder.
Sugar/Salt Sprinking Machine
Function：According to the requirements of different consumers,the surface of shaped unripe biscuit is equally scattered with
sugar/salt or sesame to improve the quality of biscuit.
sugar/salt or sesame to improve the quality of biscuit.
Front And Back Transmission For Oven Belt
Function: Driving convey.Carrying coal-scuttle to transmit and regulate finished products.
Oil-Spraying Machine
（Advanced type with oil collecting system）
Function: the hot biscuits which are just out of the oven are immediately put into the oil-spraying process,which is necessary for
production of high-grade biscuit, to better improve grades and colors of biscuit.
production of high-grade biscuit, to better improve grades and colors of biscuit.

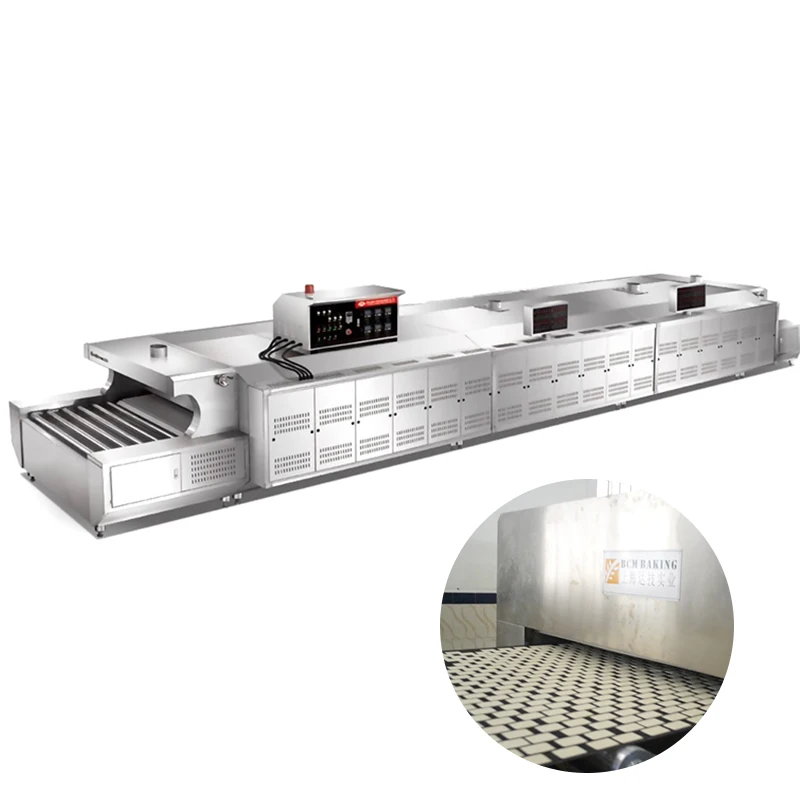

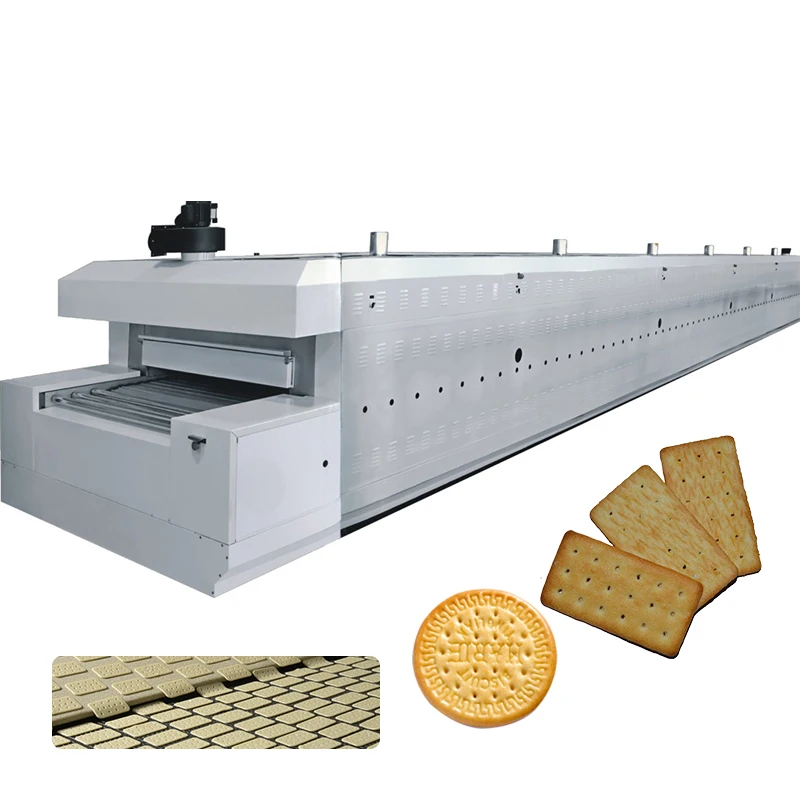

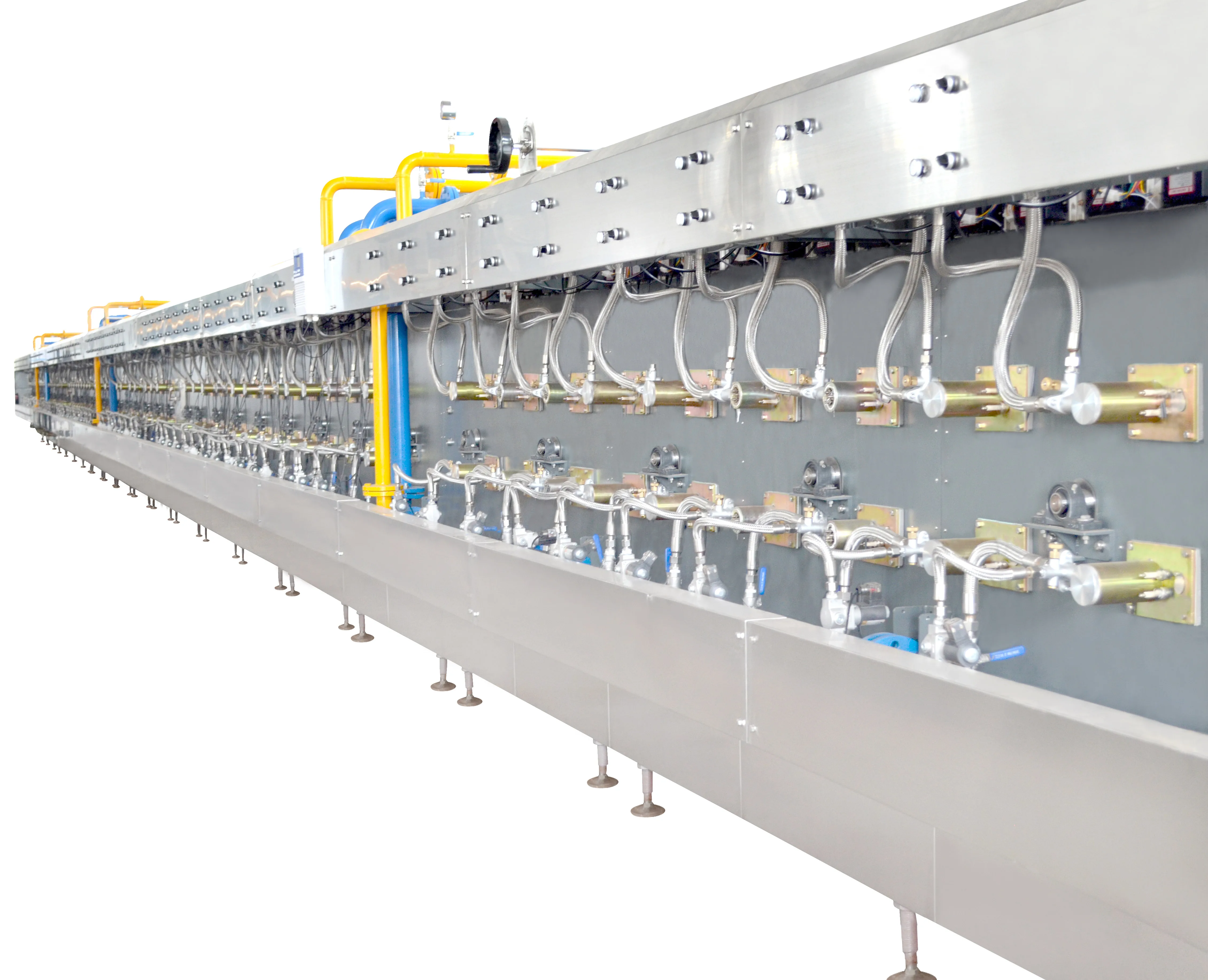

Gas/Electric Heating Oven
Function:Gas oven with direct flame can bake the biscuits perfectly with nice color and fragrance,it's suitable for all shapes of
soft biscuit ,hard biscuit ,bread,cake and other types of soda biscuits.
soft biscuit ,hard biscuit ,bread,cake and other types of soda biscuits.
Swerve Conveyor
(180°)
Function: The swerve conveyor is optional equipment in biscuit production line.when the space (workshop) is not long enough to
place the production line straight,then L swerve or U turn conveyor need to be adopted.
Biscuit Stacking Machine
Remarks: This biscuit stacking machine accpects the biscuits from the cooling converyor,forms them into lanes,stacks them on edge
through the star wheel device,and conveys them to the packing conveyor.
through the star wheel device,and conveys them to the packing conveyor.
Cooling Conveyor
The cooling conveyor is used for normal cooling.
Finished product
Parameter table
Model | BCQ-250 | BCQ-480 | BCQ-600 | BCQ-800 | BCQ-1000 | BCQ-1200 | |||||
Production capacity | 250 | 480 | 600 | 750 | 1000 | 1250 | |||||
Total length | 29600 | 64500 | 85500 | 92500 | 125000 | 125000 | |||||
Baking temperature | 190-240℃ | ||||||||||
Whole line power | 105 | 190 | 300 | 400 | 500 | 600 | |||||
Whole line weight | 6000 | 12000 | 20000 | 28000 | 35000 | 45000 | |||||
After-sales service
Company Profile
Shanghai Target Industry Co.,Ltd , as an elder confectionery and biscuit machinery manufacturer who is the first manufactuer to build the complete production line for depositing hard candies in china and has more than 40 years fabrication experience.
