7009 Высокая точность машины шпиндель подшипника B7009-T-P4S-UL FAG радиально-упорный шарикоподшипник встык 45*75*15

Описание и отзывы

Трекер стоимости

Характеристики

 7009 High Precision Machine Spindle Bearing B7009-T-P4S-UL FAG Angular Contact Ball Bearing Back to Back 45*75*15mm







Product name and Description:



Angular contact ball bearing FAG B7009 single-row



Bearing steel:Ultra-clean steel can prolong the life of bearings up to 80%.

Lubrication Technology:The lubricating grease and lubricating technology adopted by Zhongyue precision bearing can prolong the service life of the bearing and improve its performance.

Rolling element:Steel ball, ceramic ball

Cage:Bakelite, nylon, brass and other cages

Product Classification:Angular contact ball bearing (15 contact angle 25 contact angle)

Sealing method:Closed form





Product name	Angular contact ball bearing FAG B7009-T-P4S-UL
Weight	0.282gs
Size	45*75*16mm
Hardness	HRC58-64
Clearance	c2 c3 c4 c5
Brand	FAG,NSK ,NACHI
Lubrication	Grease or Oil
Feature	Low noise
Package	Oringlnal packing



High precision angular contact ball bearings (standard series)



718 series; 719 series; 70 series; 72 series



1. Structural features: ISO-based LYZYC precision bearing foundation series; ferrule material adopts high purity (electroslag remelting) bearing steel, with special heat treatment process, cold treatment process and material modification technology, which makes the fatigue life of this series of bearings substantial improvement.

2. Contact angle: 15^o and 25o, can be used in pairs to withstand axial load and radial load or synthetic load.

3.Cage: The outer ring-guided Phenolic resin Bakelite cage and the rolling element-guided nylon cage can be selected according to different applications.

                Medium and high speed working conditions are recommended to use Bakelite cage; 500000 ≤ DmN ≤ 1000000

                Nylon cages or Bakelite cages are available for low to medium speed conditions.

4. Speed factor: The outer ring guides the phenolic resin cloth Bakelite cage as the standard;

5. Grease lubrication DmN≤1000000 ie limit speed N≤1000000/Dm Dm—bearing medium diameter oil (minimum amount) lubrication DmN≤1500000

6. Scope of application: This type of bearing has a wide range of applications; it is mainly used for medium and high speeds requiring precise axial positioning and radial positioning, high-precision rotation and other working conditions. For example: CNC lathe spindle, all kinds of grinding machine work piece shaft, grinding wheel spindle, photovoltaic slicer, vacuum pump, fan, precision transmission machinery.

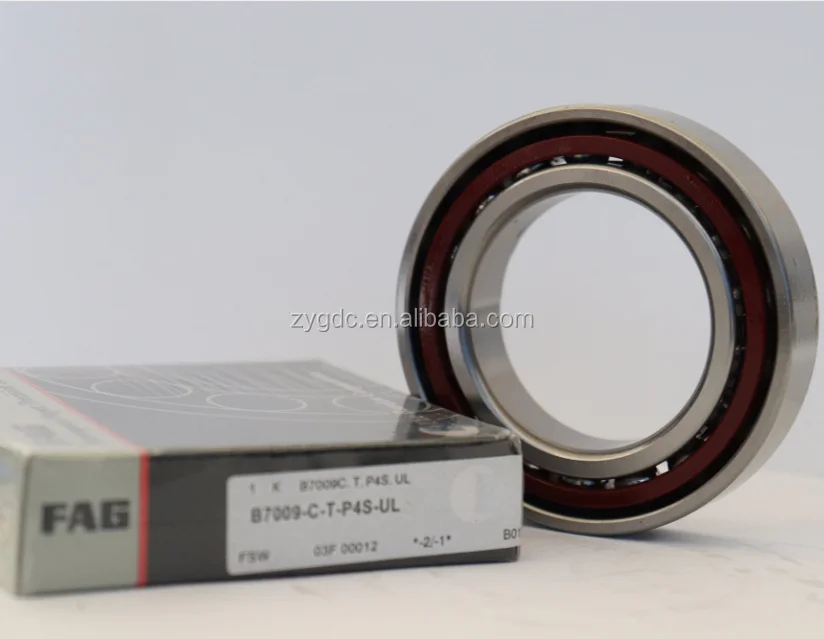

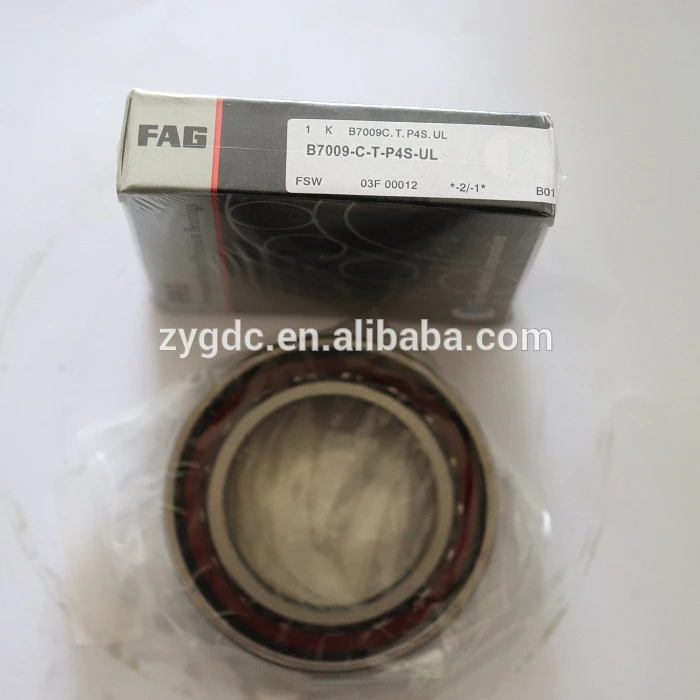

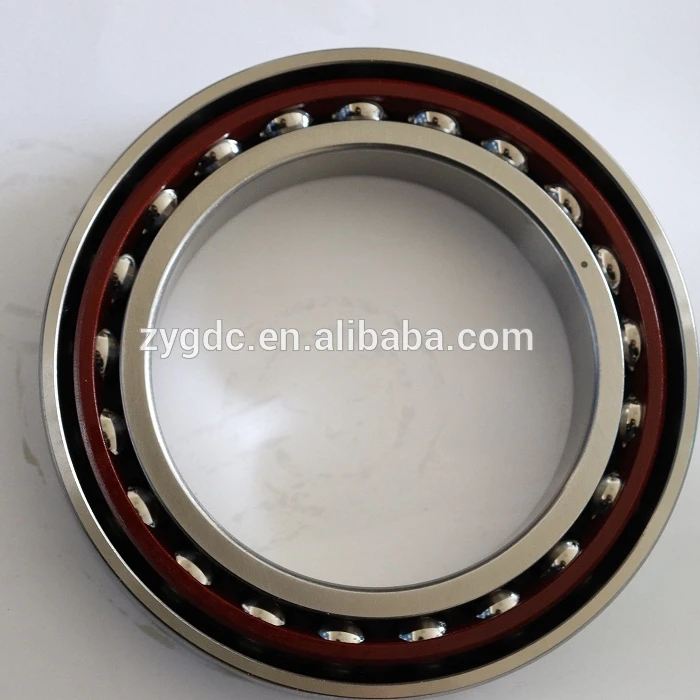

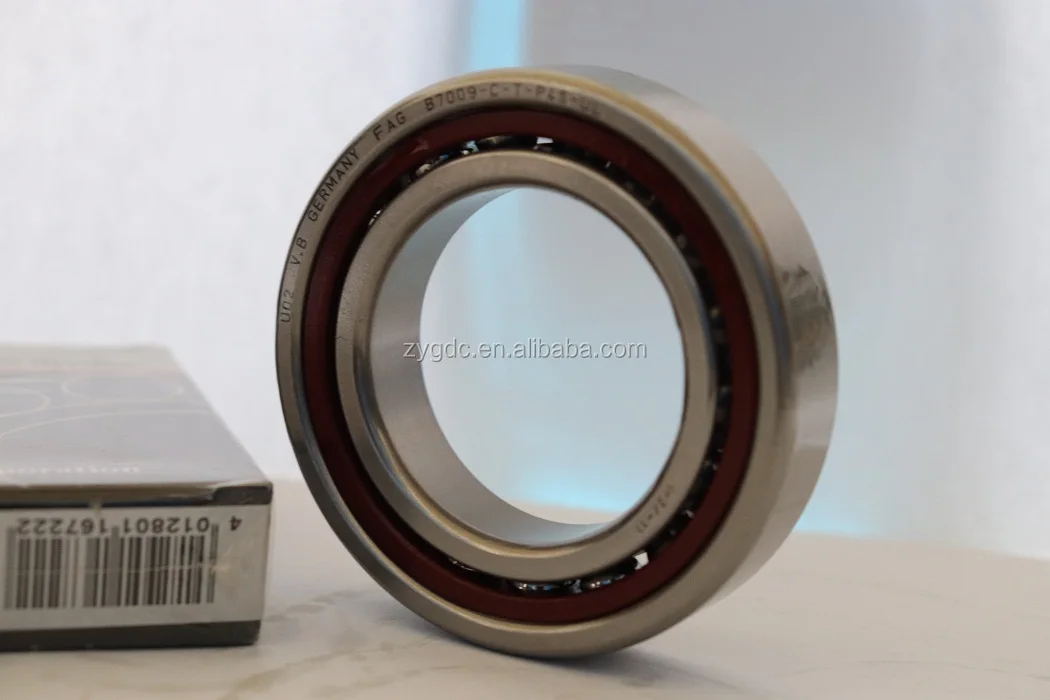

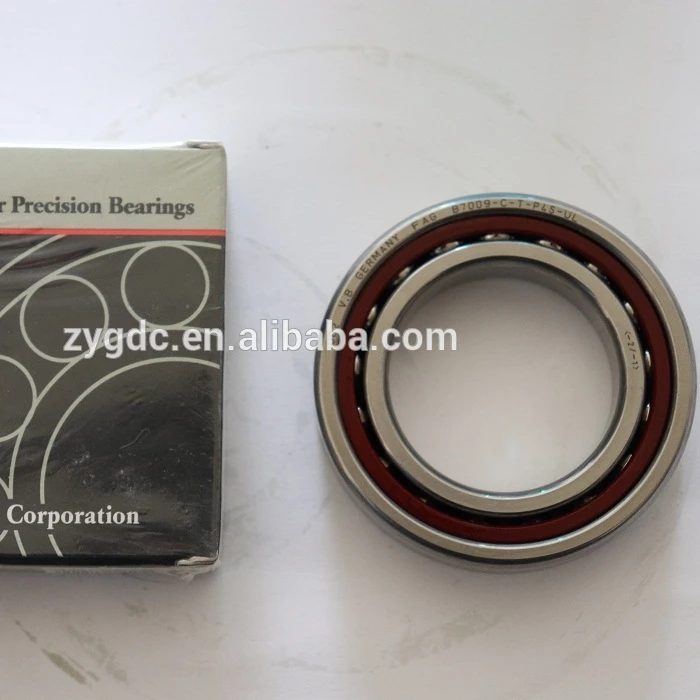

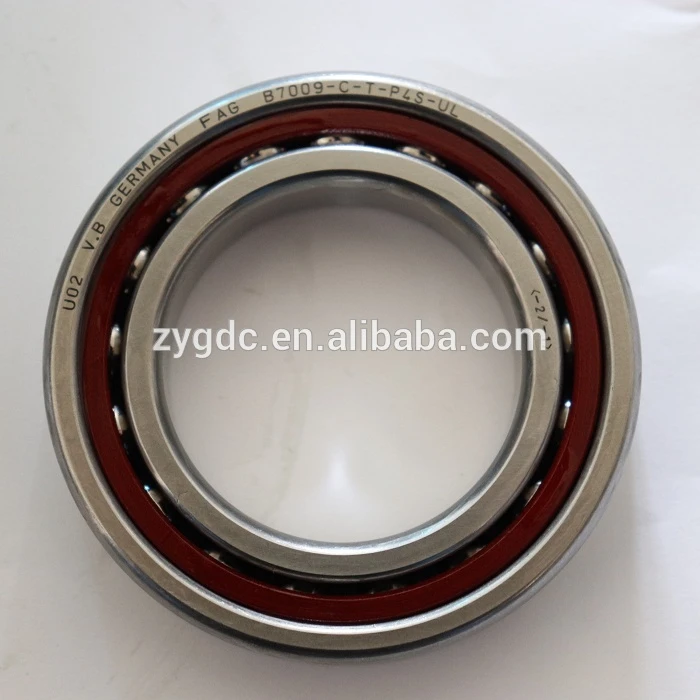

FAG B7009-C-T-P4S-UL Bearing Photos:

B7009-C-T-P4SUL Bearing process:

The other types and brand we can provide:

The bearing application:

Our team & Company :

Exhibition Exchange:



Company Certificate:

Our warehouse:



Packing&Payment & Shipment:

 After -sales service:
