6m length Hydraulic Hammer Pile Driver For Steel Post Installation

Product instruction

1.The crawler hydraulic press pile machine, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2.The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3.The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.6m length Hydraulic Hammer Pile Driver For Steel Post Installation

Technology Parameter

SPECIFICATIONS FOR HAMMER PILE DRIVER
Pile driver part	Engine power	Kw	80
	No. of cylinders	PCS	4
	Engine brand		Weicai engine
	Working pressure	MPA	16-20
	Working flow	L/Min	120
	Wheel distance	M	2
	Machine size	mm	4100×2000×2200
	Machine weight	T	3.5
Track shoe part	Working pressure	MPA	20
	Rubber track weight	T	5
	Total displacement	1860
	Total bearing weight	KGS	5000
	Walking speed	kw/h	0-3
	Ground connection beta ratio		0.036
	Pulling capacity	KGS	4300
	Clambing ability		≤ 30
Hydraulic hammer Part	Drill rod diameters	mm	70
	Drill rod weight	KGS	19
	Hydraulic hammer weight	KGS	230
	Working flow	L/Min	40-70
	Working pressure	bar	110-140
	Impacting frequency	bpm	500-900
	Pile height	M	2-7M

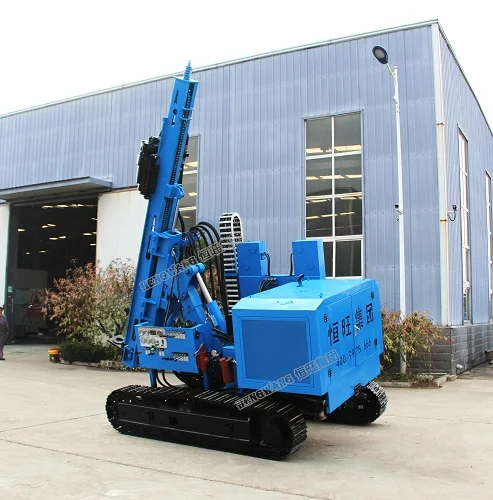

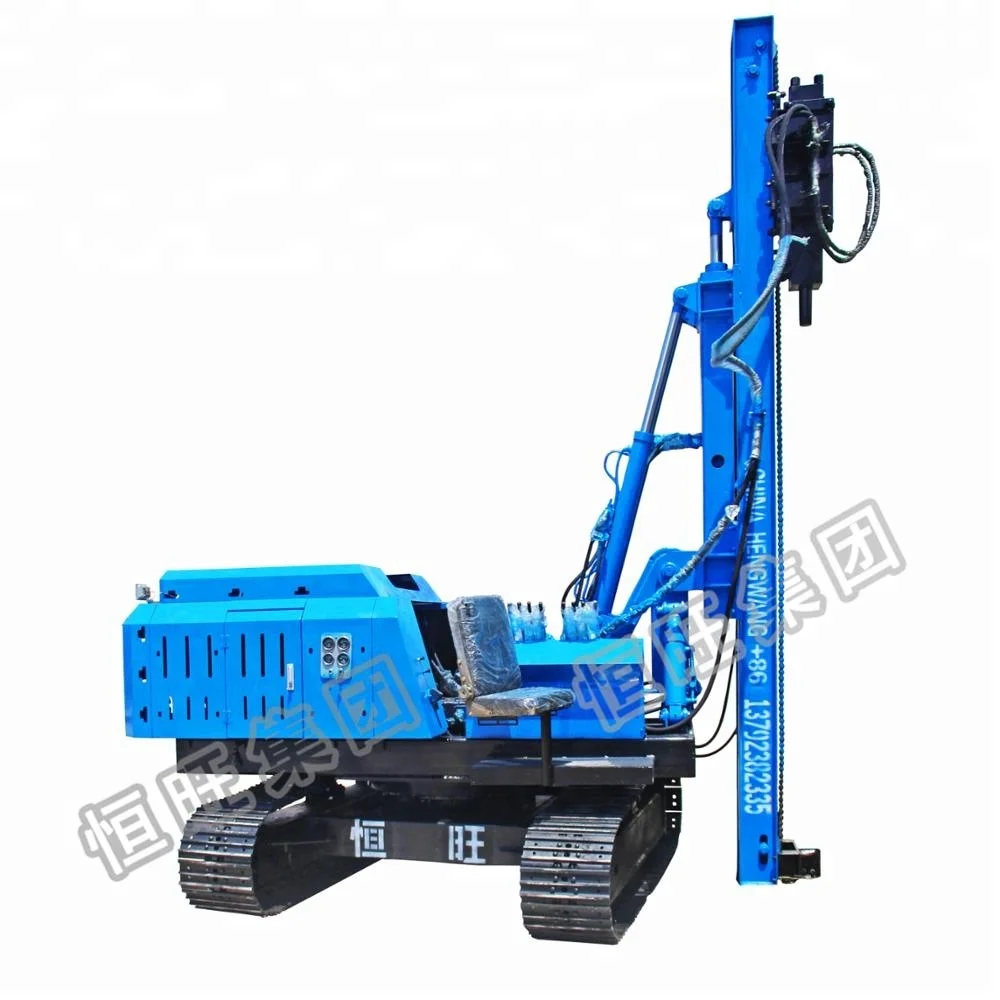

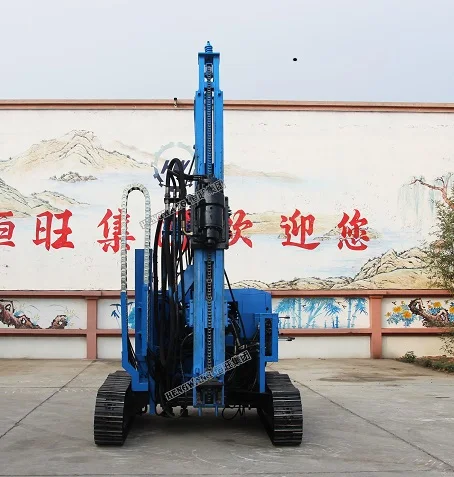

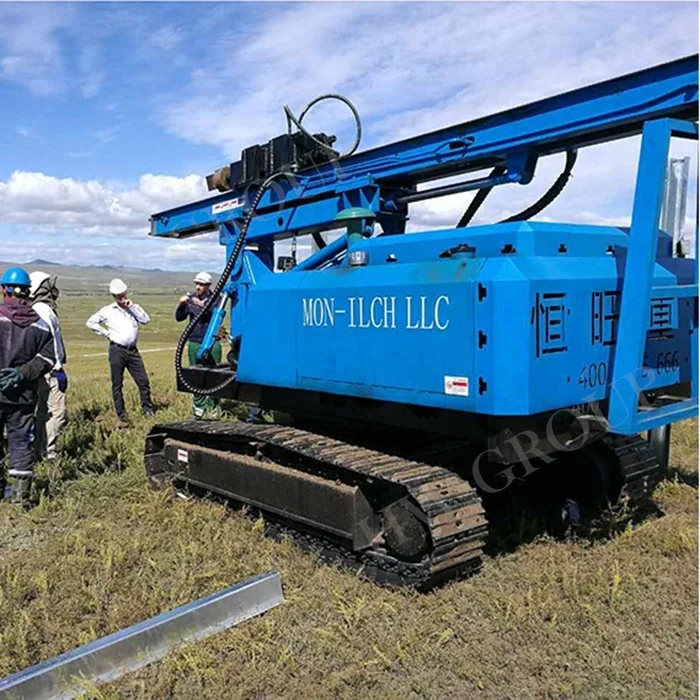

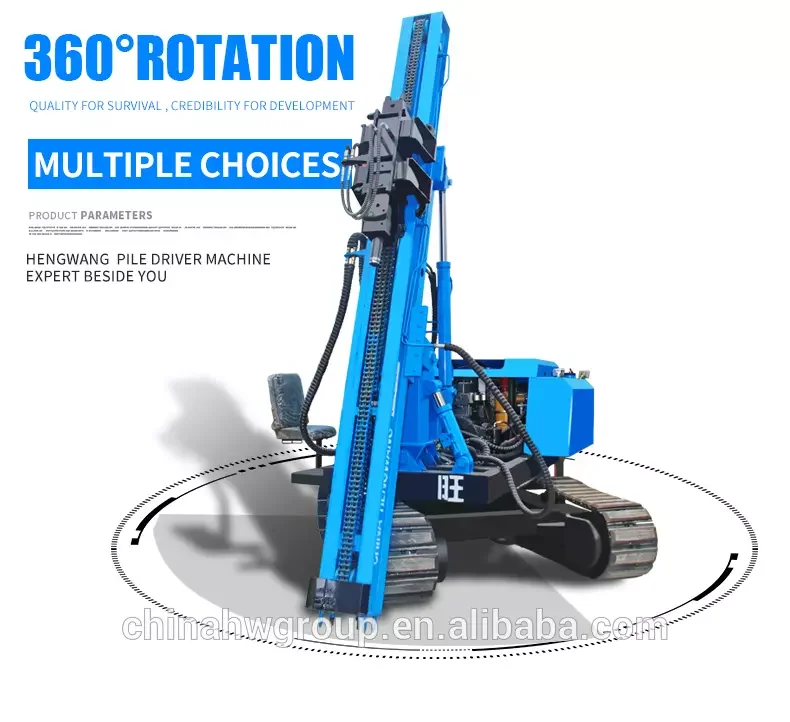

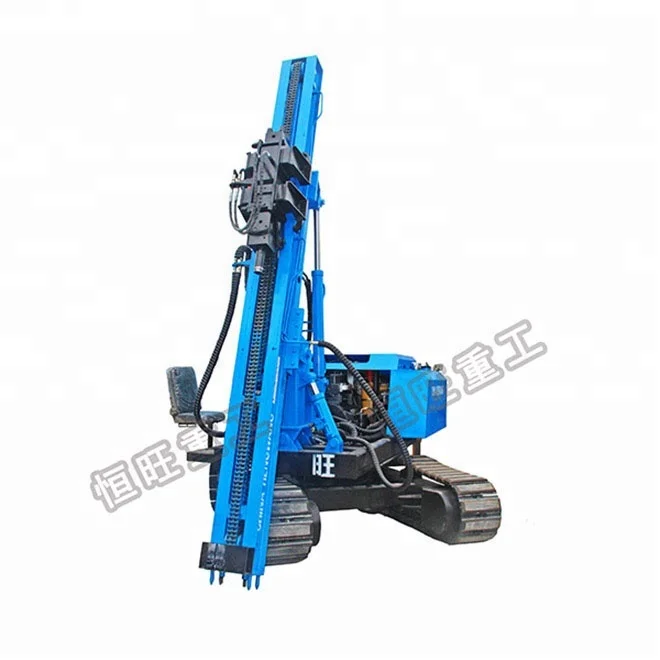

Product Real Photos
