1. Flexible,very light weight,easy installation 2. 4096x4096 HD resolution,high precision, fast response 3. USB port, touch a correction, high stability, and never drift 4. Touch intensity, high sensitivity, touch-free drift 5. can withstand more than 10 million times touch Click 6. You can use a pen, finger, gloved hand, and many other media touch touch 7. can be adapted to harsh environments, such as splashing drops of water flow down, etc. 8. supports single touch point, one-time calibration 9. product through CE, FCC, RoHS certification, stable and reliable performance
Products Application:
1.Car computer and GPS 2.Open touch TV/PC 3.Touch POS 4.LCD/LED touch monitor 5.Touch all-in-one pc 6. Touch Kiosk and other devices
Specification:
General Size
7 inch To 22 inch
Fit in with
Panel display device
Input Method
Finger or gloved hand
Supply voltage
DC5V
Durability
>35 million touches
Positional Accuracy
<1.5%
Light Transmission
83%
Clear surface
<3%
Antiglare Surface
<4%
Anti-Newton
<10%
Active Force
Stylus or Finger or Similar <45g~110g
Circuit Resistance
X:20~250Ω, Y:20~250Ω (See Figure 1)
Linearity
X<1.5%, Y<1.5%
Response
<15ms
Insulation
>20MΩ/25V(DC)
Endurance
No acting damage at DC50V/60sec.
Resolution
Based on controller resolution of 4096 x 4096
Operation Temperature
-10°C ~ +70°C
Operation Humidity
20%RH ~ 85%RH, no condensing
Storage Temperature
-40°C ~ +80°C
Storage Humidity
10%RH ~ 90%RH, no condensing
Heat Cycle
70°C /240 hrs
Cold Cycle
-40°C /240 hrs
Thermal Cycle
-40°C ~70°C [60 min./cycle] *10 cycles
Operation System
Windows 7/8/10/ XP / 2000 / NT4.0 / ME / 98 / 95 / Dos / Linux / Mac OS
Waterproof
Not damaged by running water applied to the active area
Gloss
90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457ESD.Contact discharge4KV

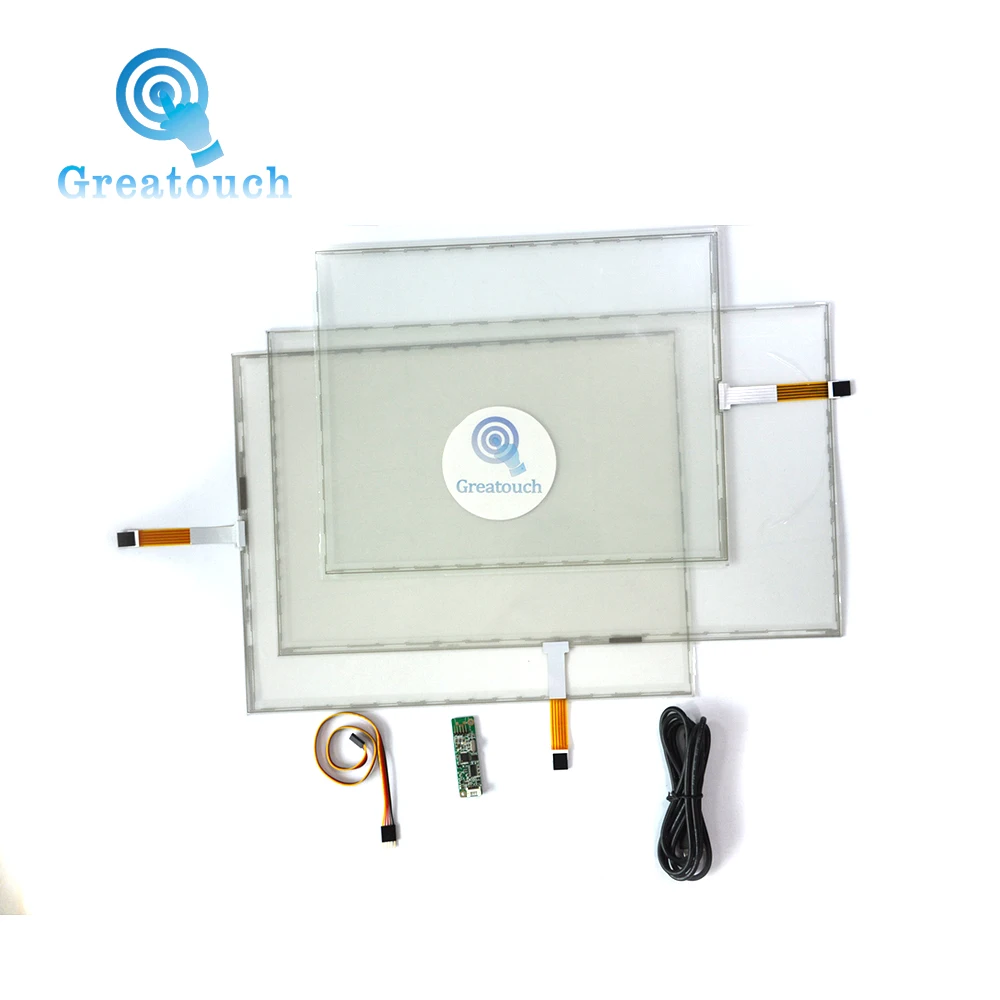

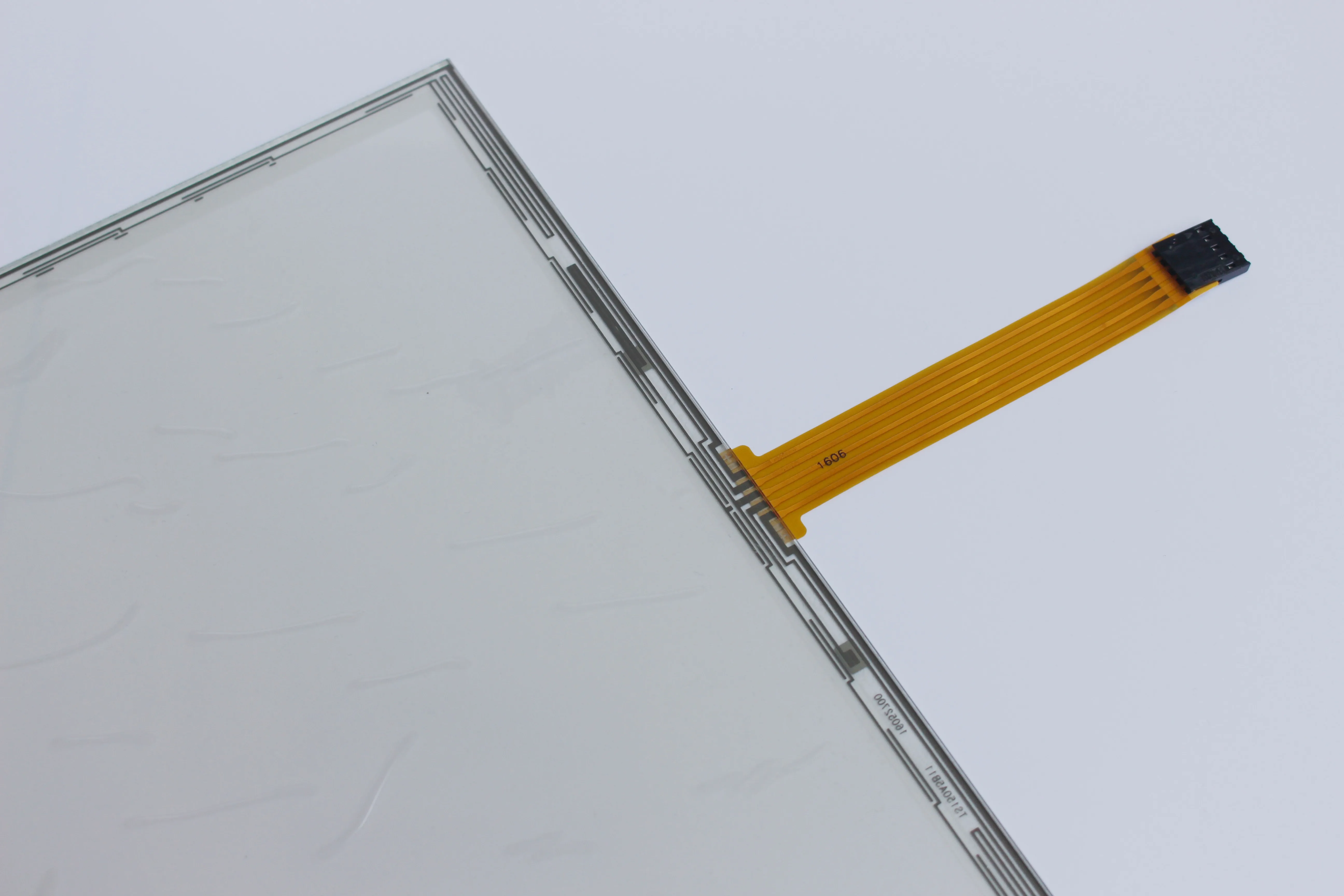

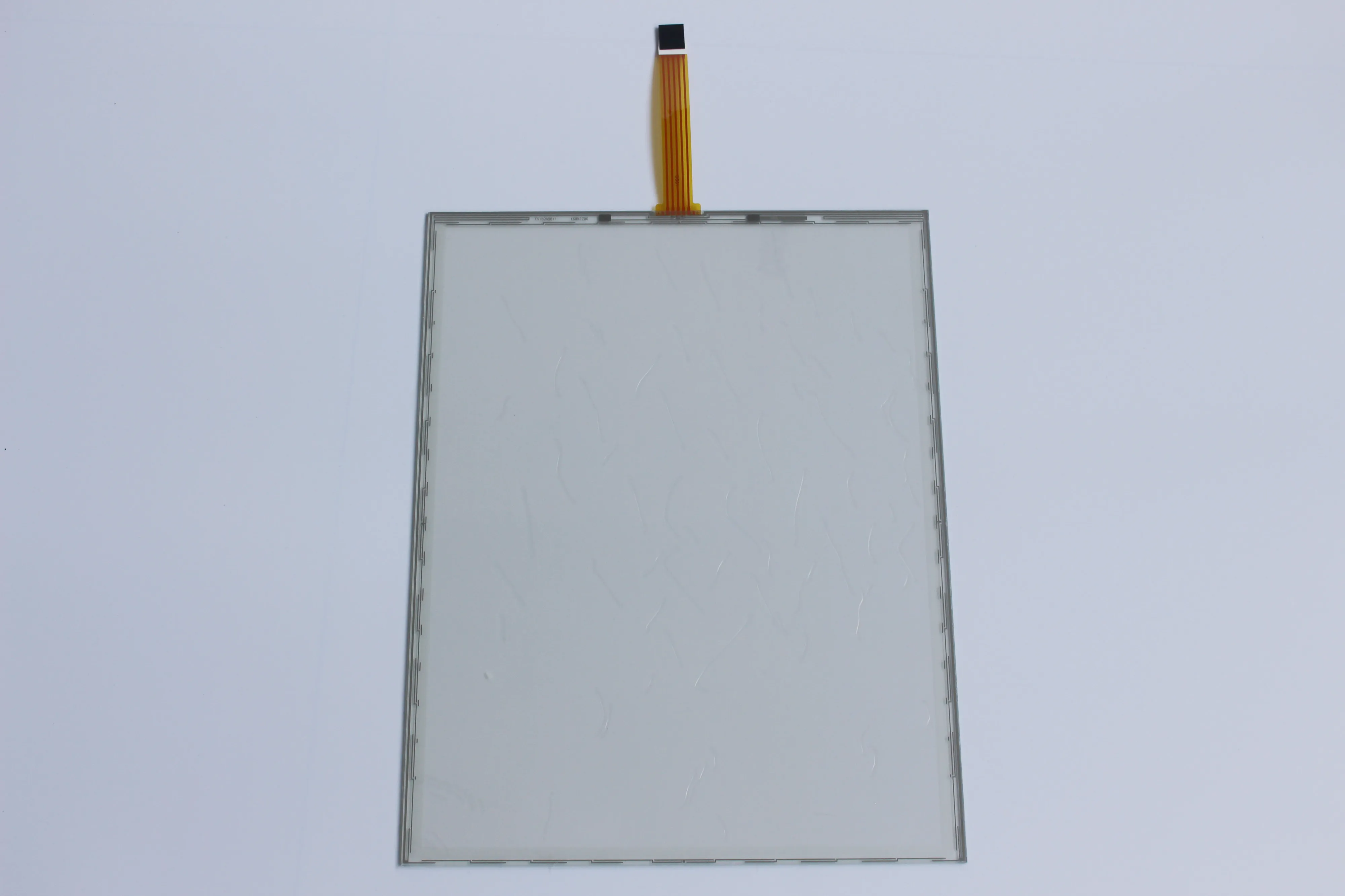

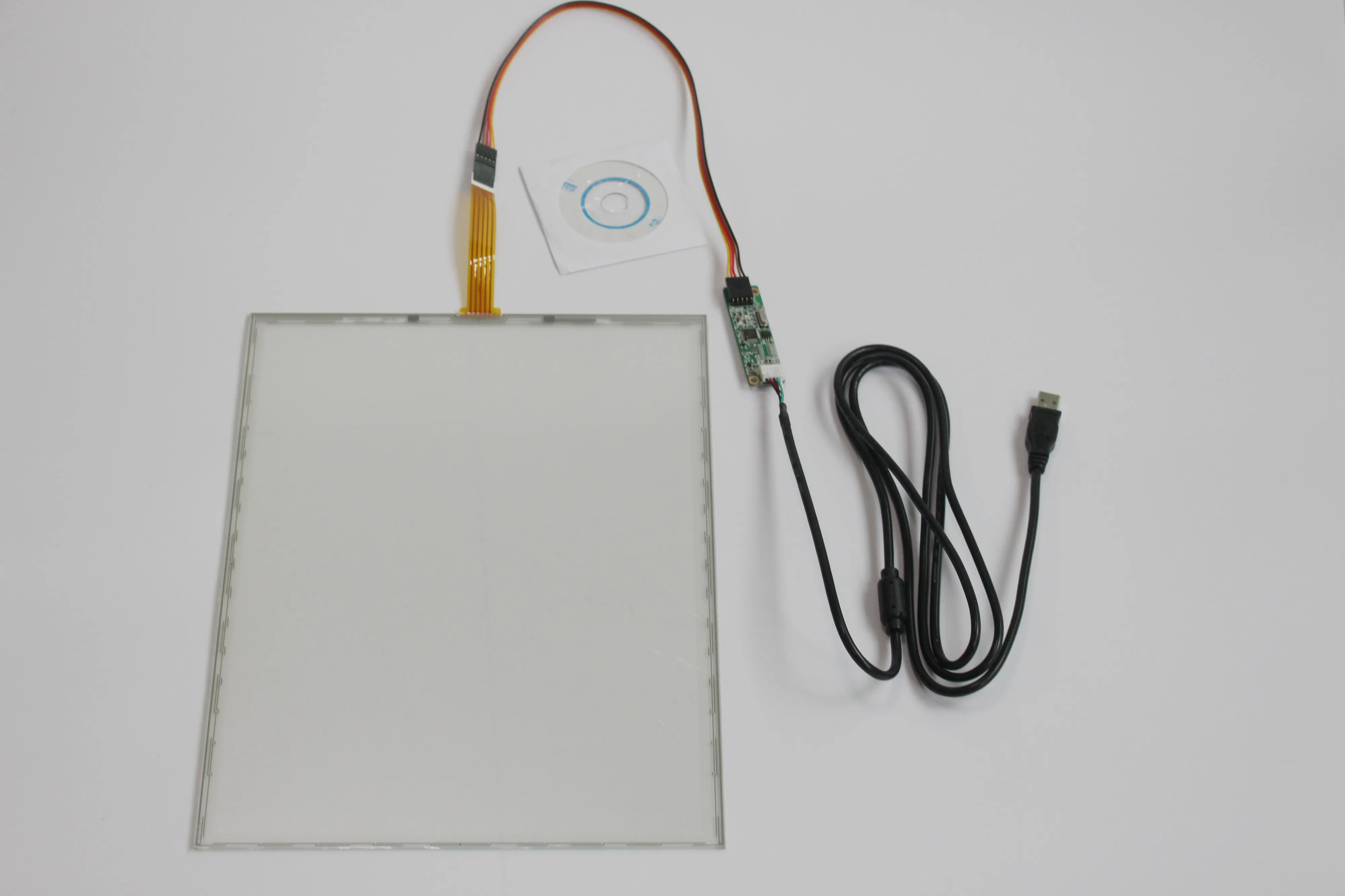

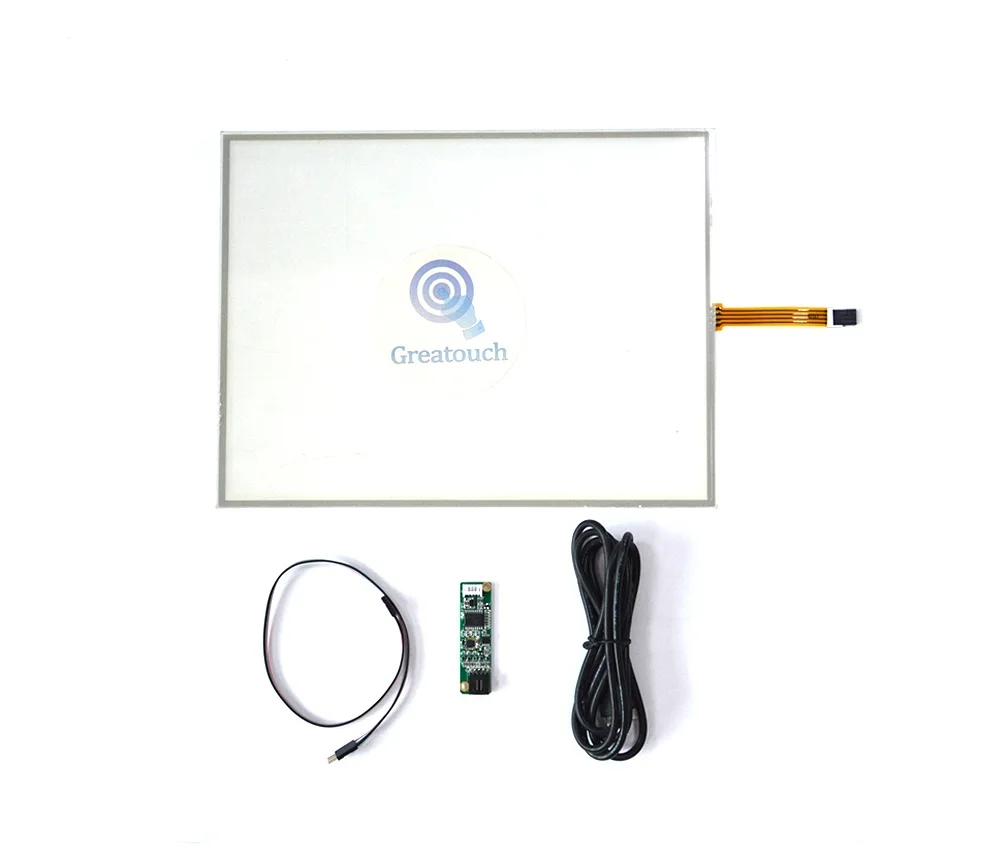

Products Show
Application
The capacitive touch screen has been used in many areas, such as office, teaching, entertainment equipment and so on.
