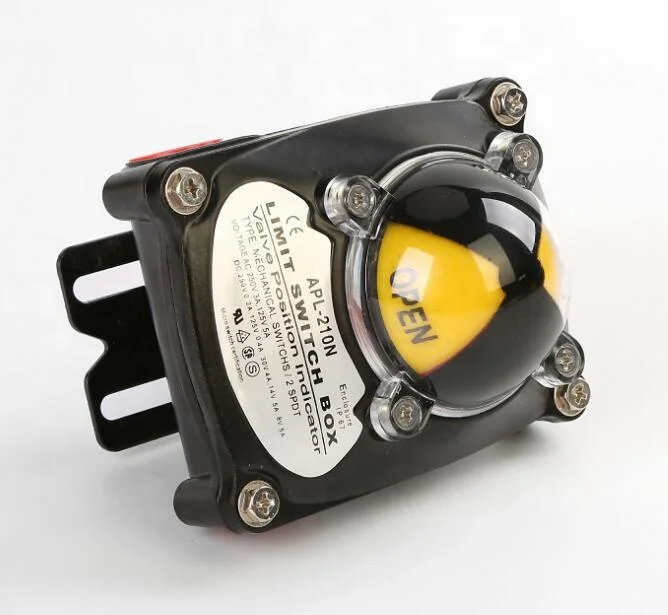

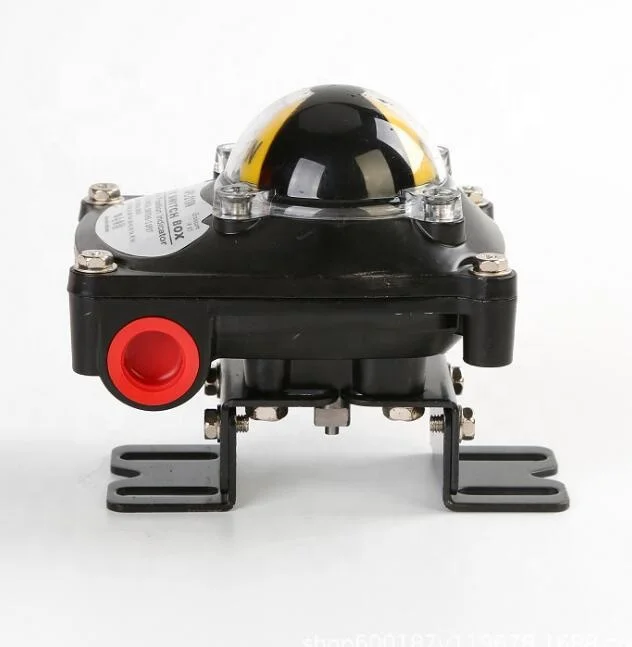

Детали для пневматического концевой выключатель коробка ISO5211 Стандартный APL-210 индикатор положения клапана APL-310 с механическими кнопками 2 SPDT

Описание и отзывы

Трекер стоимости

Характеристики

The valve position indicator is also called a limit switch, which is a feedback device for the stroke, size and position of a mechanical movement. With the popularization of mechanical automation, the limit switches are widely used in industrial valves, mechanical equipment, petroleum, chemical, food and other fields., welcome to inquiry.



Limit switch box / valve position indicator / Mechanical switch 2 SPDT Features:

1).Multi-contact internal circuit board: The internal 8 electric wiring boards meet the standards of micro switches. DPDT switches are optional, proximity switches, magnetic switches are optional, and can be used for the connection of solenoid valves.

2).Die-cast aluminum alloy housing: powder coating, compact design, beautiful appearance, reduced packaging volume, reliable quality.

3).Quick set cam: Mounted by spline shaft and spring, easy adjustment without tools.

4).The bracket is easy to install: there are four kinds of brackets that match with the NAMUR standard, and the brackets conform to the ISO5211 standard. Any rotating actuator can be easily installed.

5).Anti-off bolts: The bolts are attached to the upper cover during disassembly and are not easy to fall off.



Name:	Limit switch box / valve position indicator / Mechanical switch
Model:	APL-210, APL-310, APL-410,APL-510
Material:	Die-cast aluminum alloy housing
Medium:	Air
Connection Thread:	Female



Limit switch box / valve position indicator / Mechanical switch 2 SPDT Installation diagram:
