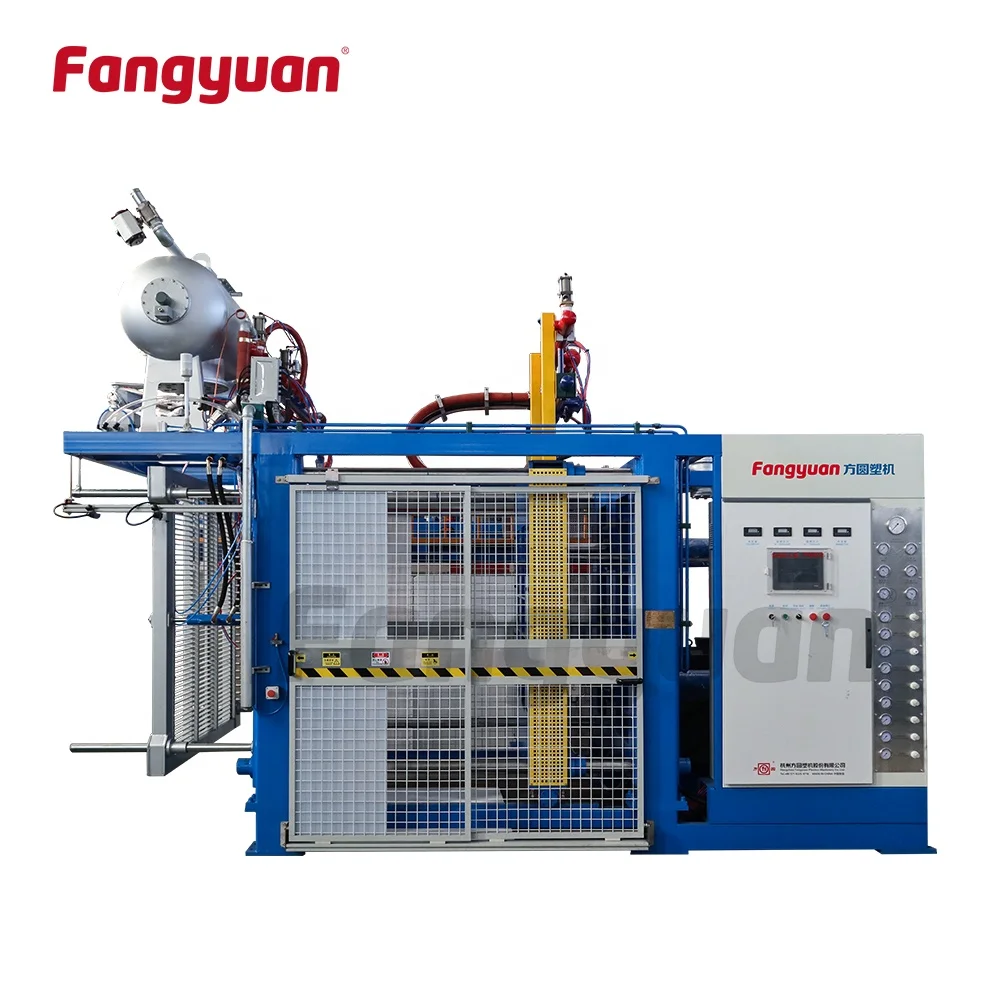

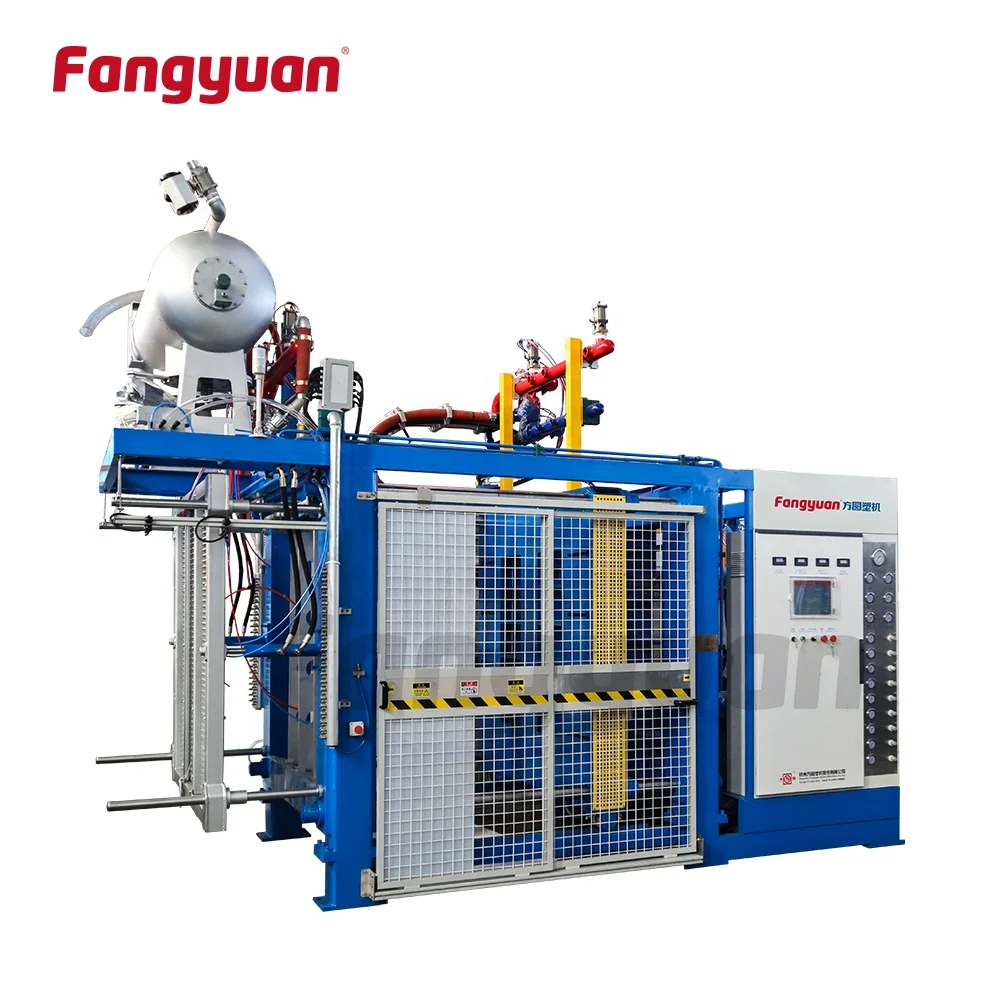

SPZ100-200E polystyrene moulding machine

 Successful tests reaffirmed that E series automatic eps machinery obtain the consistent high praise from the customers
because of high efficiency, energy saving and stability. The advantages as follows:
1.High-strength frame: mouding frame has being treated with zinc spraying,adopts apposite directions
type tie bar for easy maintenance and wear resistance self-lubricating copper tube.
2.Hydraulic pressure system achieves faster operation (save 6S/cycle).
3.Steam system(ensure stable and less steam consumption), adopts FANGYUAN patented PID system
made by DN50 actuator makes the sensitive steam pressure control.
4. Pipe system: completely inlet and exit of water ,air and steam adopt big pipeline and valves which is
very close to the mold.
5.Vacuum system:adopting vertical vacuum system, vacuum tank equip with a big spraying system.
6.Control system: all parts adopt famous international brands with high quality. All pressure adjustment
are remote controlled by control box, the program also has many self-protection and alarm systems.

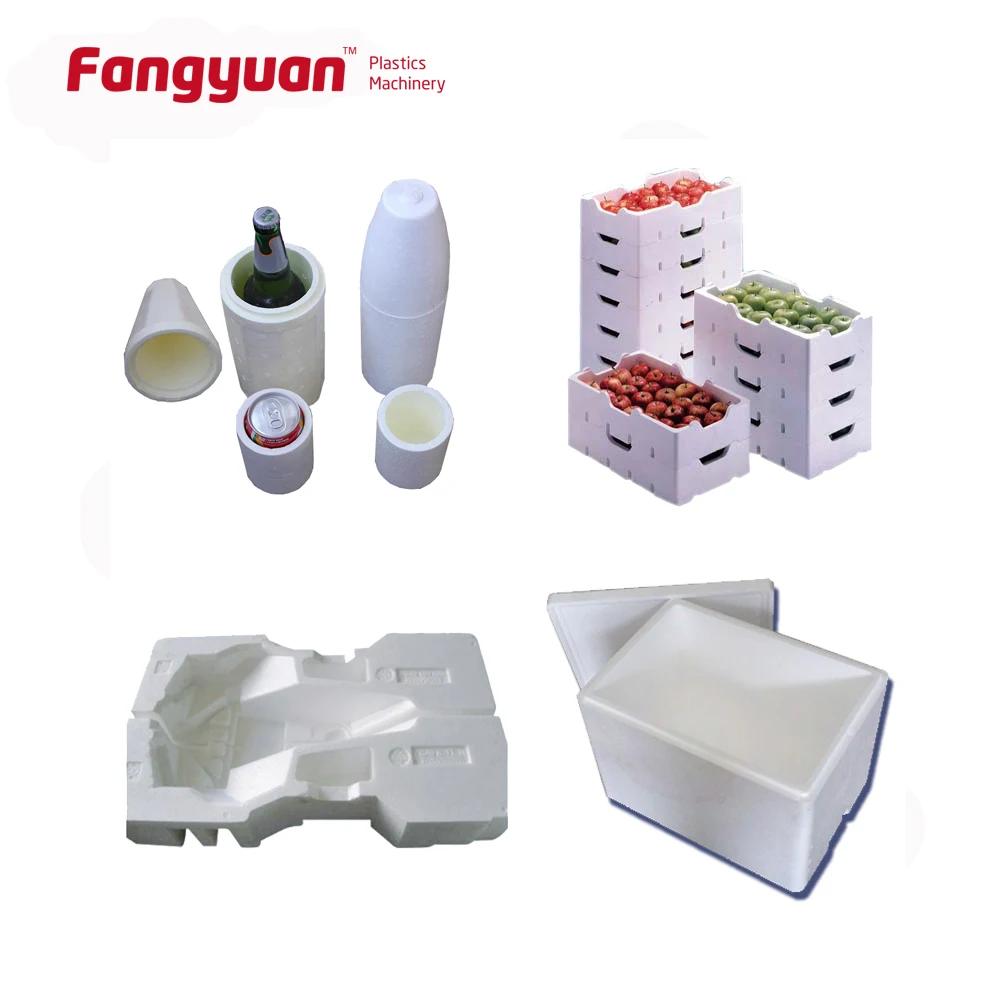

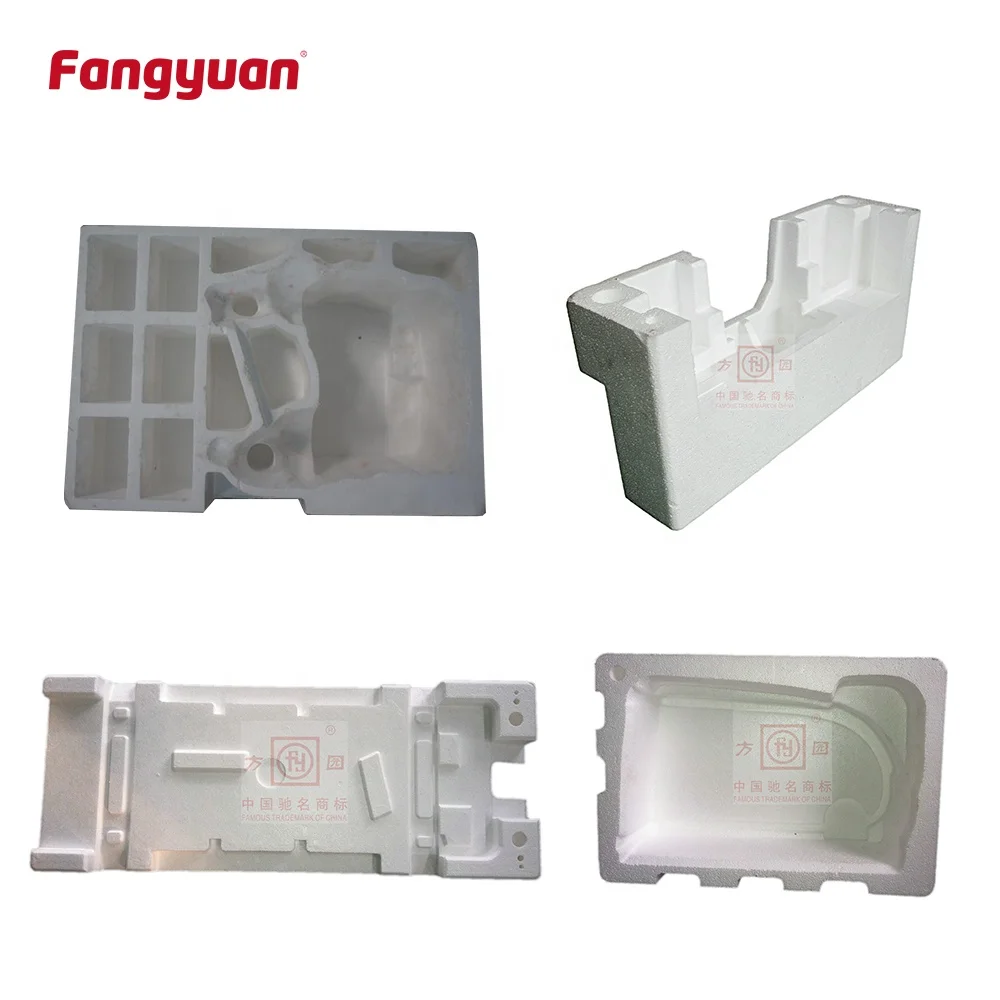

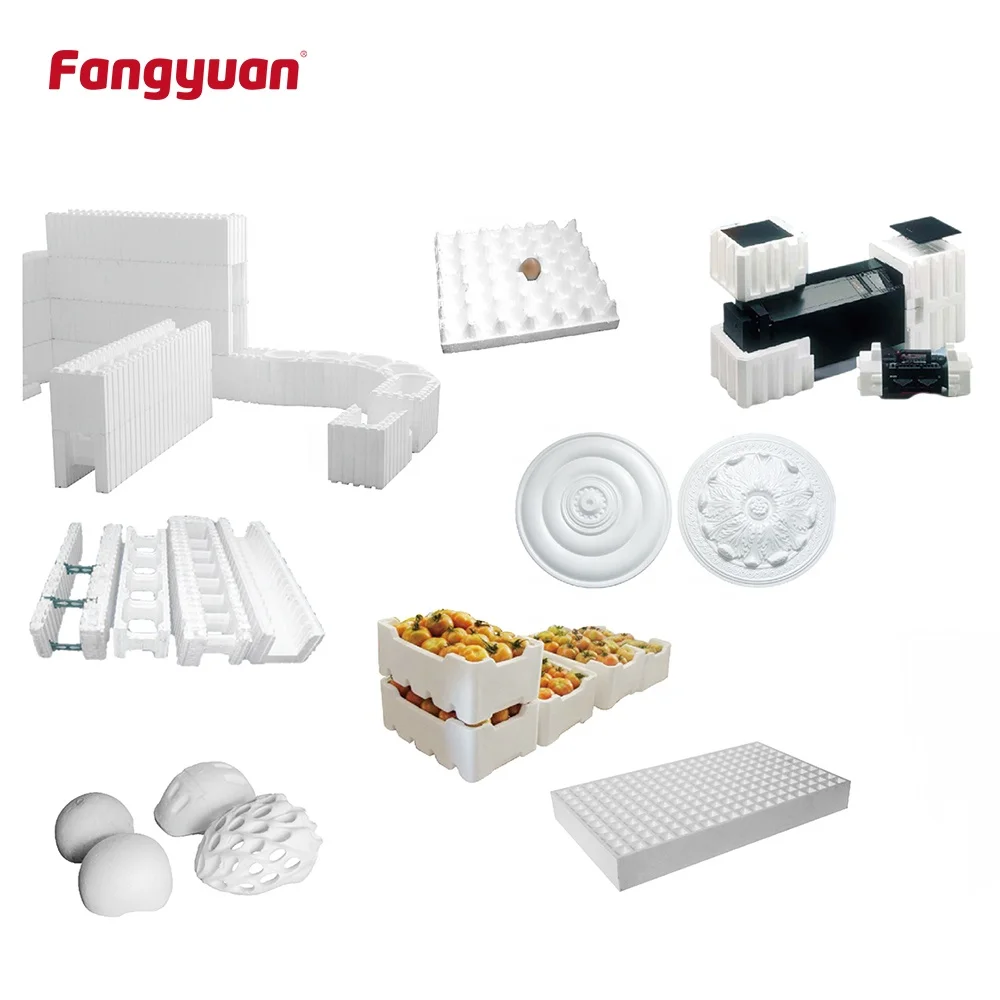

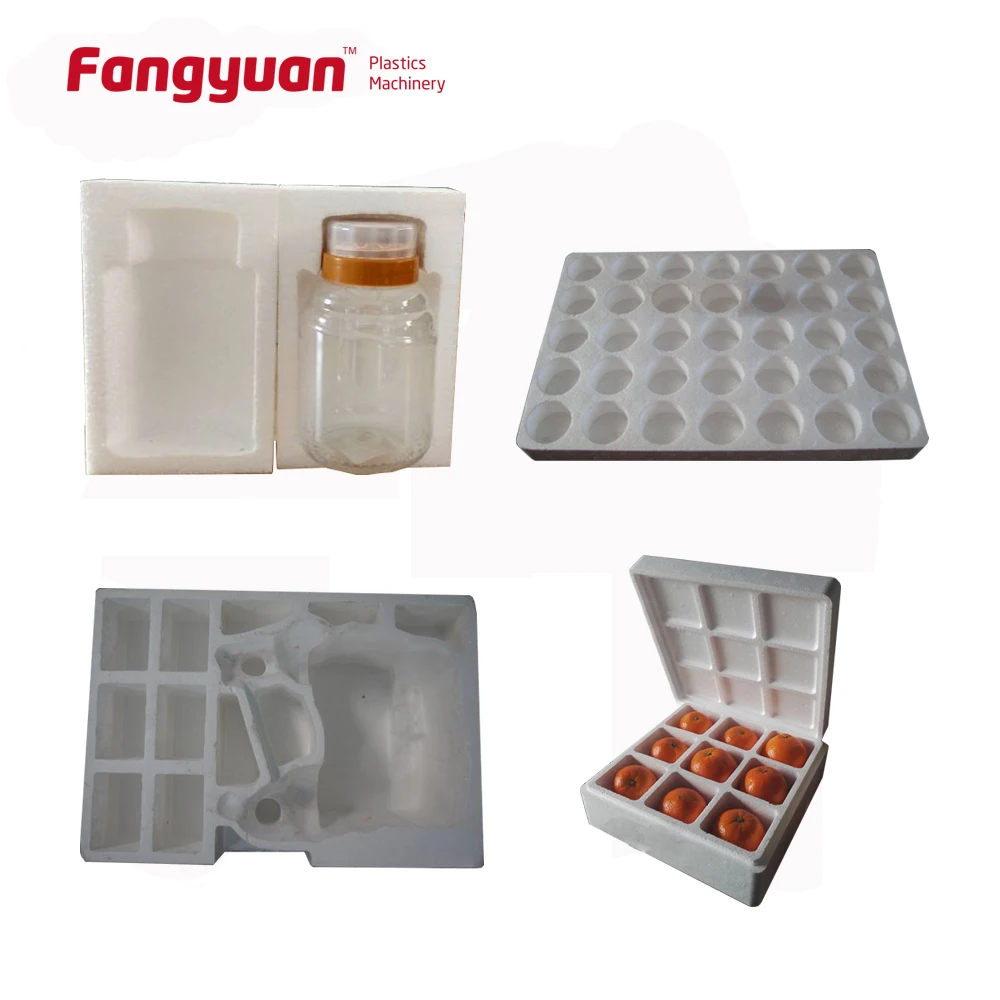

Various applications in agricultural and electronic parts packaging,such as fish box, ICF, insert, decoration parts,
helmet, model, etc.
CE certificate, ISO9001:2015









	Unit	SPZ100E	SPZ120E	SPZ140E	SPZ160E	SPZ175E	SPZ180E	SPZ200E
Mould Dimension	mm	1000×800	1200×1000	1400×1200	1600×1350	1750×1500	1800×1600	2040×1800
Max Product  Dimension	mm	800×700 ×350	1000×900 ×350	1200×1000 ×350	1400×1100 ×350	1550×1300 ×350	1610×1400 ×350	1850×1600 ×350
Rear Windows Size	mm	910×740	1100×940	1300×1080	1450×1150	1600×1350	1680×1440	1920×1640
Connected Load	kW	11	11	14.5	16.5	16.5	16.5	17.2
Outside Dimensions	mm	4800×2000 ×3760	4800×2200 ×3760	4970×2320 ×3890	5020×2700 ×3970	5020×2850 ×4070	5100×2950 ×4350	5100×3170 ×4450
Weight	t	4.20	4.80	5.50	5.80	6.20	6.50	7.00
Cycle Time	S	60-90	60-100	60-120	70-130	70-130	80-140	100-180
