ПК USB функция произвольный генератор сигналов счетчик частоты 14 бит разрешение D

Описание и отзывы

Трекер стоимости

Характеристики

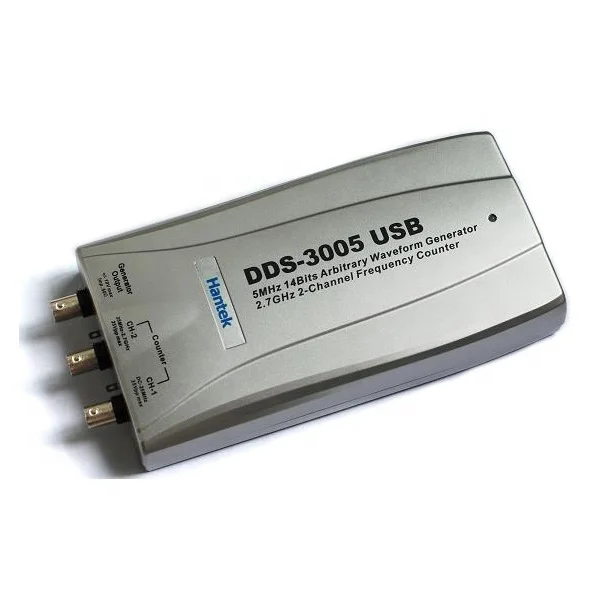

PC USB Function/Arbitrary Waveform Generator Frequency Counter 14bits D/A resolution

• 2.7GHz Frequency Counter, PC USB Function/Arbitrary Waveform Generator.


• It is completely compatible with TEK document format, it can directly read the wavy documents of the oscillograph and the wavy documents edited by TEK wavy editing software to make the its wave reappear.


• 14bits D/A resolution.


• USB2.0 interface, no external power source required, easy to use.


• Automatic calibration.


• One computer can connect many DDS, extend channel easily.


• Operating System: Windows 7, Windows Me, Windows NT, Windows 2000, Windows XP, VISTA.


• Labview\\VB\\VC\\Delphi\\C++Build Second Design instance.

Waveform Output Channel
Frequency Range	0.1Hz(DC)~5MHz
Resolution	0.01Hz
DAC Clock	0~50MHz Continuously adjustable, in step of 0.2Hz
Channels	1CH waveform output
Memory Depth	256KSa
Vertical Resolution	14 Bits
Stability	<30ppm
Amplitude	±10V Max.
Output Impedance	50 Ω
Output Current	50mA Vpeak=100mA
Low Pass Filter	5MHz, 1MHz, 100KHz, 10KHz, 1KHz Programmable Control
Harmonic Wave distortion	-65dBc(1KHz),  -53dBc(10KHz)
Frequency Counter Channel 1
Range	DC~25MHz
Input Power	400mVpp~25Vpp
Coupling Mode	AC, DC Programmable
Accuracy	±Time Base Error ±1 Count
Input Impedance	50KΩ
Frequency Counter Channel 2
Range	25MHz~2.7GHz
Input Power	400mVpp~25Vpp
Coupling Mode	AC
Accuracy	±Time Base Error ±1 Count
Input Impedance	50 Ω
Digital Input and Output
Bits	8 Bits+ Synchronized Signal 1 Bit + External Signal 1 Bit
Level	3/5V  TTL/CMOS
Working Environment
Working Temperature	0~70 Centigrade
Working Humidity	0~65%
Weight	0.7Kg
