550 галлонов жидкий квадратный резервуар IBC с
- Категория: Контейнеры-цистерны >>>
- Поставщик: Tianjin,Cimic,Imp&,Exp,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 18921.27 $* | 19867.9 $* |
| Aug-19-2025 | 18762.43 $* | 19700.39 $* |
| Jul-19-2025 | 15741.80 $* | 16528.79 $* |
| Jun-19-2025 | 18444.31 $* | 19366.20 $* |
| May-19-2025 | 16059.33 $* | 16862.69 $* |
| Apr-19-2025 | 18126.54 $* | 19032.36 $* |
| Mar-19-2025 | 17967.52 $* | 18865.40 $* |
| Feb-19-2025 | 17808.82 $* | 18698.97 $* |
| Jan-19-2025 | 17649.5 $* | 18531.76 $* |
Характеристики
Product Description

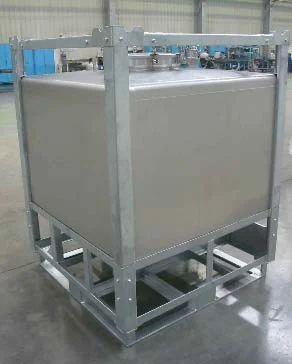

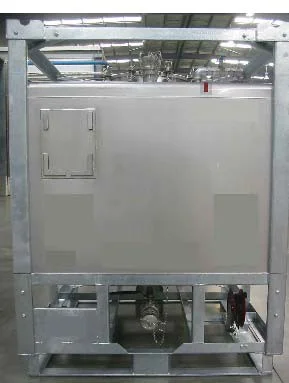

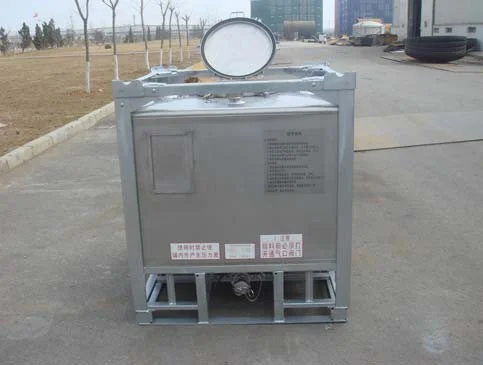

IBC tank with heating and cooling
SPECIFICATIONS | |||
|
| MM | INCH |
Max. dimension | Length | 1257 | 49” |
Width | 1340 | 53” | |
Height | 2001 | 79” | |
Tank dimensions
| Length | 1219 | 48” |
Width | 1067 | 42” | |
Height | 1695 | 67” | |
Fork pocket height
|
180 |
7 1/16” | |
Top Manhole diameter
|
450 |
17 3/4” | |
Side Square Manhole
| Length | 419 | 16 1/2” |
Width | 319 | 12 1/2” | |
Discharge Valve
|
DN50 |
2” | |

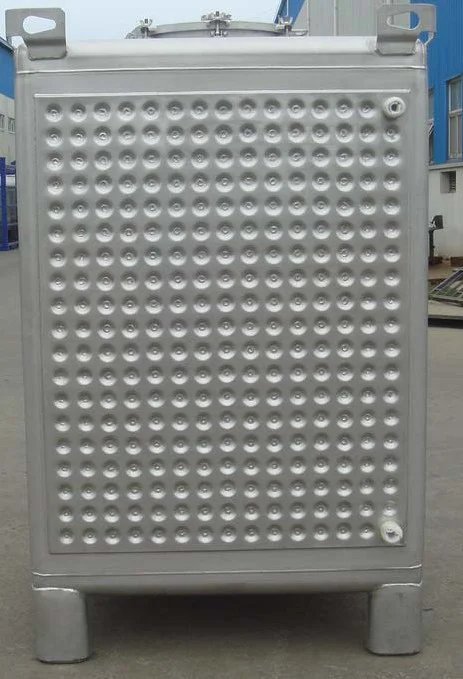

Inlet and Outlet of Heating/Cooling Jacket
|
DN25 |
1” | |
Tank Wall Thickness
|
3.0 |
0.12” | |
Heating/Cooling Jacket Thickness
|
2.0 |
0.08” | |
| KG | LBS |
Maximum Gross Mass | 2397 | 5284 |
Tare Mass (nominal) | 315 | 694 |
Maximum Payload | 2082 | 4590 |
Capacity
| Litre | Gallon |
2082 | 550 | |
Stacking capacity (load in warehouse)
|
2 high | |
Stacking capacity (load in transport)
|
1 high | |
SPECIAL FEATURES | ||
1. Material: 304/0Cr18Ni9 ; Seal gasket- Silicone Rubber. | ||
2. Inside finish:2B;Inner welding seam: polish to 0.6 micron; Outside finish:2B;Outer welding seam:Acid-passivation. | ||
3. Working pressure: Atmospheric pressure. | ||
4. Heating/Cooling jacket test pressure: 0.3 Mpa. | ||
5. 1 x 450mm,6 point locked hinged manlid c/w swing bolts. | ||

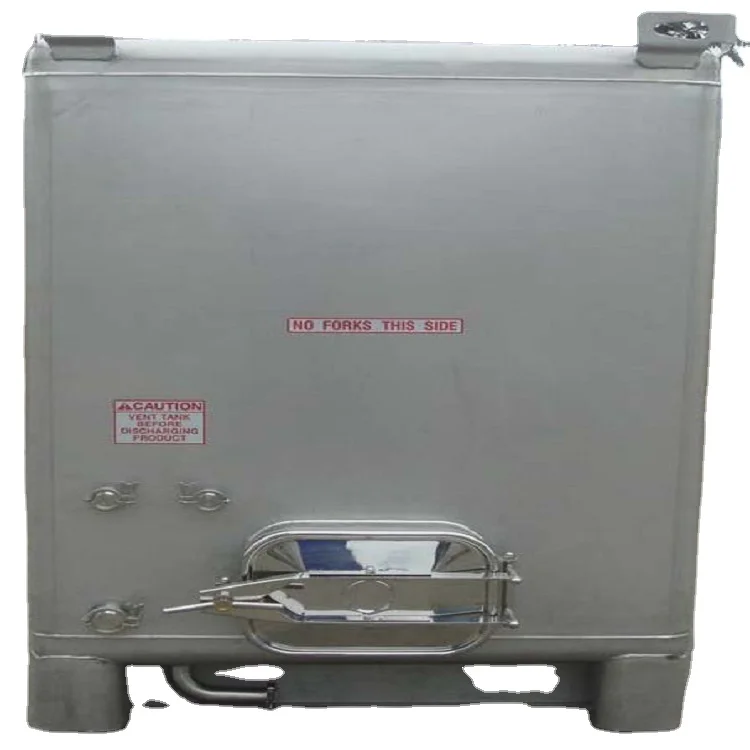

6. Square manlid door: 530×470mm; hinged; convenient operation. | ||
7. Operation:Top lift; Stackable; Fork lift. | ||
8. For storage and transport of wine. | ||
Packaging & Shipping
Our Services
The containers specified herein are manufactured under sufficient quality control, which will be
approved by one of following authorized classification societies:
A.B.S.: American Bureau of Shipping (U.S.A.)
B. V.: Bureau Veritas (France)
G. L.: Germanischer LIoyd (Germany)
C.C.S.: China Classification Society (P.R.C.)
K. R.: Korean of Shipping (Korea)
L. R.: Lloyd’s Register (Britain)
Company Information
CIMIC Containers businesses covering the manufacture of dry cargo container, refrigerated container and special container as well as thebusinesses of modular buildings and floor. Its annual production capacity of dry cargocontainer exceeds 2.4 million TEUs and the annual production capacity of refrigerated
FAQ
1. Classification societies
A.B.S American Bureau of Shipping (U.S.A.)
B.V Bureau Veritas (France)
G.L Germanischer LIoyd (Germany)
C.C.S China Classification Society (P.R.C.)
K.R Korean of Shipping (Korea)
L.R Lloyd’s Register (Britain)
2. Productivity
100units per day
3. Logo
Design and painting as your request
4.Payment
50% deposit , 50% before shipment
5. Guarantee
Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.
Decal guarantee Seven (7) years.
7. Contact information
Email : artest_zhang2004 (@)aliyun.com or 313365674 (@)qq.com
Mobile phone: 008613920482102
Whatsapp: 008613920482102
Skype: 008613920482102
