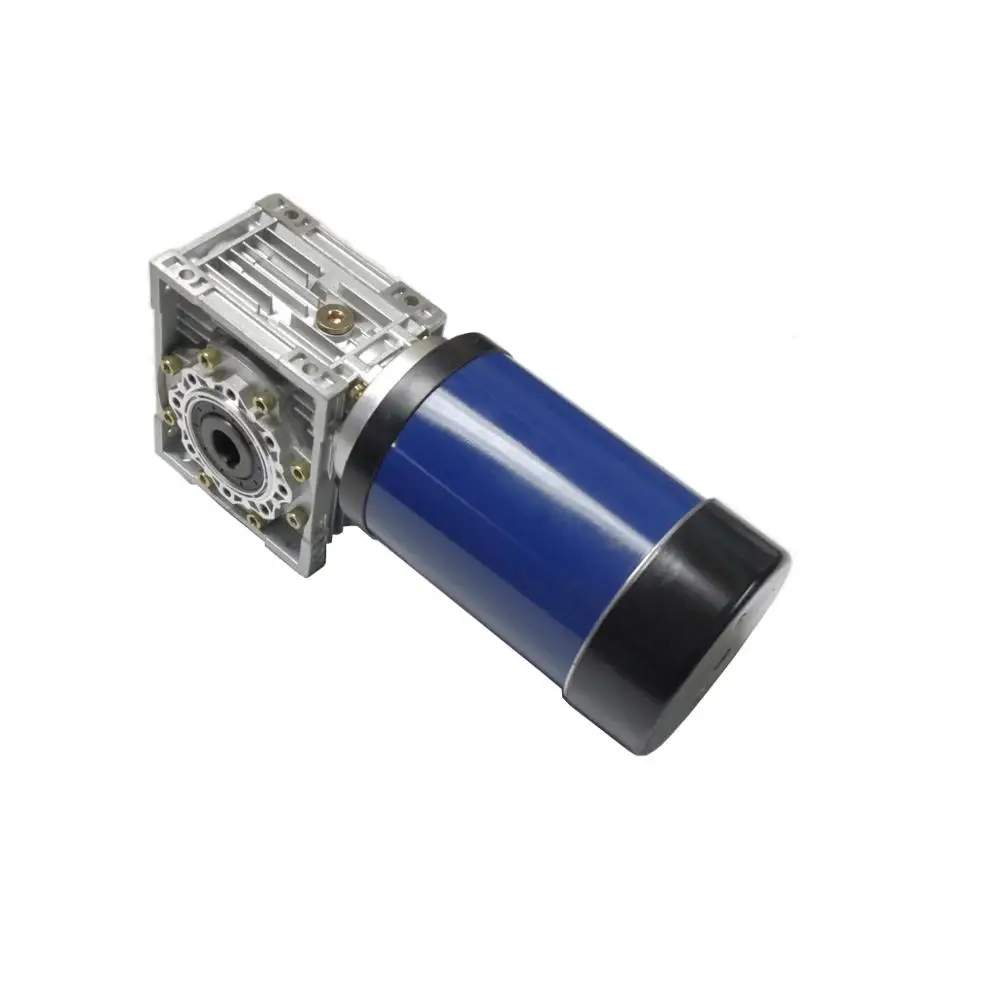

Бесщеточный двигатель постоянного тока 90 мм + червячный редуктор с соотношением

Описание и отзывы

Трекер стоимости

Характеристики



 Reducer RV030:

Gear ratio: 5, 7.5, 10, 15, 20 , 25, 30, 40, 50, 60, 80, 100

input hole:8 / 6.35MM optional,

output hole:14MM

RV030 worm gearbox is suittable for nema 23 57*57mm stepper motor or brushless dc motor



Type:	Worm Gear Speed Reducer
Model:	NMRV040
Other model:	NRV030,040,050,063,075,090,110,130,150
Ratio:	1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue/Silver Or On Customer Request
Material:	Housing: Die-Cast Aluminum Alloy
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
	Shaft-chromium steel-45#
Packing:	Carton and Wooden Case
Bearing:	C&U Bearing
Seal:	NAK SKF
Warranty:	1 Year
Input Power:	0.06KW,0.09KW,0.12KW,0.18KW,0.25KW,0.37KW,0.55KW,0.75KW,1.1KW, 1.5KW,2.2KW,3KW,4KW
Usages:	Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass.
IEC Flange:	56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,100B5, 100B14,112B5,112B14
Lubricant:	Synthetic





Purchase notes:
1- Confirm Reducer model
2- Confirm Reducer reduction ratio

3- Confirm Reducer input hole size and input flange size
4- ConfirmOutput hole size

5- Confirm if need other accessories
