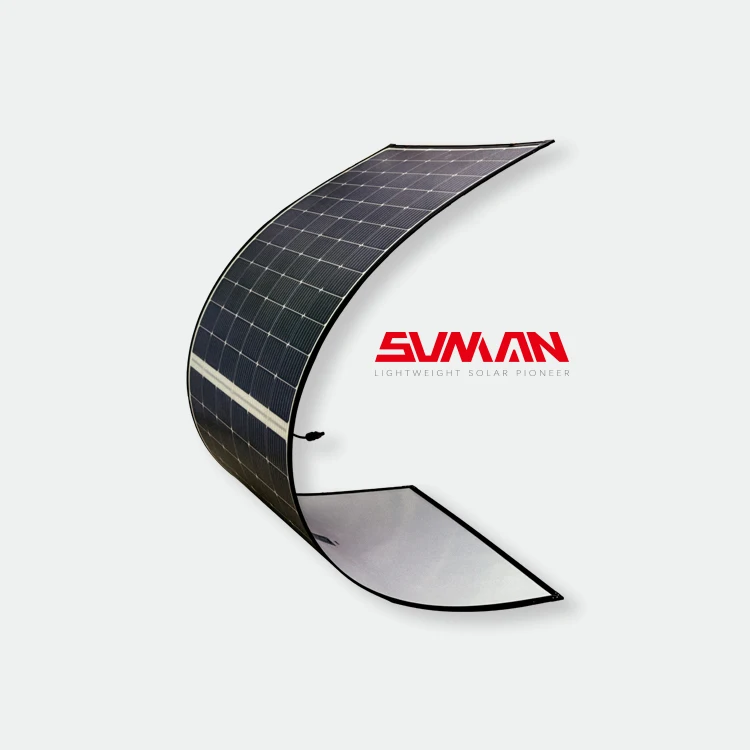

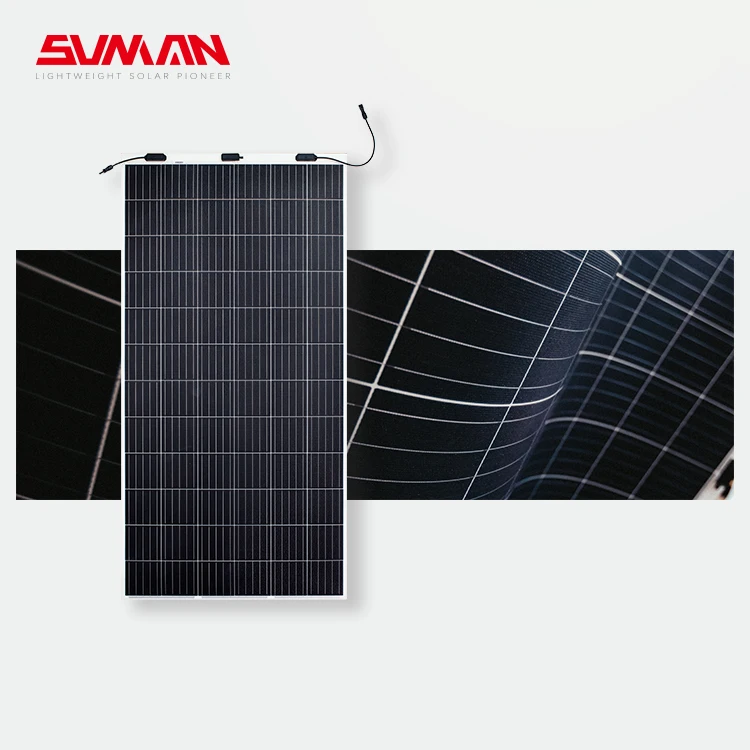

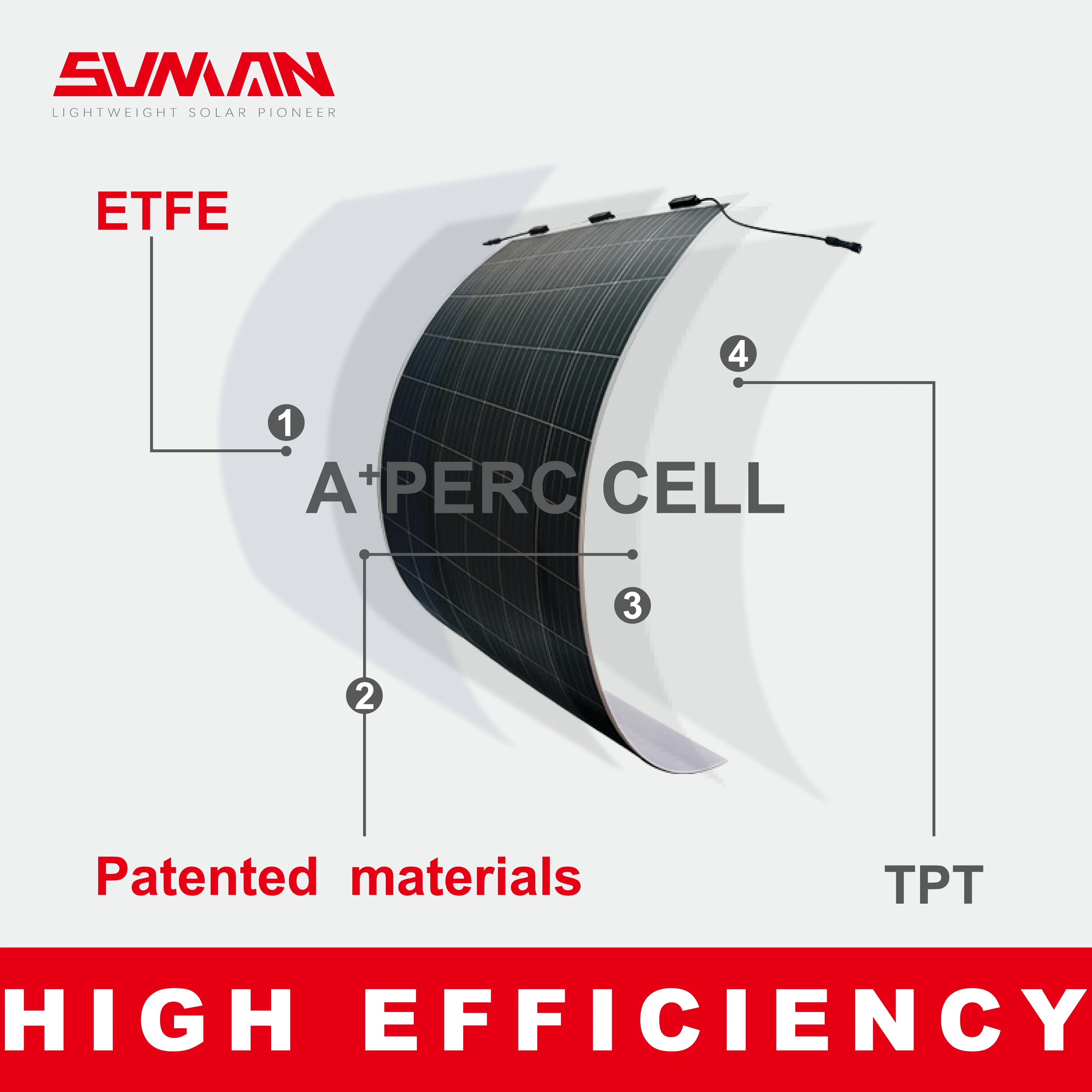

Высококачественная моногибкая солнечная панель с покрытием ETFE для лодок автодома и т. д. легкие панели PV
- Категория: Солнечные панели >>>
- Поставщик: SunMan,(Zhenjiang),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 245.72 $* | 257.20 $* |
| Aug-16-2025 | 243.50 $* | 255.81 $* |
| Jul-16-2025 | 204.13 $* | 214.28 $* |
| Jun-16-2025 | 239.79 $* | 251.79 $* |
| May-16-2025 | 208.20 $* | 218.3 $* |
| Apr-16-2025 | 235.98 $* | 247.45 $* |
| Mar-16-2025 | 233.57 $* | 245.4 $* |
| Feb-16-2025 | 231.43 $* | 243.83 $* |
| Jan-16-2025 | 229.80 $* | 240.23 $* |
Характеристики
Why choose us

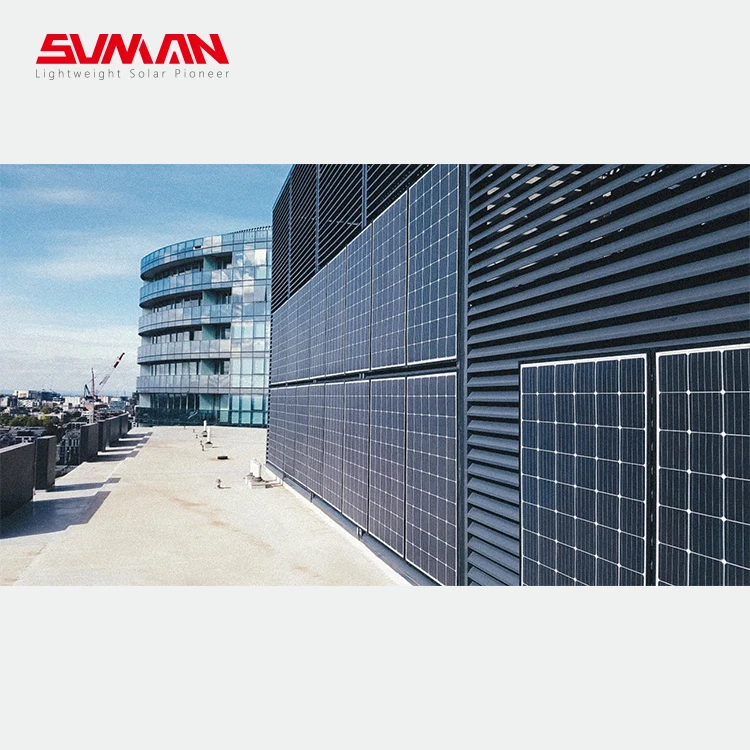

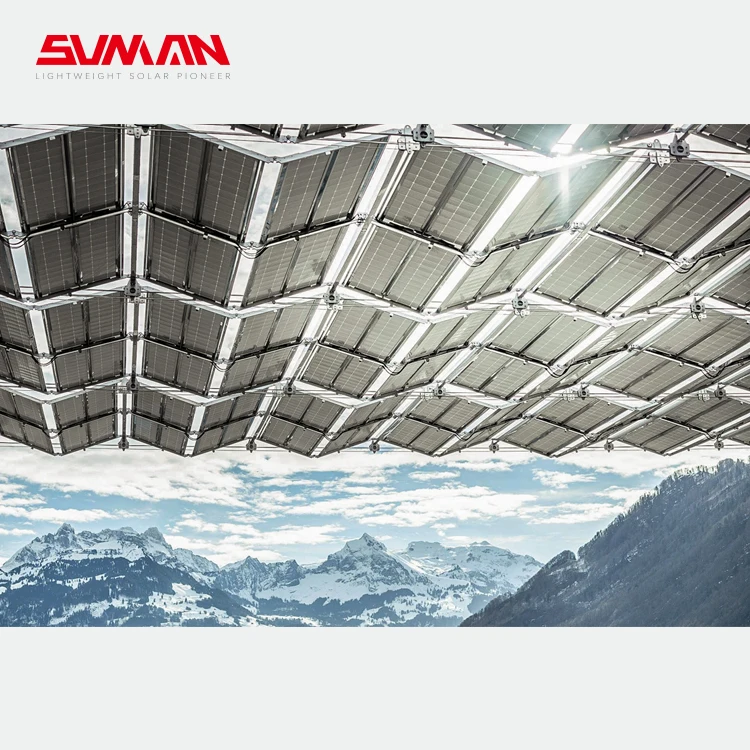

Product Applications
Datasheet
STC | SMD370M-6X12UW | SMD375M-6X12UW | NMOT | SMD370M-6X12UW | SMD375M-6X12UW |
| Maximum Power (Pmax ) | 370 | 375 | 278 | 282 | |
| Maximum Power Voltage (Vmp ) | 39.9 | 40.2 | 36.8 | 37.0 | |
| Maximum Power Current (Imp ) | 9.28 | 9.33 | 7.56 | 7.63 | |
| Open-circuit Voltage (Voc ) | 48.4 | 48.6 | 45.1 | 45.3 | |
| Short-circuit Current (Isc ) | 9.81 | 9.86 | 8.00 | 8.07 | |
| Module Efficiency (%) | 17.7 | 17.9 |
|
STC: Irradiance 1000W/m 2 , Cell temperature 25℃, AM=1.5. Tolerances of P max , V oc and I sc are within ±5%
NMOT: Irradiance 800W/m 2 , Ambient temperature 20℃,AM=1.5, Wind speed 1 m/s.
| Operating Temperature (℃) | -40 ℃ to 85 ℃ | Nominal Module Operating Temperature(NMOT) | 41±2 ℃ |
| Maximum System Voltage | 1000 V DC (IEC) | Temperature Coefficient of Pmax | -0.38 %/℃ |
| Maximum Series Fuse Rating | 20 A | Temperature Coefficient of Voc | -0.28 %/℃ |
| Application Class | Class A | Temperature Coefficient of Isc | 0.020 %/℃ |
| Power Tolerance | 0/+5 W |
Company Information
Exhibition
FAQ
Q:What is the MOP?
A:One pallet. To start cooperation with our partners, we are honored to offer you SunMan samples. After that, the minimum order is one pallet.
Q:What is the lead time?
A:About one month. If we can get your order confirmation, then we can lock the soonest date for you.
Q:What is the difference between SMD and SMA?
A: The main differences are the frame thickness and corresponding installation method. SMD with 5.6mm frame is suitable for quick bonding installation method. The whole weight load of Panel + Silicon Glue <3.3KG/m2. SMA with 35mm frame can apply traditional installation method, with the help of metal fitting (rails+ clamping). The whole weight load of Panel + Support Structure <4.6KG/m2.
Q:Why is your goods so much more expensive than others?
A:As for the price: We are not the competitors of the conventional solar panel manufacturer. For those normal roofs that conventional panels can apply, we do not suggest you apply SunMan panel to double your budget. However, for those special roofs such as the glass roof, PVC roof, TPO roof, Curved Roof, etc, which conventional panel cannot be installed, then SunMan panel will be your cost-effective solutions.
