Машина для гравировки Ruian
- Категория: >>>
- Поставщик: Zhejiang,Lifeng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 23800.49 $* | 24990.94 $* |
| Aug-16-2025 | 23600.84 $* | 24780.14 $* |
| Jul-16-2025 | 19800.16 $* | 20790.15 $* |
| Jun-16-2025 | 23200.25 $* | 24360.81 $* |
| May-16-2025 | 20200.49 $* | 21210.38 $* |
| Apr-16-2025 | 22800.68 $* | 23940.37 $* |
| Mar-16-2025 | 22600.70 $* | 23730.4 $* |
| Feb-16-2025 | 22400.10 $* | 23520.81 $* |
| Jan-16-2025 | 22200.21 $* | 23310.85 $* |
Характеристики

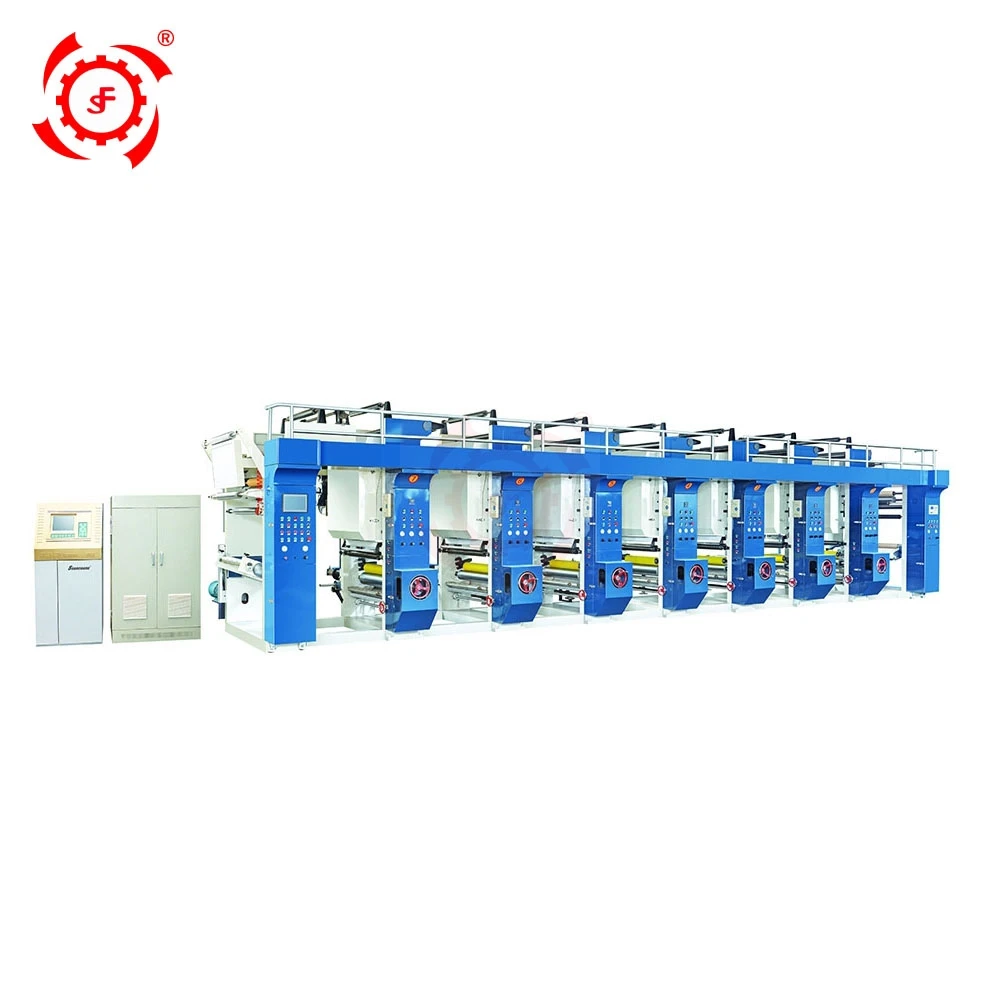

Ruian 2 4 5 6 7 8 9 10 Color High Speed automatic rotogravure printing machine price
Application:
This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing
performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.
Product Features:
1, Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of
color register quickly and accurately.
2, Main motor with inverter speed control
3, Turret un/rewinding section, non-stop material splicing,air chuck core less roll loading system, quick material swift
4, Unwinding and in-feed section with inverter speed control system and close loop tension control system
5, Rewinding and out-feed section with inverter speed control system and close loop tension control system
6, Closed oven and independent heating hot air blowing system, automatic constant temperature system.
7, Pneumatic impressing system and pneumatic doctor blade system
8, Diaphragm-type pneumatic ink auto circulating system
9, Printing linear speed and meter counting display
10, Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
11, Option: Web video
Application:
This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing
performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.
Product Features:
1, Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of
color register quickly and accurately.
2, Main motor with inverter speed control
3, Turret un/rewinding section, non-stop material splicing,air chuck core less roll loading system, quick material swift
4, Unwinding and in-feed section with inverter speed control system and close loop tension control system
5, Rewinding and out-feed section with inverter speed control system and close loop tension control system
6, Closed oven and independent heating hot air blowing system, automatic constant temperature system.
7, Pneumatic impressing system and pneumatic doctor blade system
8, Diaphragm-type pneumatic ink auto circulating system
9, Printing linear speed and meter counting display
10, Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
11, Option: Web video
Technical Parameters: | |||||
Type | AZJ-8850C | AZJ-81050C | AZJ-81250C | ||
Max. Width of Web | 850mm | 1050mm | 1250mm | ||
Max. Printing Speed | 120m/min | 120m/min | 120m/min | ||
Max. Diameter of Unwind/Rewind | ф800mm | ф600mm | ф600mm | ||
Internal Diameter of Roll Core | ф76mm | ф76mm | ф76mm | ||
Diameter of Printing Cylinder | ф180~ф380mm | ф180~ф380mm | ф180~ф380mm | ||
Accuracy of Registration | ±0.1mm | ±0.1mm | ±0.1mm | ||
Tension Control Range | 3~25kg/Full Width | 3~25kg/Full Width | 3~25kg/Full Width | ||
Steam Heating System | 216Kw | 243Kw | 270Kw | ||
Total Power | 304Kw | 335Kw | 365Kw | ||
Weight of Machine | 40500kg | 42000kg | 43500kg | ||
Overall Dimension | L21200×W4600×H4200mm | L21200×W4800×H4200mm | L21200×W4500×H4200mm | ||
