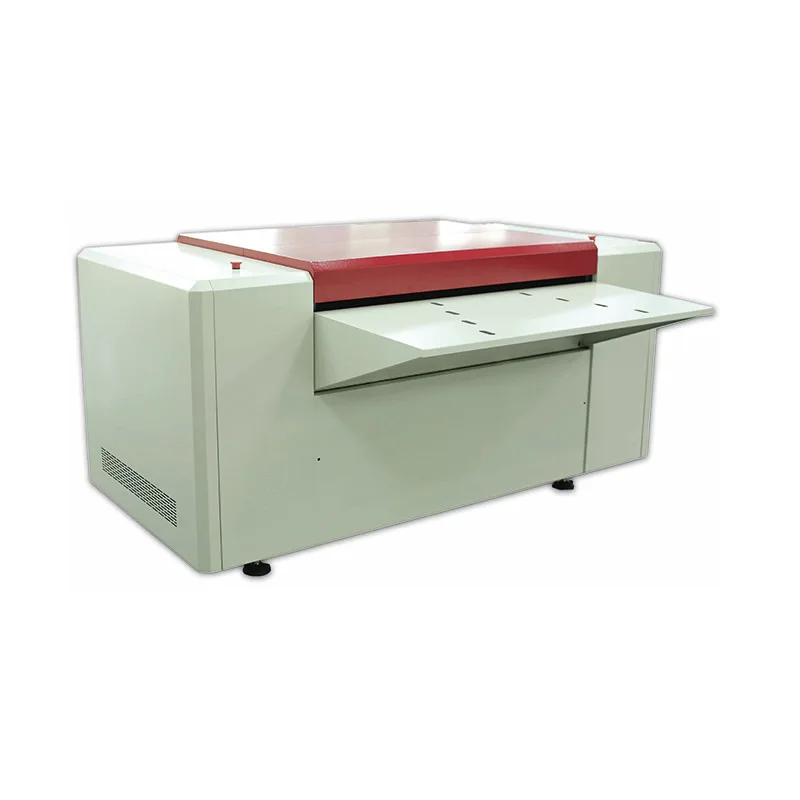

Флексополимерная пластина CTP

Категория: Форпресс оборудование >>>
Поставщик: McLantis,Technology,(Shanghai),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.47 $*	0.5 $*
Aug-16-2025	0.2 $*	0.6 $*
Jul-16-2025	0.38 $*	0.67 $*
Jun-16-2025	0.45 $*	0.38 $*
May-16-2025	0.54 $*	0.9 $*
Apr-16-2025	0.31 $*	0.55 $*
Mar-16-2025	0.8 $*	0.44 $*
Feb-16-2025	0.11 $*	0.42 $*
Jan-16-2025	0.64 $*	0.47 $*

Характеристики

Product Description

Product Paramenters

1. Proven laser diode technology with automated imaging design
McLantis CTP ensures very clear and sharp dot and high run length. Day light operation. Failure of any channel of laser diode will
not stop the CTP. The CTP can use the remaining channels to work. Therefore, McLantis CTP ensures continuous production and
maintenance convenience.

2. Dynamic autofocus
The performance of the platesetter is mostly decided by precise focus control. Plate output quality is derived from the consistent
laser spot precision. McLantis CTP utilizes the third generation dynamic focusing technology. The precise distance measuring
system can detect the subtle change in distance of 0.1 microns. Driven by the voice coil motor, McLantis CTP can track the changes
in the plate surface to adjust the longitudinal position of the lens, to ensure a constant distance between the lens. McLantis
dynamic autofocus can also avoid the fine dust from the surface of the photosensitive drum caused by blue spots, blue halo
problem. Each spot is exposed in the best focal length exposure to ensure the consistent, clear and sharp dot.

3. Unique dot control technology
McLantis unique graphical calibration technology can perfectly reproduce rectangle, eliminating dimensional deviation caused by
different plate thickness. McLantis CTP can make precise compensation for dot gain problem caused by the laser spot size. McLantis
CTP can perfect perform 1% to 99% step. One single McLantis CTP plate registration accuracy is 5 microns. It can reach 15 microns
after calibrating with two different McLantis CTP’s.

4. External drum exposure
McLantis CTP utilizes DDS technology to ensure the phase jittering frequency within 1/32 pixel, to ensure straight and smooth
vertical and horizontal line. McLantis drum system balance block can automatically adjust to the new location up to only 5 seconds
to adjust, to switch instantaneously for various sizes of plates. In addition, McLantis CTP utilizes the printing press type to
curve and clamp the plate, exposes consistent high quality dots.

5. Automatic energy balance
The temperature control system inside the laser constant shielding box can automatically precise temperature to plus or minus 0.1
degrees. And at a precise temperature condition, light intensity can be automatically calibrated every 8 hours to ensure the
consistence of the laser energy.

6. Top quality core components
McLantis CTP is incorporated with the world's top brand laser diode and top grade AO grade roller screw and ball rails. Precision
ceramic surface of the external drum with swing beat less than 8 microns, never worn. Highly reliability of the plate clamp system
with two hundred thousand times more fatigue testing and more than 4 million hours record of non-plate-flying.
High performance dedusting system can gather the dust during plate outputing and collected in the dust filter bag, not directly
emitted into the air.

7. Easy to operate
McLantis CTP platesetter is dedicated to any CTP workflow with perfect seamless connectivity.

Model

MACSETTER

166F

326F

168F

328F

1614F

3214F

1617F

3217F

Light Channels

16 beams
