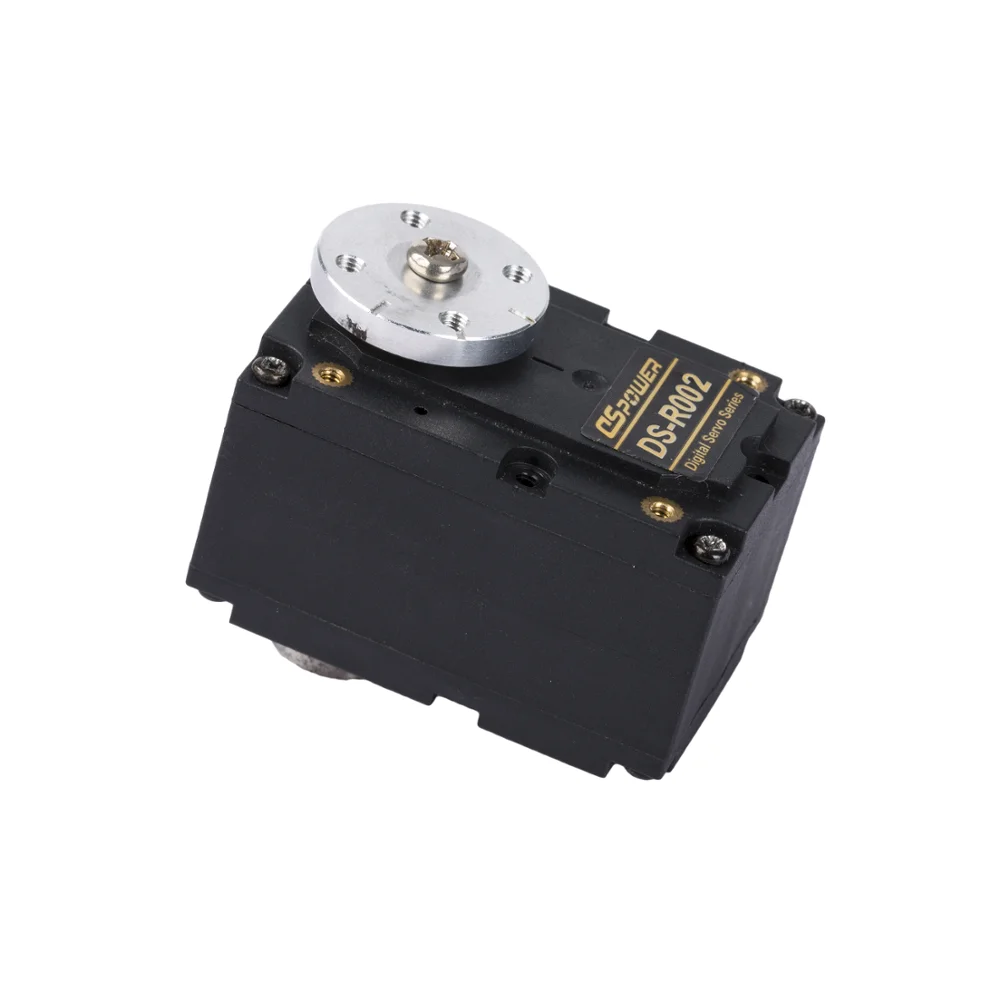

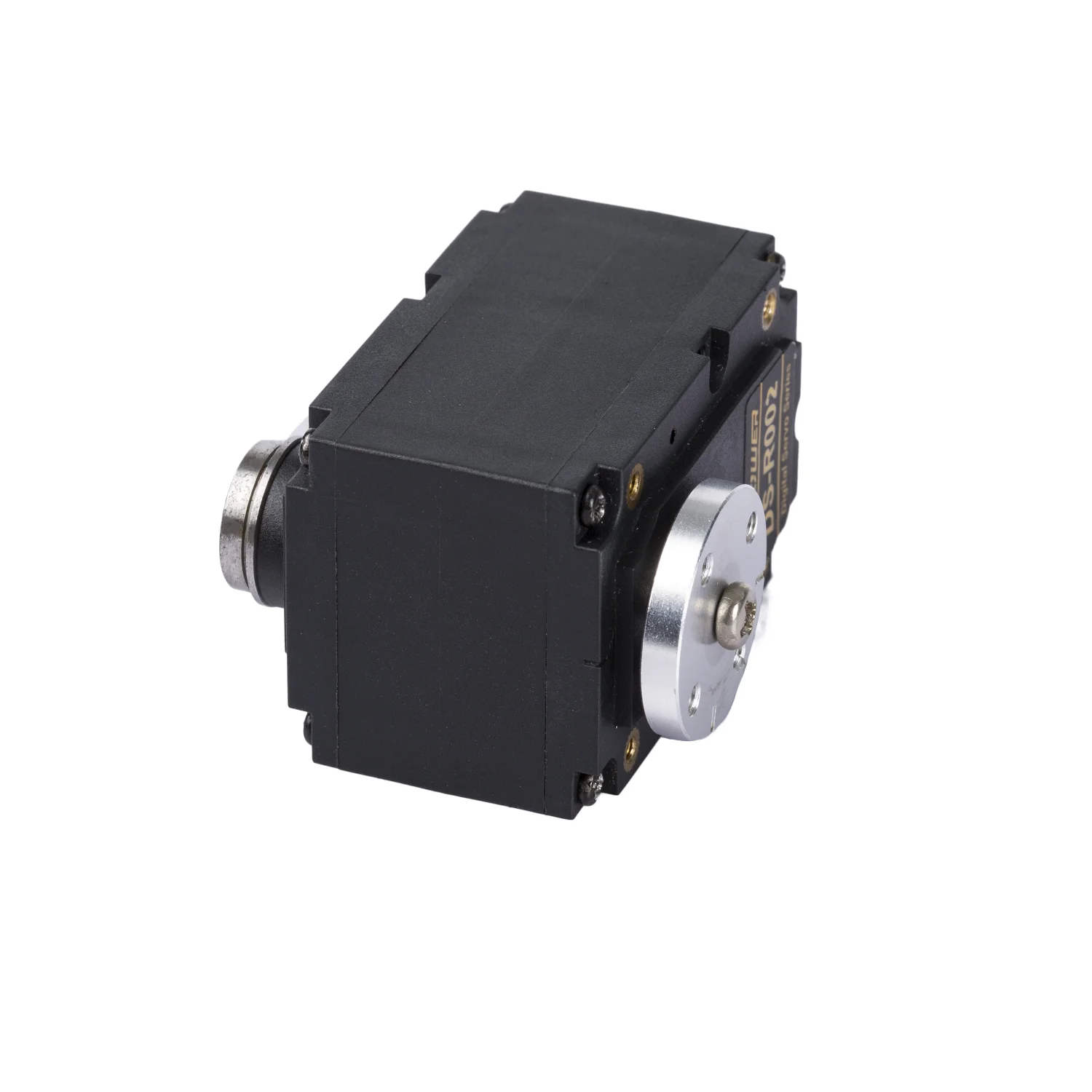

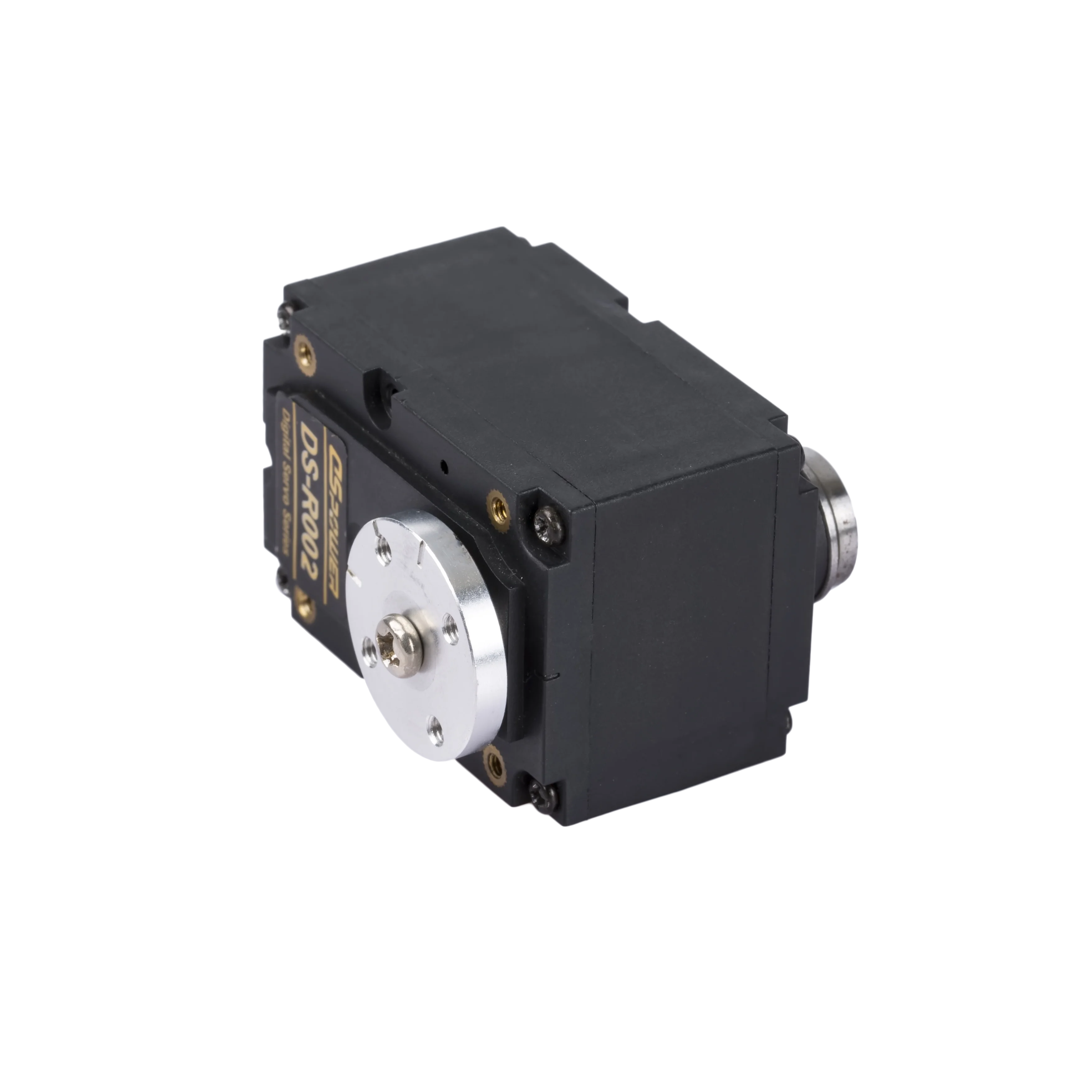

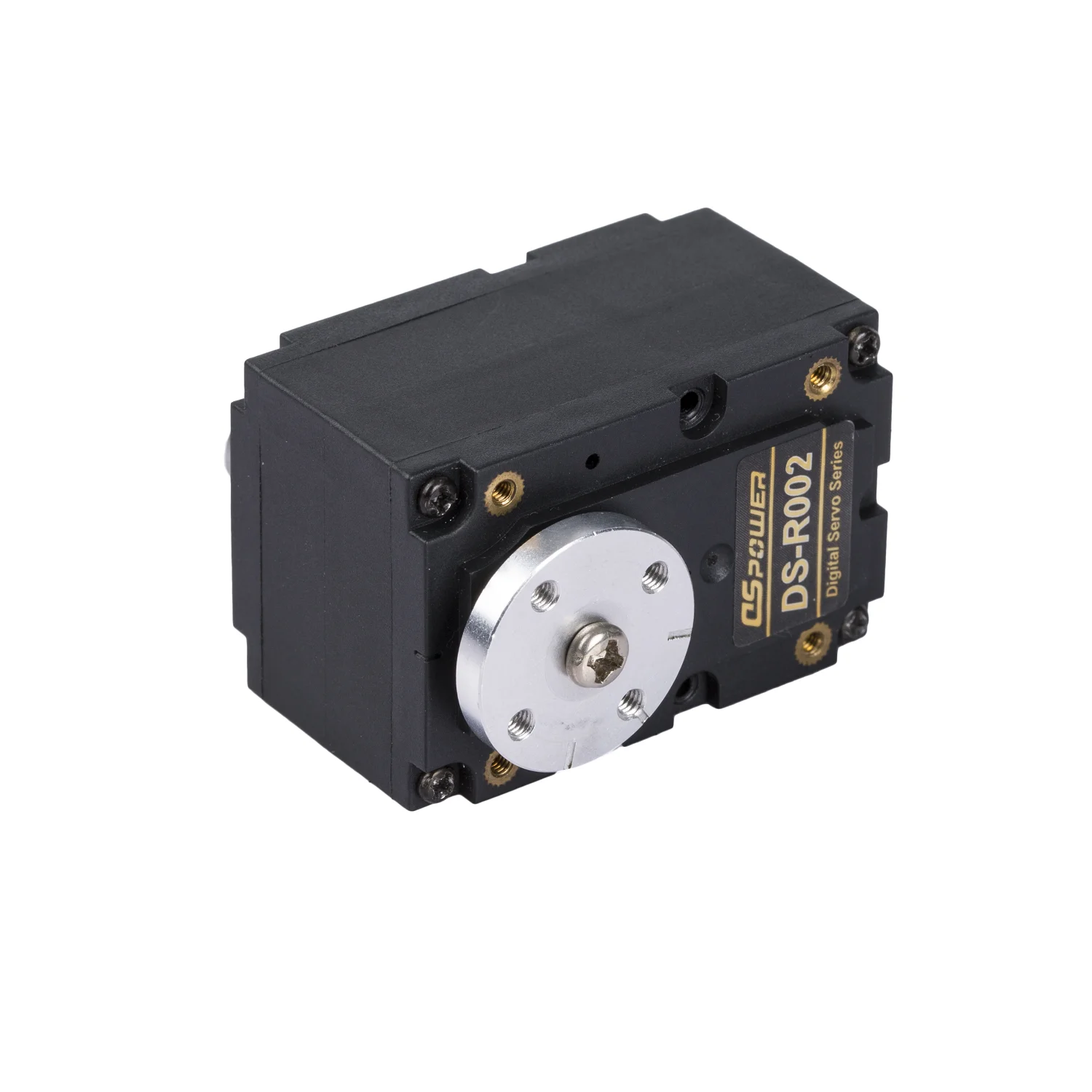

360 непрерывное вращение/высокий крутящий момент/цифровой рулевой механизм с двумя валами/линейное изменение для радиоуправляемого дрона
- Категория: Toy Parts >>>
- Поставщик: Dongguan,De,Sheng,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 19.45 $* | 19.83 $* |
| Jul-19-2025 | 15.78 $* | 15.34 $* |
| Jun-19-2025 | 19.75 $* | 19.18 $* |
| May-19-2025 | 19.13 $* | 19.41 $* |
| Apr-19-2025 | 15.42 $* | 15.66 $* |
| Mar-19-2025 | 18.83 $* | 18.63 $* |
| Feb-19-2025 | 18.68 $* | 18.13 $* |
| Jan-19-2025 | 18.80 $* | 18.31 $* |
Характеристики
Product Description
[Suitable for: ]
Applicable scope : RC toys, robots , robot arms , robot joints, smart homes..
[Feature:]
Strict production and quality control of plastic components ensure quality construction.

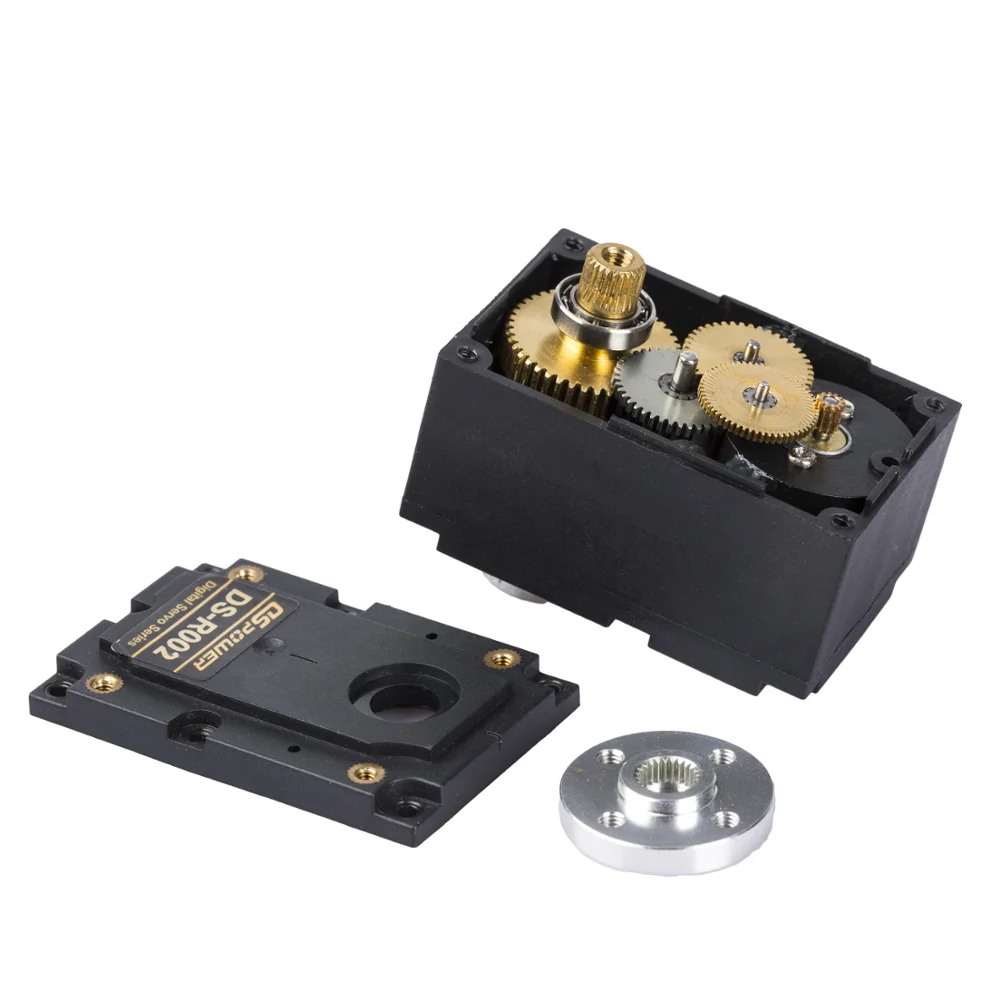

The metal gears form a solid structure for precise control and operation.

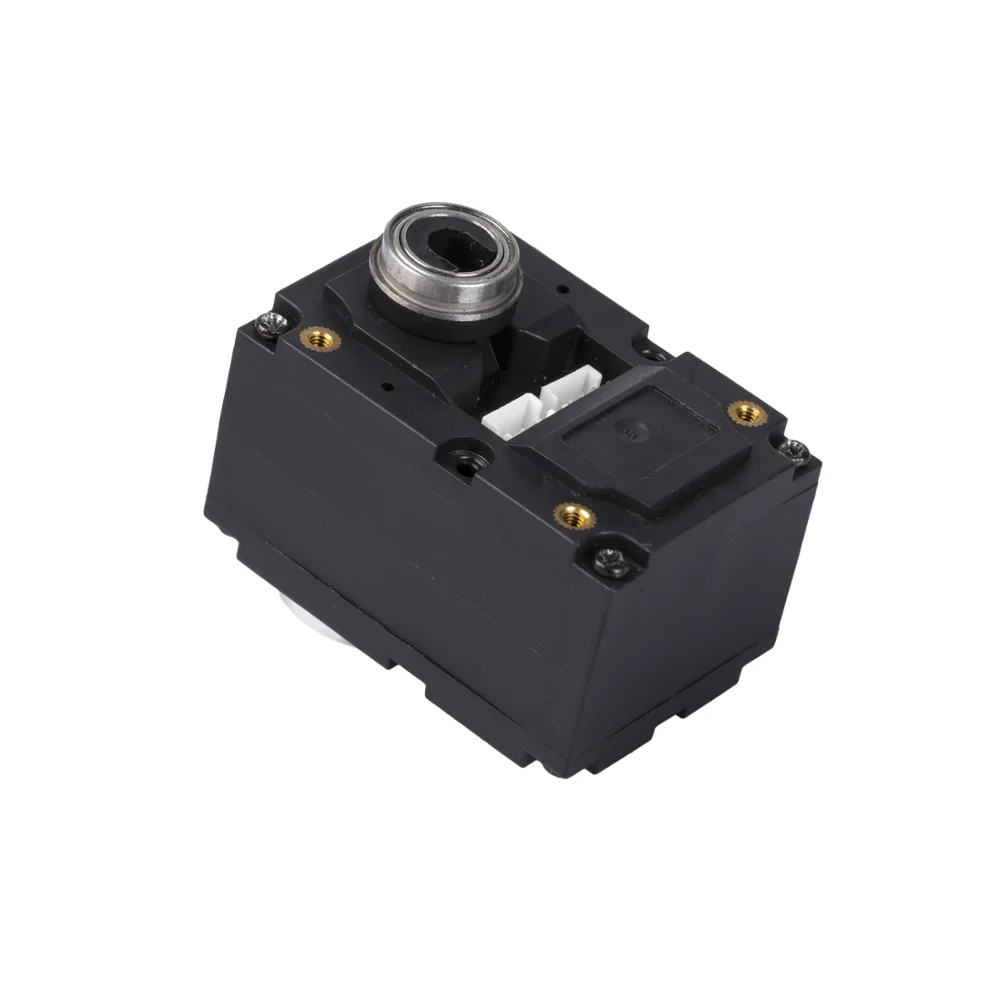

Dual ball bearing output shaft.
[Stable Performance: ]
This steering standard servo is stable and quick response time, strong, advanced linearity, accuracy with precision potentiometers, stable, low noise
*NOTE:
1 Year warranty against manufacturer defects
| Operating Voltage Range | 6V~7.4V |
| Operating speed (at no load) | 0.25±0.01sec/60° at 6.0V |
| Running current (at no load) | 90±20mA at 5.0V |
| Stall torque (at locked) | >8kg at 6.0V |
| Stall current (at locked) | 1.2±0.1A at 6.0V |
| Idle current (at stopped) | 12±1mA at 6.0V |
| Limit angle | 360°± 10° |
| Weight | 50 ±1 g |
| Horn gear spline | 25T/ 5.77 |
| Operating travel | 240°±10°( 500- 3500 μsec) |
| Left&Right travelling | ≤7° |
| Centering deviation | ≤1° |
| Pulse width range | 2000μsec |
| Pulse width range | 100 - 4000 μsec |
| Maximum travel | About 300° |
| excessive play | ≤1° |
