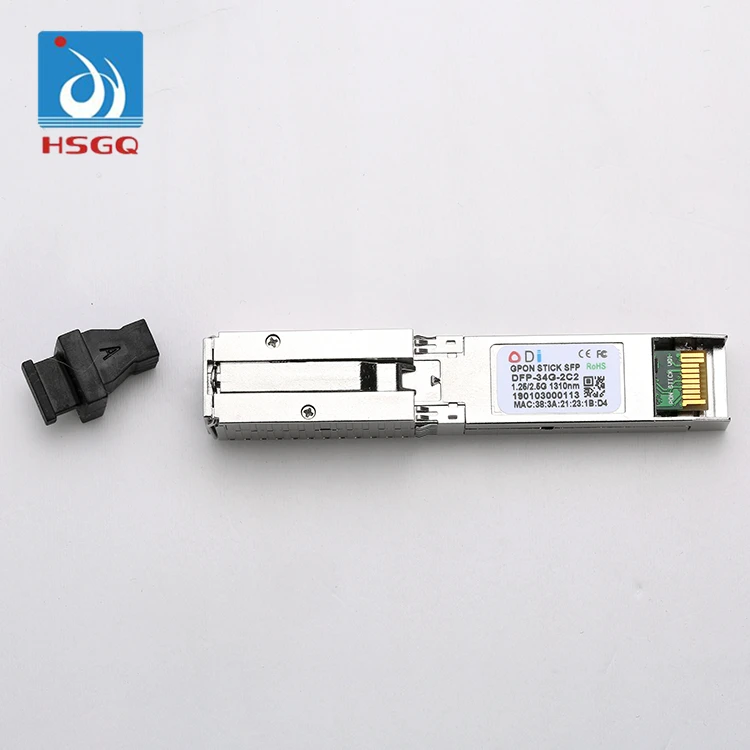

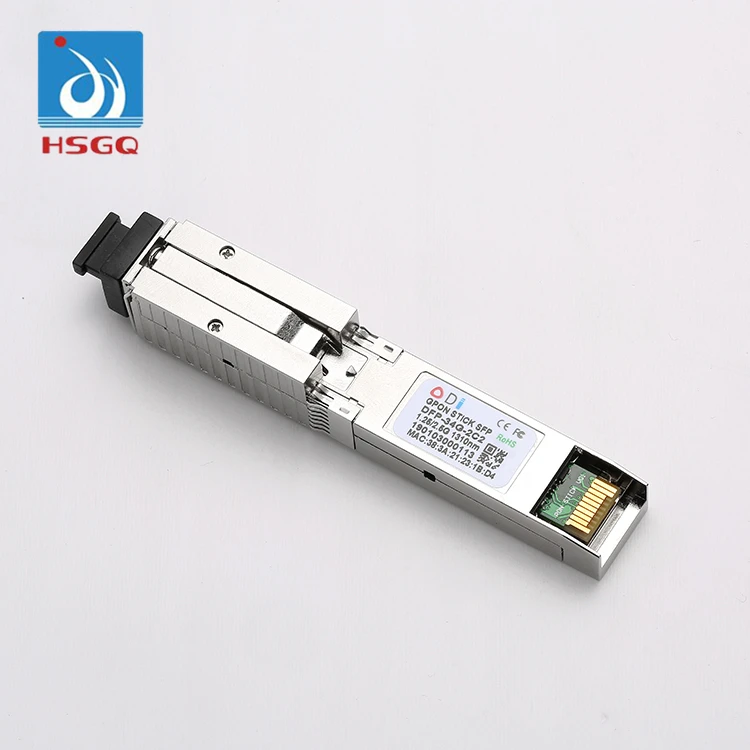

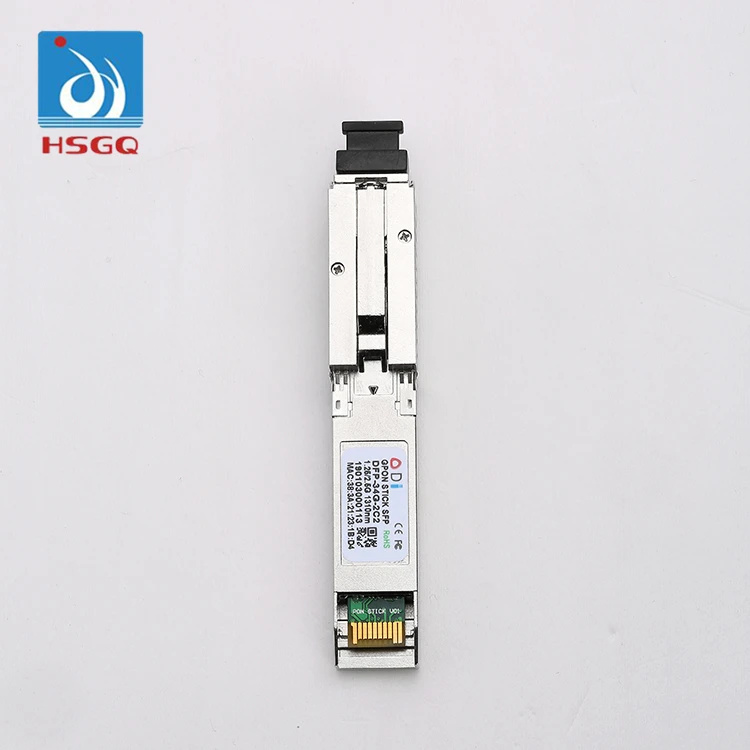

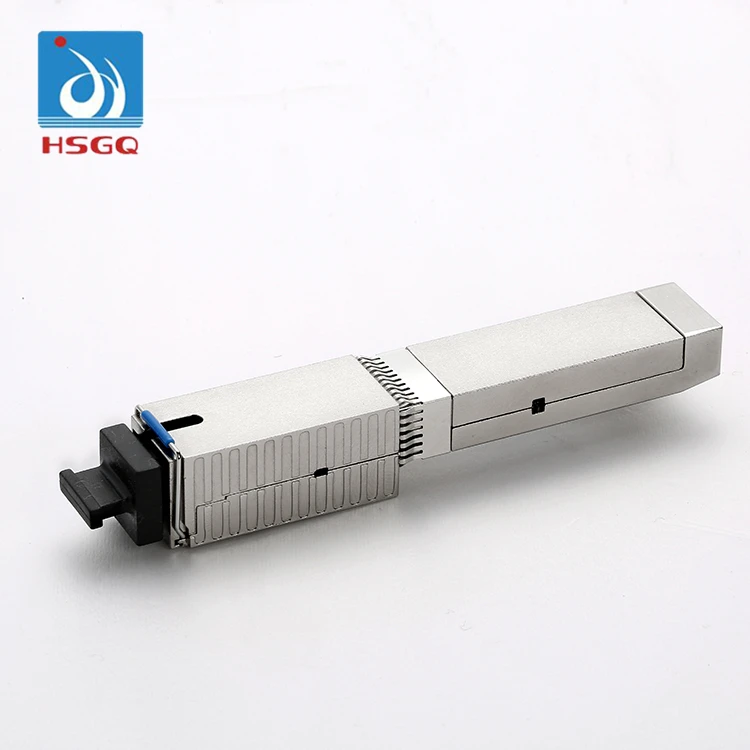

GPON ONU STICK SC/UPC SFP для

•APPLICATIONS •

Gigabit-capable Passive Optical Networks (GPON) • The product is an MSA-compliant SFP that incorporates not just the optics for an ONU, but all of the electronics need as well. It is a “PON on a Stick” that an entire FTTH ONU in a slightly oversized SFP. It can be plugged into networking equipment. Allowing the data interfaces on a switch, router, etc. to be customized for different fiber environments and distance requirements

Product Feature:

•Single fiber bi-directional data links asymmetric TX 1244Mbps / RX 2488Mbps GPON ONU
application with GPON MAC
function.

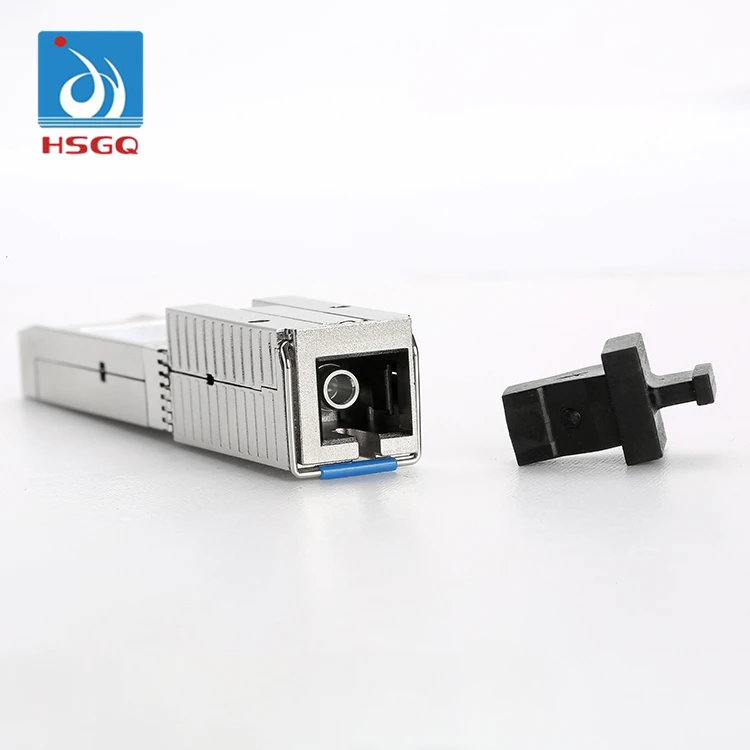

• SC/UPC receptacle SFP with GPON ONU MAC inside, “Plug-and-play” via auto-discovery and configuration
• 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver
• Single 3.3V power supply
• Digital diagnostic monitor interface compatible with SFF-8472
• SFP MSA compliance
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• RoHS compliance
• EPON ONU compatible
• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with ITUT-T G.984.2, G.984.2 Amendment 1
• Complies with ITUT G.988 ONU management and control interface (OMCI) specification

Product Description:

 Absolute Maximum Ratings

RECOMMENDED OPERATING ENVIRONMENT

ABSOLUTE MAXIMUM RATING
