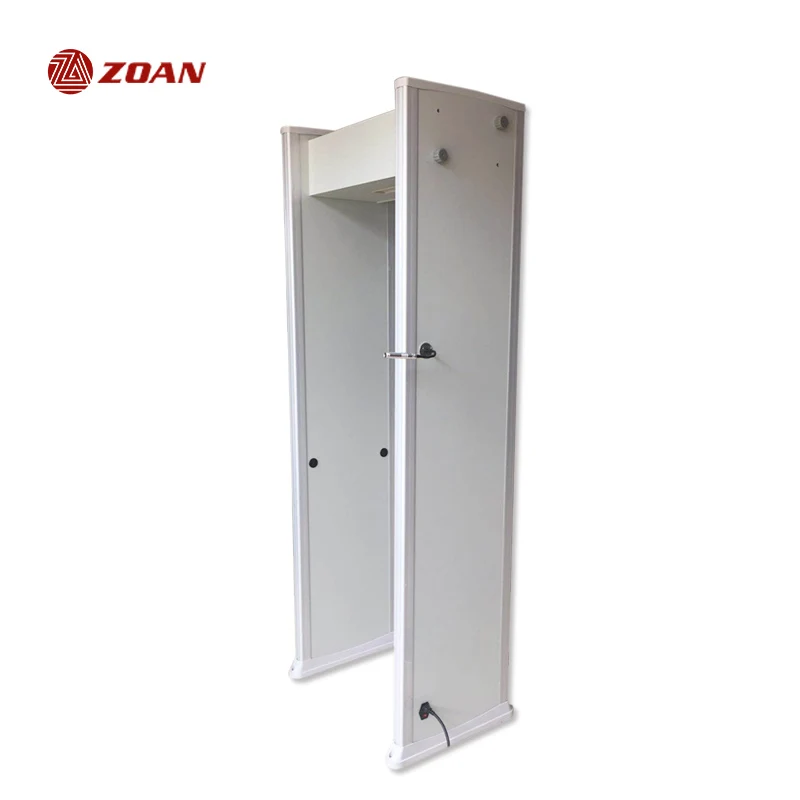

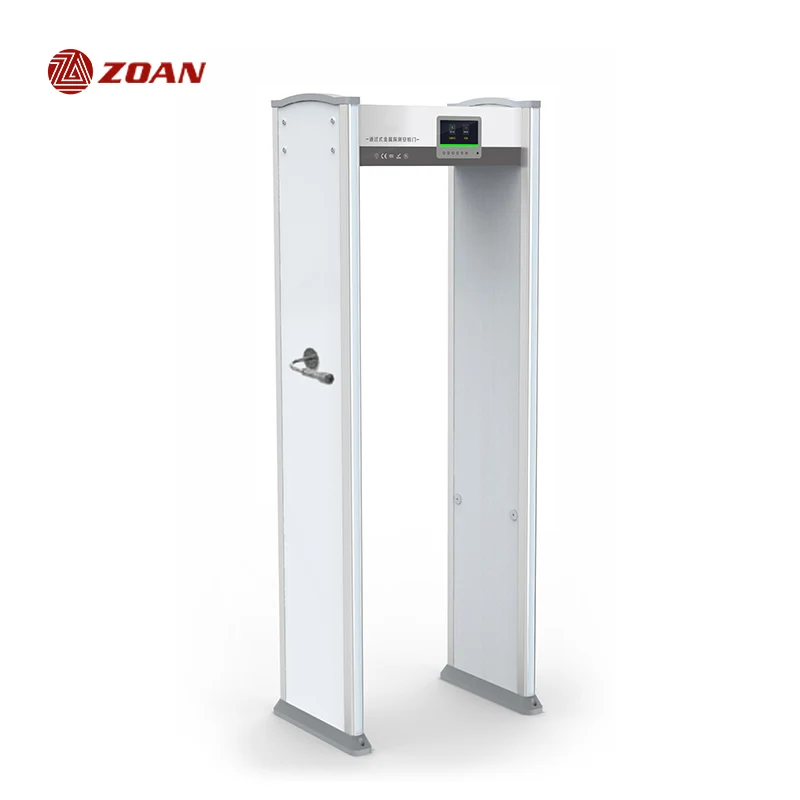

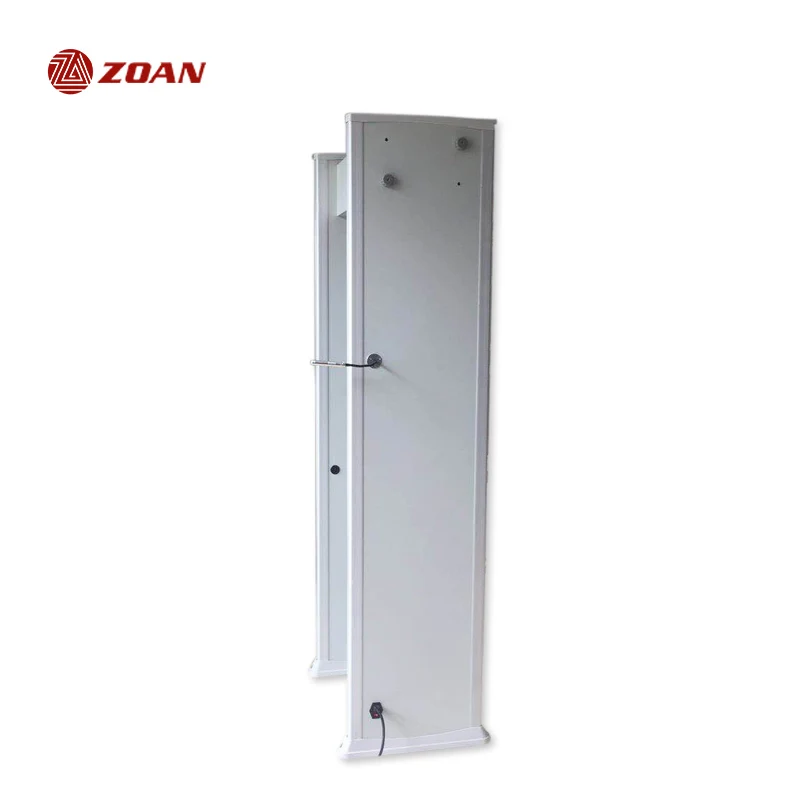

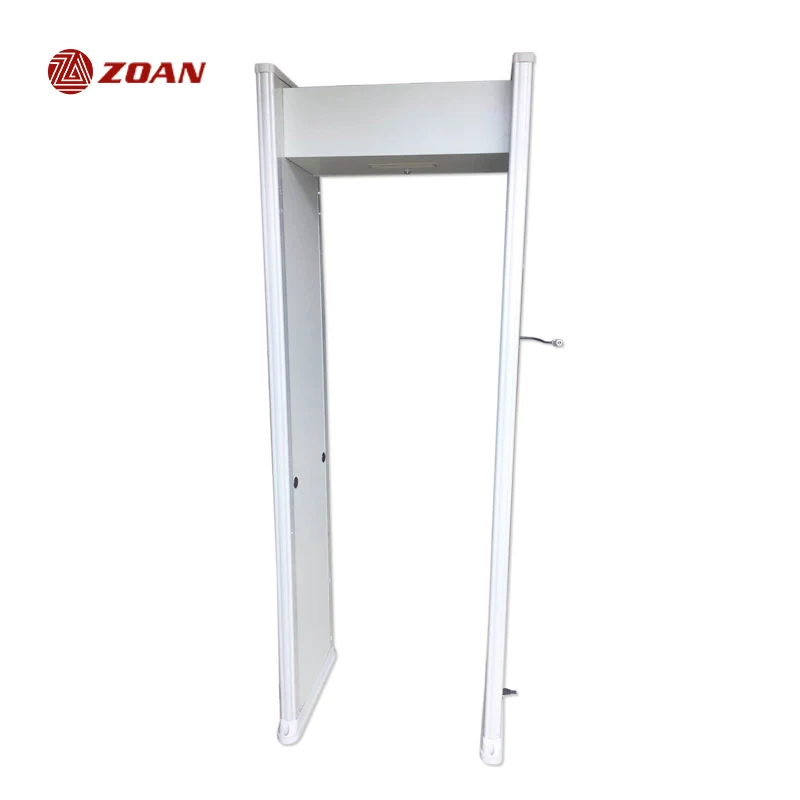

2020 High sensitivity walk through temperature detector infrared body temperature scanner



General Specifications
Stand-up dimensions:	H2230* L835* W580mm
Vertical channel size:	H1990* L700*W510mm
Weight:	65kg
Operating Voltage:	AC90V~240V 50/60Hz
Power consumption:	<10W (lowest power consumption)
Working temperature:	-20 ° C ~ 45 ° C
Installation Environment:	Width 100cm* length 200cm (no metal minimum range) sheet horizontal
Location detection metal object accuracy range:	The highest sensitivity ≥ 6g metal
Screen:	7-inch LCD screen, new debugger interface, more operation Easy to understand





Features:

1. Non-contact temperature detection: the temperature of the forehead of a passing person is tested by an adjustable infrared sensor.

Test accuracy: ± 1 ℃, test distance: 0.1m-1m. Working environment: indoor / no wind.

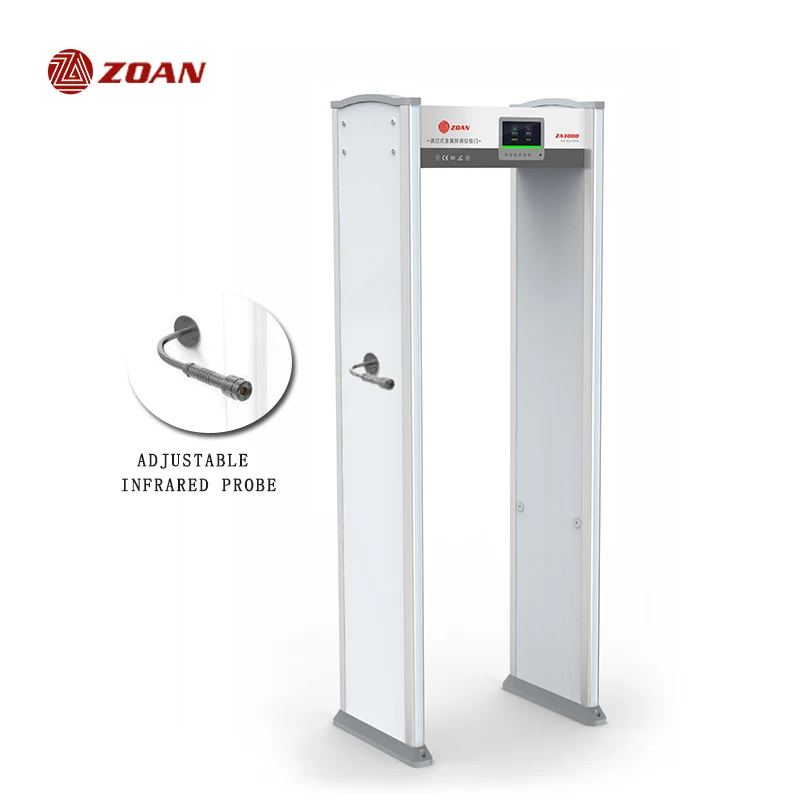

2.Adjustable settings: People of different heights can adjust the sensor angle by themselves to find a suitable angle for measurement.

3.Metal detection and temperature detection function: Metal detection function and temperature detection function exist at the same time. Wider range of use.

4.Multi-zone technology: 18 detection zones, the sensitivity of each detection zone can be adjusted arbitrarily (with adaptive adjustment technology), and there is a high-brightness LED alarm location indication to accurately locate hidden contraband areas;

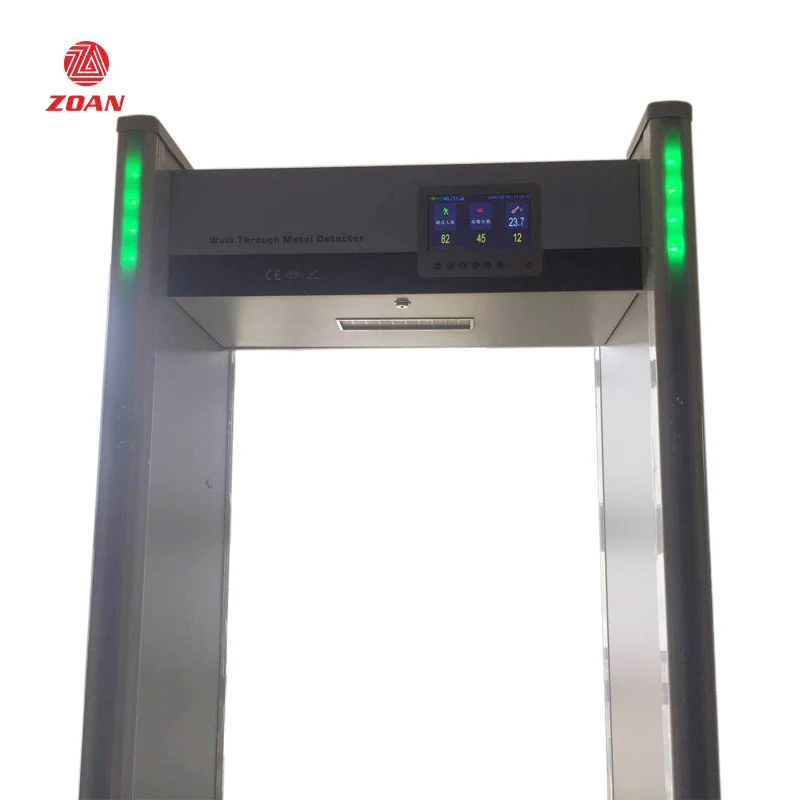

5. Large-screen technology: 7-inch LCD screen, new debug program interface, easy to operate;

6. Detect objects: can detect magnetic, non-magnetic and alloy metals;

7.Super strong shell protection technology: IP55 superior protection performance;

8. Statistics of alarm data: equipped with intelligent passenger flow and alarm counter, which can automatically display and record the number of alarms and the number of people entering and leaving in real time, and can record 100,000 pieces of large-capacity record information for real-time inspection;

9. Alarm function: alarm light and alarm sound can be adjusted arbitrarily;

10. Password operation: Password protection allows only authorized personnel to operate, higher security;

11. Human safety: It is harmless to cardiac pacemaker wearers, pregnant women, and magnetic media.
