Резиновый Контейнер RTG для шин мобильный козловой кран с высококачественным

Резиновый Контейнер RTG для шин мобильный козловой кран с высококачественным

Категория: Козловые краны >>>
Поставщик: Henan,Yuntian,Crane,Co.,Ltd.

Цена:100 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	119000.10 $*	124950.35 $*
Aug-16-2025	118000.43 $*	123900.26 $*
Jul-16-2025	99000.6 $*	103950.54 $*
Jun-16-2025	116000.25 $*	121800.95 $*
May-16-2025	101000.24 $*	106050.75 $*
Apr-16-2025	114000.3 $*	119700.96 $*
Mar-16-2025	113000.46 $*	118650.24 $*
Feb-16-2025	112000.72 $*	117600.97 $*
Jan-16-2025	111000.36 $*	116550.42 $*

Характеристики

Product Description

RTG Rubber Tyre Container Mobile Gantry Crane with High Quality Spreader

Product Description

RTG Tyre Crane is composed of gantry, lifting trolley, crane travelling mechanism, cab and electric control system. The gantry is of boxed-shape structure, the girder is bias track double girder and the leg is Type U.
Hot Sale Rubber Tyre Gantry Crane, RTG Tyre Crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.

Contact us for more information

RTG Container Rubber Tyre Gantry Crane 40 Ton Price

Features:

1. Reasonable structure and favorable performance.
2. Smooth starting and stopping.
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Especially suitable for the container lifting.
8. Designed according to your reques

Please click here for details communication

RTG Container Rubber Tyre Gantry Crane 40 Ton Price

Technological Parameters:

RTG Container Rubber Tyre Gantry Crane 40 Ton Price

Please contact me for customized parameters

Lifting Capacity (t)		10	16	20/10	32/10	36/16	50/10
Span (m)		18-35
Lifting Height (m)		10-13
Duty Class		A5-A8
Speed (m/min)	Lifting	8.5	7.9	7.2/10.4	7.5/10.4	7.8/10.5	6/10.4
	Trolley	43.8	44.5	44.5	41.9	41.9	38.13
	Crane	40	38	38	40	40	38
Motor	Lifting	YZR180L-6/17	YZR225M-8/26	YZR225M-8/26 YZR200L-6/26	YZR280S-10/42 YZR200L-6/26	YZR280M-10/55 YZR225M-6/34	YZR280M-10/55 YZR200L-6/26
	Trolley	YZR132M1- 6/2.5*2	YZR132M2- 6/4*2	YZR132M2- 6/4*2	YZR132M1- 6/4*2	YZR132M1- 6/6.3*2	YZR132M1- 6/6.3*2
	Crane	YZR160L-6/13*2	YZR160L-6/132 YZR160M1- 6/6.34	YZR160L-6/132 YZR160M2- 6/8.54	YZR160M2- 6/8.5*4	YZR160L-6/134 YZR160M2- 6/8.54	YZR160L-6/13*4
Weight (t)	Trolley	9	9.5	12	16	18	24
Weight (t)	Total	63.2-100	78-106	79-120	95-108	106-155	195
Wheel Pressure (KN)		225-295	255-373	208-289	324-334	314-363	452
Steel Track		43kg/m	50kg/m
Power Source		3-phase A.C 380V 50HZ (As your demand)

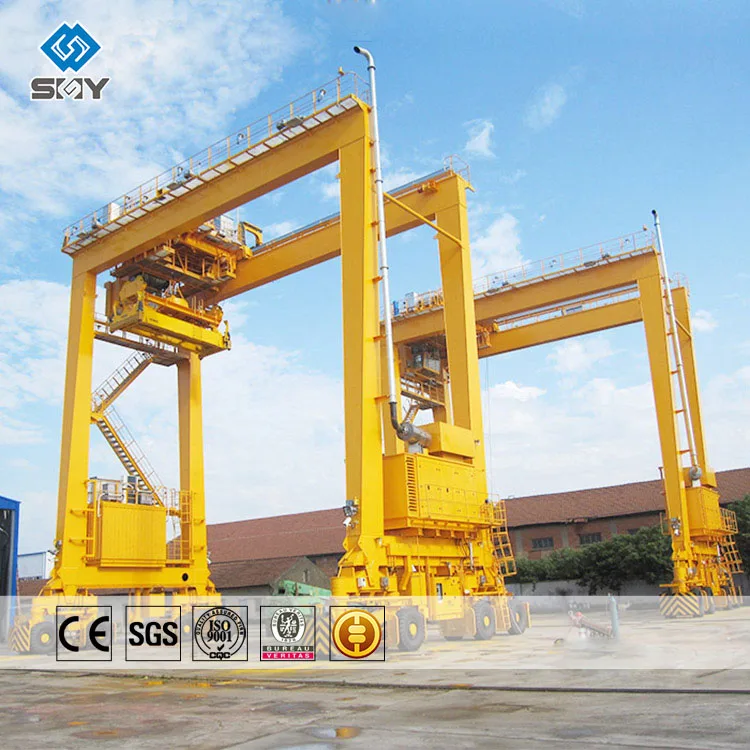

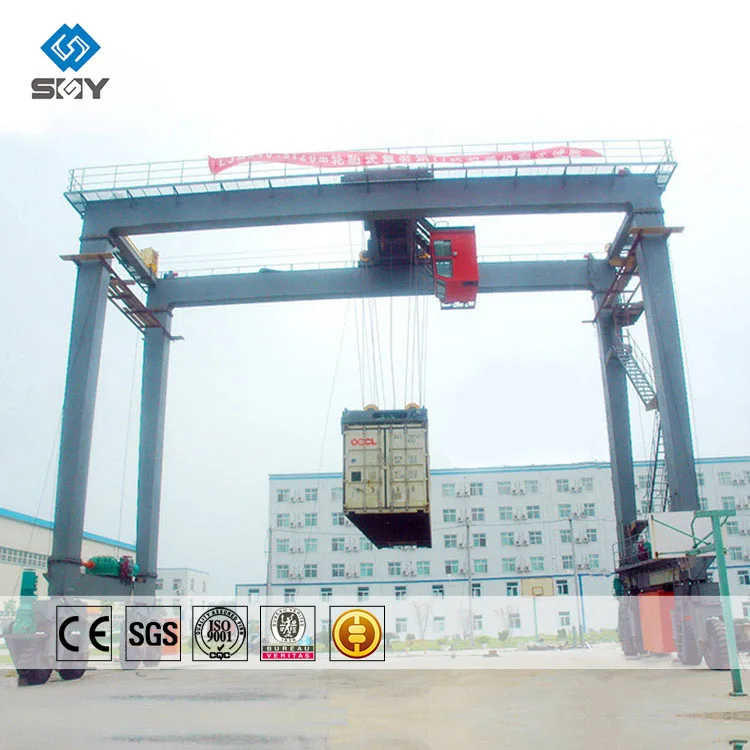

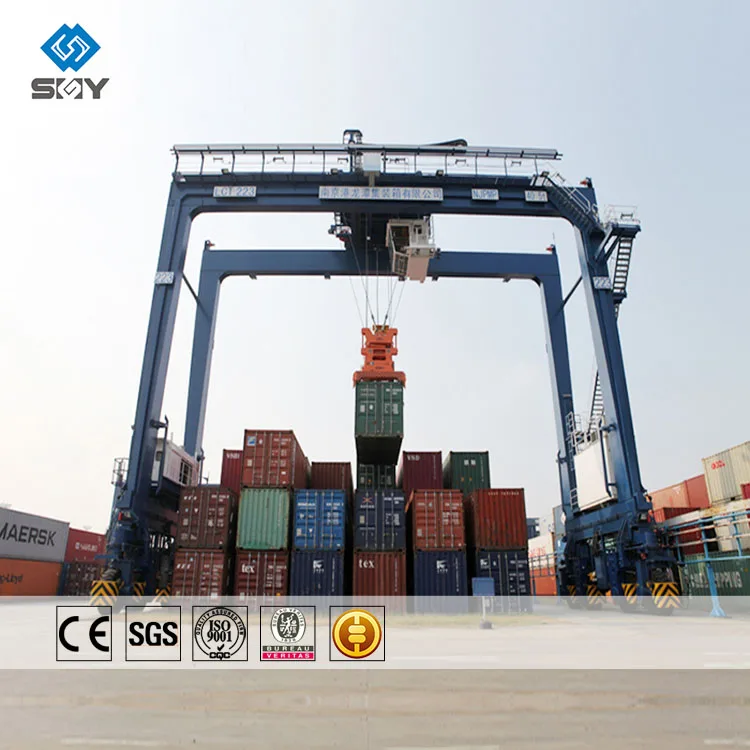

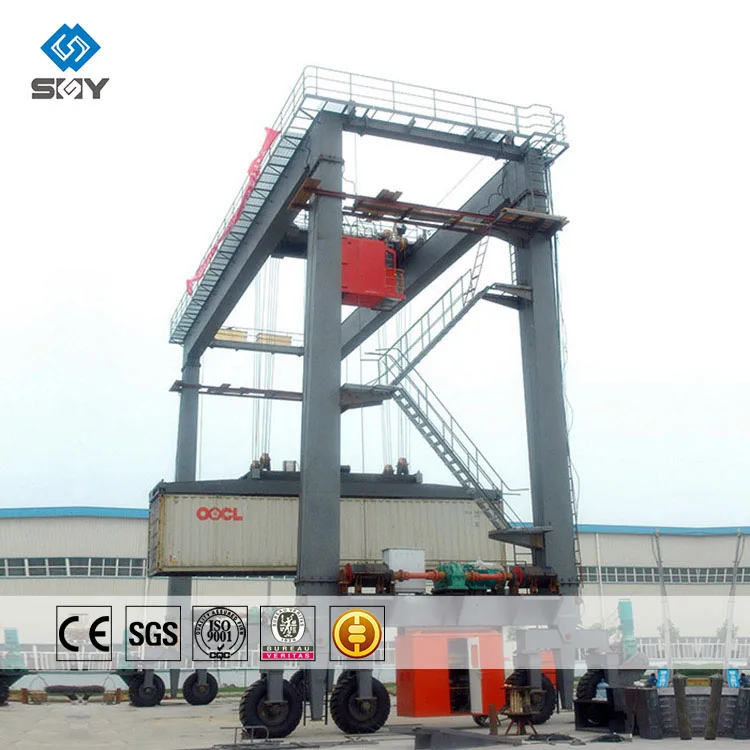

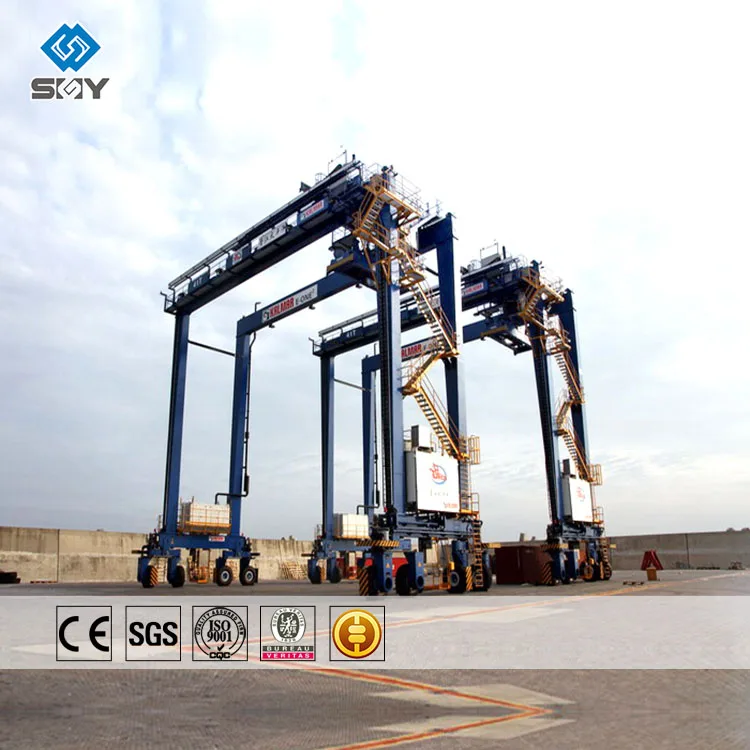

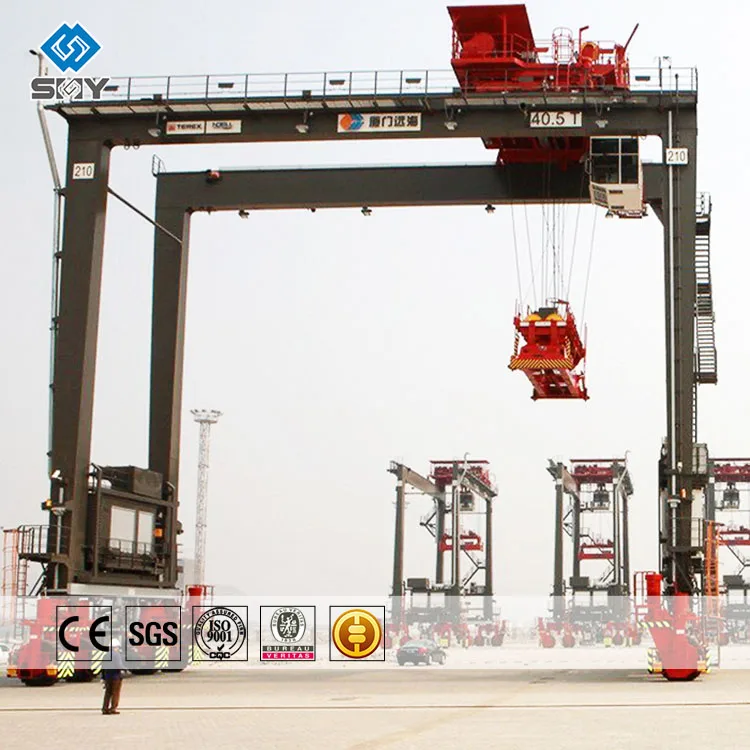

Product Show:

RTG Container Rubber Tyre Gantry Crane 40 Ton Price

Click Here to Fill Out Your Inquiry in The Text Box to Get The Latest Quotation.

Main Products

RTG Container Rubber Tyre Gantry Crane 40 Ton Price

YunTian Group products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
