Катушка беспроводного зарядного устройства A11 Qi с ферритовой защитной индукцией для мобильного

Катушка беспроводного зарядного устройства A11 Qi с ферритовой защитной индукцией для мобильного

Категория: Индукторы >>>
Поставщик: Kingstar,Electronics,Technology,Co.,Ltd.

Цена:0,23 $ - 0,28 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.35 $*	0.22 $*
Aug-16-2025	0.53 $*	0.55 $*
Jul-16-2025	0.45 $*	0.37 $*
Jun-16-2025	0.98 $*	0.11 $*
May-16-2025	0.89 $*	0.67 $*
Apr-16-2025	0.97 $*	0.12 $*
Mar-16-2025	0.25 $*	0.61 $*
Feb-16-2025	0.36 $*	0.24 $*
Jan-16-2025	0.78 $*	0.4 $*

Характеристики

Product Description

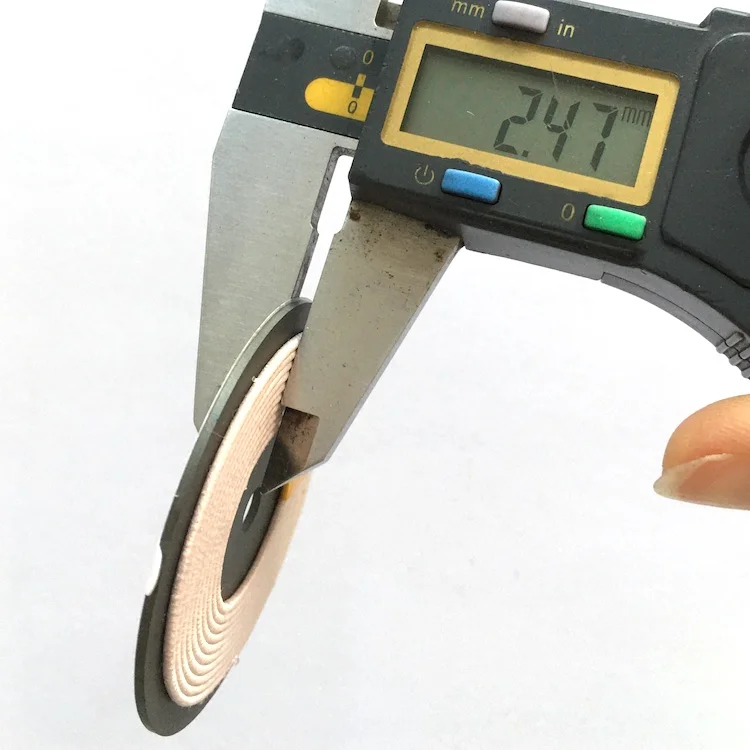

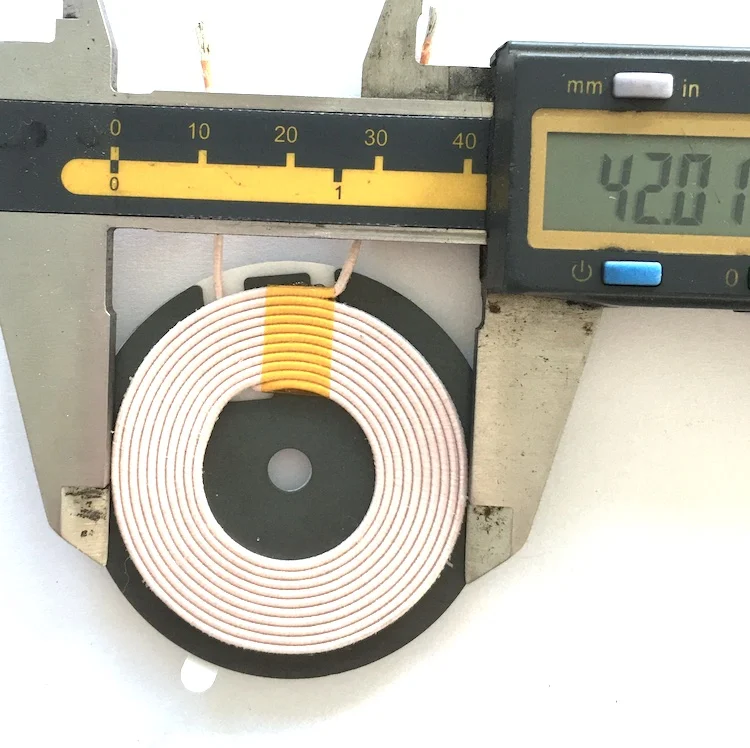

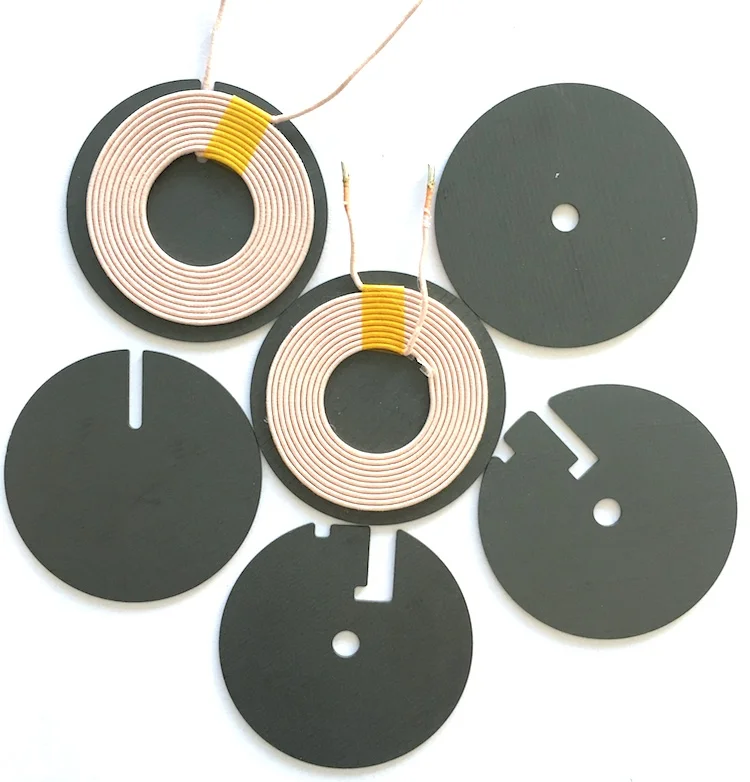

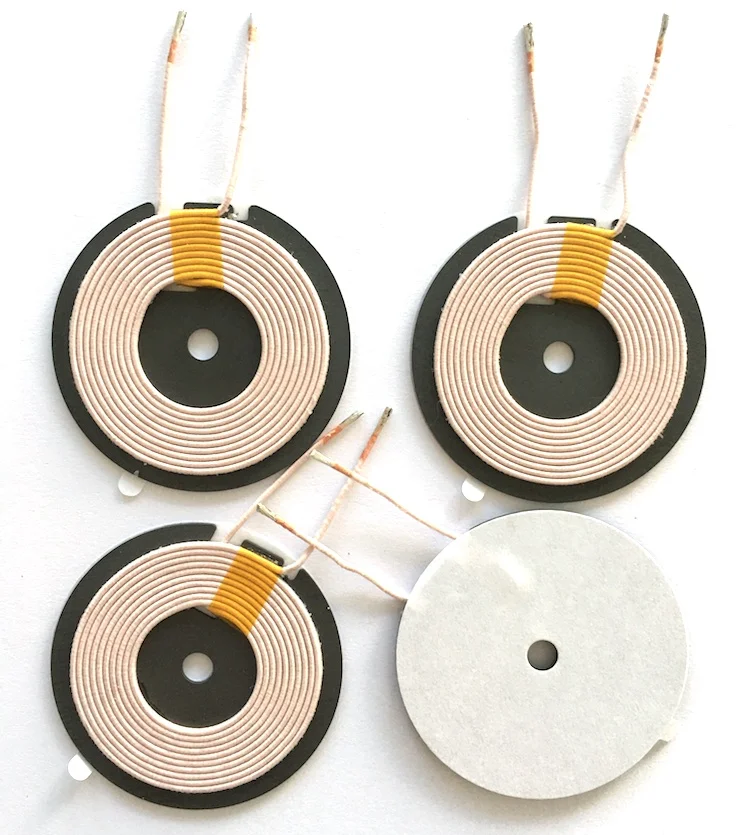

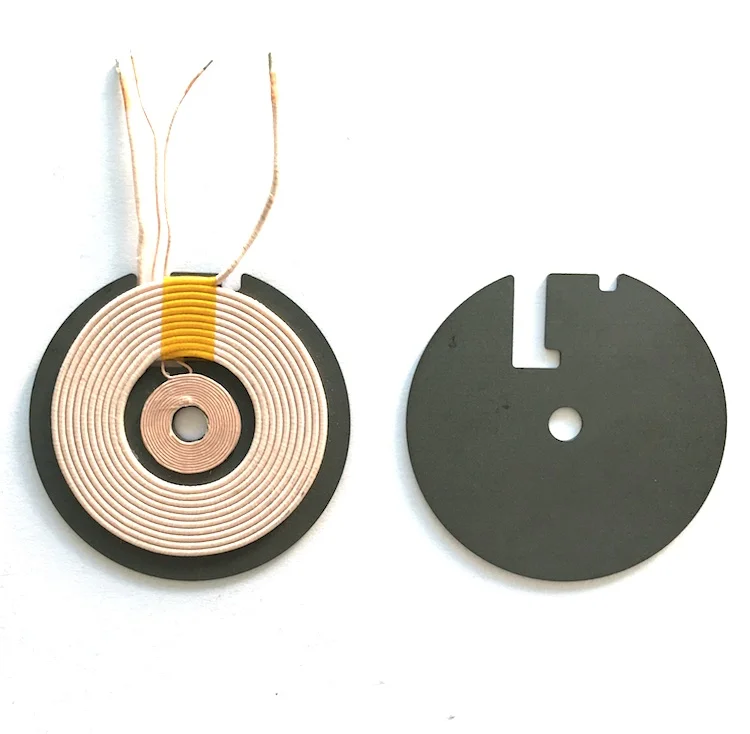

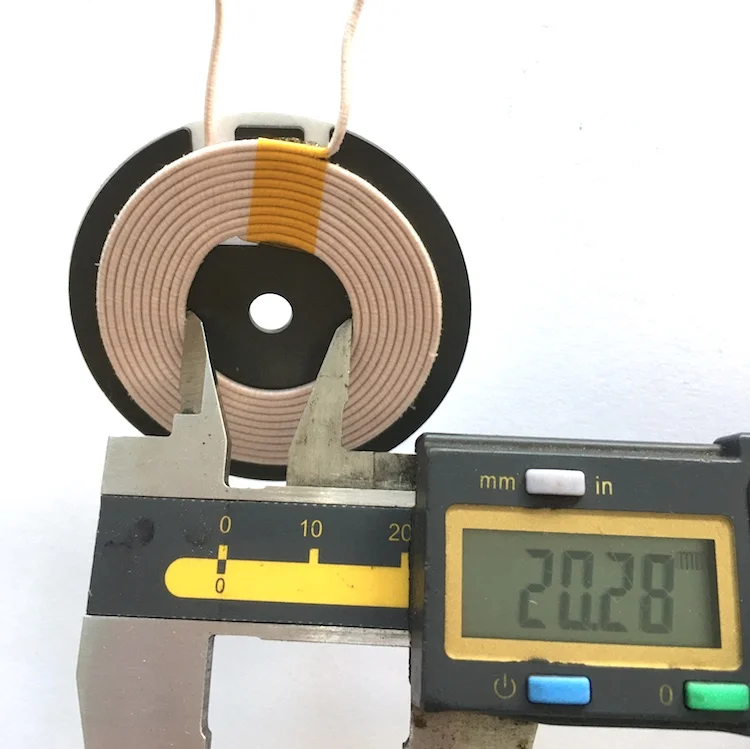

Qi Standard A11 Coil Module for Cellphone Wireless Charger with Ferrite Shielding

Square Coil with MnZn Round Ferrite for wireless charging in different shapes and sizes, customization is welcome.

Model	Qi A11 TX-End Coil with Ferrite Sheet
Coil Type	10 Turns, One layers
Wire Material	USTC Wire/0.08*105P
Inductance	6.3UH+/-10%
DC Resistance	30mΩ Max
Q Value	>70
Coil Dimension	20.5401.3mm
Shielding Dimension	KR505.31.0/0.8mm (Difference thickness for your choice), OD50mm ferrite in different shapes
Test Condition	100KHZ/1V
Notes	Customized lead length accepted
Lead Time	Samples within 3 days, bulk order to be negotiated (normally 5-10days)
Certification	SGS Certified, ROHS & Halogen Compliant, Lead-Free

KingStar Electronics has been in the wireless charging field for many years, supplying ferrite sheets, coils, and modules around the world, especially to Korea, for Samsung Electronics, which include the TX end ferrite used in Samsung S6, S7, S8, Note 5, S10, as well as its smart watches, such as Solis TX ferrite, Gear Pulse TX ferrite.

Apart from Qi-standards wireless charging products, we are also focusing on R&D of high-power wireless charging for electric bicycles and electric cars, with the e-bike wireless charging products to be put into market in middle of 2020 and mature e-car WC products to be ready within 3 years. Our goal is to make power usage is as simple at WiFi.

Most magnetic ferrite used in WC is MnZn ferrite, while for IoT and other high frequency application, we supply customers with NiZn ferrite.

Wireless Charging Ferrite Sheet & Coil Application

222

Nowadays, wireless charging can be seen at many areas of our life. We are confident that in the near future, wireless charging will be as common & simple as WiFi, and our goal is make that era come true earlier.

With over a decade of specialized and dedicated work in the wireless charging field, we are proud of our strong R&D ability and quality products with good customer satisfaction. We would also provide you with the best products and solutions.

Coil Production Process Flow

Testing Equipments

Packing & Shipping

Given its fragile property, all ferrite sheets and coil modules are properly packed in PE foam boxes, with outer being the carton boxes. While for bulk cargo, they will be packed and protected on a pallet. Cargos can be delivered to you fast and safely by express or by air, or by sea for bulk orders.
