1.Maximum productivity available in a variety of configurations.

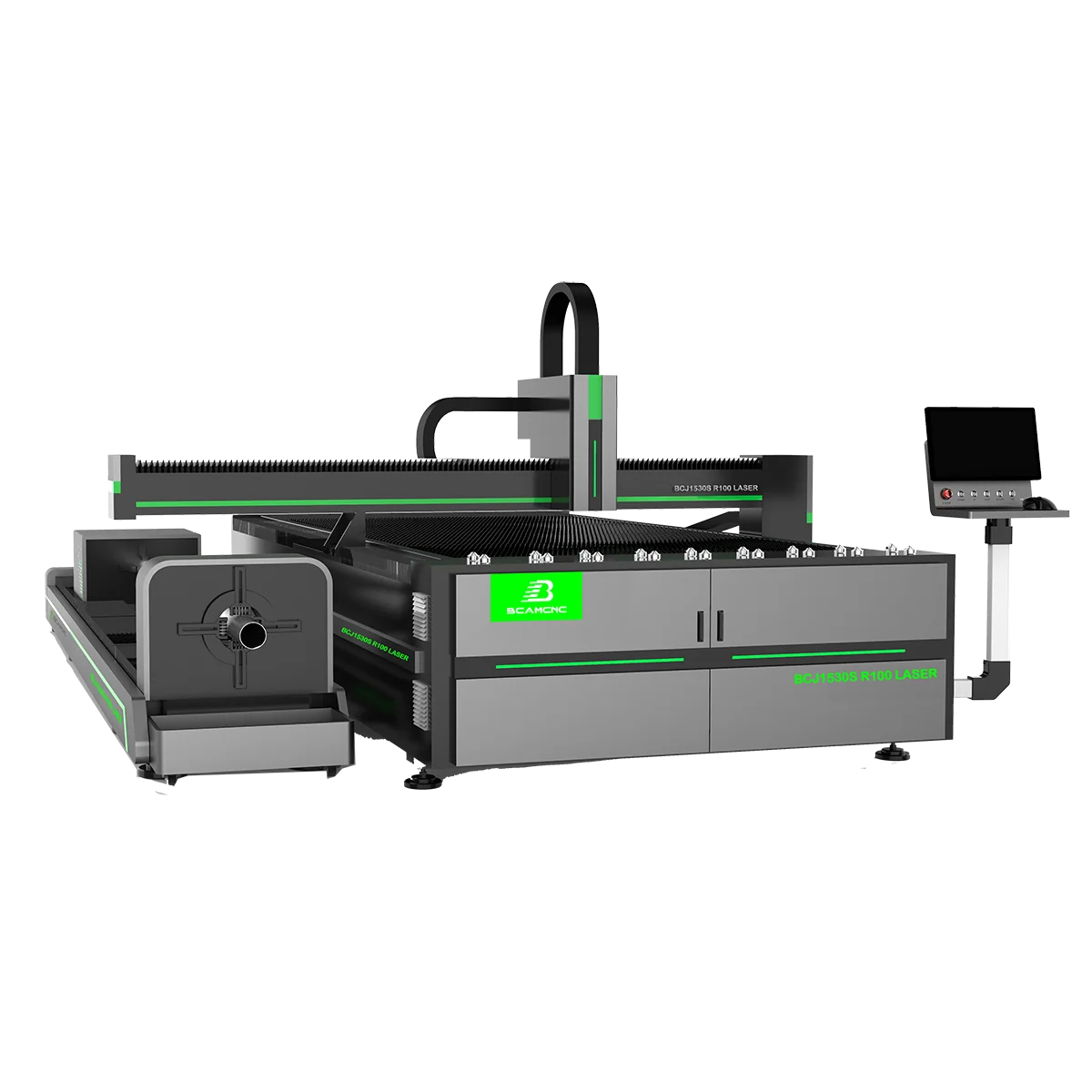

2. BCAMCNC BCJ3015 fiber laser cutting machine is a large flatbed laser cutting machine fiber available open or with a convenient protective enclosure for maximum operator safety.
Not only cutting flated sheet , but also can cutting kinds of pipe , square tube in different thickness with different length and diameter
3 .With automatic height control, servo control and a state-of-the-art computer system it is cleverly engineered for maximum flexibility and convenience.
4. Quality and reliability throughout
BCJ3015 with its 3000mm x 1500mm working area is manufactured for the most demanding applications and carefully engineered for maximum reliability.
5. Available with laser sources including max,JPT Raycus, IPG and NLight we have a solution to match your preferred materials and thicknesses.
6.The twin ball screws mated together with servo drive systems ensure maximum precision whilst our optional EN 60825 compliant enclosure ensures that operators are able to work safely with the machine at all times.
7.Supplied complete and ready for work
Whether you are a small business looking to make your first steps into fibre metal cutting or a larger organisation considering a fiber metal cutting machine for optimising your production, the BCJ3015 fits the bill.
Product Paramenters
Working Area
1500*3000mm
Fiber laser generator
750W-4KW
Laser type
IPG /JPT /Max /RaycusFiber laser generator
Laser Wavelength
1064nm
Positioning Accuracy
≤ ±0.02mm/m
Re-positioning Accuracy
≤ ±0.02mm/m
Max Cutting Speed
0-15m/min(depending on material and thickness)
Power Supply Rated Voltage
3-phase 380V/50Hz
Working Table
Rack working platform
Control System
Cypcut control system
Location System
Red dot indicator
Water Cooling System
Constant temperature water chiller
Tube Cutting System
Round and Square
Remark
Automatic exchange worktable, cover(option)
What can BCJ3015 fiber laser do?

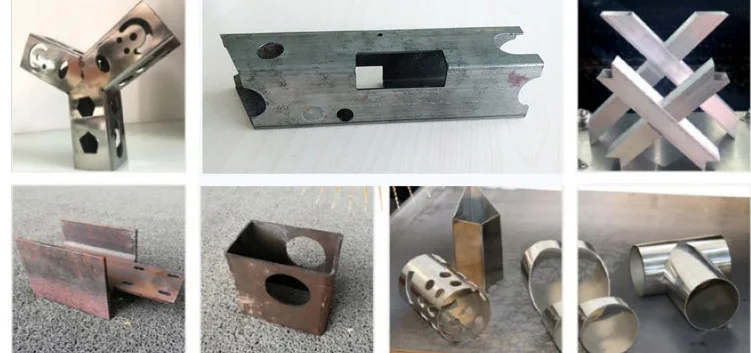

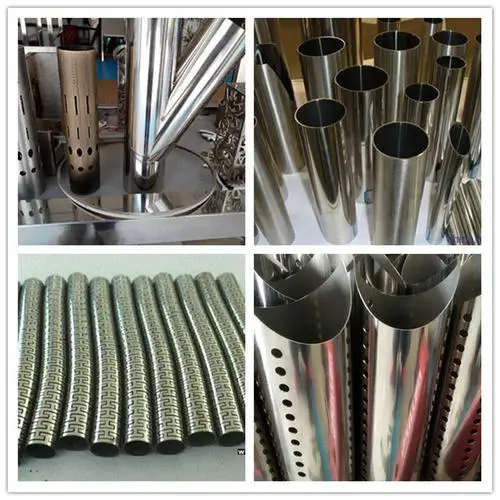

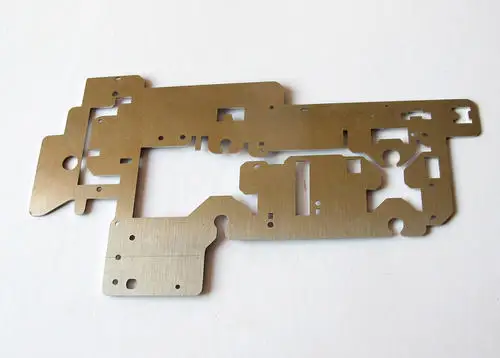

Fiber cutting (Metal Material):
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium
alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds
of metal materials cutting and so on.
Fiber cutting (Metal Industries):.
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances,
subway parts, automobile, machinery, precision components, ships, metallurgical equipment,
elevator, household appliances, gifts and crafts, tool processing, adornment, advertising,
metal foreign processing various manufacturing processing industries.
Packing&Shipping
Package process :
The machine all covers will be protected by the foam board
-The middle layer is wrapped with environmental protection material ;
-And the outermost layer is wrapped with PE stretch film.
NOTE:
Normally, the size of fiber laser machine no more than 1325 (1300*2500mm) BCJ2513 will be packaged with wooden case. Before that, the machine parts( cutting head, laser source, control cabinet) will be put on the machine bed except for the chiller, the machine will be protected by the foam board of the four corners and wrapped with the film before shipping.
Fiber laser machines of which the size is over BCJ1530 1530(1500*3000mm) cannot be packaged plywood case because the width of the machine exceeds the container’s width. The machine will be fix on the pallet.
and will loaded into one 20ft container
After Sales Service
Why Choose Us
BCAMCNC MACHINERY CO., LTD was established in September 2014 and is located in Jinan, Shandong. The factory covers an area of 23,000 square meters and has a total of more than 200 employees, of which professional and technical personnel account for more than 70%. The company has been focusing on the laser industry for many years, digging deep into scientific and technological innovation, and meeting the needs of customers is our driving force.
The main products are: laser cutting machine, ultra-high power laser cutting machine, plate and tube integrated fiber lasercutting machine, high-power all-enclosed exchange platform fiber laser cutting machine, automatic loading and unloading laser cutting machine, tube fiber laser cutting machine.
