Плата управления инвертором постоянного тока печатные платы печатная плата в сборе для инвертора

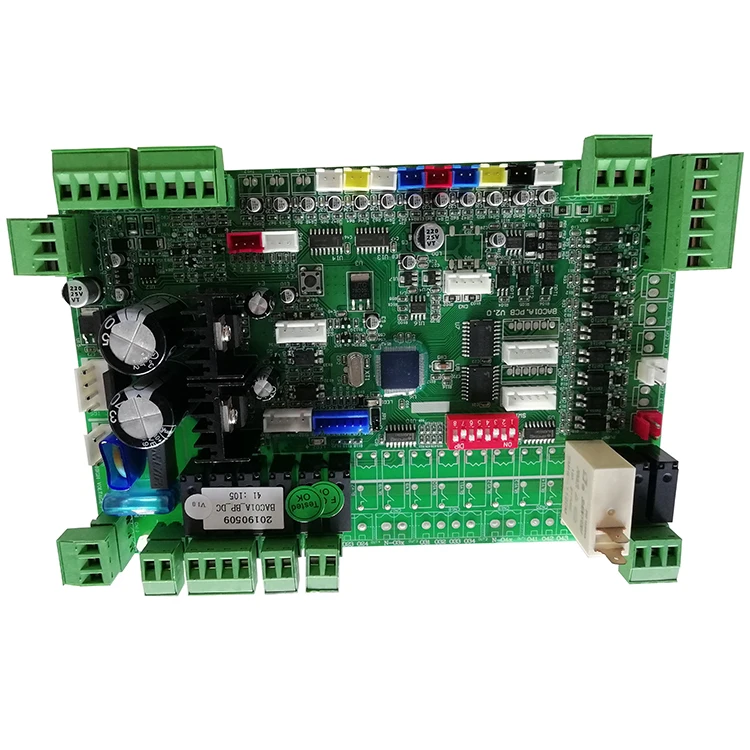

BAC01 is designed for refrigeration type single or dual compressors ,as well as EEV/EVI control .

Control architecture for outdoor unit BAC01A:

Circuit diagram for Hardware :

Technical data :

 Features:

1>Auto restart function;

2>Intelligent defrost function;

3>compressor high pressure protection;

4>flow  swith detective ;

5>Remote control;

6>Modbus communcation;

7>Mode :cooling or heating ;

8>Sensors detective ;

9> Fault alarm ;

10>Supports multi-slit control

11>EEV/EVI control

12>Adjustment compressor rotation speed and fan stage

OEM service

1.Technical consultant service before controller configuration

2.Oneline or spot technical supports for  System debug test

3.2-year long warranty

4.Free charge upgraded service

5.Spare parts or return maintenance service during the warranty peroids

6.OnlineTechncial training service

ODM service

1.Design and development inverter air conditioner system according to customer's specifiation

2.Assist you to do the intergrated function system test for the whole air conditioner

3.Sample shoot service :if the sample does not satisfy  customer ,we modify the software until meet customer requirments.

4.2-year long warranty

5. Free charge upgraded service

6.Spare parts or return maintenance service during the warranty periods

7.Online Technical training service
