Оптовая продажа мини-самосвал с гидравлической системой ED500C китайский

Описание и отзывы

Трекер стоимости

Характеристики

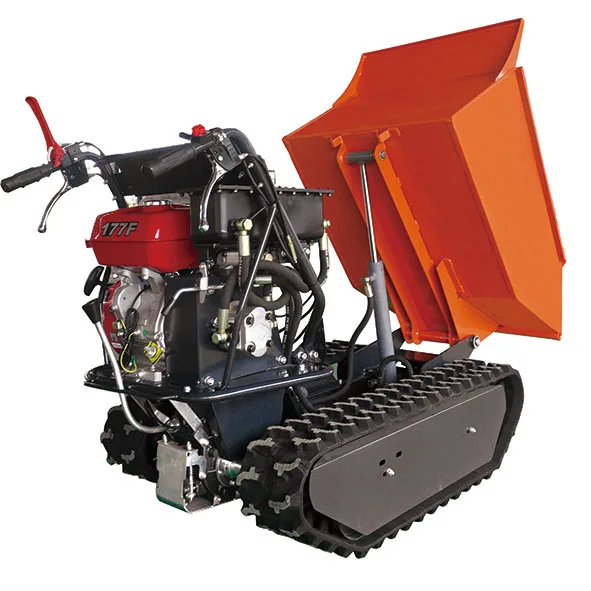

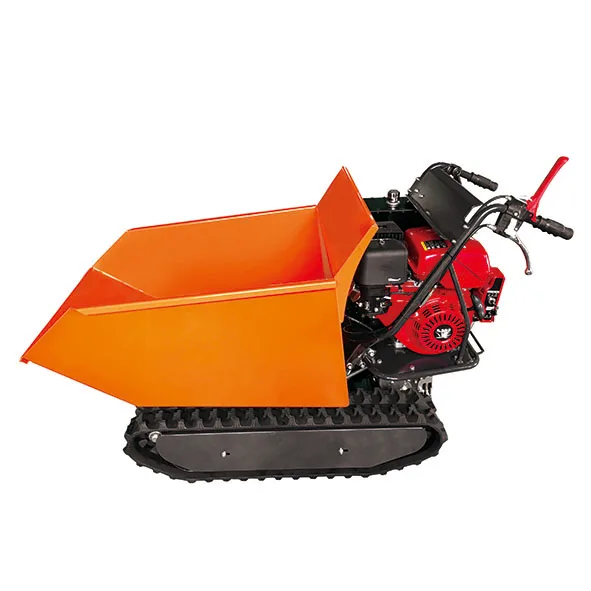

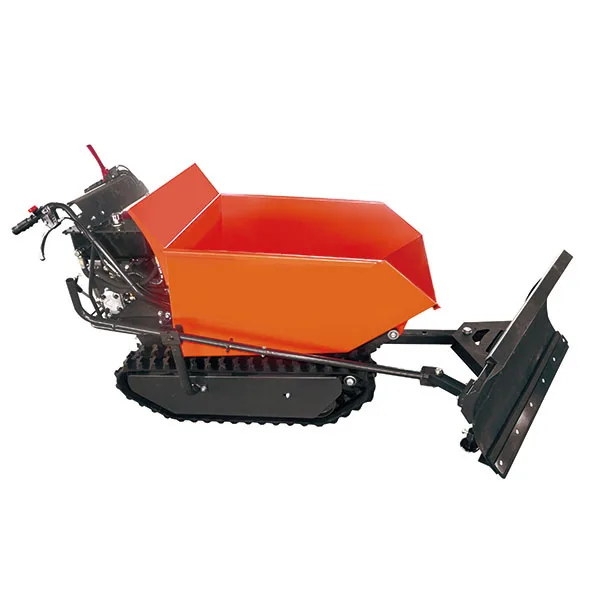

Wholesale high tip mini dumper with hydraulic system





Engine	9.0HP,gasoline	Hydraulic max pressure	16mpa
Net Weight	282kg	Fuel Tank Capacity	6.0L
Transmission	3Forward+1Reverse	Oil capacity	1.1L
Brake parking	Mechanical	Tracks:
Box Length	1000mm	Standard Track Length	38x60mm
Box Width	700mm	Standard Track Width	180mm
Box Depth	460mm	Outer distance from the track 750mm
Measurement	1630*720*965mm	Loading capacity:
Start mode	manual or electric	Max loading capacity 300kgs
Rated power	6kw/3600rpm	Others:
Max.torque	17.7N.m/2500mpm	Noise	<=80db(A)
Bore Stroke	77x58mm	Climbing ability
Displacement	270cc	Climbing ability of up to 30 degree inclines





Product Application

1.Wide range of use, simple structure, smooth transmission
Suitable for complex road conditions such as swamp, river bank, desert, paddy field, tropical rain forest, snow field and ice.
2.Single cylinder power system, low fuel consumption
High traction, Good climbing ability, strong transport capacity.
3.with electric start, concentrated handle and convenient operation.
operating radius is small ,can work in small area .
4.Hydraulic lifting and unloading, reduce labor intensity and improve transportation efficiency.





Stone crawler dumper:

We could supply crawler dumper, we also could produce excavator and crawler dumper cabin.

We are the manufacturer for the crawler dumper about 0.6 ton -10 ton crawler dumper.















1 Q: Are you a factory or a trading company?

A: We are manufacture with over than 14 years of experience in different kinds of pu foam wheels and rubber wheels.



2 Q: What is the payment terms?MOQ and Delivery?

A: 30% T/T advance payment, 70% T/T before delivery. Or 100% L/C at sight.

Our MOQ general 500pcs.but trial order acceptable mixed. Our delivery time

general is within 25days after receiving 30%down Payment,if you have

special request,you can check with me about exact date.



3 Q: How does your factory do regarding control?

A: Professional making process. Our workers have many years experience to produce wheels. All of our products have the CE certification.



4 Q: Can you provide sample for free?

A: Yes,we can provide sample for free but we can’t pay the freight cost.
