OEM датчик влажности с установкой на канал выходом 4 - 20 мА/0-10
- Категория: Тахометры >>>
- Поставщик: Beijing,Ifan,Peng,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 200.53 $* | 210.91 $* |
| Aug-20-2025 | 198.50 $* | 208.3 $* |
| Jul-20-2025 | 166.24 $* | 174.21 $* |
| Jun-20-2025 | 195.26 $* | 205.76 $* |
| May-20-2025 | 170.62 $* | 179.92 $* |
| Apr-20-2025 | 192.65 $* | 202.71 $* |
| Mar-20-2025 | 190.24 $* | 200.6 $* |
| Feb-20-2025 | 188.80 $* | 197.89 $* |
| Jan-20-2025 | 186.25 $* | 195.64 $* |
Характеристики

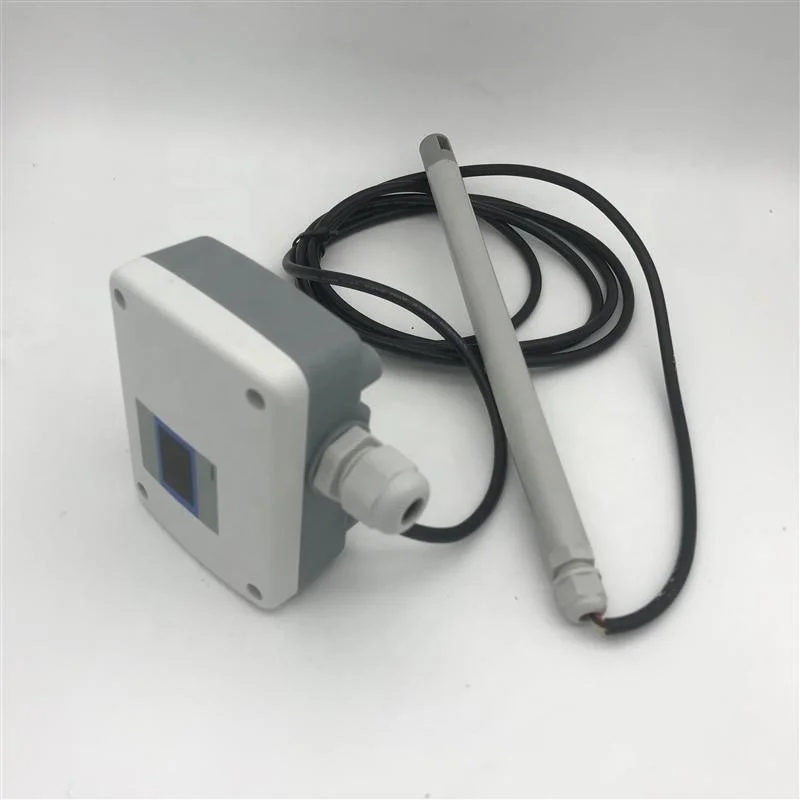

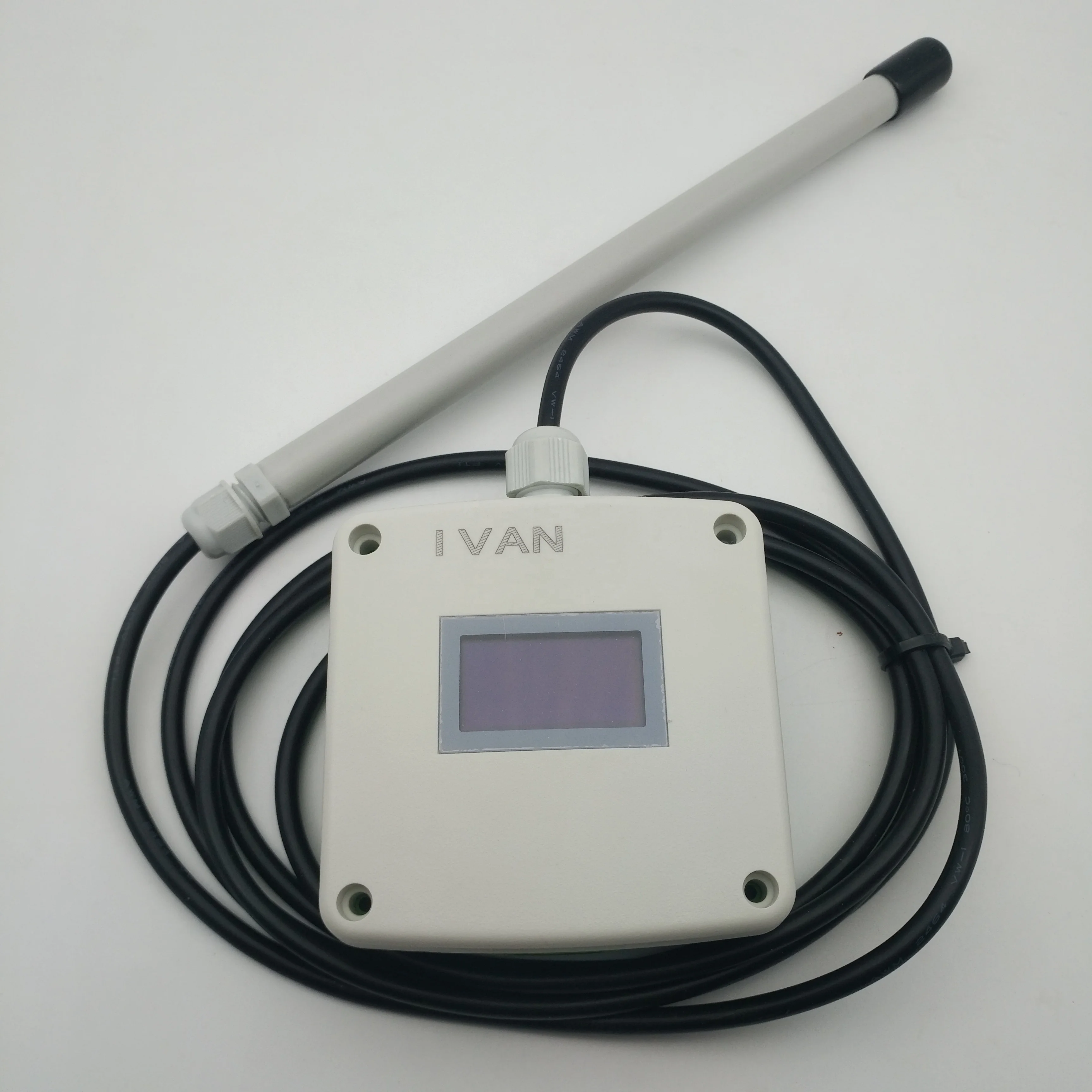

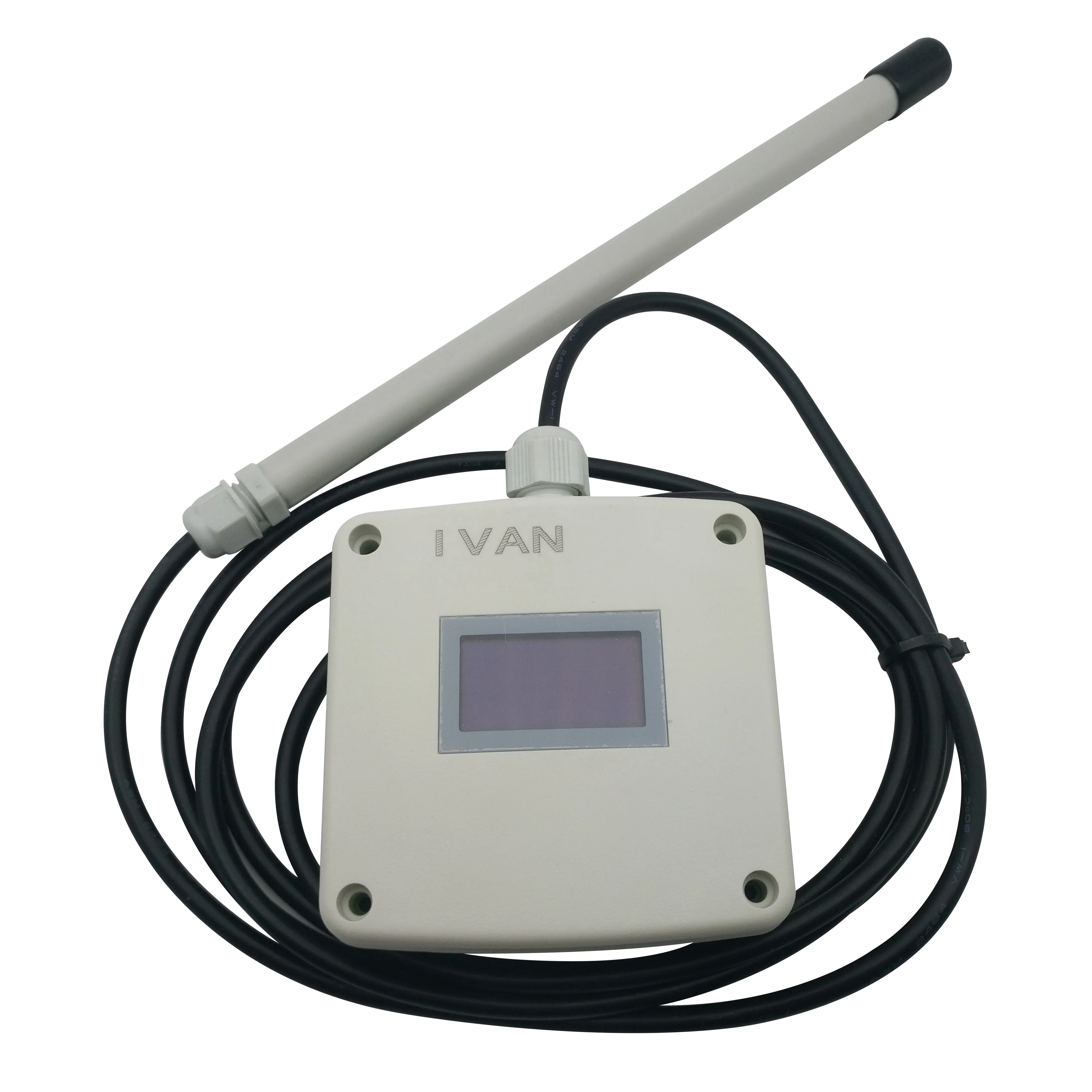

OEM Duct Mount Humidity Sensor with 4 - 20mA / 0 - 10V Output
Product Description
The series air velocity transmitters were developed to obtain accurate measuring results over a wide range of velocities and temperatures. A high-quality hot film sensor element based on cutting- edge thin film technology ensures maximum sensitivity, even at lowest mass flows.At the same time, the innovative probe design produces reliable measuring results at high flow velocities of up to 30m/s . The integrated temperature compen- sation minimises the temperature cross-sensitivity of series which, combined with the robust mechanical design.In addition to air velocity and temperature values,The cross section of the duct needs to be determined for this purpose and the volumetric flow rate can be displayed and directed to one of the analogue outputs. The series can be used to measure the velocity of other gases as well, although a correction has to be applied to the unit at the factory.
Specifications | |
Power Supply | 12V DC/AC 24V DC/AC {Customization} |
Measure Range | 0-1m/s 0-2m/s 0-10m/s 0-15m/s 0-20m/s 0-30m/s |
Output | 0-5V 0-10V 0-20mA 4-20mA Rs485{modbus-RTU} |
Measure Accuracy | ±{0.2m/s +3%of MV} |
Consumption | 2.5W |
Protection Rating | IP65 |
Response Latency | 0.2 s |
Resolution | 0.01m/s |
Sensing Elements | Thermal film sensor |
Working Environment | Temperature: -20-80ºC Humidity:5%-95% |
Recommend Products
Packing & Delivery
Company Profile
Beijing Ifpen Instrument EnterpriseWas founded in 2011, adjacent to the beautiful political and cultural center, located in Daxing Industrial Development Zone, Beijing.The company has a professional, innovative technica team and standardized production team. Over the years, we have been committed to the research and development of industrial instrument production, focusing on the research and development of the field of"wind speed and air volume", and achieving zero breakthrough of turbulence jump. Since its establishment, the company insists on"innovation, quality, integrity" to serve the new and old customers. Ivan products not only occupy a high proportion of market share in China, as a national brand, go abroad, exported to the world.
Exhibition
Certifications
FAQ
FAQ for better and easy cooperation:
1.Why choose IVAN?
We are the leading manufactuer, OEM & ODM service areoffered
2.How about the sample of IVAN product?
We could send you the samples but the freight and the sample are charged.
4.How about IVAN payment term?
TT &L/C &Westem Union(40% deposit, the balance before shipment)
5.How about BIOBASE delivery time?
Within 7-15 workdays after receving deposit
6.How about IVAN validity of quotation?
Usualy 30 days as the shipping freight and exchange rate can be fluctuant.
7.What is the shipping port?
FOB to Qingdao Port, China(also can ship according to customers' request)
8.How about the package?
Bubble film+ Coton +Standard export wooden case.
9.How to inspect the goods?
Products i be checked by our QC staffist then our proejct manager. Cient can come and check bythemselves or third party check is available.
Any quesion or help pease felfre t contact with any time!
1.Why choose IVAN?
We are the leading manufactuer, OEM & ODM service areoffered
2.How about the sample of IVAN product?
We could send you the samples but the freight and the sample are charged.
4.How about IVAN payment term?
TT &L/C &Westem Union(40% deposit, the balance before shipment)
5.How about BIOBASE delivery time?
Within 7-15 workdays after receving deposit
6.How about IVAN validity of quotation?
Usualy 30 days as the shipping freight and exchange rate can be fluctuant.
7.What is the shipping port?
FOB to Qingdao Port, China(also can ship according to customers' request)
8.How about the package?
Bubble film+ Coton +Standard export wooden case.
9.How to inspect the goods?
Products i be checked by our QC staffist then our proejct manager. Cient can come and check bythemselves or third party check is available.
Any quesion or help pease felfre t contact with any time!
