QYT M-898 25w Водонепроницаемая VHF морская двухсторонняя
- Категория: Портативная рация >>>
- Поставщик: QYT,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 133.90 $* | 136.85 $* |
| Jul-17-2025 | 108.83 $* | 110.85 $* |
| Jun-17-2025 | 131.56 $* | 134.19 $* |
| May-17-2025 | 130.44 $* | 133.13 $* |
| Apr-17-2025 | 104.97 $* | 106.62 $* |
| Mar-17-2025 | 128.66 $* | 131.30 $* |
| Feb-17-2025 | 127.73 $* | 130.2 $* |
| Jan-17-2025 | 126.68 $* | 129.43 $* |
Характеристики
Details Images

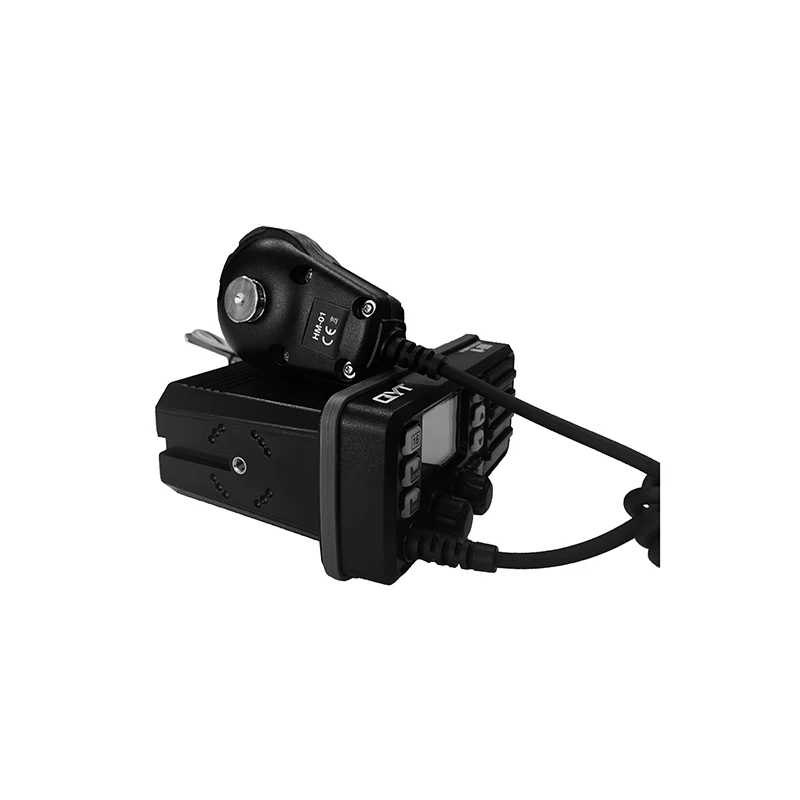

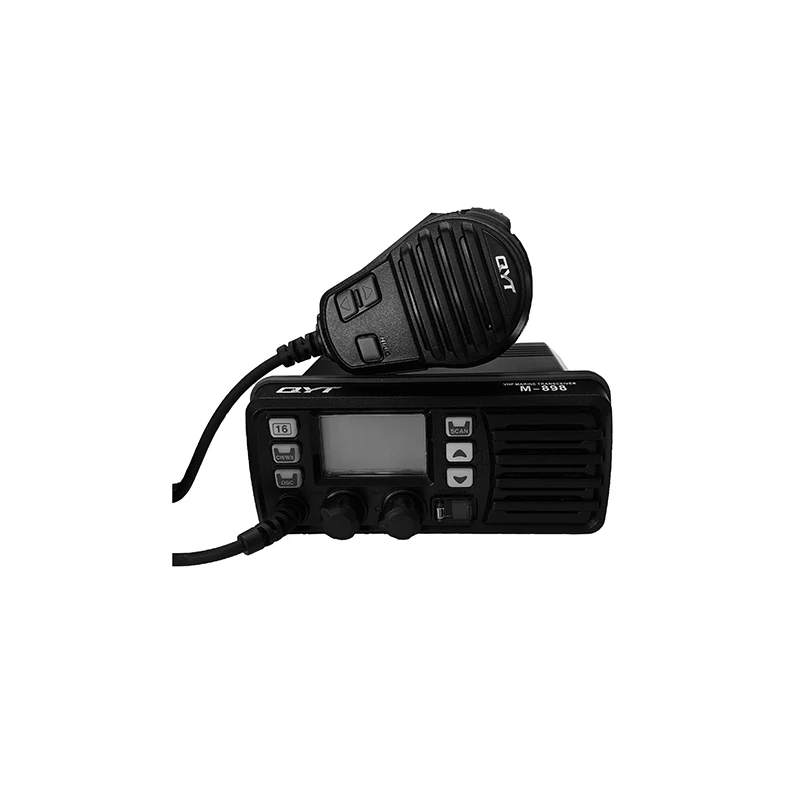

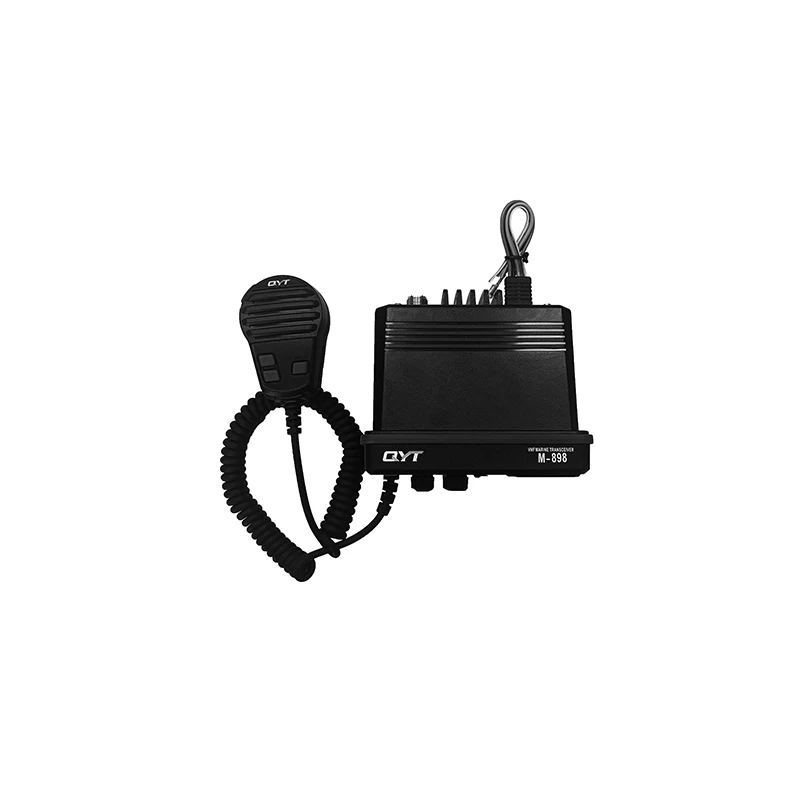

This M898 VHF marine radio is one of our top-selling marine radios, it’s a 25 watts waterproof radio with lots of functions, such as float, vibration water draining, GPS, FM function etc., and it has 98 channels.
Channel Group Selection
The transceiver is pre-programmed with 59 U.S.A., 59 international and 63 Canadian channels. These channle groups may be specified
for the operating area.
Channel Selection
1.Channel 16
2.Channel 9
Each regular channel group has a separate leisure-use call channel(Channel 9; default). The call channel is monitored during Tri-watch.
Channel Group Selection
The transceiver is pre-programmed with 59 U.S.A., 59 international and 63 Canadian channels. These channle groups may be specified
for the operating area.
Channel Selection
1.Channel 16
Channel 16 is the distress and safety channel. It is used for establishing initial contact with a station and for emergency communication. Channel 16 is monitored during both Dual-watch and Tri-watch. While standing by, you must monitor Channel 16.
2.Channel 9
Each regular channel group has a separate leisure-use call channel(Channel 9; default). The call channel is monitored during Tri-watch.
General Specifications
Specification | ||||||||
Frequency range | TX: 156.025-157.425 MHz RX: 156.050 -163.275 MHz | 400-480MHz | ||||||
Mode | FM (16K0G3E) DSC (16K0G2B) | |||||||
Antenna impedance | 50Ω | |||||||
Frequency stability | ±10ppm | |||||||
Operating temperature | -20~+60℃ | |||||||
Dimension | 153*152*67mm | |||||||
Weight | 742g | |||||||
Transmit | ||||||||
Output power | 25w/1w | |||||||
Max. frequency deviation | ±5.0 kHz | |||||||
Spurious emissions | ≤-70dB (H) ≤-56dB (L) | |||||||
Adjacent channel power | ≥70dB | |||||||
Audio harmonic distortion | ≤10% | |||||||
Current drain | ≤5.5A (H) ≤1.5A (L) | |||||||
Input resistance | 2kΩ | |||||||
Receive | ||||||||
Sensitivity | ≤0.2uV | |||||||
Squelch sensitivity | ≤0.2uV | |||||||
Adjacent channel selectivity | ≥70dB | |||||||
Spurious response rejection ratio | ≥70dB | |||||||
Intermodulation rejection ratio | ≥70dB | |||||||
Audio output power | ≥4.5W (10%) | |||||||
Audio Distortion | ≤5% | |||||||
