300T Yacht Boat Lift Crane Traveling Gantry Crane

Description

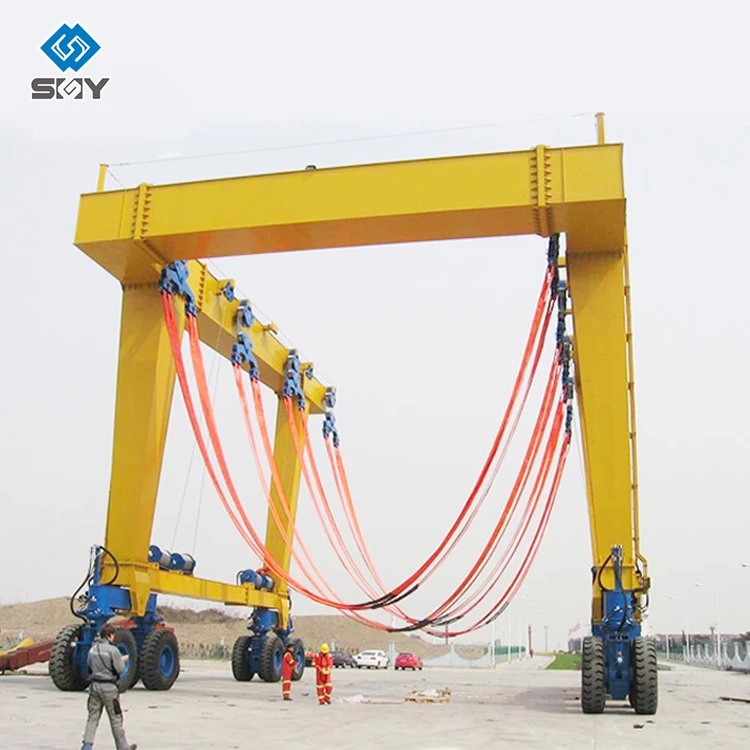

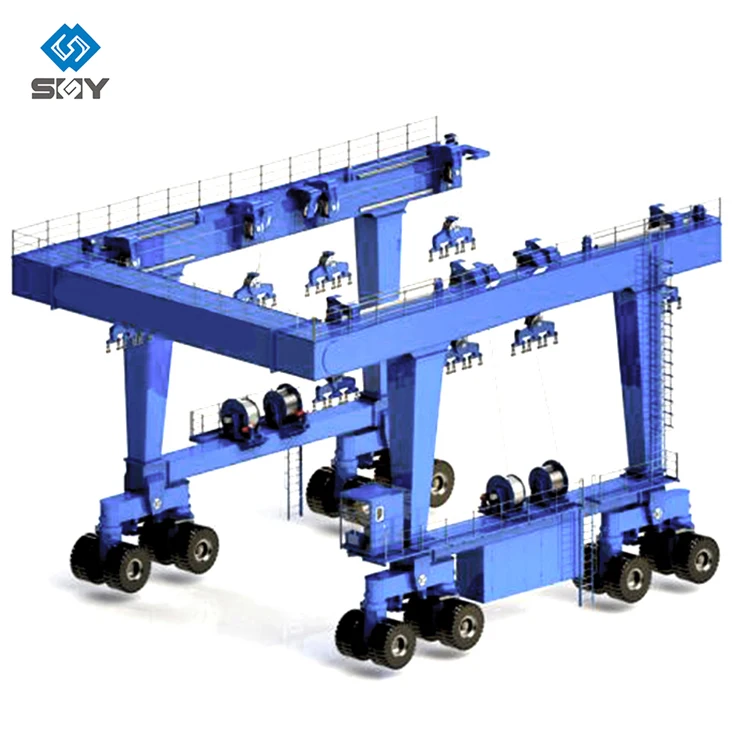

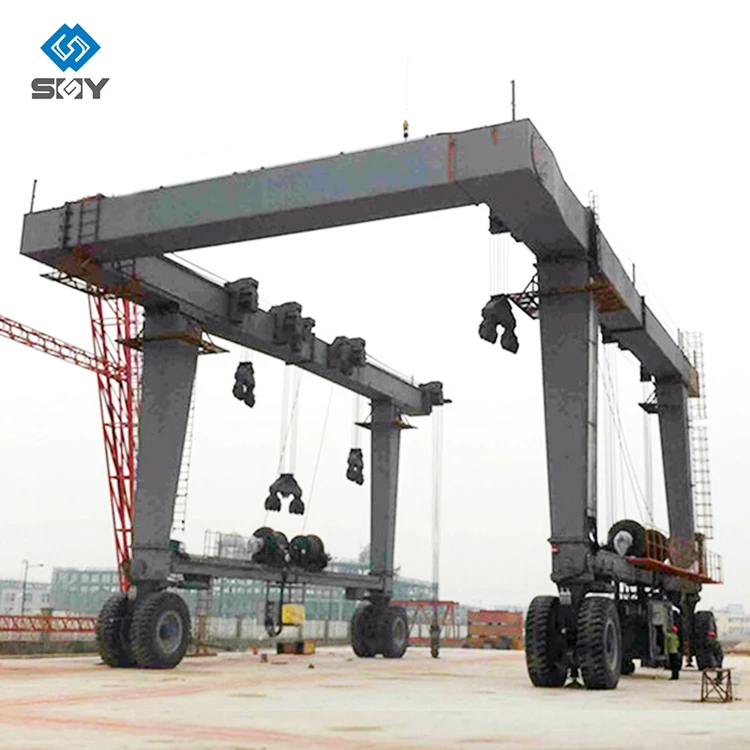

The boat and yacht handling crane includes the following items: main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system and electric control system. The main structure is N type, which can transfer the boat/yacht with height surpass crane's height.

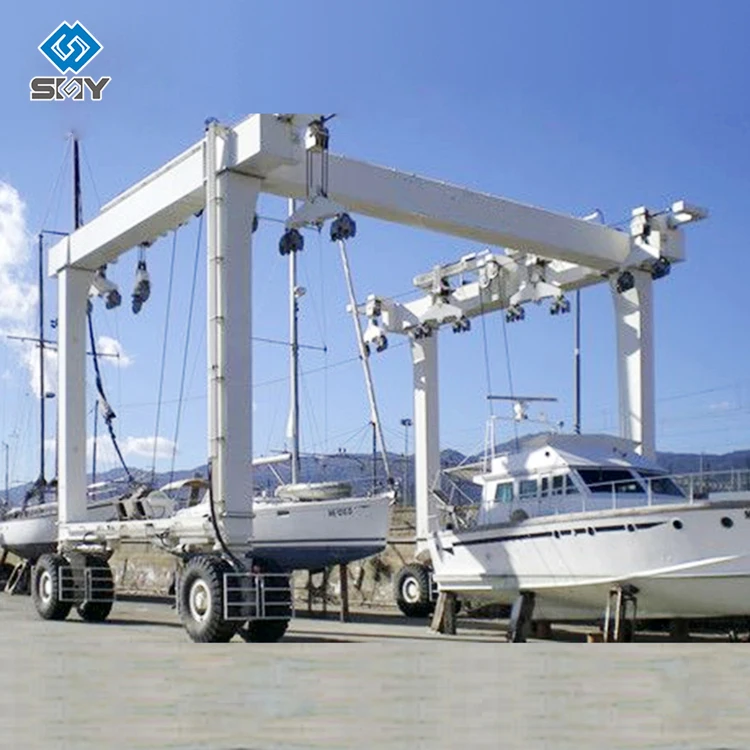

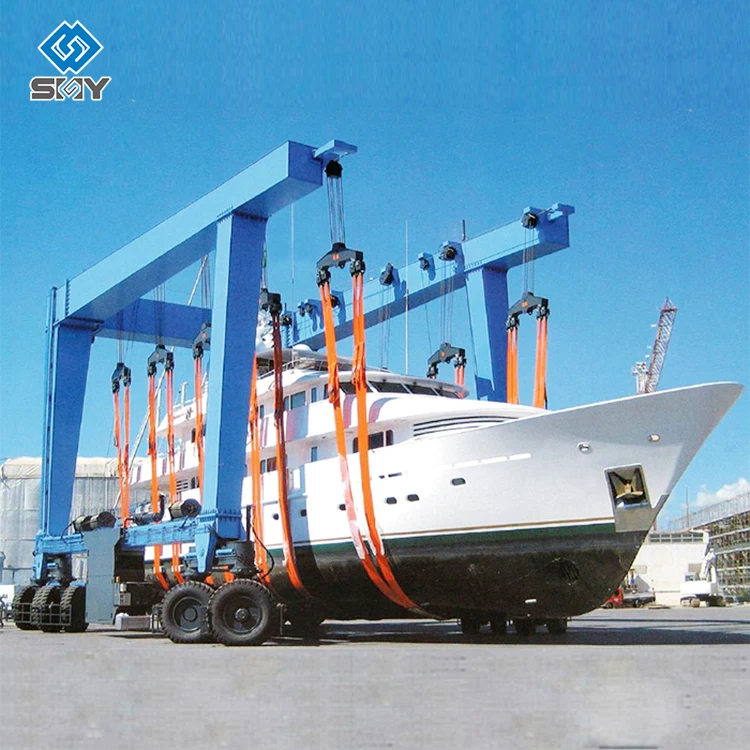

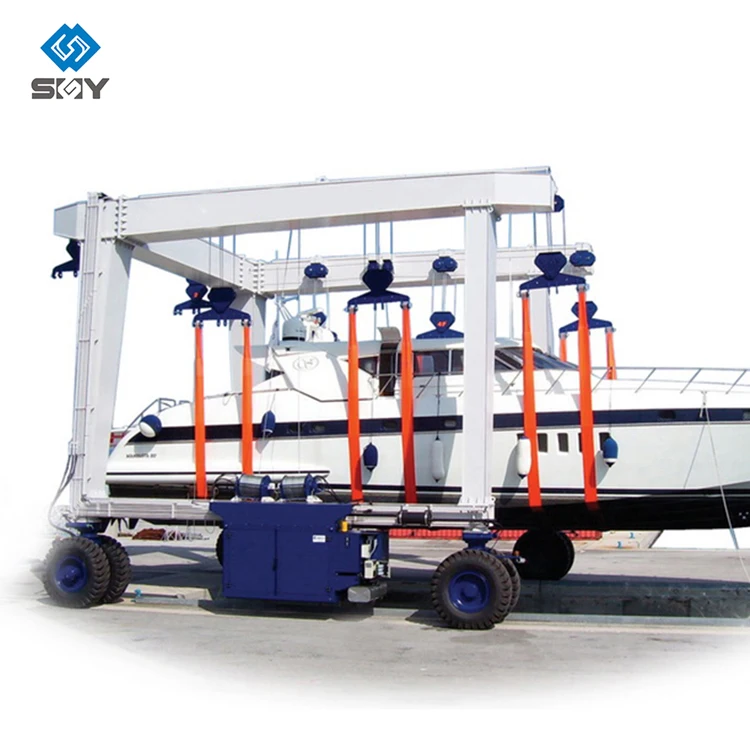

According to different requirements of our customers, the boat handling crane can handle different tonnage boats or yachts (10T-800T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat into the water. This yacht handling crane has soft and firm belt to lift the boat and yacht so that it will never hurt the surface. This crane also can put the boat in sequence quickly with small gap between each two boat.

Contact us for more information !

Please click here for details communication

Features

1. For the crane traveling, this crane can move in diagonal direction, this boat and yacht handling crane also can steer in 90 degree and put the boat in any designated position according to requirements.

2. This crane can be adjusted the width of the main girder according to the boat in case to handling different side boat.

3. This yacht handling crane is of low expense, high performance, easy to operate and maintenance and so on.

4. Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.

5. This boat crane can make the boat in order quickly; it also can adjust the gap between each boat according to different condition.

Please contact me for customized parameters

Lifting Capacity (t)		10	16	20/10	32/10	36/16	50/10
Span (m)		18-35
Lifting Height (m)		10-13
Duty Class		A5-A8
Speed (m/min)	Lifting	8.5	7.9	7.2/10.4	7.5/10.4	7.8/10.5	6/10.4
	Trolley	43.8	44.5	44.5	41.9	41.9	38.13
	Crane	40	38	38	40	40	38
Motor	Lifting	YZR180L-6/17	YZR225M-8/26	YZR225M-8/26 YZR200L-6/26	YZR280S-10/42 YZR200L-6/26	YZR280M-10/55 YZR225M-6/34	YZR280M-10/55 YZR200L-6/26
	Trolley	YZR132M1- 6/2.5*2	YZR132M2- 6/4*2	YZR132M2- 6/4*2	YZR132M1- 6/4*2	YZR132M1- 6/6.3*2	YZR132M1- 6/6.3*2
	Crane	YZR160L-6/13*2	YZR160L-6/13*2 YZR160M1- 6/6.3*4	YZR160L-6/13*2 YZR160M2- 6/8.5*4	YZR160M2- 6/8.5*4	YZR160L-6/13*4 YZR160M2- 6/8.5*4	YZR160L-6/13*4
Weight (t)	Trolley	9	9.5	12	16	18	24
	Total	63.2-100	78-106	79-120	95-108	106-155	195
Wheel Pressure (KN)		225-295	255-373	208-289	324-334	314-363	452
Steel Track		43kg/m	50kg/m
Power Source		3-phase A.C 380V 50HZ (As your demand)



Parameters confirmation:
requirements of the hoist.
Inside clear width A:          m;
Pier width:left width B1: m;right width B2:            m;
Tide rise, height from water surface to pier surface C:              m;
Tide fall, height from water surface to pier surface D:            m;
