ETCR040A Высокая точность AC Зажим на токе утечки Датчик метр преобразователь тока 0.00mA-500A 35 мм x
- Категория: Sensors >>>
- Поставщик: Guangzhou,ETCR,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 24.60 $* | 24.68 $* |
| Jul-19-2025 | 20.94 $* | 20.21 $* |
| Jun-19-2025 | 24.78 $* | 24.97 $* |
| May-19-2025 | 24.89 $* | 24.74 $* |
| Apr-19-2025 | 19.42 $* | 19.77 $* |
| Mar-19-2025 | 23.31 $* | 23.49 $* |
| Feb-19-2025 | 23.58 $* | 23.65 $* |
| Jan-19-2025 | 23.45 $* | 23.45 $* |
Характеристики

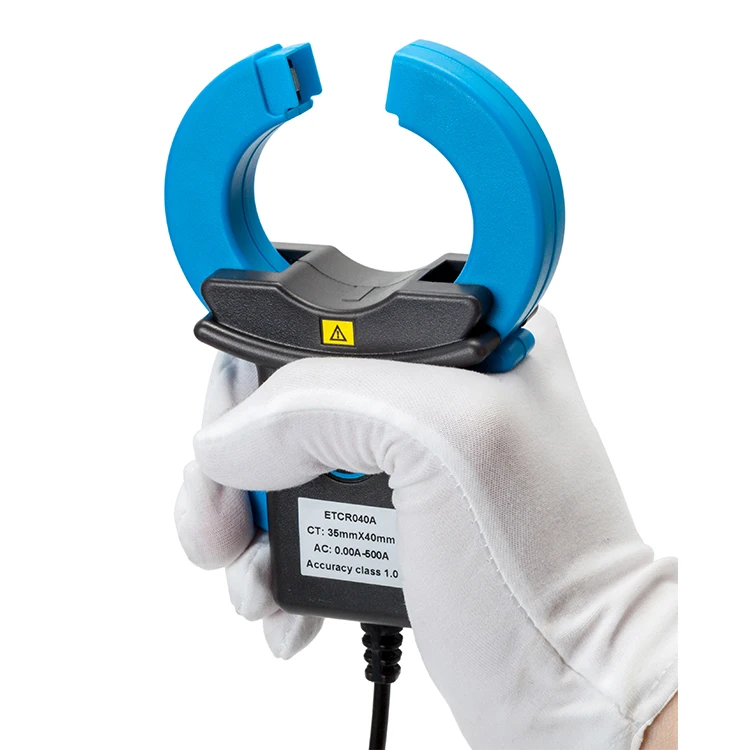

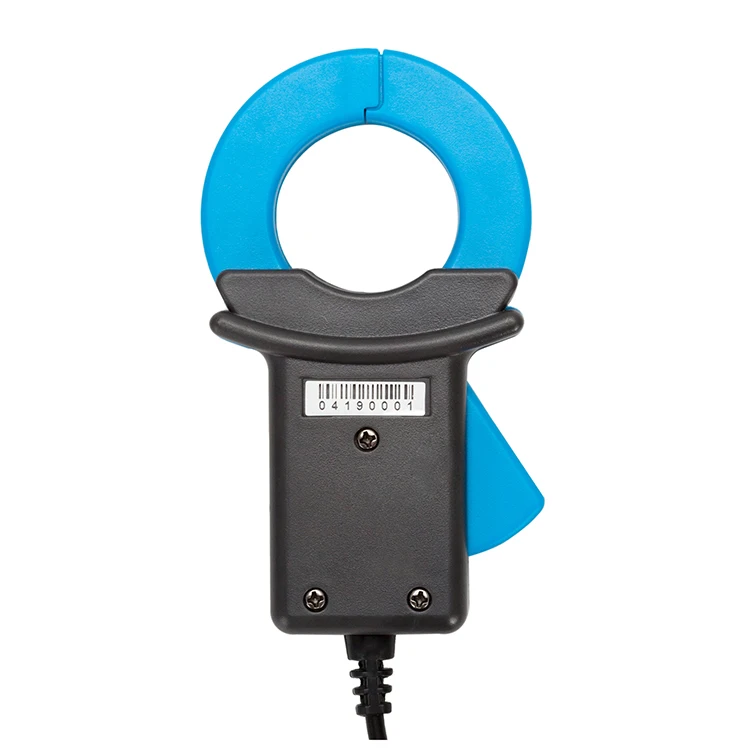

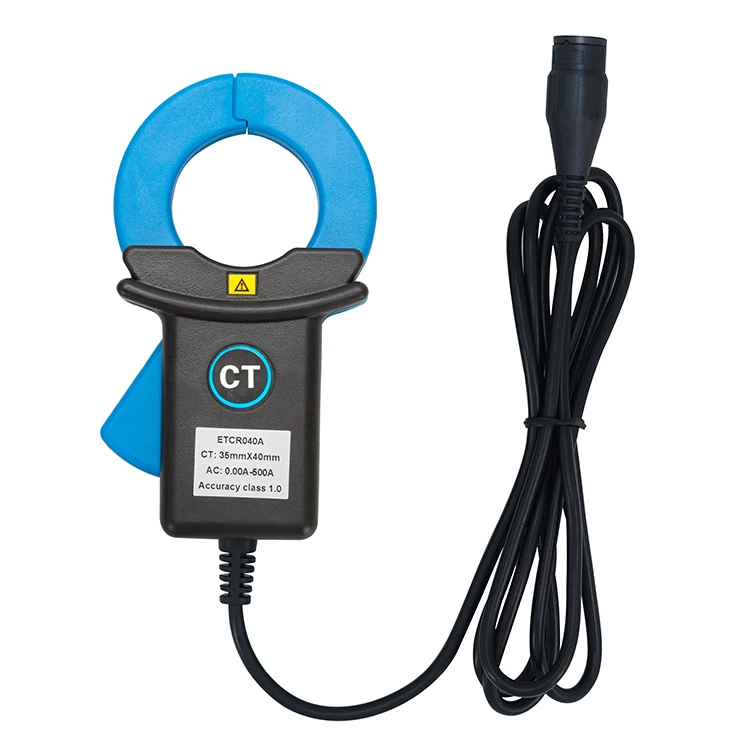

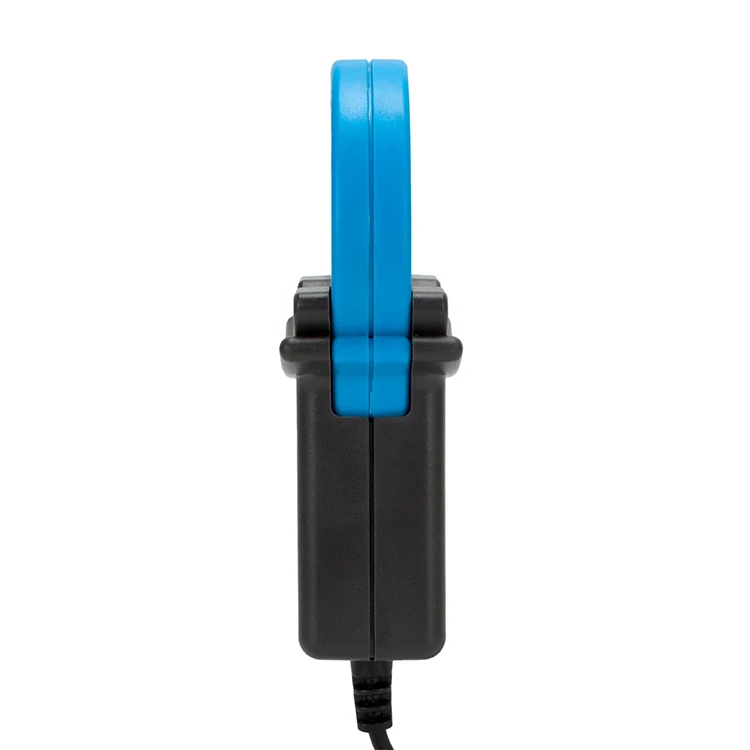

ETCR040A High Accuracy AC Clamp on Leakage current sensor meter,Current Transducer 0.00mA -500A,35mm x 40mm
Product Description
1. Clamp structure, no need to interrupt the power supply and disconnect the circuit in testing, easy to carry and especially suitable for on-site online testing. Non-contact measurement, easy to operate, fast, safe and reliable.
2. The core is made of high performance Ferro-nickel alloy, with high performance and high accuracy.
3. It can output current or voltage signal. The range, transformation ratio, output interface of the sensor can be customized according to customer requirements.
4. Output interface: BNC plug/ 4.0mm double banana plug/φ3.5mm Audio plug (optional), wire length: 1.5m
5. Insulating strength: AC3700V/ms ( between the core and coil)
6. Safety class: CATⅢ600V
7. Working temperature: -15°C~50°C
Technical Specification
Model | ETCR040A | |
Range | 0.00A~500A | |
Accuracy Class | 1.0 | |
Phase Error | ≤2° | |
Current Type | Turn Ratio | 4000:1 |
Reference Load | ≤20Ω | |
Voltage Type | Output Voltage | 0~3V(20Ω) |
Secondary Load | ≥100KΩ | |
Frequency | 45Hz~100KHz | |

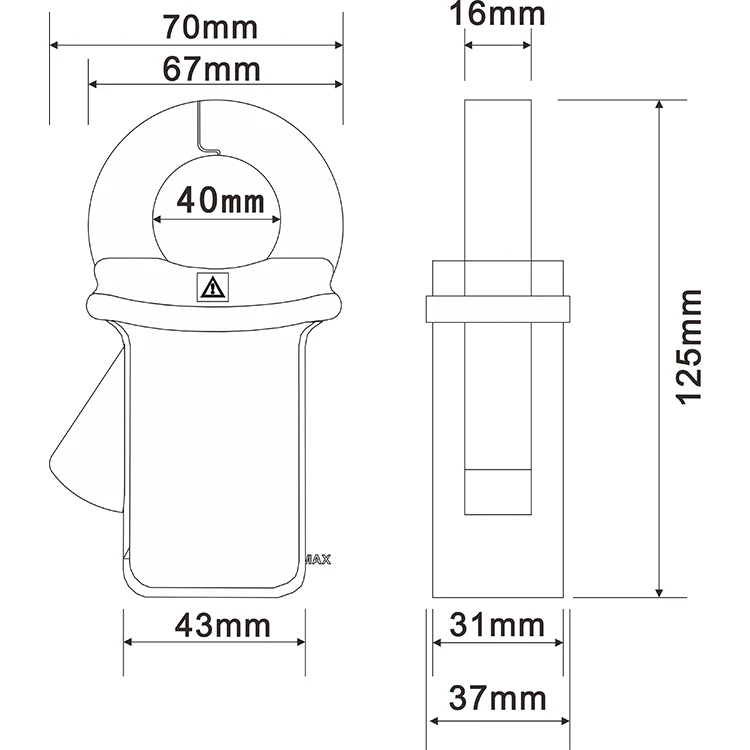

Clamp Size | 35mm×40mm | |
Dimension | 125mm×70mm×37mm | |
Weight | 190g | |
