Автоматическая машина для наполнения и сжатия
- Категория: Other Home Textile Product Machines >>>
- Поставщик: Wincoo,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1063758.78 $* | 1085033.97 $* |
| Jul-16-2025 | 862733.3 $* | 879988.87 $* |
| Jun-16-2025 | 1047006.66 $* | 1067946.53 $* |
| May-16-2025 | 1038630.43 $* | 1059403.29 $* |
| Apr-16-2025 | 829229.91 $* | 845814.19 $* |
| Mar-16-2025 | 1021878.39 $* | 1042316.28 $* |
| Feb-16-2025 | 1013502.79 $* | 1033772.87 $* |
| Jan-16-2025 | 1005126.67 $* | 1025229.39 $* |
Характеристики
Product Description

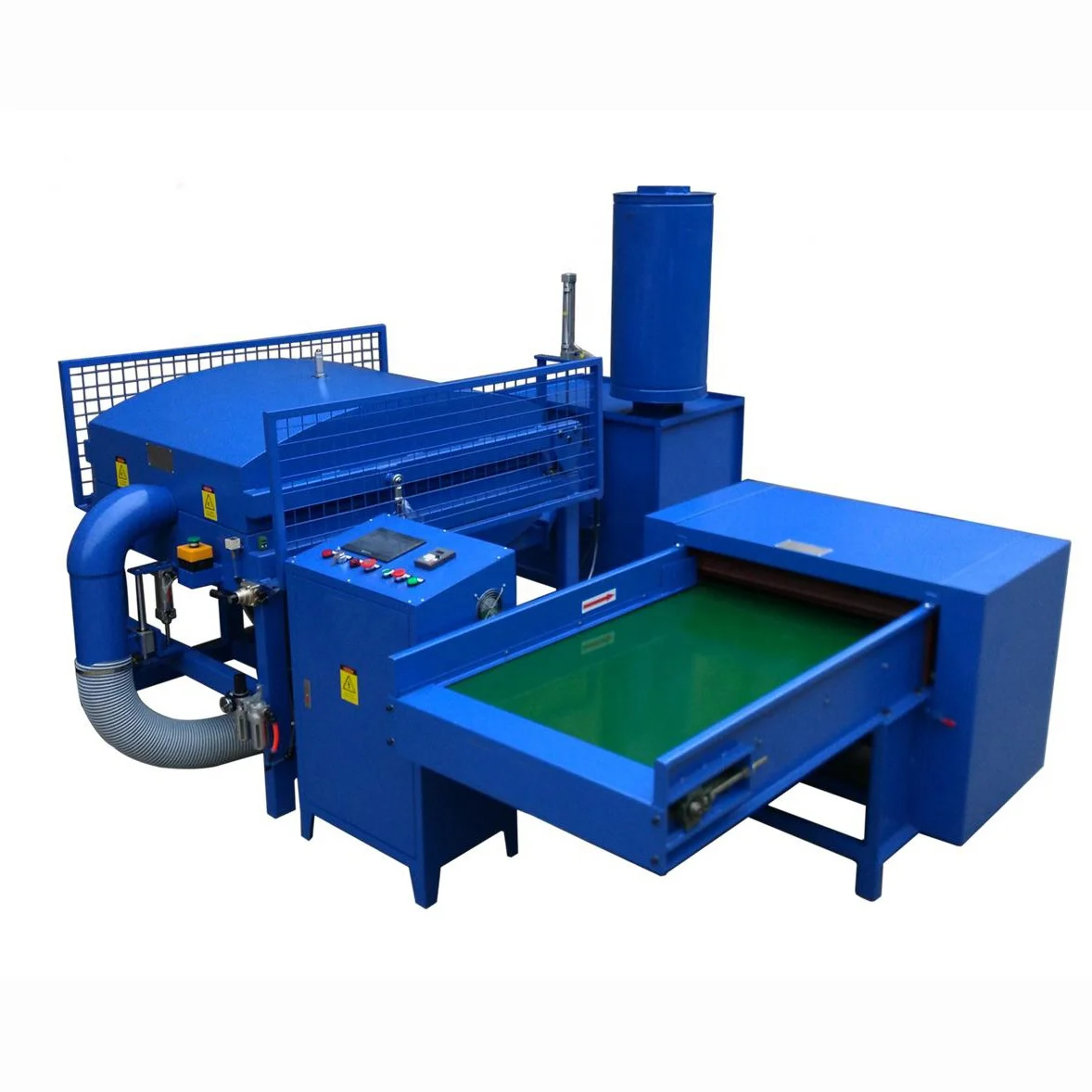

No.1.Automatic Pillow Production Line-J-001-A
Automatic Pillow Production Line is a machine designed to automatically fill pillows or cushions.
COMPOSED OF: FIBER OPENER, FAN, VACUMM FILLING MACHINE, CONTROL BOX.
Surface required for installation | 3.15*3.06=9.64m² |
Weight | 1500Kg |
Power | 10.25Kw |
Capacity | 120-150pcs/H |
Advantages
-- The machine equipped the high tech and new weight setting devices, easy to set the weight for each pillow or cushion.
-- PLC automatic process and weight control.
-- The machine's filling is sucking instead of the traditional blowing filling.The fresh opened fiber will be sucked to everywhere of pillow/ cushion cases.
-- Low labor, high efficiency and easy to operate. Only 1 person needed to operate the system.
No.2.Automatic Pillow Production Line-J-001-C
Automatic Pillow Production Line is a machine designed to automatically fill pillows or cushions.
Surface required for installation | 9*4.5=40.5m² |
Weight | 3500Kg |
Power | 16.75Kw |
Capacity | 300pcs/H |
Advantages
-- The machine equipped the high tech and new weight setting devices, easy to set the weight for each pillow or cushion.
-- PLC automatic process and weight control.
-- The machine's filling is sucking instead of the traditional blowing filling. The fresh opened fiber will be sucked to everywhere of pillow /cushion cases.
-- Low labor, high efficiency and easy to operate. Only 1 person needed to operate the system.
No.3.Automatic Pillow Production Line-J-001-D
Power | 11.75Kw |
Capacity | 200~240pcs/H |

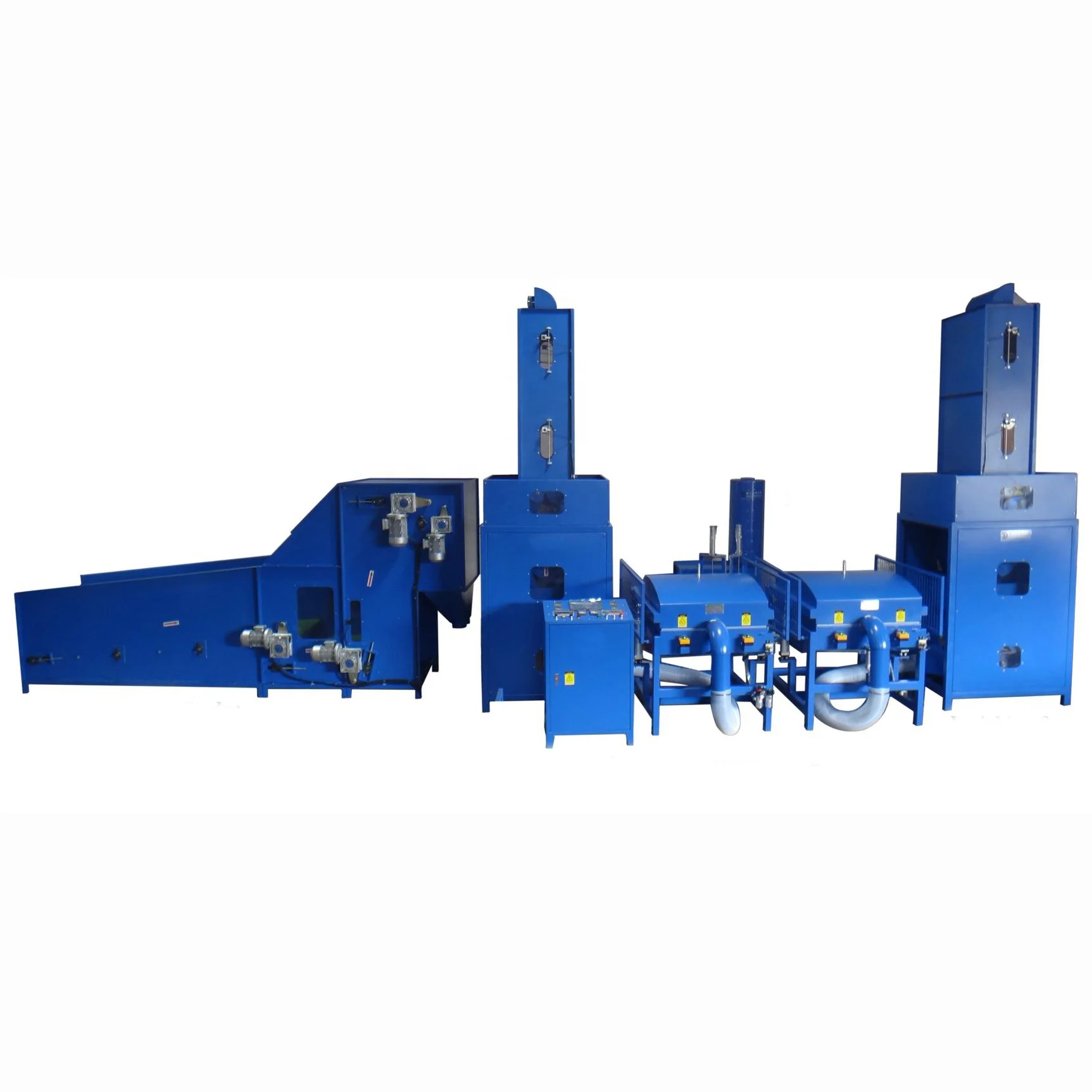

No.4.Automatic Pillow Production Line-J-001-E
This production line is a machine designed to automatically fill pillows or other articles as cushions and others with fiber.
Power | 38.5kw |
Capacity | 350~400pcs/H |
Composed of:
--Silos:having the function of fibers accumulator fed automatically by photocell control.
-- Dosing and opening units:Set of cylinders with variable speed dosing the fibers to the weighing system.
-- Weighing systems:Controlling the above cylinder feeding to get accurate pre-selected weight. Error range +-15g (80% will be less than 10 grams).
-- Filling units:The vacuum filling machine in which the empty pillow cover is placed closes hermetically, allowing an even distribution of the weighed opened fibers into the pillow covers through a high pressure turbine.
-- Vacuum high pressure turbine (Fan):Allowing to suck and distribute the fibers into the pillow cover.
-- Electronic control panel:Panel to control the parameters of the machine.

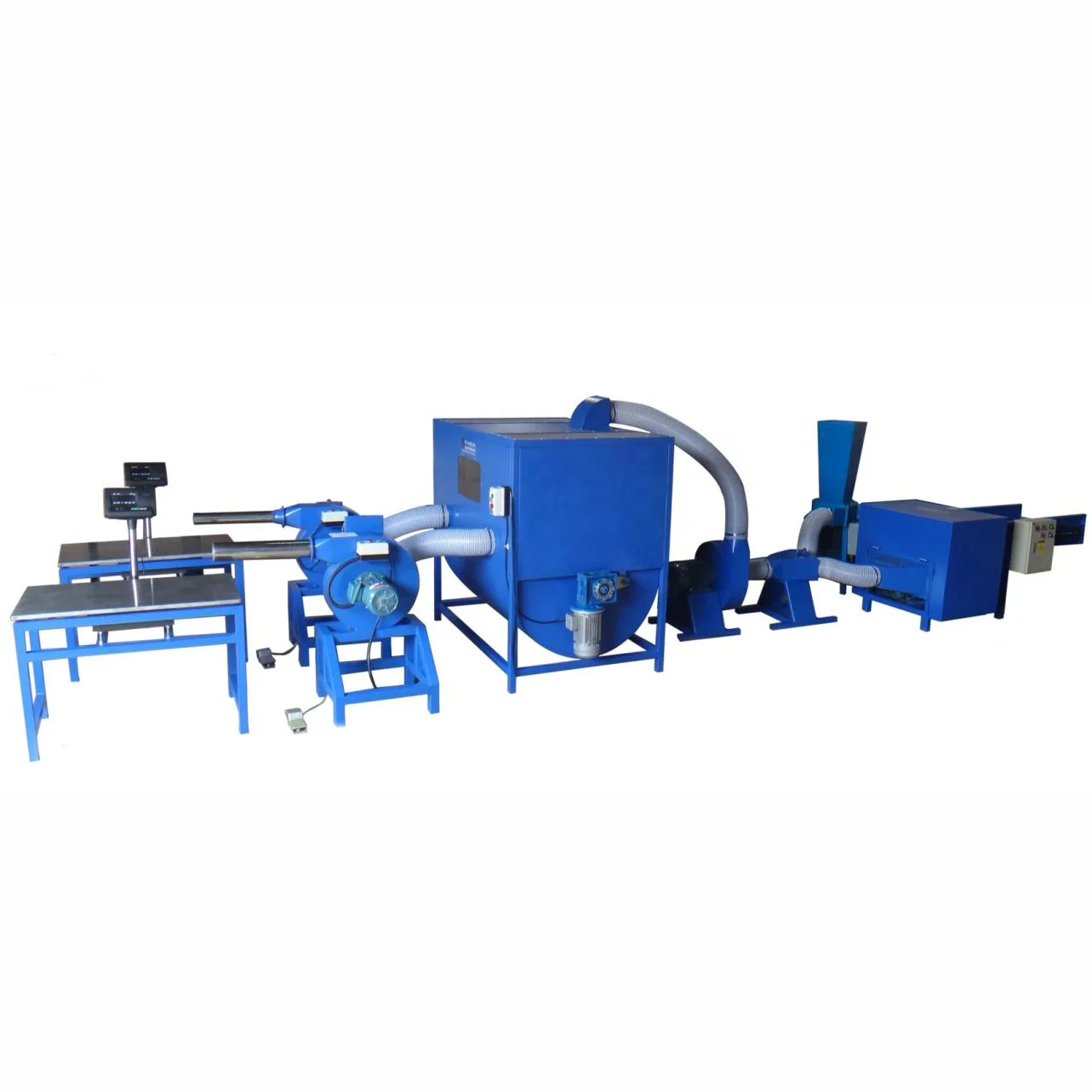

No.5.Pillow & Cushion Production Line-J-002-A
These systems suitable for making cushions and pillows filled with a mixture of fiber, foam (sponge) and feather. High productivity, easy to operate. Smooth process from fiber opening, mixing with other materials, to the filling process without
jamming.
Power | 12.25~19.75Kw |
Capacity | 120-300Kg/H |
Advantages:
-- It integrates smashing foam (sponge), opening fiber, mixing and filling together and finishes at a time.
-- Only by putting the foam/ sponge (including scrap), raw fiber or down feather into the machine, it will loose the fiber and smash the foam, evenly mix them and the fill into the product.
-- CE Certification.
This system has the follow functions:
1, Separately used for carding fiber.
2, Used for carding fiber and filling.
3, Separately used for smashing foam/ sponge.
4, Used for carding fiber, mixing down feather and filling.
5, Used for carding fiber, mixing foam and filling.

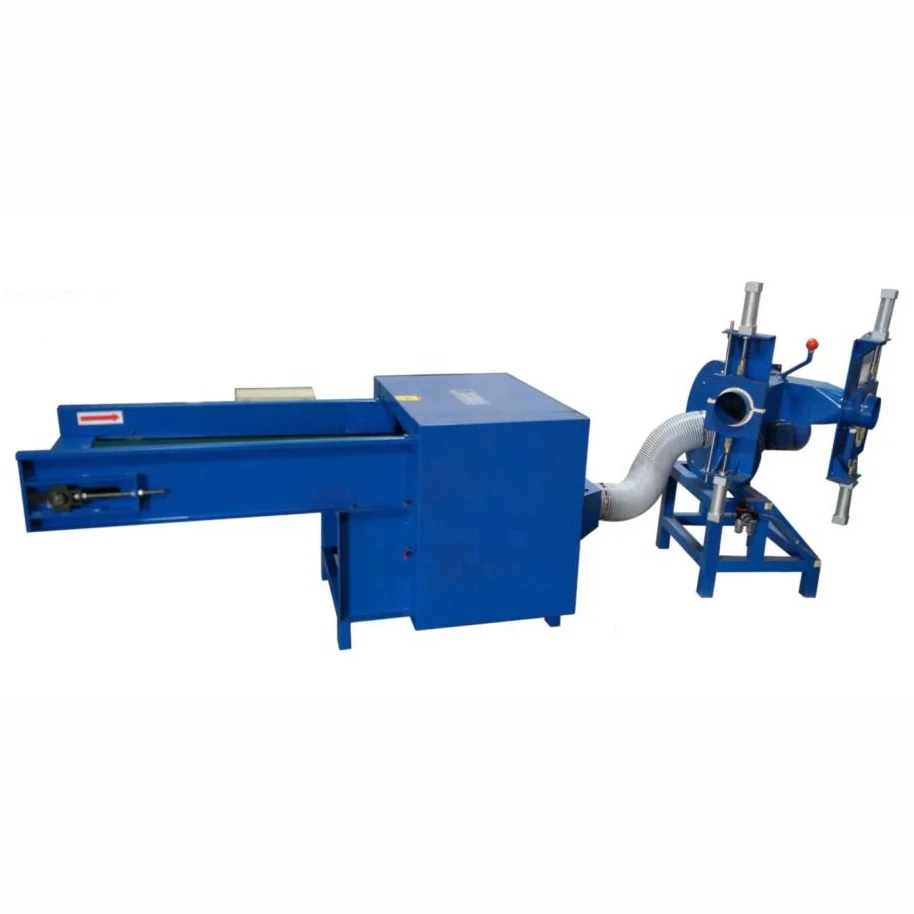

No.6.Pillow production unit-J-003-A, J-003-B
The pillow filling line is specialized in opening polyester fiber, wool and wadding waste then filling into pillow, cushion, toy and pet supplies etc.
-- It is assembled by fiber opening machine and filling machine.
-- The whole line can be handled by 2 operators and adjusted by foot switch.
-- High capacity with 120-150kg up material running per hour.
--The opener roller is produced by V-wire, so that the finished fiber is more elasticity and without hurt; the opening rate can be 98% more; it is long life and less maintenance.
-- Automatic conveyor belt with security device ensures the safety of operator.
-- Conveyor track system protection;
-- Special roller and bearing device avoid the fiber jammed.
-- Professional roller balance processed, so that the machine is running without noise and shaking.
-- Electronic metal alarm system option.
-- CE Certification.
No.7.Fiber Opener-J-10
The fiber opener is specialized in opening conjugate hollow siliconized polyester fiber, wool and wadding fiber waste, other
filling fiber shorter than 100mm.
-- Conveyer track protection system; Conveyer is not easy to be worn.
-- Automatic raw material feeding by the conveyer.
-- The rollers are made by V-wire, which is stable, long life and lower maintenance; the material opening rate can be more than 98% without hurting the original silicon.
-- Professional roller balance process that the machine is running without noise, shaking.
-- High capacity can be from 150kg/H to 400kg/H from each unit.
-- Different power voltage and safety standard can be ordered according to the customer's local requirement.
No.8.Ball Fiber Machine-J-11
1, Mostly to make the siliconized fiber into the shape of ball fiber which appearance like pearl.
2 ,The opened fiber will be good as filling materials for sofa cushion, bedding, pillow, toys, clothing which make them more full and good elasticity.
3, The size of the ball shape and the tension can be adjusted accordingly.
4, Together with a blower, a mixer (mixing container), a filling machine, they form a complete ball fiber making and filling system.
No.9.Pillow Compress packing Machine-J-31A,J-31B
Ideal for vacuum packing of pillow, cushion and quilt to reduce the cost and storage space.
J31A | ||
Power | 1.00Kw | |
Sealing width | 800mm | |
Air Pressure | 0.6~0.8 Mpa | |
Dimensions | 1020*1020*1560mm | |
Capacity | 260~300 pcs/H | |
J31B | ||
Power | 1.00Kw | |
Sealing width | 1000mm | |
Air Pressure | 0.6~0.8 Mpa | |
Dimensions | 1020*1020*1560mm | |
Capacity | 260~400 pcs/H | |
Main characteristics of the machine is that:
-- It can reduce package cost and transportation cost.
-- Automatically seal packaging after compressing the stuffing product.
-- It can come back the original state after opening the compressed vacuum packing. So that it can save packaging material and save up to 70% transportation cost.
-- The packaging product is good air proof, low processing cost, it can adjust the product's packing thickness at any time, low maintenance rate.
-- The thickness of seal can be adjusted to bring best effects through temperature adjustment.
-- With wide use range, it can satisfy different requirements and ti is applicable to the products such as furniture, pillow, seat cushion and products can be compressed etc.
No.10.Foam Cutting Machine-J-20-A,J-20-B
Ideal for the recycling of foam to make filling materials and rebound foam. For the uniform shape of the foam articles, which can be varied wish.
J-20-A | ||
Power | 11Kw | |
Capacity | 200~400Kg/H | |
Cutting size | 4~24mm(length)*8mm(width)*raw material height (adjusted length 4~24mm) | |
Manageable thickness | <60mm<> | |
Dimensions | 2100*1150*1250mm | |
Weight | 900Kg | |
J-20-B | ||
Power | 15Kw | |
Capacity | 200~400Kg/H | |
Cutting size | 4~24mm(length)*8mm(width)*10mm(height) (adjusted length 4~24mm) | |
Manageable thickness | <150mm<> | |
Dimensions | 3200*1150*1250mm | |
Weight | 1200Kg | |
Advantages:
-- Suitable for cutting foam, memory foam, latex sponge (foam rubber), mattress leftover material (foam with fabric) into regularly pieces (adjusted length 6~18mm).
-- No dust generated when cutting. The size of the production is adjustable.
-- Latest design. Has the most comprehensive functions, the highest production efficiency
Company Profile
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
*We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
*Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule,quality, cost and productivity to guarantee production pace is accordance with project requirement.
*To support project execution,we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools,equipment/machines to special merchandise.With flexibility,we are also glad to perform as procurement agent in China to seek required supply resources.
