Рентгеновский плоский панельный детектор для цифровой рентгеновской машины 17*17
- Категория: Other Radiology Equipment & Accessories >>>
- Поставщик: MEDSINGLONG,CO,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.31 $* | 0.99 $* |
| Aug-16-2025 | 0.61 $* | 0.16 $* |
| Jul-16-2025 | 0.4 $* | 0.87 $* |
| Jun-16-2025 | 0.86 $* | 0.22 $* |
| May-16-2025 | 0.56 $* | 0.42 $* |
| Apr-16-2025 | 0.76 $* | 0.24 $* |
| Mar-16-2025 | 0.2 $* | 0.75 $* |
| Feb-16-2025 | 0.57 $* | 0.85 $* |
| Jan-16-2025 | 0.72 $* | 0.85 $* |
Характеристики
Product Description

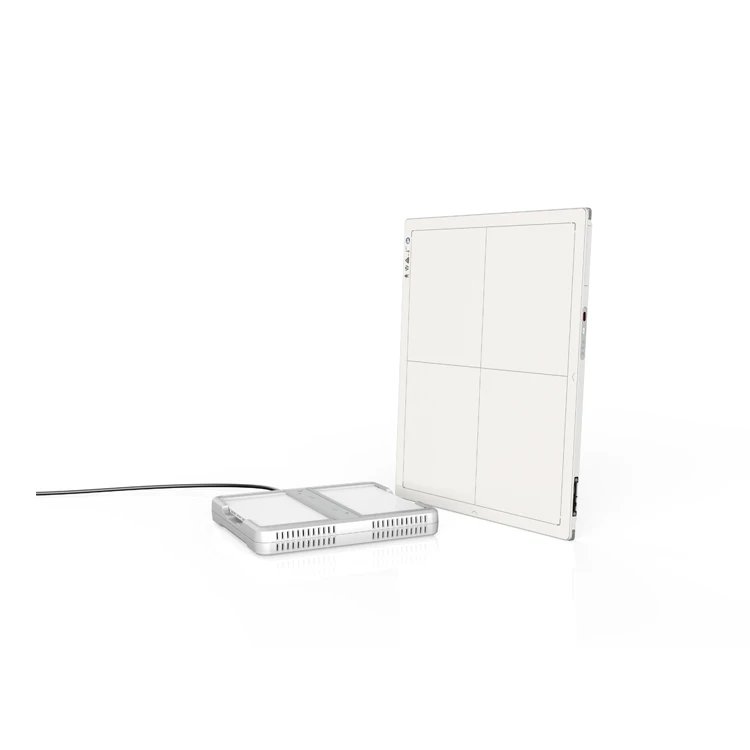

MSLFP06 is a 17x17 cassette-size wireless portable flat panel detector designed for Human used digital radiography.
Ø Fast workflow
Ø More image details
Ø Excellent image quality
Ø Cassette-size flat panel detector
Ø Fast workflow
Ø More image details
Ø Excellent image quality
Ø Cassette-size flat panel detector
Contact with me:+86 13657961088 Rainbow

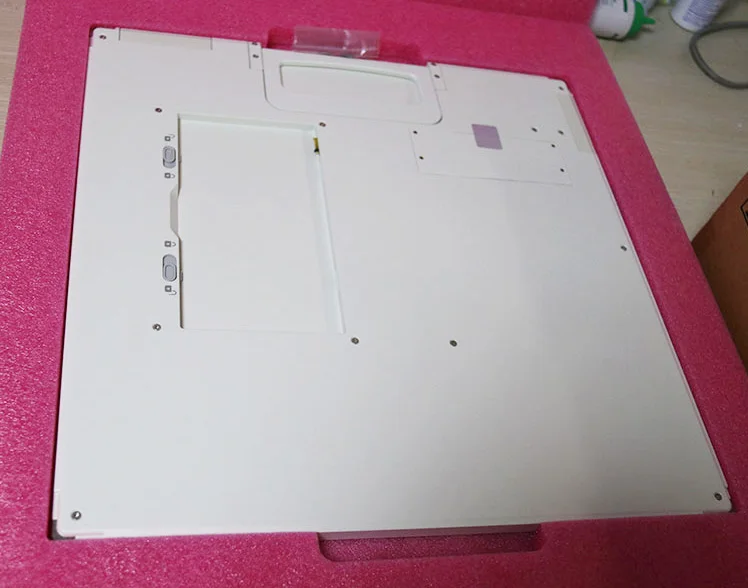

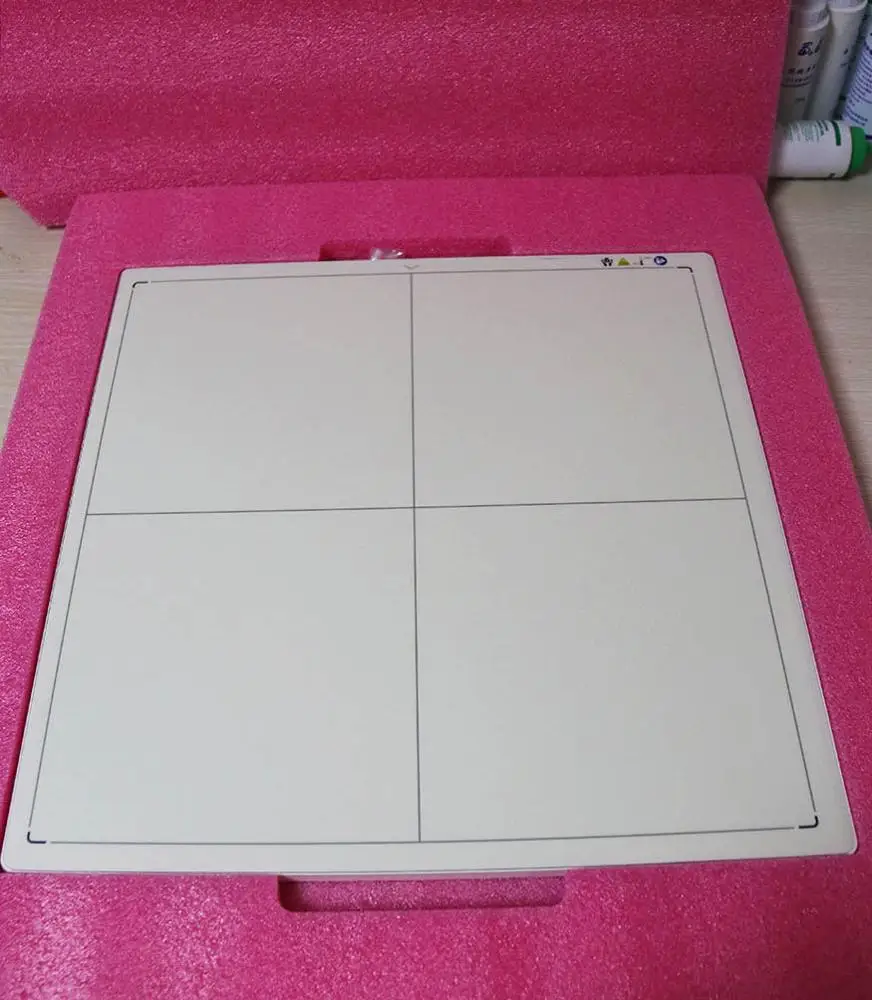

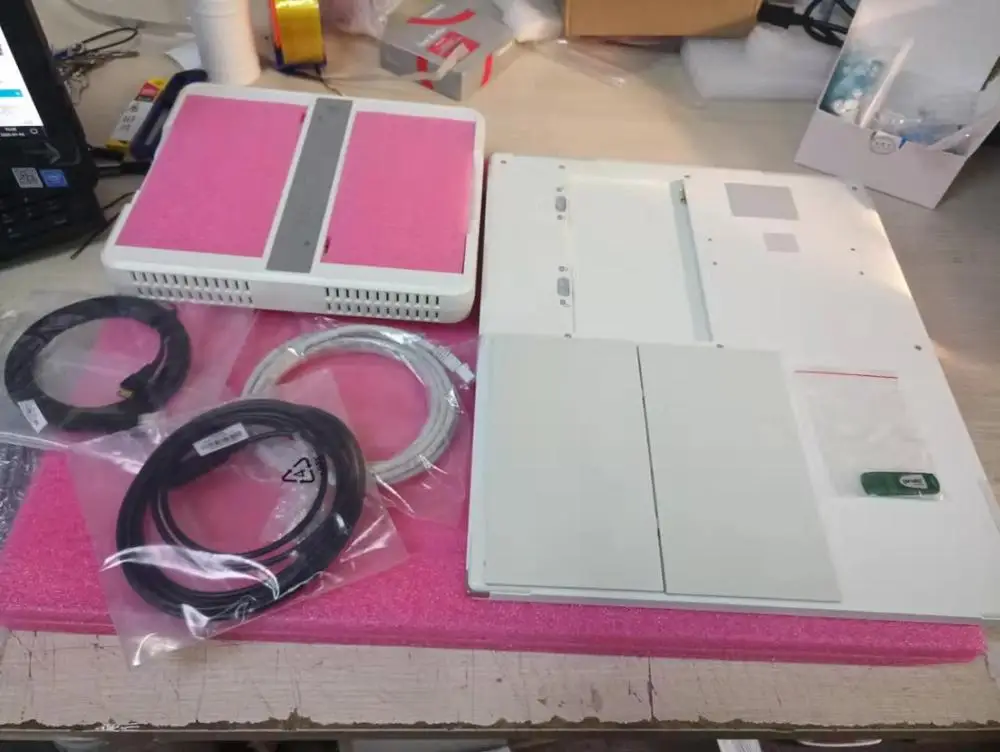

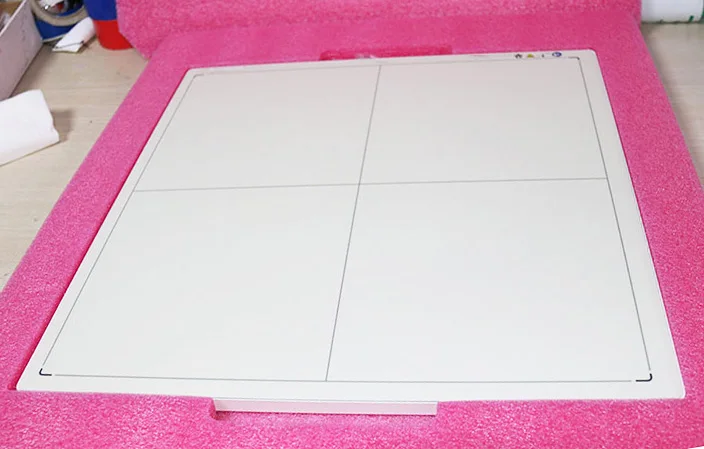

Specs and Details Images
Detector Technology | Amorphous Silicon |
Scintillator | CsI |
Active Area | 420mmx 420mm |
Number of Pixels | 2304 x 2800 |
Pixel Pitch | 139 um |
AD Conversion | 16 bit |
Trigger Mode | AED/Software |
Data Interface | Ethernet/WiFi(802.11ac) |
Dimension | 384mm x 460mm x 15mm |
Weight | 3.6 kg |
Drop Height | 120cm |
Static Loading | 150kg Uniformly |
Battery Capacity | 5 h |
Sensitivity(LSB/uGy) | Typ.750 |
Maximum Linear Dose(uGy) | Typ.60 |
MTF @ 1.0 LP/mm (Typ.) | 68% |
MTF @ 2.0 LP/mm(Typ.) | 40% |
MTF @ 3.0 LP/mm(Typ.) | 22% |
DQE @ 0 LP/mm(2.5uGy@RQA5, Typ.) | 69% |
DQE @ 1.0 LP/mm(2.5uGy@RQA5, Typ.) | 52% |
DQE @ 2.0LP/mm(2.5uGy@RQA5, Typ.) | 36% |
Limiting Resolution (without phantom or grid) | 3.6 lp/mm |
Trigger Mode | AED/Software/Prep |
Preview Acquisition Time | Typ.3s |
Full Image Time | Typ.5s |
Cycle Time | Typ.8s |
Feedback and related products
After Sales Service
After-sale service
1.Within guarantee period: Supply all-free repair and maintenance . For small problems, we can provide remote guidance and send the buyer free spare parts. For big problems that cannot be solved by buyer himself, we will recall the machine and repair it in our company. Spare parts my company provide for free.
2. Beyond warranty period, for small problems, we can also provide remote guidance, and the buyer only need to pay for the cost of the spare part and express fee. For big problems that cannot be solved by the buyer, we will recall the machine and repair it in our company. The clients are responsible for the transport and repair expenses.
