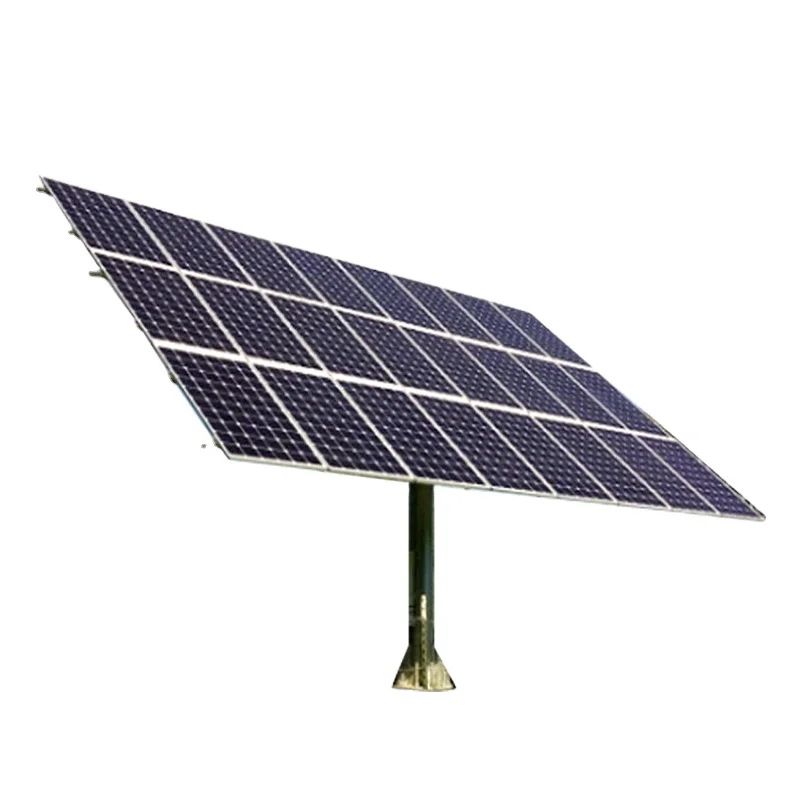

Солнечный трекер 21-9 кВт солнечный с двойной осью солнечная система слежения за солнечной энергией 2
- Категория: Улавливателя солнечной энергии >>>
- Поставщик: Shandong,Huayue,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3606.0 $* | 3786.52 $* |
| Aug-15-2025 | 3575.78 $* | 3754.55 $* |
| Jul-15-2025 | 3000.41 $* | 3150.11 $* |
| Jun-15-2025 | 3515.90 $* | 3691.50 $* |
| May-15-2025 | 3060.66 $* | 3213.54 $* |
| Apr-15-2025 | 3454.88 $* | 3627.73 $* |
| Mar-15-2025 | 3424.26 $* | 3595.13 $* |
| Feb-15-2025 | 3394.42 $* | 3564.46 $* |
| Jan-15-2025 | 3363.88 $* | 3531.75 $* |
Характеристики
Power generation comparison
Product features
Optional accessories
Product Paramenters

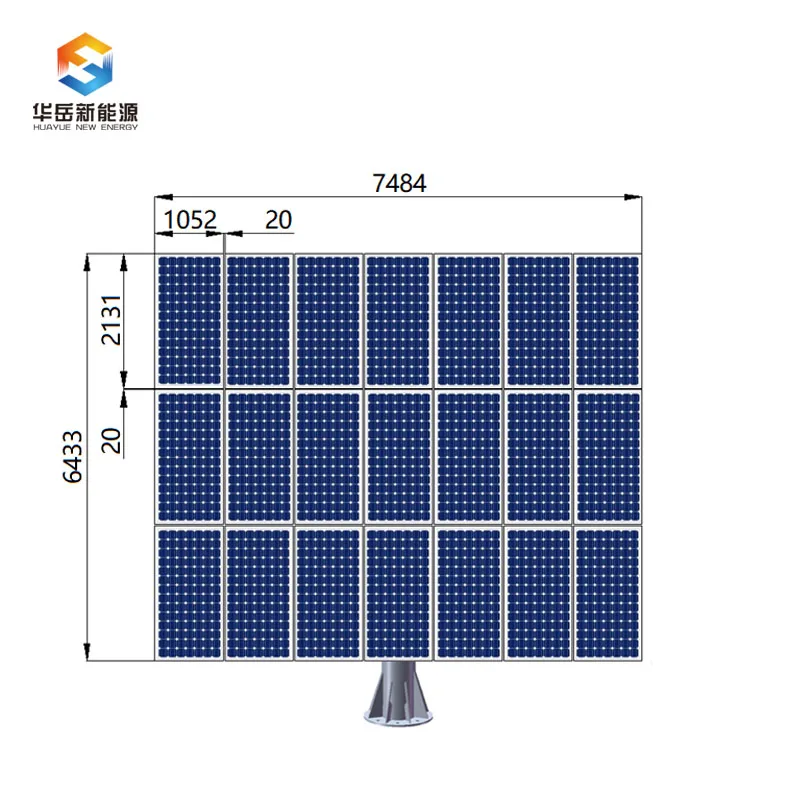

21PV-78-LD Dual-axis Solar Tracker Structure Parameters | ||||||
Solar panel type | 2131*1052mm | Installed capacity | 9kw | |||
System weight | ≈1276kg/sets | Number of solar panels | 21P | |||
Arrangement of solar panels | Upright arrangement | Ground clearance | 400mm | |||
Area of grid structure (m²) | ≈47㎡ | Bracket material | Hot dip galvanized steel | |||
Protection of wind speed | 17 m/s | Snow load | 0.5～1.6KN/㎡ | |||
Main material | Q235B / Q355B | Galvanizing thickness | ＞85um | |||
Fastener material | 304 stainless steel | Mechanical design life (y) | ＞25 | |||
Design code | ASCE7 EN1991 AS1170 GB50009-2012 | |||||
Foundation form | Concrete (customizable all steel foundation) | |||||
Extreme wind speed | 37 ~ 50M / S (ASCE7-10,other wind speeds can be customized) | |||||
Quality assurance period | The whole machine is guaranteed for 3 years (except for man-made damage and force majeure) | |||||
Working temperature (℃) | General default configuration -30℃ ~ +70℃ special customized configuration -50℃ ~ +85℃ | |||||
Dual Axis Controller Parameters | ||||||
Control algorithm | Astronomical algorithm + position sensor closed loop control | |||||
Controller type | MCU | Control core | MCU（32bit) | |||
Communication type | RS485 | Gale protection | have | |||
Night return mode | have | Backtracking algorithm | have | |||
Anemometer | have | Protection level | IP66 | |||
GPS | have | Heavy rain cleaning mode | Optional | |||
Drive protection | have | Snow removal mode | Optional | |||

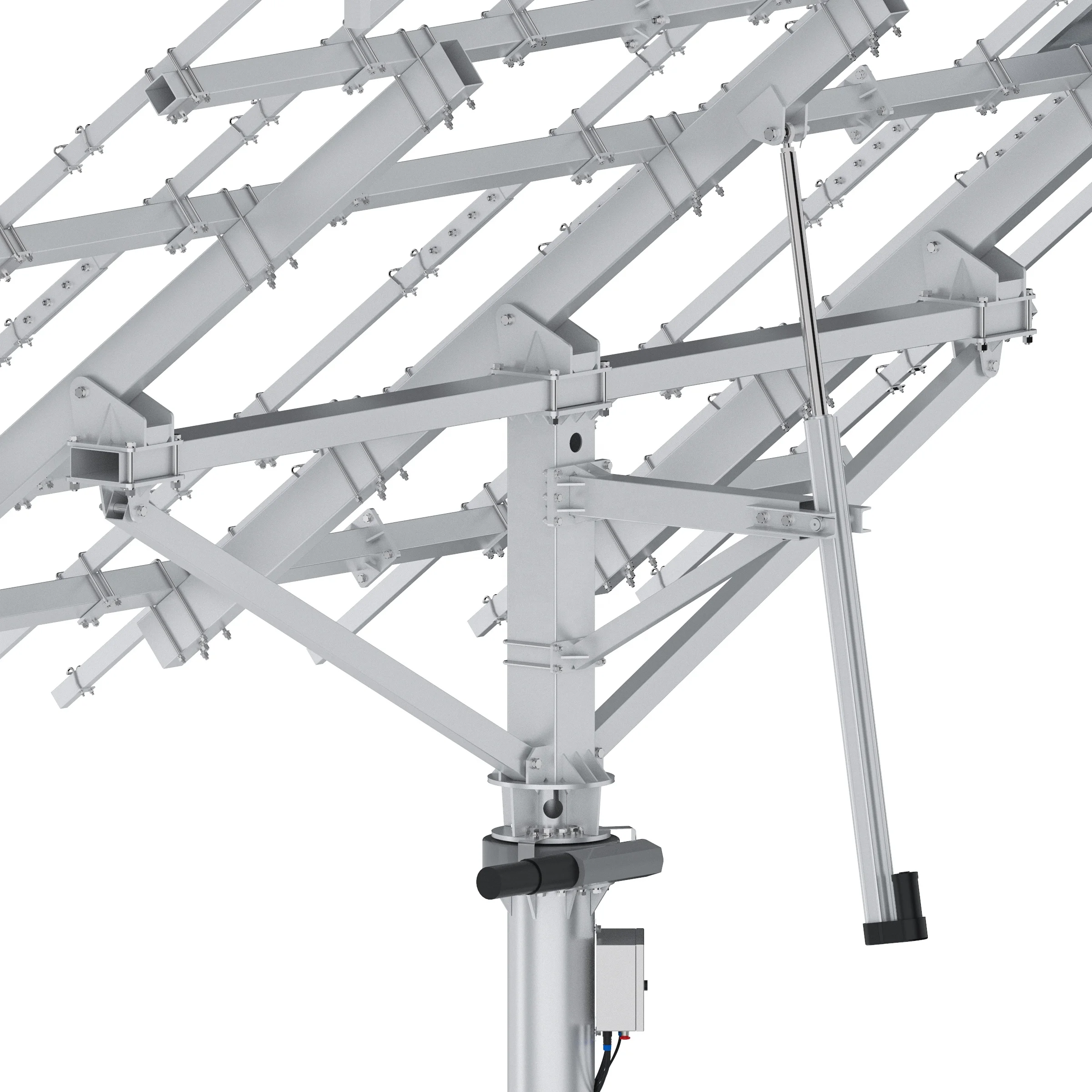

System voltage | DC24 | Driving device | Slewing drive + Linear drive | |||
Driving power (W) | 350W | Tracking accuracy (°) | ≤1° | |||
Power supply mode | Self powered / external power supply | Azimuth tracking range (°) | -120 ° ~ + 120 ° / - 135 ° ~ + 135 ° (customizable) | |||
Daily power consumption (KWH) | ≤0.4kWh | Altitude angle tracking range (°) | 0~60° | |||
System power supply | L+N(two-phase input) 100V~240V AC(wide voltage input) | |||||
Network communication mode | RS485 | |||||
Network communication type | Bluetooth (customizable WiFi, 4G) | |||||
Rotating position protection mode | Sensor protection + software protection | |||||
Details Images
Company Profile
About Us
FAQ
Q: How long is your delivery time?
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is
according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our method of payment varies according to different countries and regions.Normally, we accept payment by T/T.
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is
according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our method of payment varies according to different countries and regions.Normally, we accept payment by T/T.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below ...
