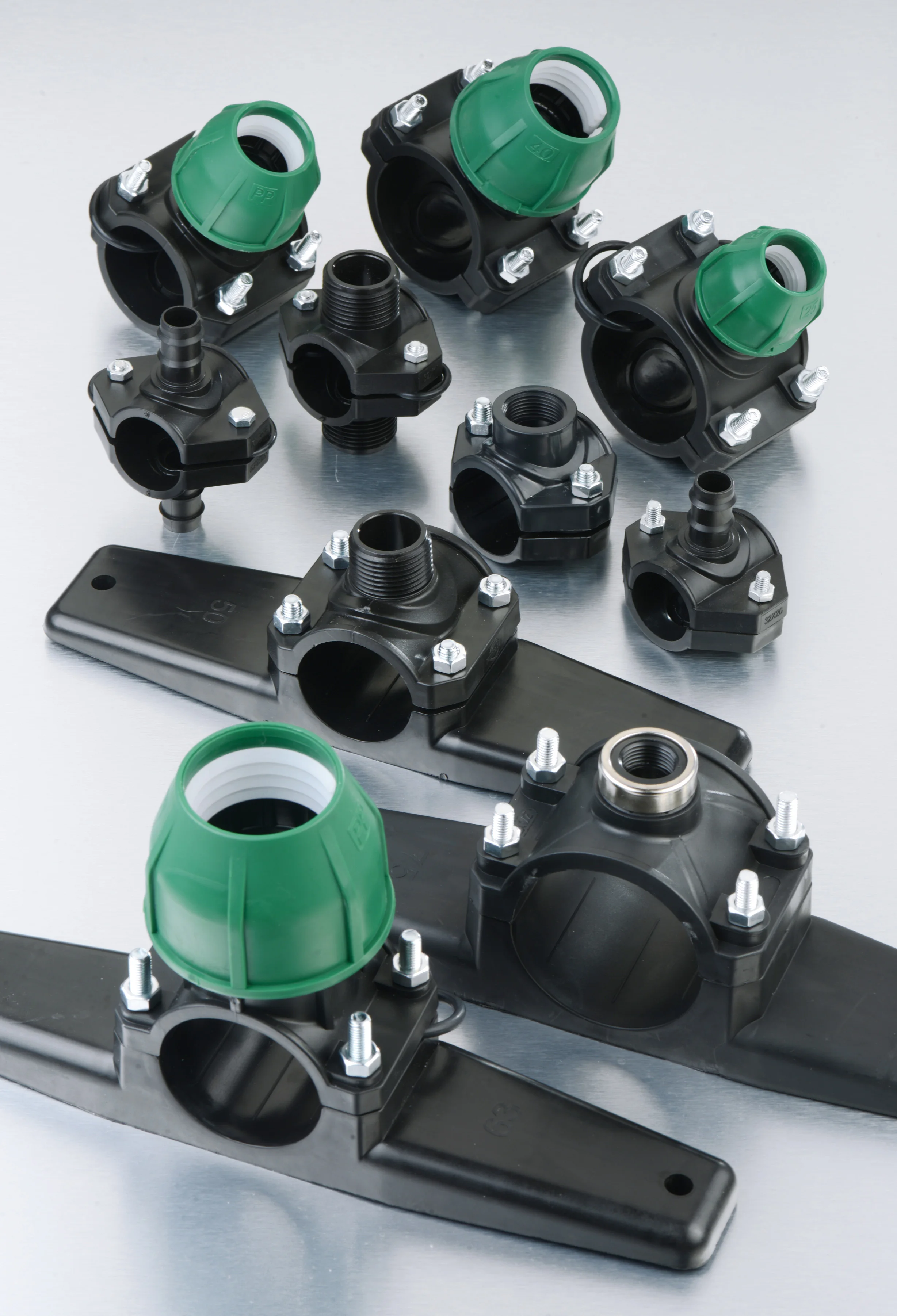

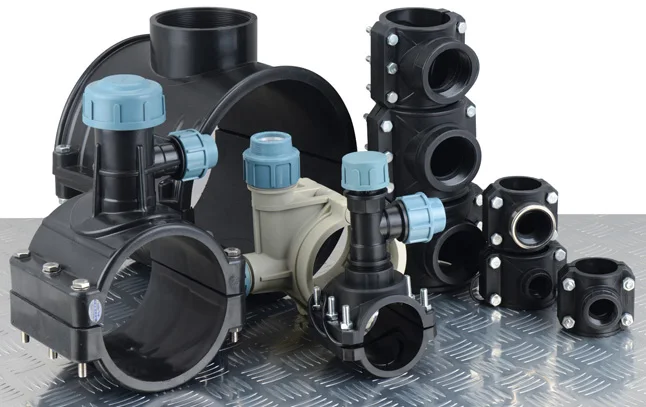

HIGH QUALITY KEXING IRRIPLAST Agricultural Irrigation Push Fit Compression Fittings PP 20-110MM PN16 PN10 ISO CE PP HDPE Plastic Clamp Saddles

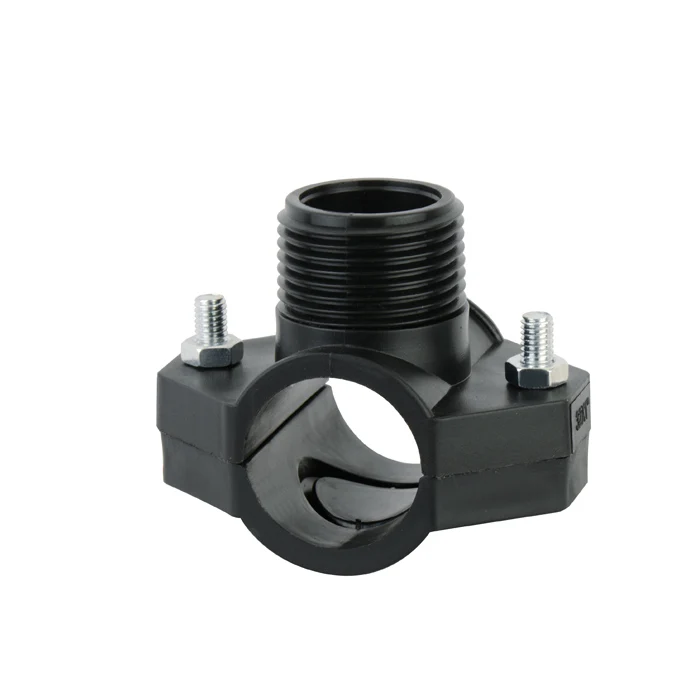

 4007 Male Clamp saddles Specifications:

Description	Code	Size	Weight    (g/pc)	PCS/BAG	PCS/CTN	Carton size
Male Clamp Saddle	4007	32*1/2	39	20	120	38*25*32cm
		32*3/4	40	20	120	38*25*32cm
		32*1	44	20	120	38*25*32cm
		40*1/2	42	12	96	38*25*32cm
		40*3/4	43	12	96	38*25*32cm
		40*1	45	12	96	38*25*32cm
		50*1/2	76	10	60	38*25*32cm
		50*3/4	76	10	60	38*25*32cm
		50*1	79	10	60	38*25*32cm
		50*11/4	83	5	50	38*25*32cm

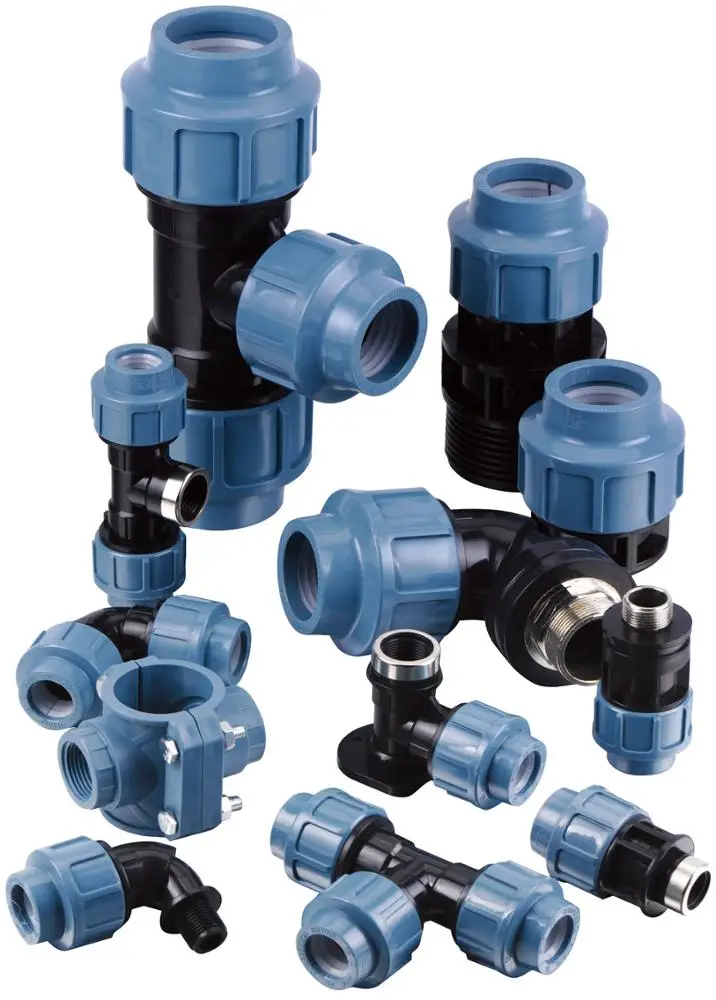

KEXING PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.



Technical data



 Materials

Part	Material
Body(A)	Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature.
Blocking bush(D)	Polypropylene
Nut(B)	Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004)
Clinching ring(C)	Polyacetal resin(POM)with high mechanical resistance And hardness
O Ring gasket(E)	Special  elastomeric acrylonitrile rubber(EPDM) for alimentary use
Reinforcing ring	AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4”



Working Pressures

KEXING PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:

Dn	PFA*	PMA*	PEA*
16-63	16	20	24
75-110	10	12.5	15
Temperature(°C )	Da-10a25	Da+26a+35	Da+36a+45
16-63	16	20	24
75-110	10	12.5	15



Reference Standards

Dimensions: UNI 9561Working

Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.

Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201

Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1

Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2
