Характеристики
Product Description
Designed for concrete walls,columns and structural beams for foundations and agricultural constructions.Fram Material:Aluminium 6061-T6
Back cover:by 15mm Sveza birch plywood,for best water resistance and excellent concrete surface.
Offer variety of height and width dimensions
Height:Up to maximum of 3.3 meter
Width:maximum 0.9 meter
Light weight for both handy and crane work
The permissible concrete pressure up to 60 KN/M2
All accessories full conpatible with original Rasto systerm
Welding quality follows EN1090 standard
panels | ||
Width(cm) | Hight(cm) | |
30 | 120 | |
35 | 135 | |
40 | 150 | |
45 | 240 | |
50 | 270 | |
55 | 300 | |
60 | 330 | |
65 | ||
70 | ||
75 | ||
80 | ||
85 | ||
90 | ||
Advantages
ALU-RAS is a frame panel formwork that can-up to a panel width of 90 cm –be used by hand without crane or as large-area units with a crane.Weighs in at approx 23kg/m2, 45% less than steel panel.
1. Save cost of crane time
2.Cutting down on manpower
3.Fully applicable with all Hunnebeck Rasto
accessories, clamps,brackets, push pulls, crane adapters etc.
4.Cost is returned within 2-3 projects
5.Birch plywood can be used up to 50 times
before being changed
2.Cutting down on manpower
3.Fully applicable with all Hunnebeck Rasto
accessories, clamps,brackets, push pulls, crane adapters etc.
4.Cost is returned within 2-3 projects
5.Birch plywood can be used up to 50 times
before being changed

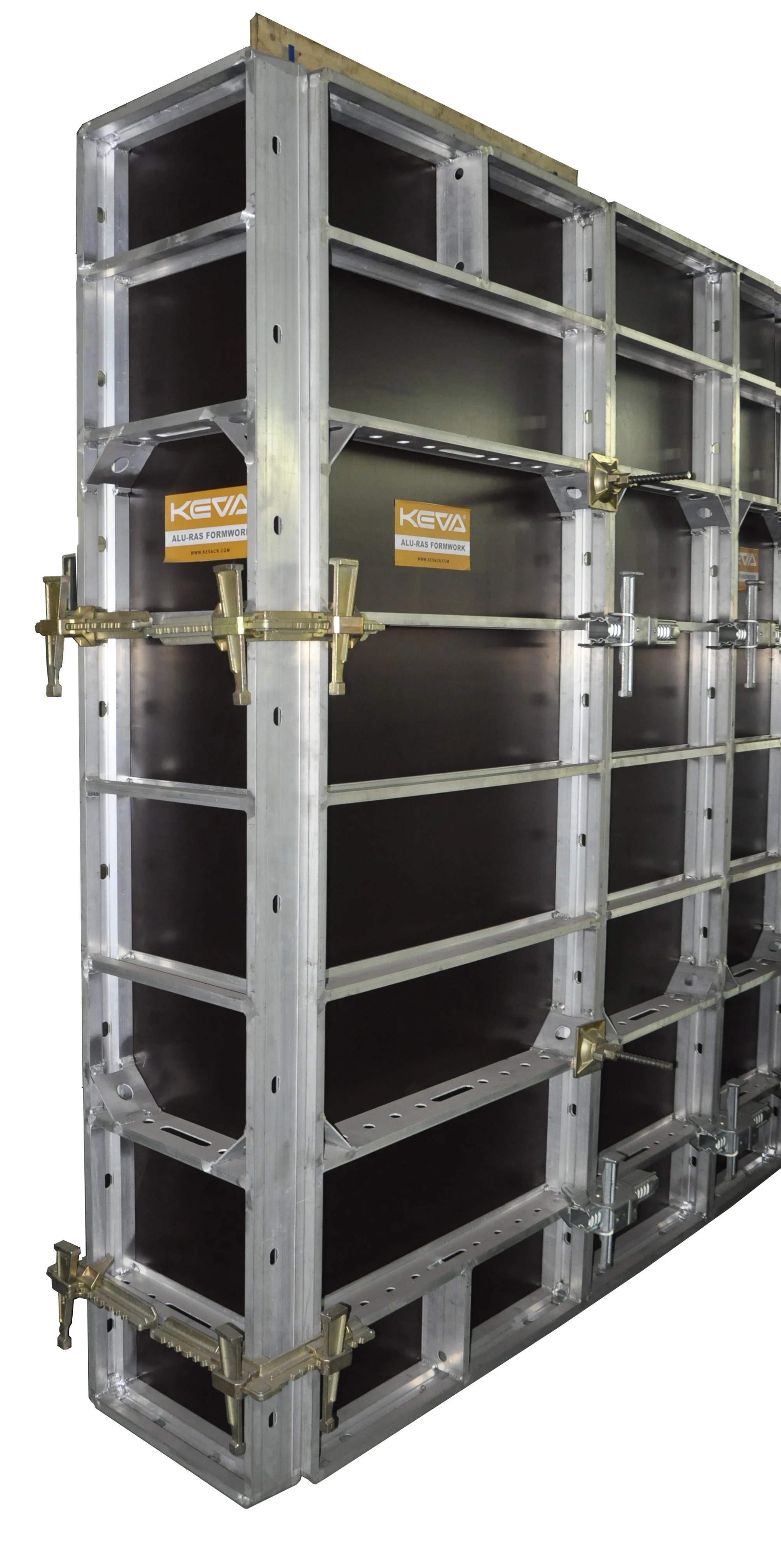

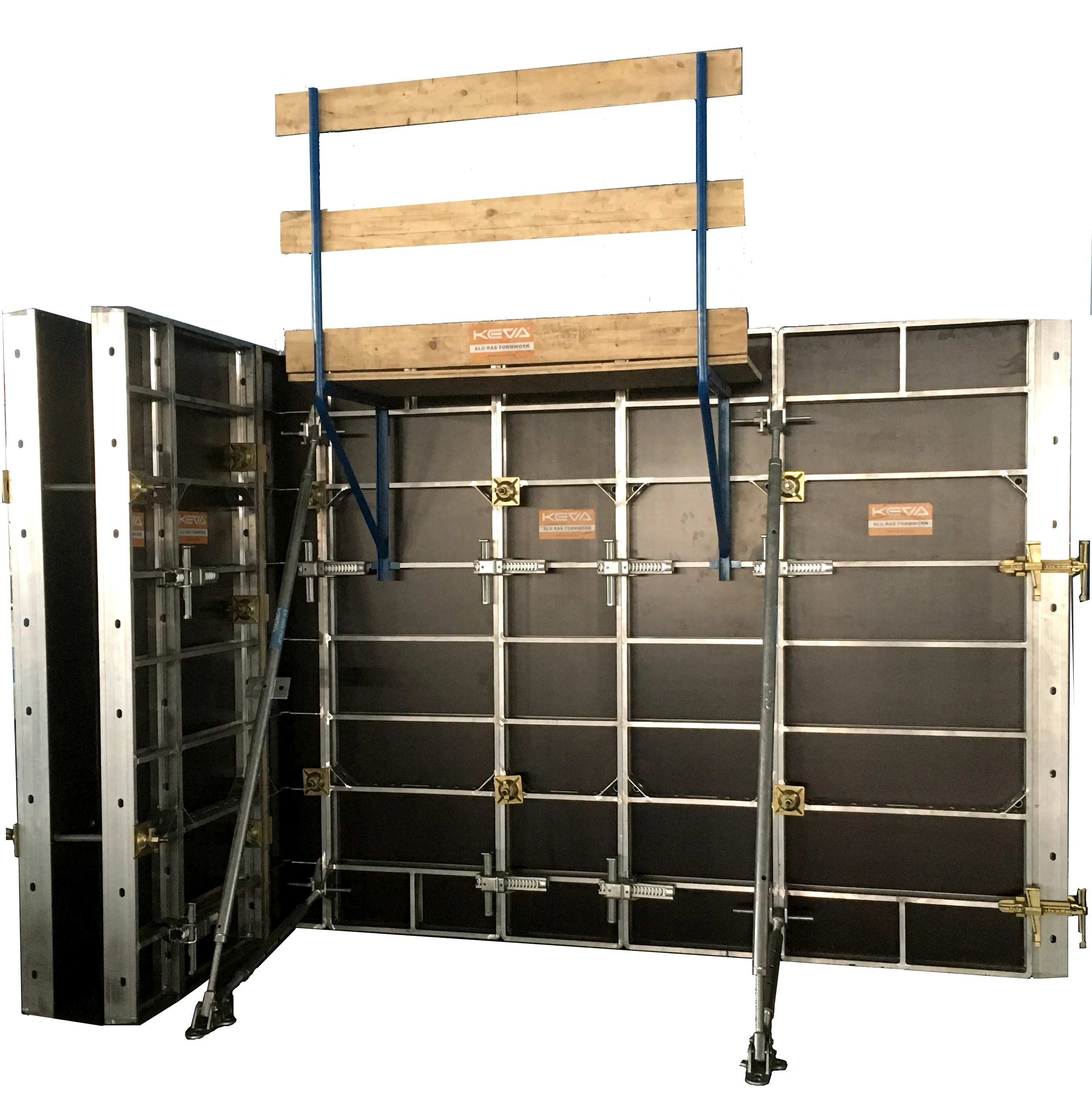

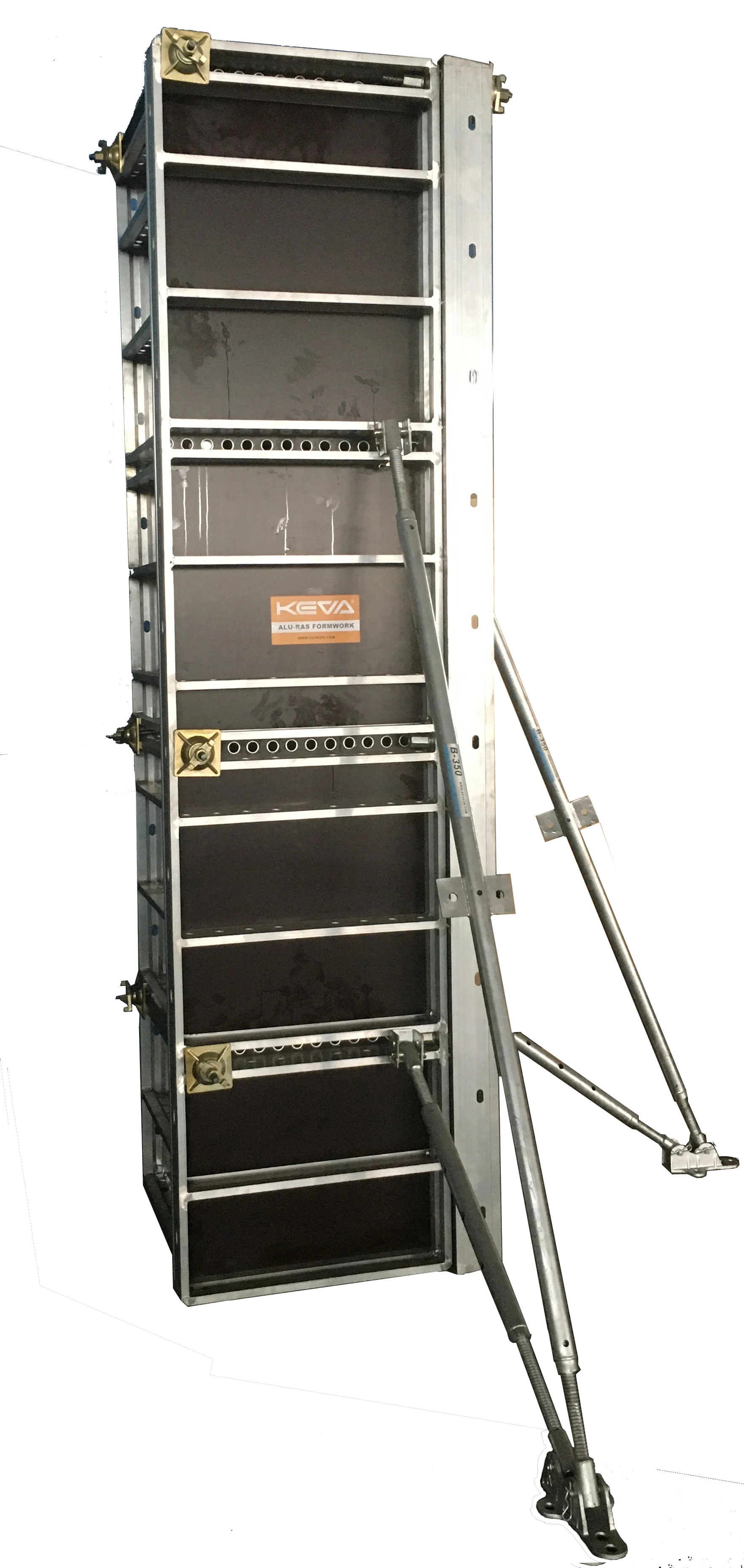

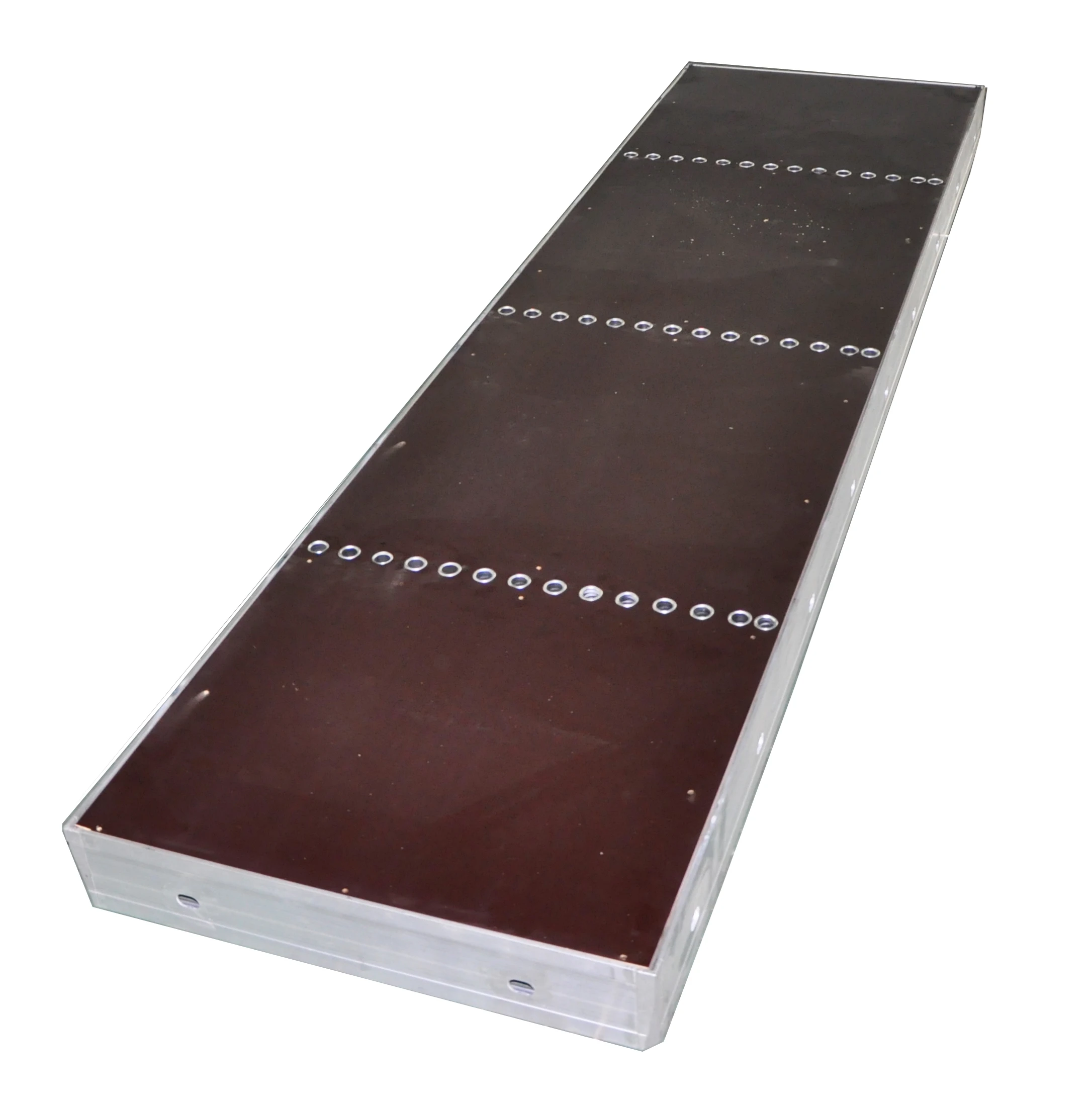

Detailed Images
The production process has been improved,so the cost performance is better than original system.
Size Information
Inner Size
Height(cm) | long*width(cm) |
120 | 30*30 |
135 | 30*30 |
150 | 30*30 |
240 | 30*30 |
270 | 30*30 |
300 | 30*30 |
330 | 30*30 |
