Характеристики

Product Description

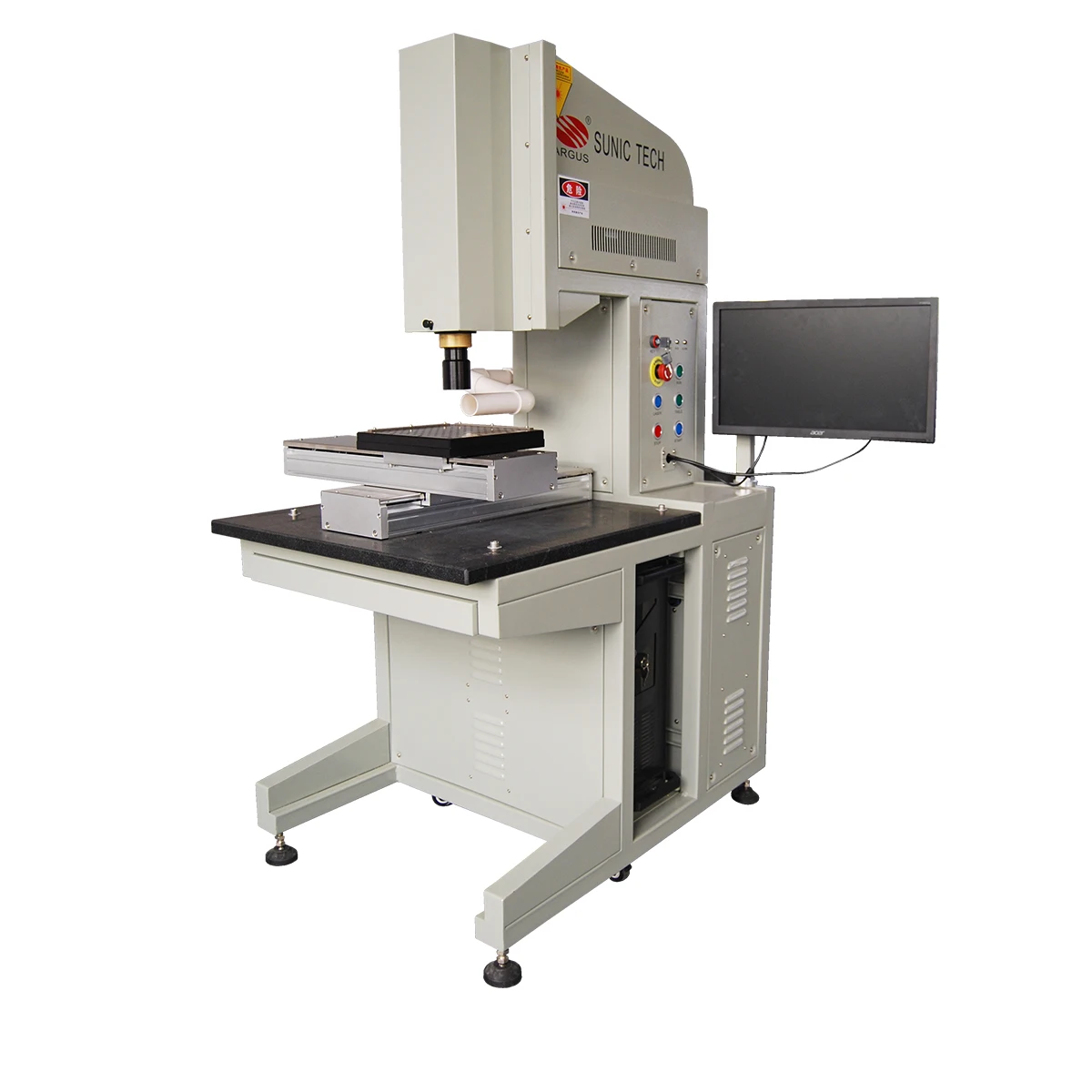

Solar Panel Machine Laser Scribe Crystalline Silicon Solar Cells cutter machine

laser scribing machine,fiber laser scribing machine,solar cell cutting machine,solar cell laser scribing machine, solar cell
scriber ,silicon wafer fiber laser scribing machine.

1.New prodcut solar cell scriber laser scribing machine of sunic laser.New designed machinery structure make the whole machine
more concise and convenient for operation.Re-write partial source codes of solar cell scriber laser scribing machine software to
ensure more and more stable and faster run.

2.High quality laser scribing machine / solar cell scriber .Imported fiber laser to display better laser beam quality(standard
base model),thinner cutting slit and smoother cutting edge.

3.The PV cells laser cutting/solar cell scriber's independent research.International standard moduler design,needed no
mainternace,can keep uninterrupted continuous operation of new solar cell scriber laser scribing machine.

4.Convenient operation is intergrated into machine for smaller equipment volume and more convenient operation.The control software
of solar cell scriber laser scribing machine is designed specially for fiber laser scirbing mahine by our own company Sunic Laser.

5.T-style duplex worktable of fiber laser scribing machine runs alternately,to promote the working efficiency.And the max speed of
laser scribing machine can reach 20mm/s.

Technical Parameters

Technical Index	Technical Parameter
Type specification	SFS20
Wave lengh of laser	1064nm
Laser power	20W
Laser repetition frequency	20Khz-100khz
Max scriber speed	200mm/s
Scriber line width	±10μm
Scribing line width	<30μm
Work platform size	350x350mm
Power supply	380V(220V)/50HZ/1.5KVA (customized)
Cooling ways	Forced-air cooling
Working temperature	0-35℃
Working humidity	5-95%
Package	Standard Wood Package for Export, Customs Suffocating Free
Work platform	The adsorption of double gas warehouse vacuum,the T-model platform is double position works in turn

Related Products

Samples

Company Introduction

Wuhan Sunic Laser has been concentrating on laser machine since founded.The solar equipment laser scribing series included solar cell scriber laser scribing machine stands on the lead position.And the first fiber laser scribing machine for silicon wafer and solar cell of our country is independently invented by our company and our own technology. We are manufacture with independent technology institution and our own factory.The CE and ISO guarantee the quality of our silicon wafer laser scribing machine.

FAQ

What should you know before buy a laser scribing machine?

1.Trainning:We can offer profssional operation trainning of photovoltaic cells laser scribing machine for free.

2.Inquiry:We offer 24 hours on-line service

3.Request:Reasonable requests for silion wafer laser scribing machine is okay,pls give us the specific information before placing
an order.

4.Privacy:None of your personality information will be shared or disclosed with any third parties.

5.If you have any question about our photovoltaic cells laser scribing machine.Don't hesitate,contact us now!!!
