Характеристики
Product Description
Baguette bread production line include:
1.Sprial Dough mixer
2. Automatic dough divider and rounder
3. Baguette dough moulder
4. Dough Proofer
5. Rotary Oven
6. Baking trolley and tray
4. Dough Proofer
5. Rotary Oven
6. Baking trolley and tray
Details Images
Step one: Self-tipping Dough mixer
First Step, one dough mixer to mixing the flour,Haidier factory have different capacity dough mixer,and we are also can offer you dough mixer with removable bowl and Sprial dough mixer for you.
Model | Capacity(kg) | Capacity (L) | External Dimension W×D×H(mm) | Power (Kw) | Weight (kg) | Speed (Round/Min) | ||
Dough | Flour | |||||||
HDR-130S | 80 | 130 | 200 | 1600*1550*1620 | 12 | 1180 | 130/260 | |
HDR-160S | 100 | 160 | 260 | 1650*1600*1620 | 13 | 1380 | 130/260 | |
HDR-200S | 125 | 200 | 320 | 1700*1650*1650 | 15.5 | 1480 | 130/260 | |
Step Two: AUTOMATIC DOUGH DIVIDER AND ROUNDER
Second, one dough divider to dividing the dough, Haidier dough divider and rounder is ,dough weight is continuous divider,and about the weight range is 30-300g or 40-450g or 60-600g, Our machine imporvev efficiency and divider the dough uniform
Model | Dimension | Power (Kw) | Weight Range ( g ) | Capacity( pcs/hour) | Weight (kg) |
L*W*H (mm) | |||||
HDR-V80 | 1650x850x1700 | 1.5 | 30-300 | 900-1800 | 700 |
HDR-V90 | 40-450 | ||||
HDR-V110 | 60-600 |

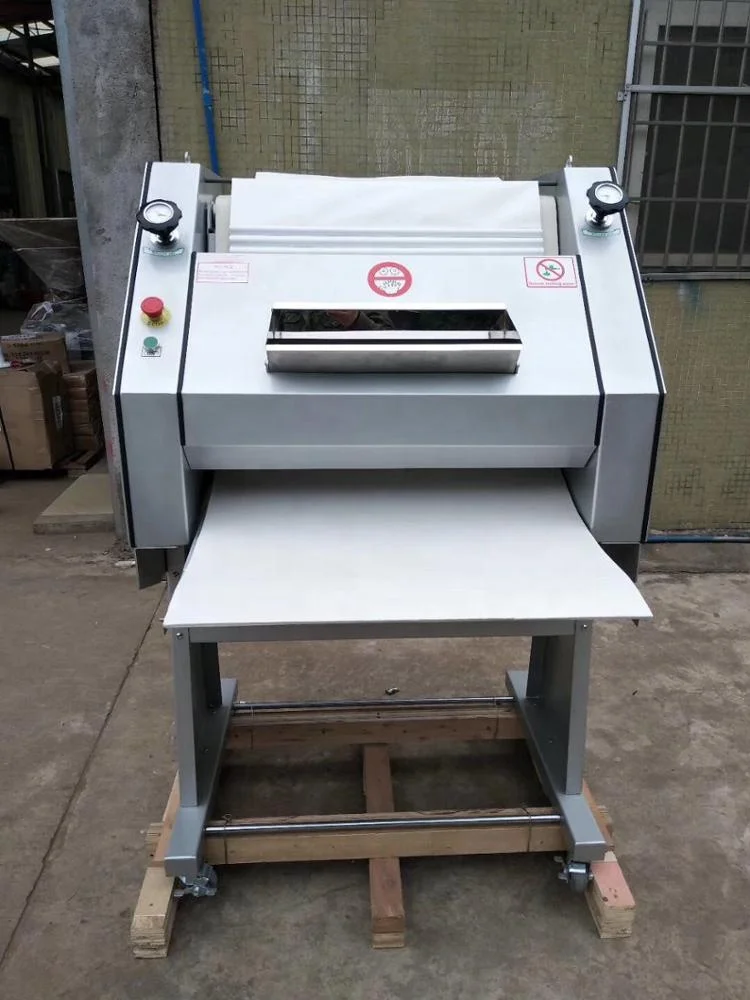

Step Three: Baguette dough moulder
Third Step,one baguette dough moulder to moulding the dough, Haidier dough moulder is suitable for all kinds of bread roll ect,
Name | Model | Power (Kw) | Outer Dim(mm) | Weight (Kg) |
French Baguettes Moulder | HDR-750 | 0.375 | 970*680*1600 | 175 |
Step Four: Dough Proofer
Fourth step: one proofer to fermentating the dough,Haidier with Big proofing room,can contain 2 trolleys 4 trolleys 6 trolleys and 8 trolleys ect,meet the fermentation needs
Model | Power(Kw) | Outer Dim(mm) | Weight(Kg) | Capacity | Note |
HDR-32 | 2 | 1120 *850*2000 | 150 | 32 Trays | One door |
HDR-40 | 2 | 730*1010*2100 | 160 | 40 Trays | one door |
HDR-4/32 | 4.5 | 1850*1900*2180 | 220 | 4 Racks | Stainless Steel |
(32Tray*4) | |||||
HDR-6/32 | 6 | 2000*2200*2100 | 260 | 6 Racks | Stainless Steel |
(32Tray*6) | |||||
HDR-8/32 | 9 | 2300*2900*2180 | 300 | 8 Racks | Stainless Steel |
(32Tray*8) |
Step Five: Baking trolley and trays
400*600mm baking trolley or 600*800mm baking trolley,all kinds of loaf tin,250g 450g 600g 750g 900g 1000g 1200g ect
Step Six: Rotary Oven baking the bread
Six step: one oven to baking the bread,Haidier with rotary oven,deck oven.As for rotary oven,we have electric diesel and gas oven,16 trays 32 trays and 64 trays,high efficiency,baking bread evenly
Model | Tray Size (mm) | Power ( KW) | Weight( Kg) | Baking space (m2) | Overal Dim(mm) |
Electric oven | |||||
HDR-4616 | 400*600/16 | 32 | 1050 | 4.5 | 1720*1880*2150 |
HDR-5616 | 600×500/16 | 36 | 1200 | 5.4 | 1780*1810*2150 |
650×450/16 | |||||
HDR-4632 | 400*600/32 | 45 | 1650 | 8.5 | 1950*2100*2250 |
800*600/16 | |||||
HDR-5732 | 762×465/32 | 65 | 2000 | 12.6 | 2180*2130*2250 |
720×460/32 | |||||
HDR-4664 | 400*600/64 | 76 | 2650 | 15 | 2130*3100*2350 |
800*600/32 | |||||
HDR-5832 | 400×950/32 400*900/32 | 75 | 2600 | 15.4 | 2300*2230*2350 |
500×800/32 1000×800/16 |
After Baking toast bread, DELICIOUS!!!
Maybe you are also need other parts as follow:
Worktable
Worktable for bakery shop and factory, it is help you have enough speac to operate make the bread
Cooling wire rack
After baking the bread,it is need a place to make the bread cool.
Refrigerator
it is a very important for making the bread, because it is can guarantee food fresh

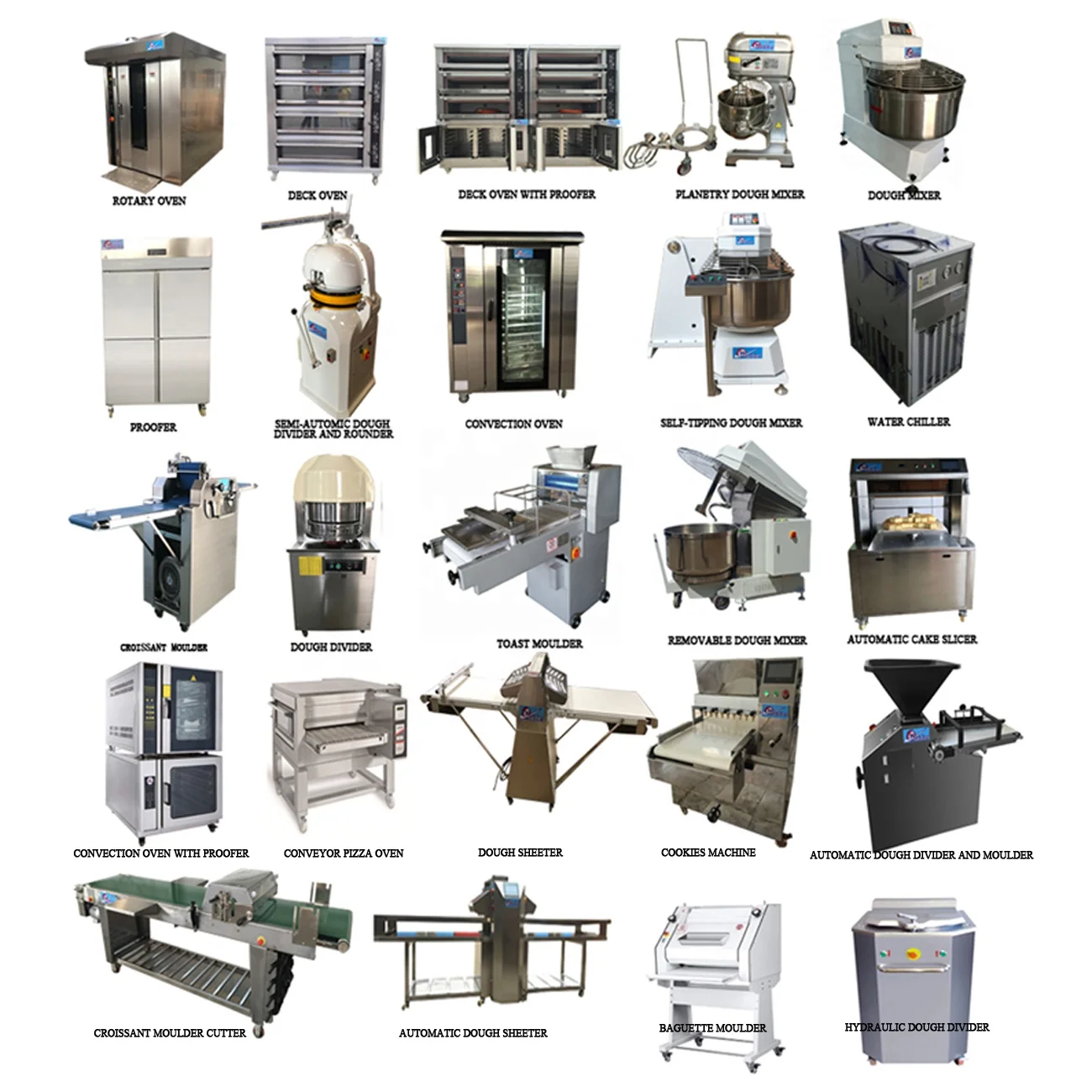

Recommend Products
Packing&Shipping
1, mechanical surface coated with preservative solution (to protect stainless steel)
2, the plastic cushion packing machine (prevent bump)
3, plastic film packaging (to prevent ventilation)
4, wooden case/frame packaging (easy to transport)
5, tie the bandage outside of the wooden case (reinforcement overall)
After Sales Service
About after sales service
Warranty & After-Sales Service
1. Ordinary equipment the first 14 months, free charge spare parts.
2. luxury equipment the first 24 months, free charge spare parts.
3. Lifetime warranty.
4. Engineers are available to be serviced overseas.
5. Provide design and technical support
1. Ordinary equipment the first 14 months, free charge spare parts.
2. luxury equipment the first 24 months, free charge spare parts.
3. Lifetime warranty.
4. Engineers are available to be serviced overseas.
5. Provide design and technical support
