TM-8128 Australia Type RJ45 Cat5e UTP Keystone
TM-8128 Australia Type RJ45 Cat5e UTP Keystone
TM-8128 Australia Type RJ45 Cat5e UTP Keystone
TM-8128 Australia Type RJ45 Cat5e UTP Keystone
TM-8128 Australia Type RJ45 Cat5e UTP Keystone
TM-8128 Australia Type RJ45 Cat5e UTP Keystone
TM-8128 Australia Type RJ45 Cat5e UTP Keystone

TM-8128 Australia Type RJ45 Cat5e UTP Keystone


Поделиться:


Цена:37,17 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 47.19 $* 48.46 $*
Jul-16-2025 38.79 $* 39.46 $*
Jun-16-2025 46.77 $* 47.66 $*
May-16-2025 46.74 $* 47.85 $*
Apr-16-2025 37.79 $* 38.33 $*
Mar-16-2025 45.92 $* 46.75 $*
Feb-16-2025 45.69 $* 46.52 $*
Jan-16-2025 44.48 $* 45.17 $*

Характеристики

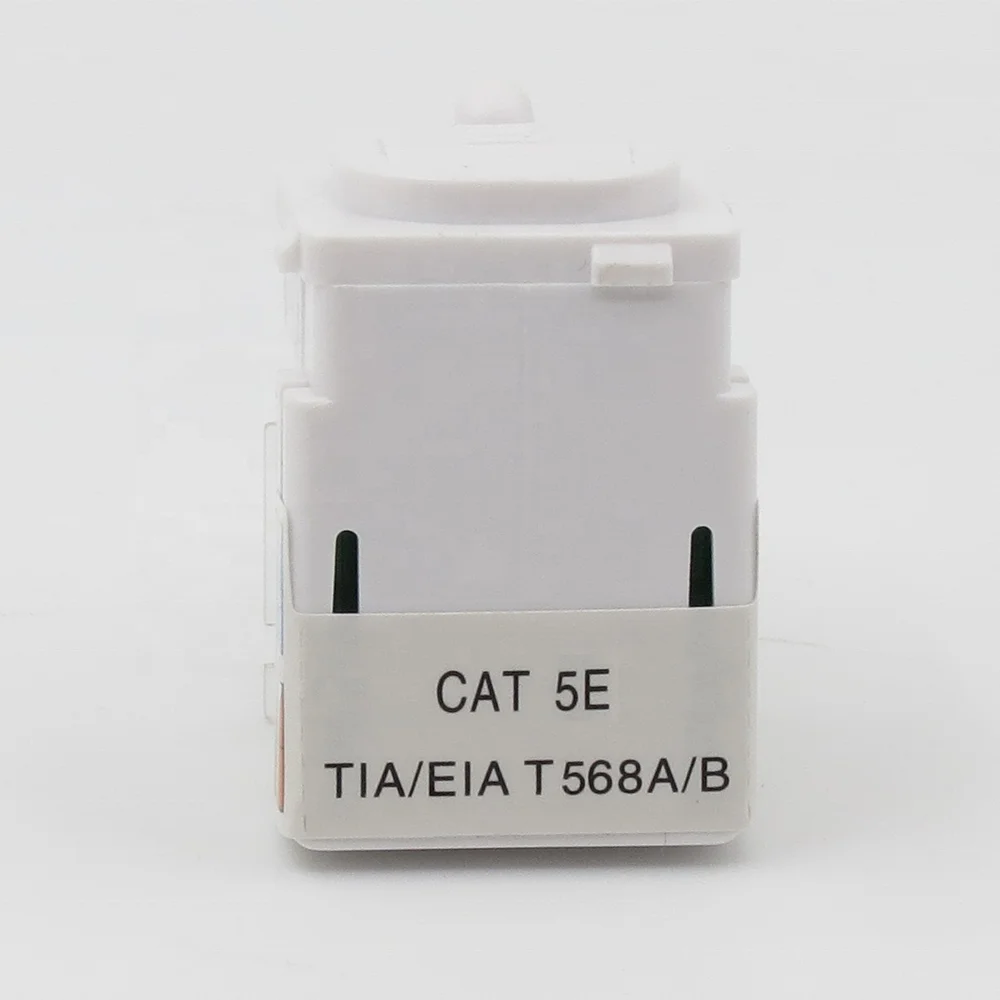

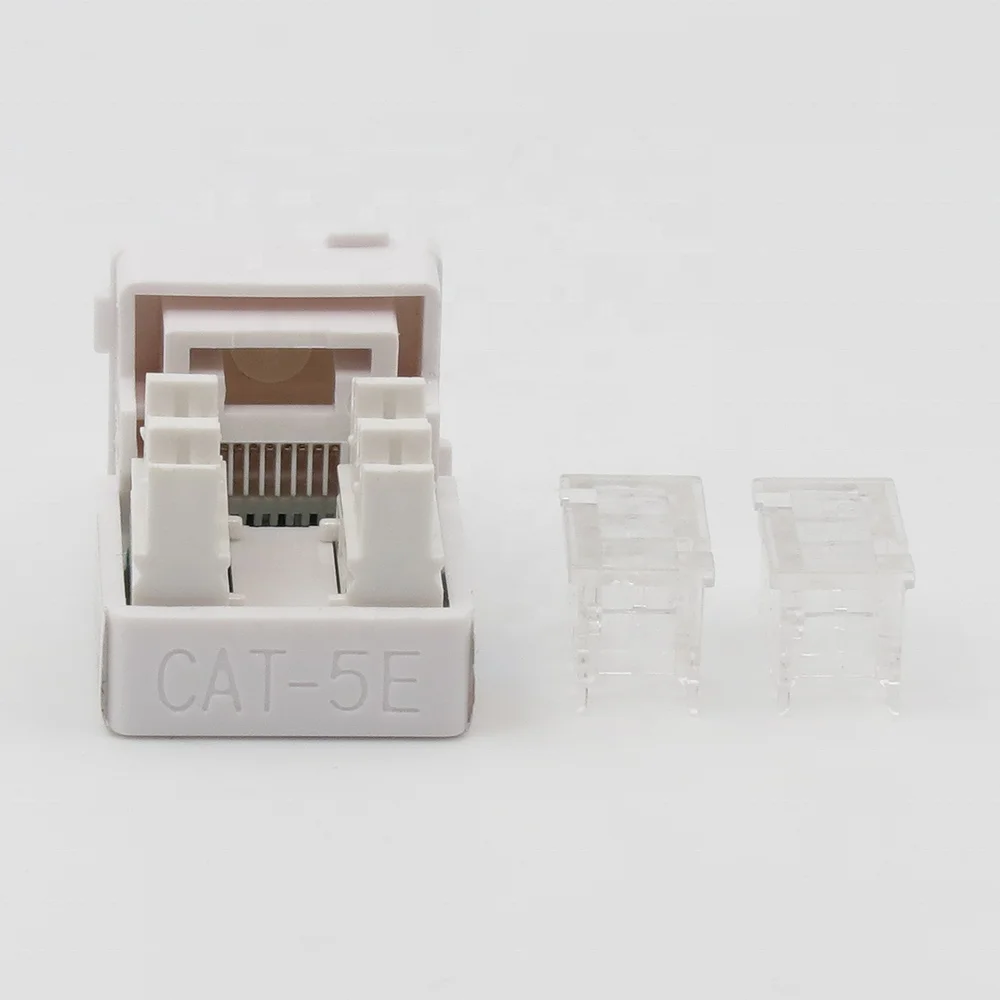

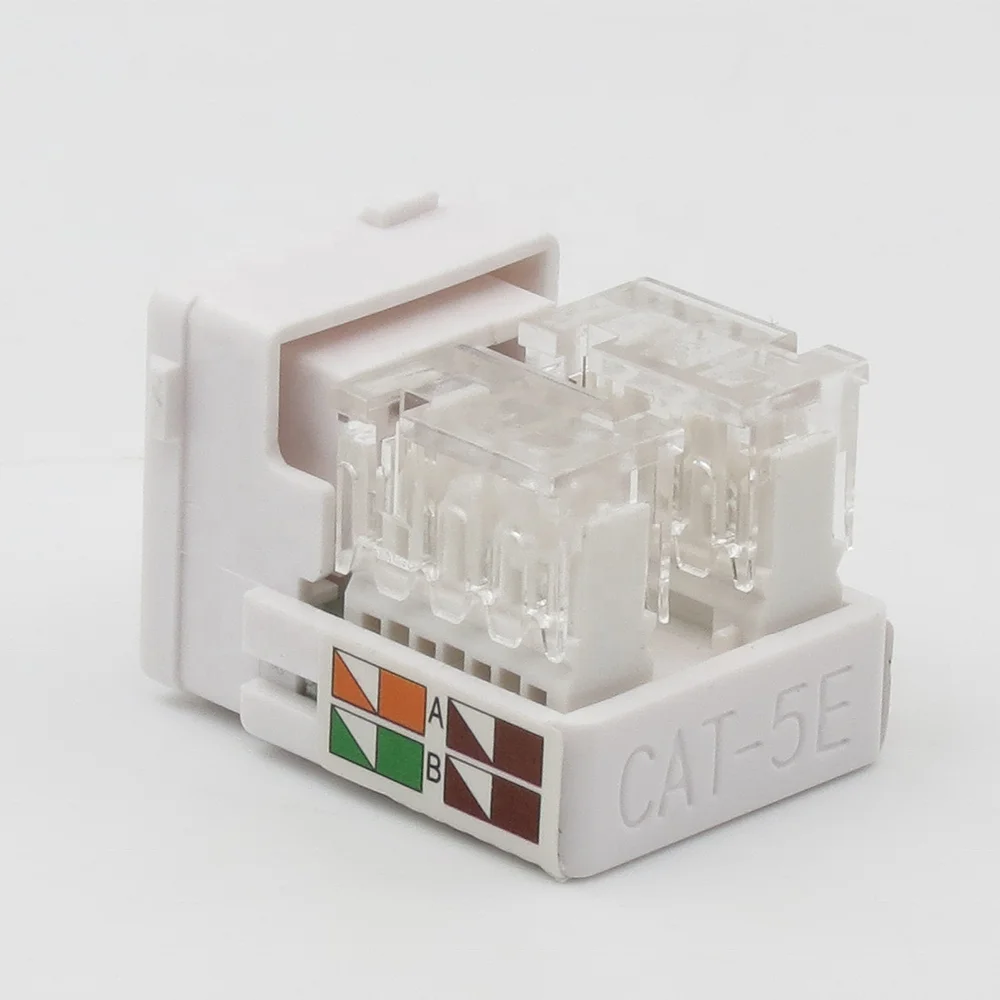

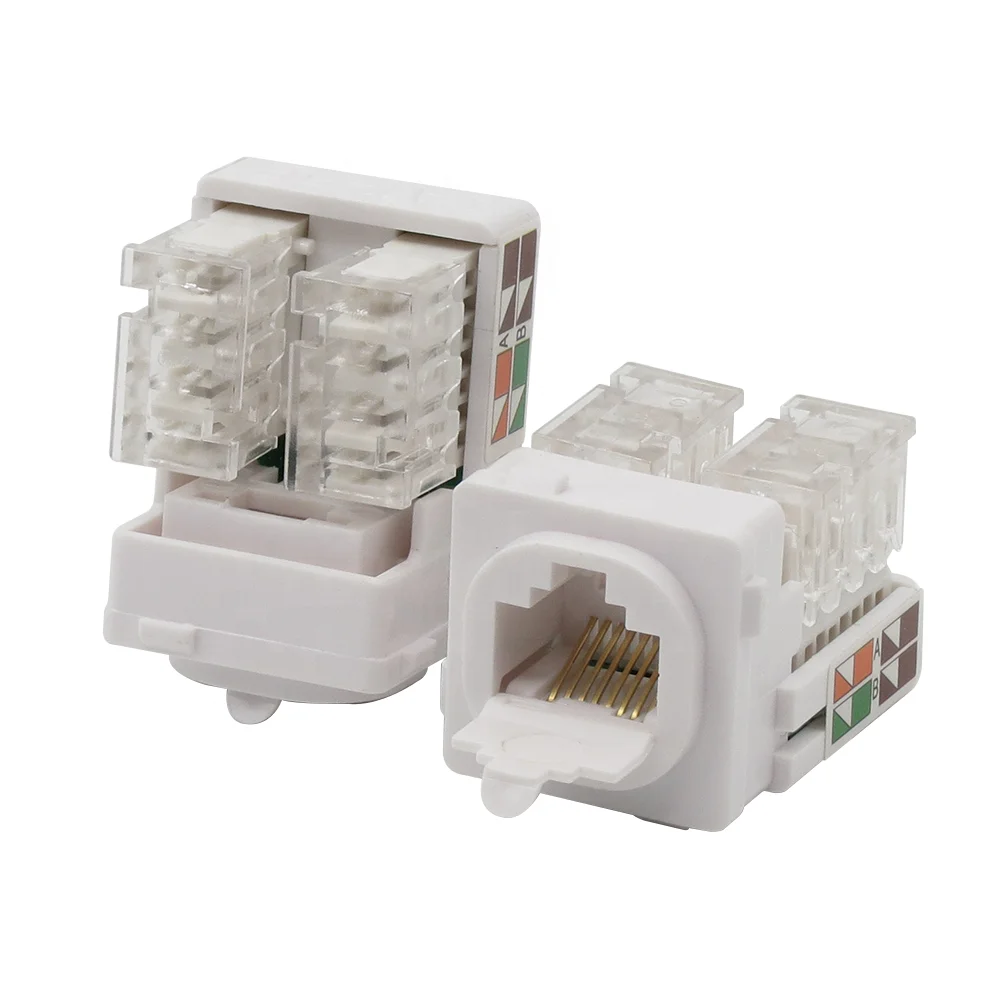

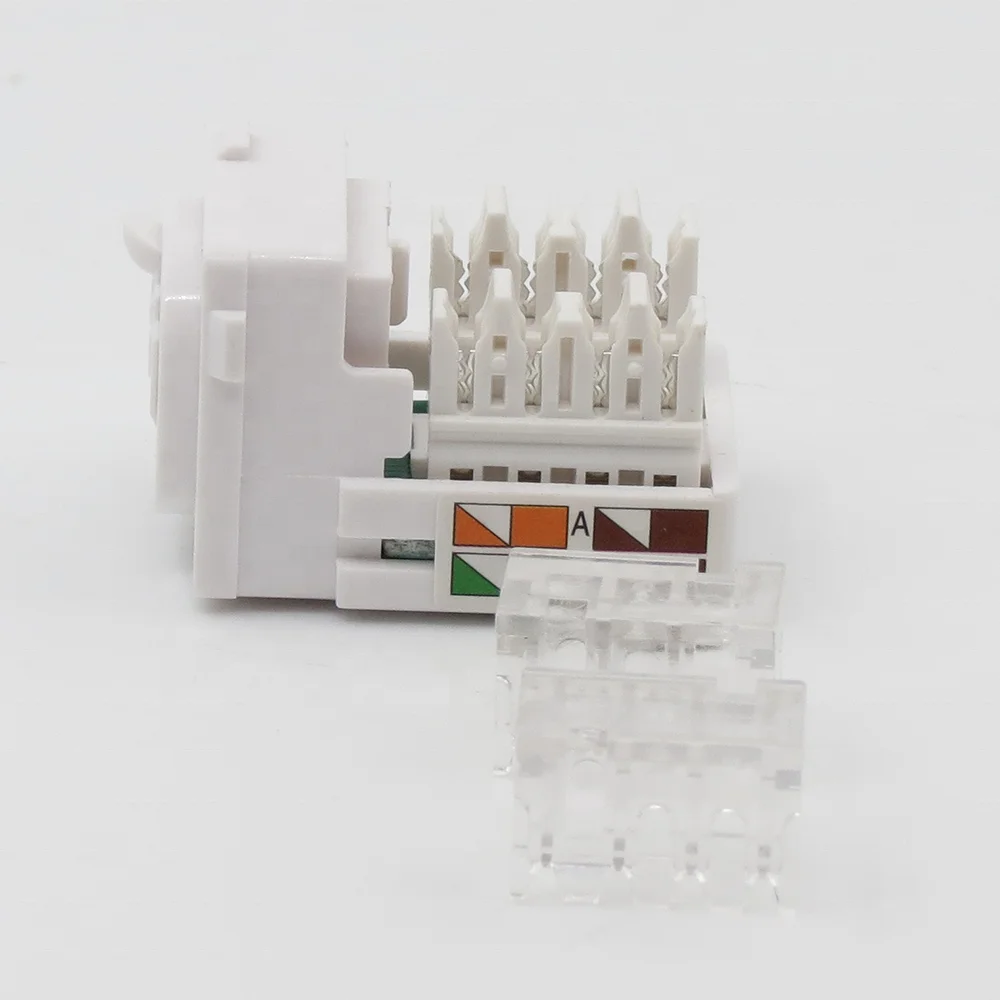

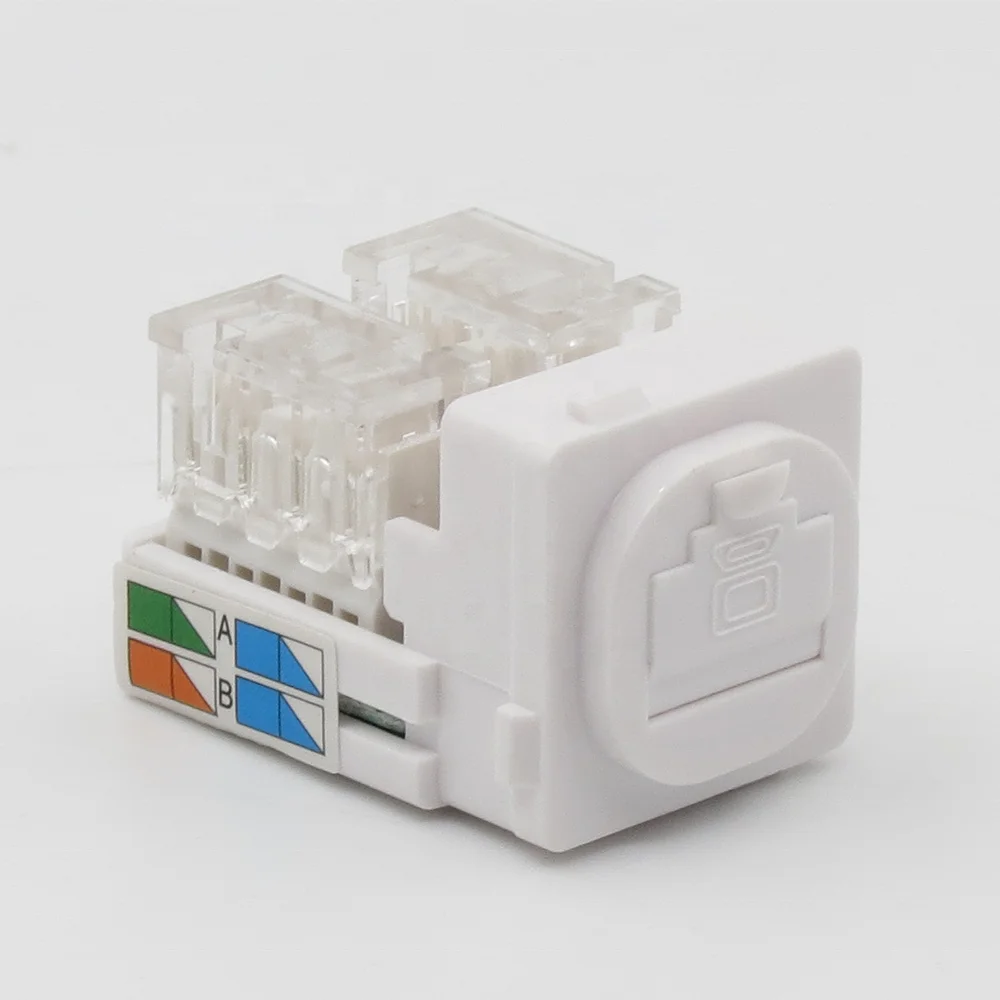

TM-8128 Australia Type RJ45 Cat5e UTP Keystone Jack
Electrical
Voltage Rating :
AC 125V
Current Rating :
1.5 AMPS
Insulation Resistance:
500MΩ Min
Withstand Voltage:
DC 1000V RMS 50-60Hz Min
Contact Resistange:
20MΩ Max
Mechanical
Insertion Force:
2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength:
70N between jack and plaug;60N between wire and IDC
Durability:
Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire:
AWG 24-26
Material
Housing:
PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
IDC Hosing:
PC(UL94V-0);PBT(UL94V-0)
Spring Wire:
T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact :
Phosphor bronze;Nickel plating
Shielding:
T=0.25mm copper alloy with tin plated gold
Plating :
3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature:
-10°c-60°c
Humidity:
10-90%
