UHMWPE пуленепробиваемый UD ткань баллистический жилет
- Категория: Кевлар >>>
- Поставщик: Beijing,Tongyizhong,New,Material,Technology,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.72 $* | 0.55 $* |
| Aug-15-2025 | 0.24 $* | 0.0 $* |
| Jul-15-2025 | 0.22 $* | 0.25 $* |
| Jun-15-2025 | 0.33 $* | 0.30 $* |
| May-15-2025 | 0.53 $* | 0.24 $* |
| Apr-15-2025 | 0.57 $* | 0.7 $* |
| Mar-15-2025 | 0.31 $* | 0.53 $* |
| Feb-15-2025 | 0.21 $* | 0.55 $* |
| Jan-15-2025 | 0.64 $* | 0.62 $* |
Характеристики
Company Profile
Beijing Tongyizhong Specialty Fiber Technology & Development Co.,Ltd.（BJTYZ）is a National High-tech Enterprise specialising in R&D，production and sales of UHMEPE fiber and its composites including PE
UD fabric，hard armor helmet and soft armor etc. BJTYZ，which is subordinated to State Development & Investment Corporation（SDIC），was established in 1999 with a registered capital of 80 million RMB. Through 23 years‘ development，BJTYZ has becomes world-famous as a high-performance fiber supplier, and builds up its reputation for ballistic solutions.
Certifications
As a leading enterprise in UHMWPE fiber, BJTYZ has its own complete intellectual property rights for key technologies. It has filed 60 patent applications, among which, 40 inventive patents have been authorized. BJTYZ also took charge of drafting a first Chinese Industrial Standard for UHMWPE fiber. BJTYZ has formed strict production management and inspection & test system, and has got ISO 9001 – 2008 Quality Management System Certificate, GJB9001B-2009 National Military Quality Management System Certificate and OHSAS 18001:2007 Occupational Health and Safety Management System Certificate.
Product Description

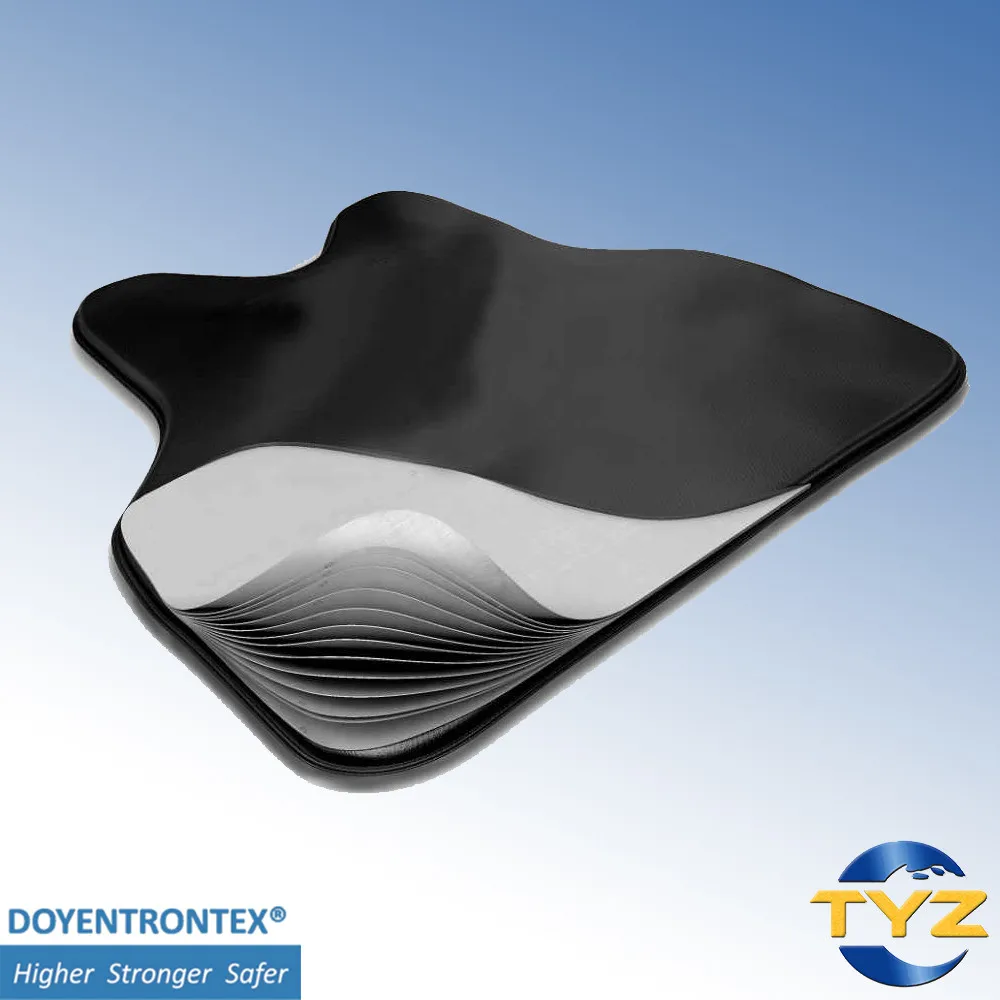

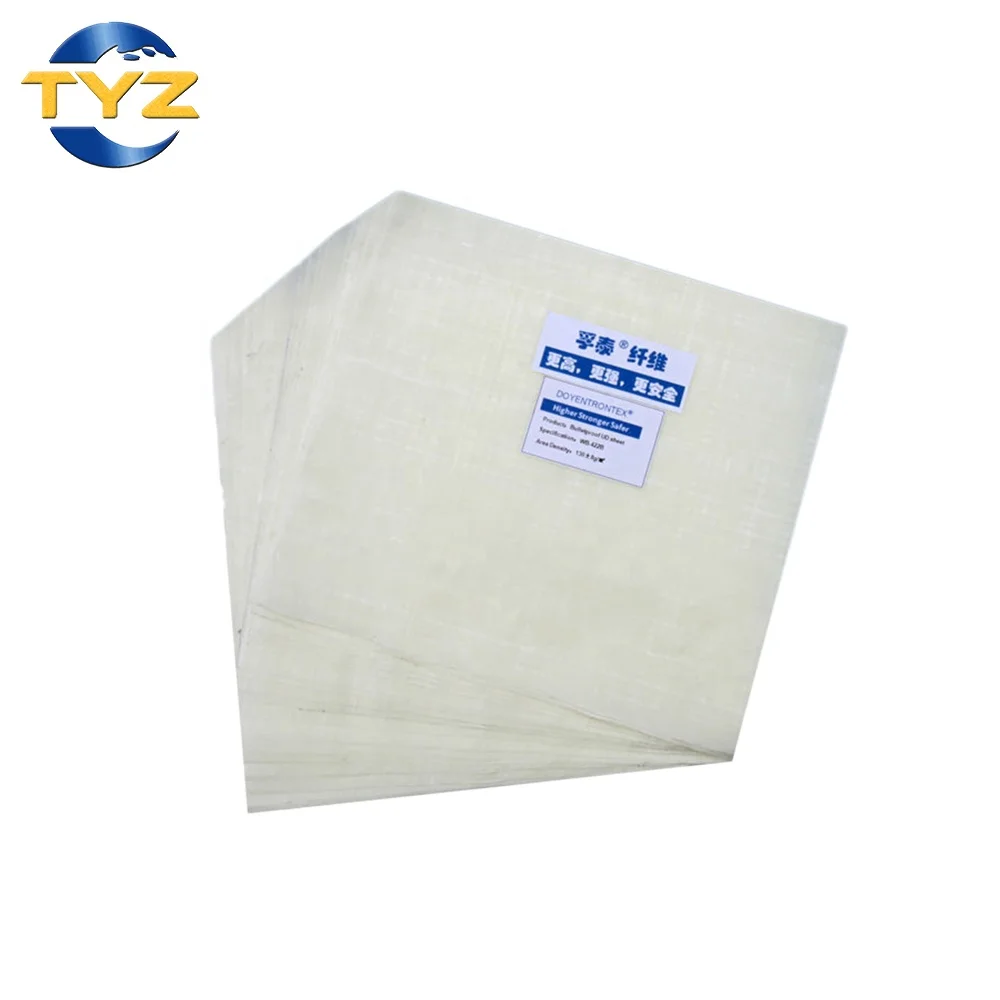

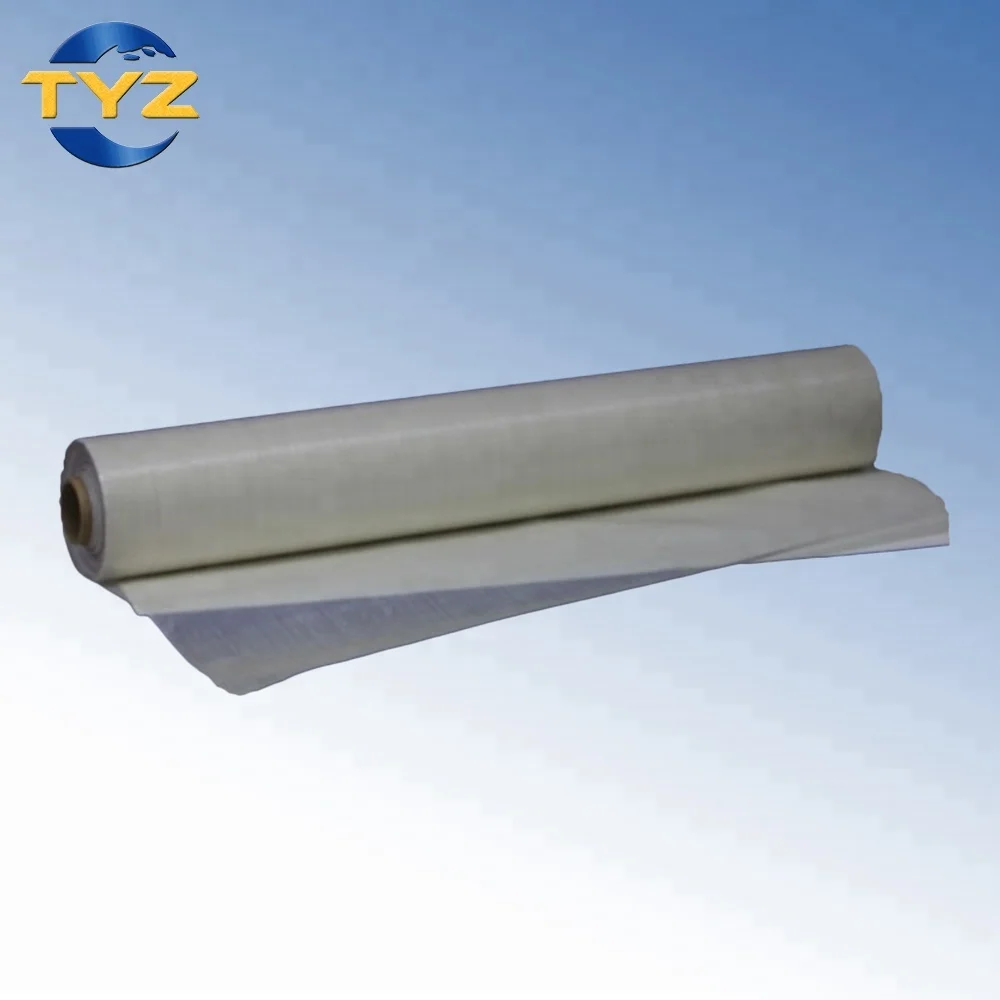

DOYENTRONTEX® bulletproof UD sheet is a unidirectional construction in which the yarns are not woven but lie parallel to each other. DOYENTRONTEX® UD can be divided into soft sheet and hard sheet. The soft sheet is used for light soft body armor, and the hard sheet is used for bulletproof plates, bulletproof helmets, bulletproof shields and so on. Using DOYENTRONTEX® UD the minimum weight is needed for protection at different level, and it is not affected by water or sunlight and needs no special protection.
STYLE | MATERIAL | AREAL DENSITY | THICKNESS | WIDTH | BALLISTIC PERFORMANCE | ||
WB-532 | UHMWPE | 130±8 g/m2 | 0.16±0.02 mm | 1.2 m | NIJ IIIA 9mm NIJ IIIA .44 | 36 layers 49 layers | |
WB-674M | UHMWPE | 160±8 g/m2 | 0.21±0.02 mm | 1.2 m | NIJ IIIA 9mm NIJ IIIA .44 | 26 layers 34 layers | |
WB-674L | UHMWPE | 160±8 g/m2 | 0.21±0.02 mm | 1.2 m | NIJ IIIA 9mm NIJ IIIA .44 | 22 layers 29 layers | |
FT-532 | ARAMID | 225±8 g/m2 | 0.16±0.02 mm | 1.2 m | NIJ IIIA 9mm NIJ IIIA .44 | 25 layers 29 layers | |
HA-782 | UHMWPE | 120±8 g/m2 | 0.15±0.02 mm | 1.2 m | Laminate into Helmet&Plate | ||

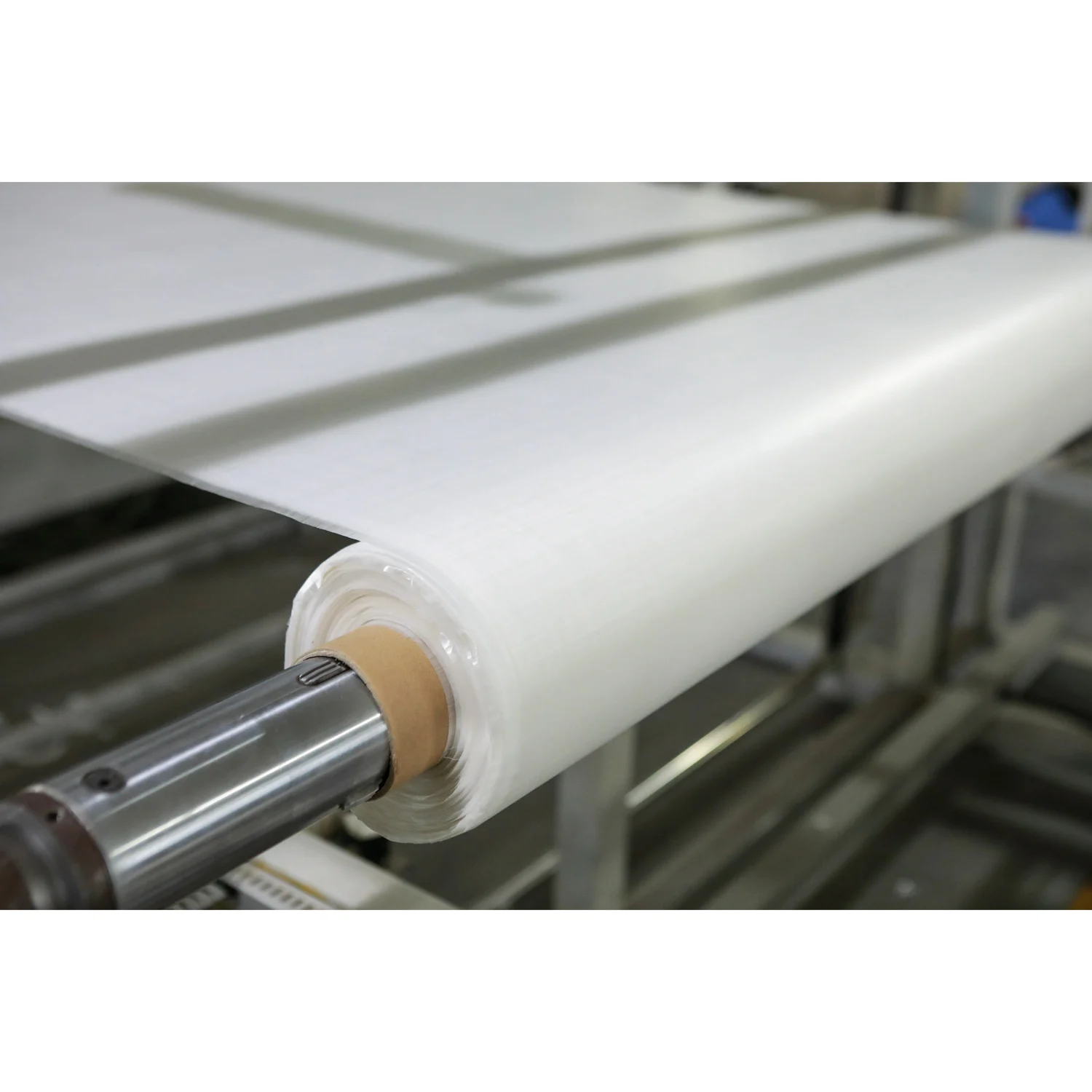

Production Process

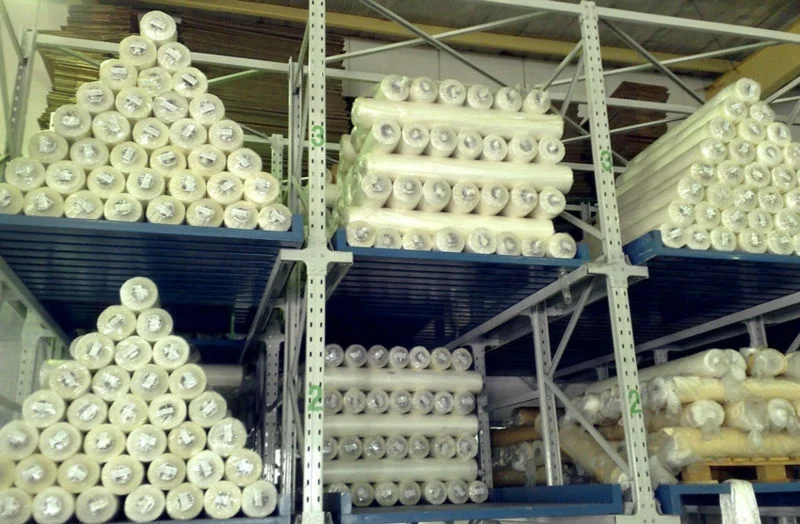

Packing & Delivery
SIZE | DESCRIPTION |
Model WB-532 | Width: abt. 1.2 m Length: abt. 110 m N.W.: abt. 18 kg/roll |
Model WB-674 | Width: abt. 1.2 m Length: abt. 110 m N.W.: abt. 21 kg/roll |
Model HA-782 | Width: abt. 1.2 m Length: abt. 210 m N.W.: abt. 31 kg/roll |
Carton Size for 2 rolls | 0.44×0.24×1.31 m G.W.: abt. 40 - 65 kg/carton |
Carton Size for 1 rolls | 0.28×0.28×1.32 m G.W.: abt. 22 - 35 kg/carton |
- Port of loading:
Beijing, Tianjin and Shanghai port.
- Transportation:
By sea, air, Express including TNT, FedEx, DHL, UPS, etc.
- Forwarder:
We could accept your forwarder to arrange the delivery.
While if needed, we could recommend forwarder to you.
FAQ
1. Q: Are you a manufacturer or trade company?
A: We are a manufacturer of UHMWPE fiber and bulletproof products.
2. Q: What port can we choose?
A: Beijing, Tianjin and Shanghai port.
3. Q: What payment term can we choose?
A: T/T in advance, L/C, Western Union.
4. Q: What is the MOQ of your product?
A: It would depand on different specification you choose, please feel free to contact with us directly.
