DN32 электрический нагревательный элемент кипятильник 304 из нержавеющей стали 1
- Категория: Industrial Heater >>>
- Поставщик: Shenzhen,Lujinxun,Electric,Heating,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.59 $* | 0.71 $* |
| Aug-15-2025 | 0.63 $* | 0.1 $* |
| Jul-15-2025 | 0.91 $* | 0.45 $* |
| Jun-15-2025 | 0.9 $* | 0.60 $* |
| May-15-2025 | 0.62 $* | 0.26 $* |
| Apr-15-2025 | 0.54 $* | 0.29 $* |
| Mar-15-2025 | 0.90 $* | 0.35 $* |
| Feb-15-2025 | 0.16 $* | 0.9 $* |
| Jan-15-2025 | 0.55 $* | 0.14 $* |
Характеристики

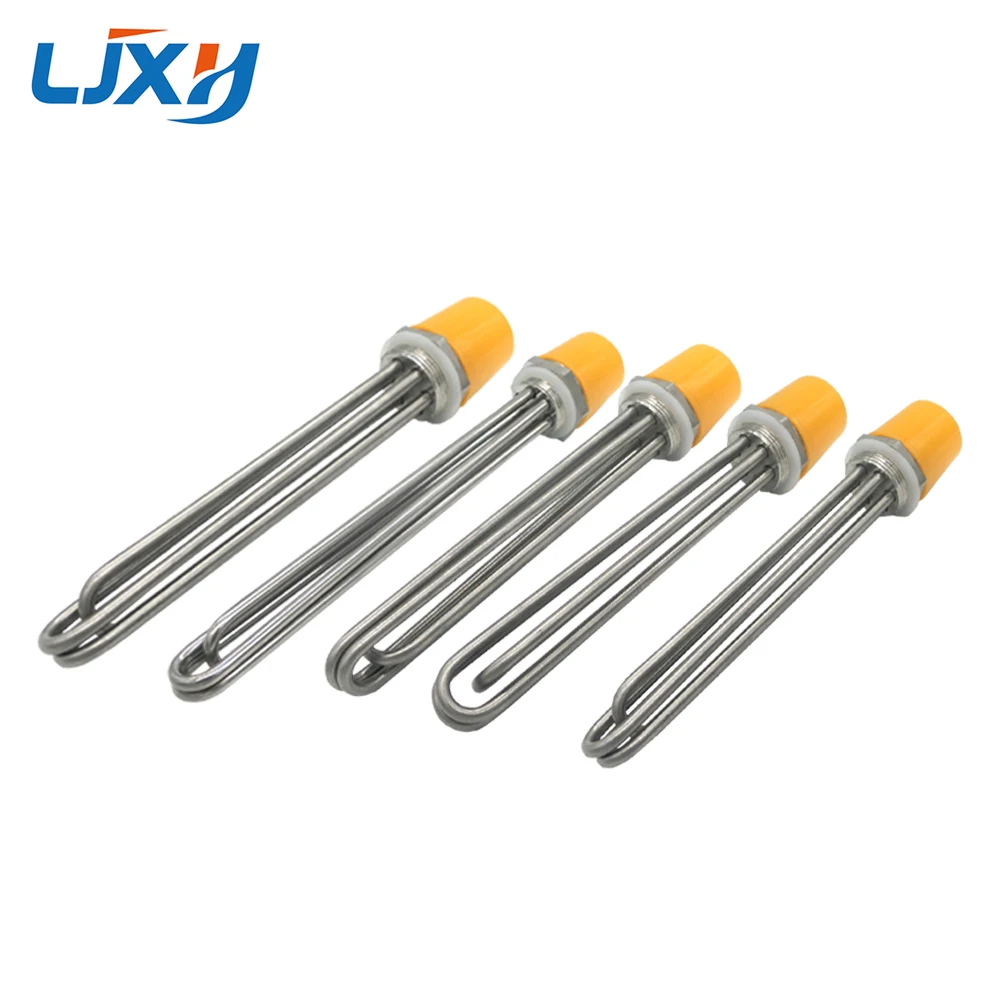

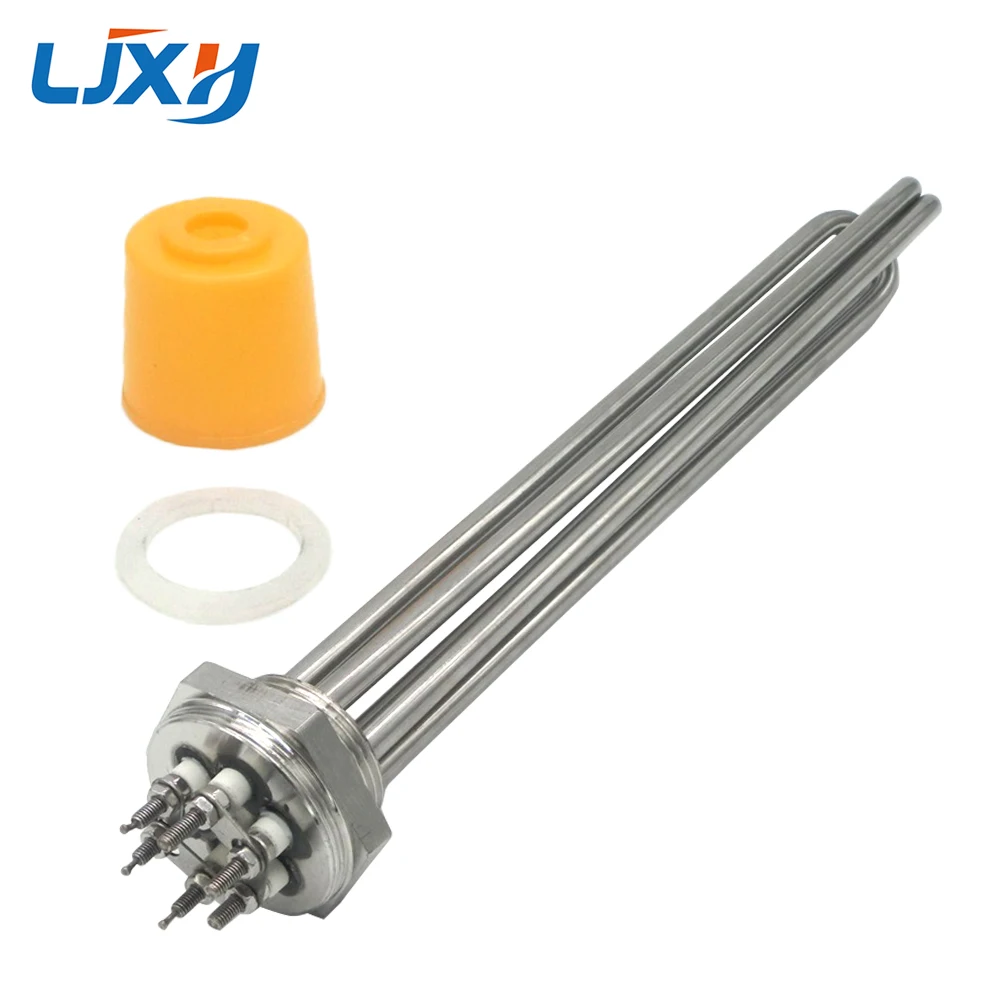

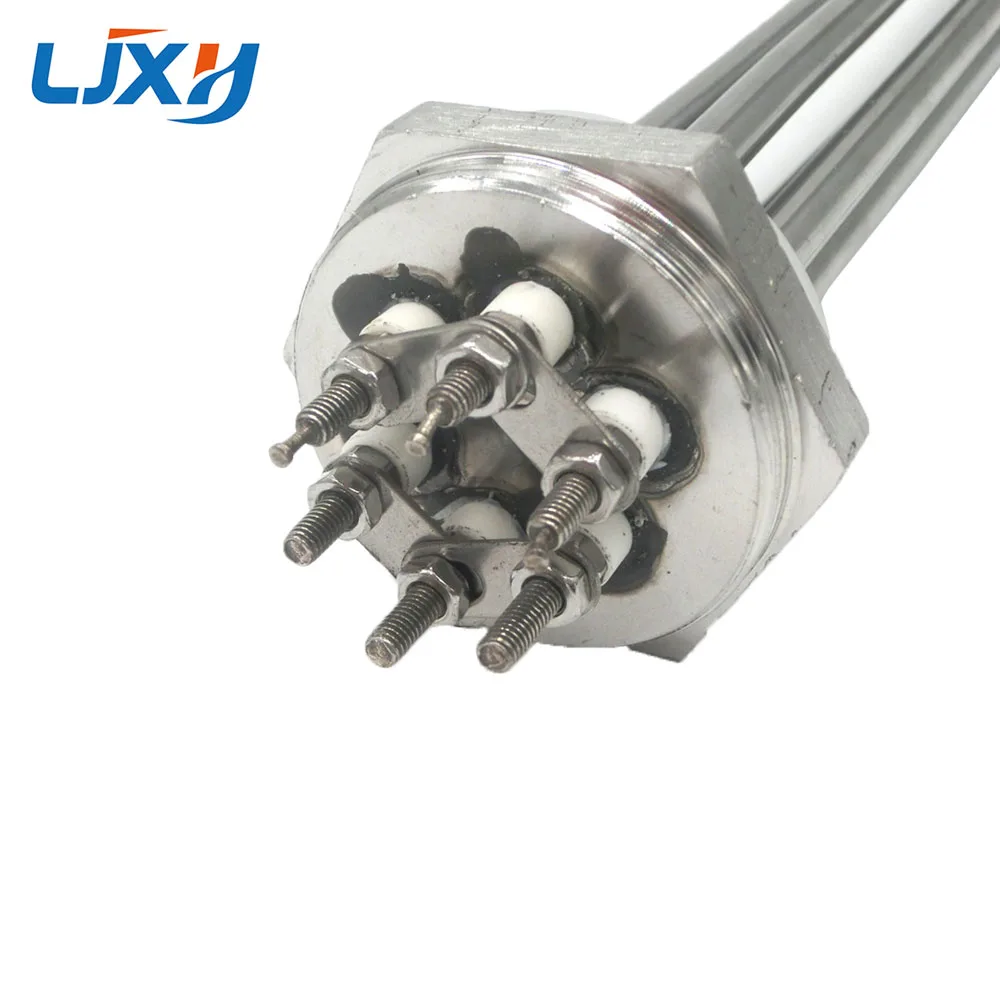

DN32 Electric Heating Element Immersion 220V/380V Heater 304 Stainless Steel 1 1/4" Boiler Water Heater
The 5 sizes we show are in stock, which can be sent out in 2days. Other specificaction can customized. Contact with us freely.

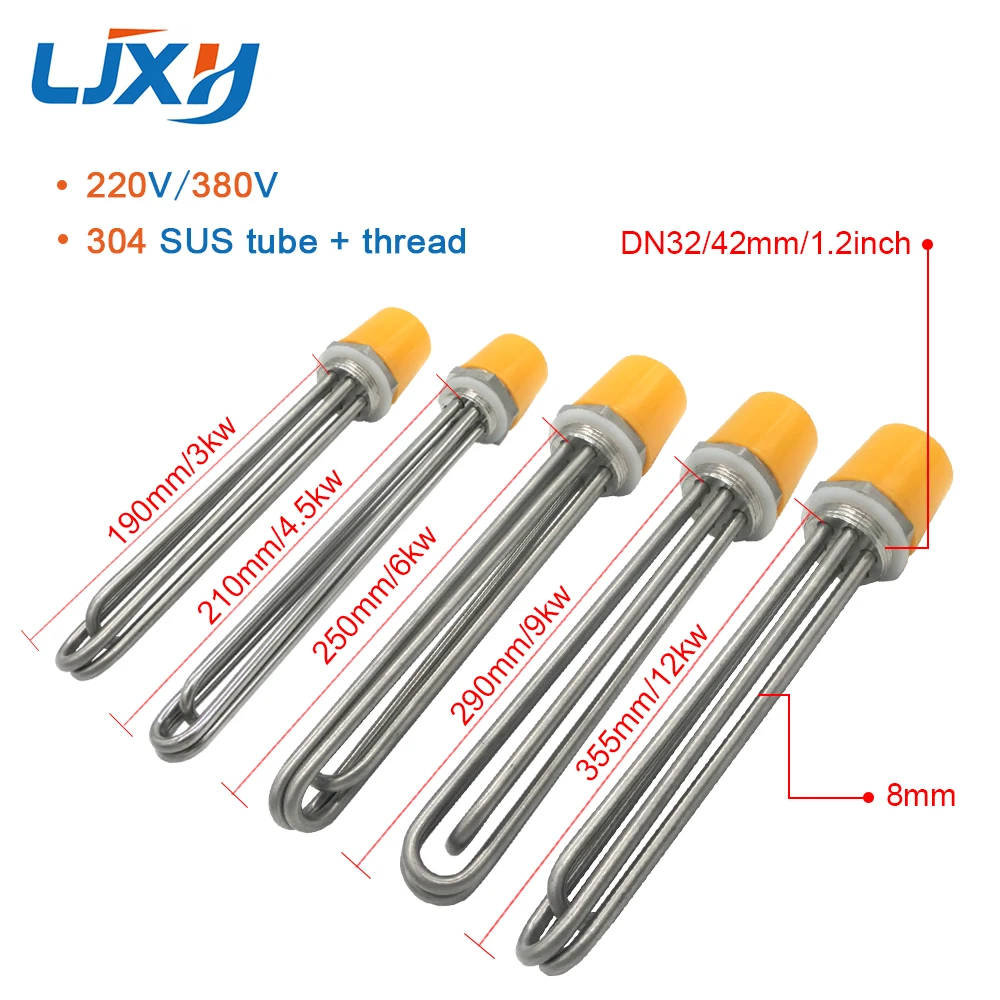

| Tube Length | Tube Diameter | Thread Size | Voltage | Power | Material |
| 190mm | 8mm | DN32 (1 1/4") | 220V/380V | 3KW | 304SUS |
| 210mm | 8mm | DN32 (1 1/4") | 220V/380V | 4.5KW | 304SUS |
| 250mm | 8mm | DN32 (1 1/4") | 220V/380V | 6KW | 304SUS |
| 290mm | 8mm | DN32 (1 1/4") | 220V/380V | 9KW | 304SUS |
| 355mm | 8mm | DN32 (1 1/4") | 220V/380V | 12KW | 304SUS |
| Heat intensity | Not exceeding 30w/cm2 (advisable) |
| Exhaust extreme (when cold) | <=0.1mA to 242 v. |
| Insulation (when cold) | 5 Min Ohms 500 Watts minimum |
| Power | Depends on the dimension |
| Dielectric strength | 1500v. 1/sec |
| Working temperature | 650 Deg C max. |
| Length tolerance | +/-1.5% |
| Diameter tolerance | -0.02 to -0.06 mm |
| Cut off connection tolerance | +/-15 mm |
| Power tolerance (w) | +5 % - 10 % |
| Cold areas | Depends on length and diameter 5-25mm |
