Самая популярная поликристаллическая солнечная панель 330 Вт 340 с 25 летним сроком
- Категория: Солнечные панели >>>
- Поставщик: Xuzhou,FutureSolar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.40 $* | 0.98 $* |
| Aug-18-2025 | 0.12 $* | 0.59 $* |
| Jul-18-2025 | 0.98 $* | 0.81 $* |
| Jun-18-2025 | 0.23 $* | 0.58 $* |
| May-18-2025 | 0.28 $* | 0.15 $* |
| Apr-18-2025 | 0.77 $* | 0.75 $* |
| Mar-18-2025 | 0.40 $* | 0.60 $* |
| Feb-18-2025 | 0.58 $* | 0.1 $* |
| Jan-18-2025 | 0.19 $* | 0.72 $* |
Характеристики
Product Paramenters
Moduel | FSM450M-96 | FSM460M-96 | FSM480M-96 | FSM490M-96 | FSM500M-96 | ||||
Rated Maximum Power at STC | 450 | 460 | 480 | 490 | 500 | ||||
Open Circuit Voltage(Voc/V) | 58.57 | 58.75 | 58.89 | 58.89 | 58.95 | ||||
Maximum Power Voltage(Vmp/V) | 47.87 | 48.01 | 48.35 | 48.45 | 48.63 | ||||
Short Circuit Current(Isc/A) | 9.73 | 9.78 | 10.04 | 10.67 | 10.87 | ||||
Maximum Power Current(Imp/A) | 9.40 | 9.59 | 9.93 | 10.12 | 10.28 | ||||
Module Efficiency(%) | 17.56 | 17.95 | 18.73 | 10.12 | 19.51 | ||||
Power Tolerance | -0~+3% | ||||||||
Standard Test Condition(STC) | Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 | ||||||||
\t\t\t\t\t\t\t\t\tDetailed &Production \t\t\t\t\t\t\t
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Strict QC
100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
100% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
100% "Zero"
Defects Objective Before Shipment.
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
Professional Packing
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
Factory show

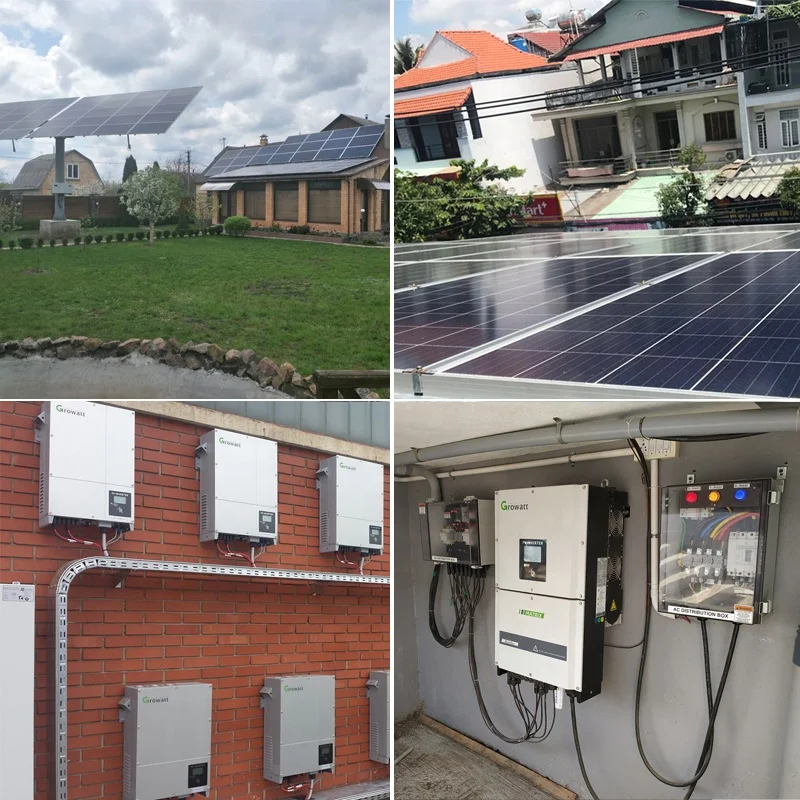

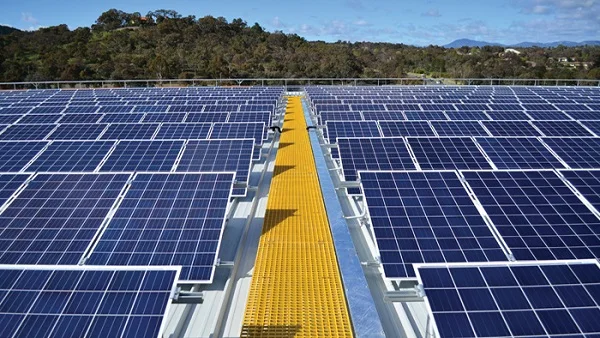

\t\t\t\t\t\t\t\t\tProjects \t\t\t\t\t\t\t
