4G Concox GV40 JM-VL01 Обновление версии jimi VL01 tracksolid gps трекер транспортного
- Категория: Navigation & GPS >>>
- Поставщик: Shenzhen,Innosio,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.6 $* | 0.68 $* |
| Aug-18-2025 | 0.78 $* | 0.26 $* |
| Jul-18-2025 | 0.38 $* | 0.20 $* |
| Jun-18-2025 | 0.10 $* | 0.12 $* |
| May-18-2025 | 0.9 $* | 0.19 $* |
| Apr-18-2025 | 0.70 $* | 0.86 $* |
| Mar-18-2025 | 0.40 $* | 0.21 $* |
| Feb-18-2025 | 0.10 $* | 0.61 $* |
| Jan-18-2025 | 0.73 $* | 0.6 $* |
Характеристики

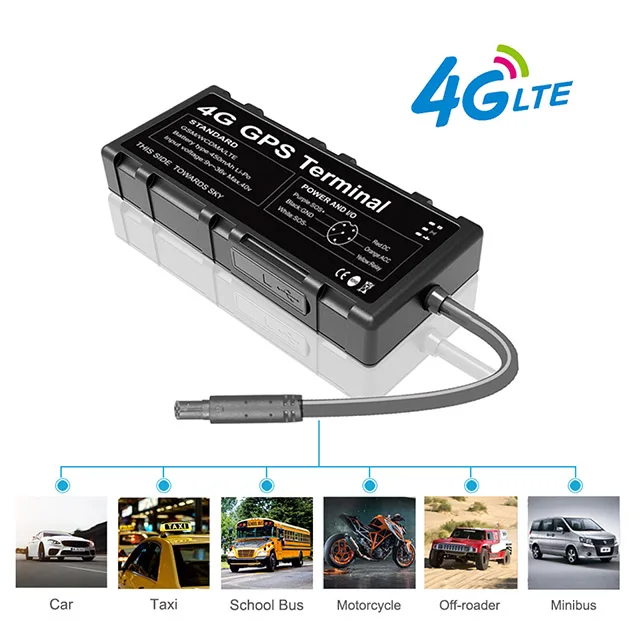

4G Concox GV40 JM-VL01 update version jimi VL01 tracksolid vehicle gps tracker
Model:JM-VL01
Feature:
GSM 850 / 900 / 1800 / 1900 MHz Quad-band
UMTS: 850/900/1900/2100MHz (B1/B2/B5/B8)
LTE: B1/B2/B3/B4/B5/B7/B8/B28 (VL01-LA)
LTE: B2/B4/B5/B7/B12/B66 (VL01-A)
LTE: B1/B3/B5/B7/B8/B20/B28A (VL01-E)
Real time position & tracking
SOS alarm
Geo-fence alarm
Mileage calculator
Air update
Analogue/ Digital input
Output control
Remote Tele-cut off (petrol / electricity) function
Support ACC detection, real-time reporting car status
Built-in acceleration sensor for vibration/displacement/low battery/power off alert alarm
Multi ways to query position: SMS,APP,web browser
Technicial Parameter:
| GNSS | |
| Positioning system | GPS+WiFi |
| Frequency | L1 |
| Positioning accuracy | <10 meters |
| Track sensitivity | -162dBm |
| Acquisition sensitivity | -149dBm |
| TTFF (open sky) | Avg. hot start ≤1sec |
| Avg. cold start ≤45sec | |
| Cellular | |
| Communication network | LTE/UMTS/GSM |
| Frequency | JM-VL01LA: |
| LTE: B1/B2/B3/B4/B5/B7/B8/B28AB | |
| UMTS/HSPA: 850/900/1900/2100 MHz | |
| GSM: 850/900/1800/1900 MHz | |
| JM-VL01A: | |
| LTE: B2/B4/B5/B7/B12/B66 | |
| UMTS/HSPA: 850/1900 MHz | |
| GSM: 850/1900 MHz | |
| JM-VL01E: | |
| LTE: B1/B3/B5/B7/B8/B20/B28A | |
| UMTS/HSPA: 900/1900/2100 MHz | |
| GSM: 900/1800 MHz | |
| Power | |
| Battery | 450mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-36VDC |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Micro-SIM |
| Data storage | 4GB+4Gb |
| Digital inputs | ACC, SOS |
| Digital outputs | Relay |
| Physical specification | |

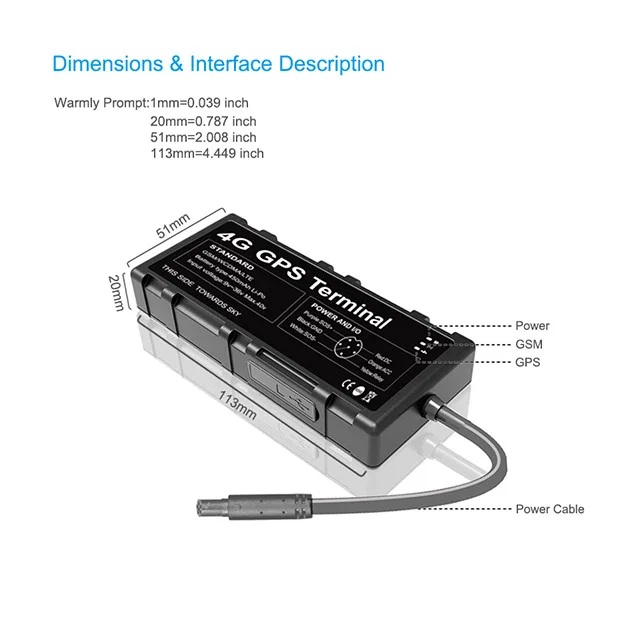

| Dimensions | 113.0 x 51.0 x 20.0mm |
| Weight | 105g |
