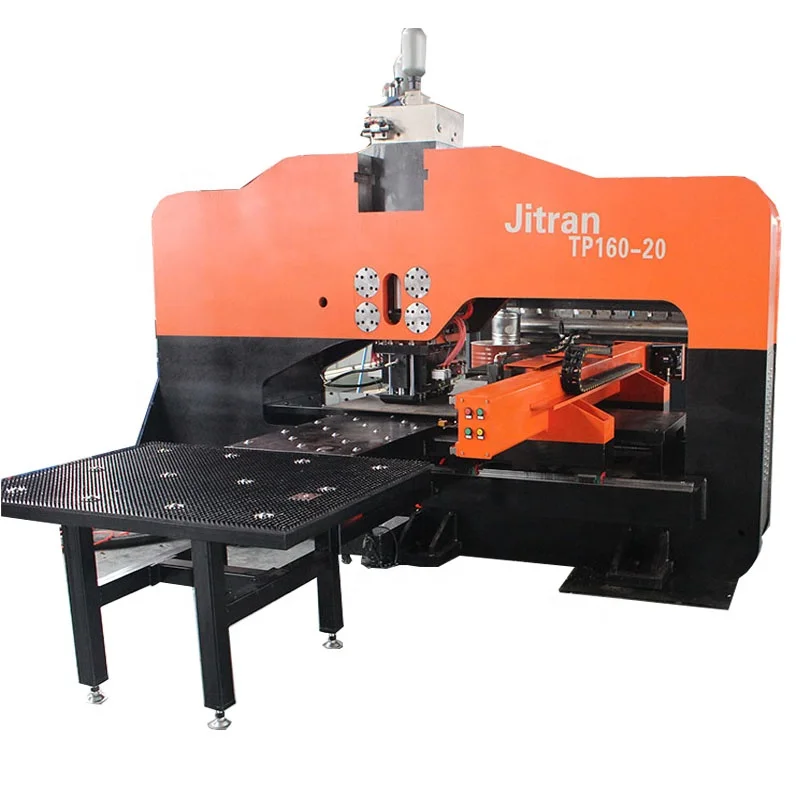

Толстый листовой металл CNC револьверный
- Категория: Гидравлический пресс >>>
- Поставщик: Qingdao,Amada,Numerical,Control,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 70210.58 $* | 73721.14 $* |
| Aug-16-2025 | 69620.29 $* | 73101.36 $* |
| Jul-16-2025 | 58410.73 $* | 61331.52 $* |
| Jun-16-2025 | 68440.72 $* | 71862.81 $* |
| May-16-2025 | 59590.42 $* | 62570.79 $* |
| Apr-16-2025 | 67260.26 $* | 70623.13 $* |
| Mar-16-2025 | 66670.82 $* | 70004.71 $* |
| Feb-16-2025 | 66080.18 $* | 69384.63 $* |
| Jan-16-2025 | 65490.40 $* | 68765.10 $* |
Характеристики
Model | AMD-HB40 - AMD-HB80 | AMD-OHB80 - AMD-OHB160 | |
Punch force | 40 - 80T | 80 - 160T | |
Machine structure | open type | closed type | |
Max.Processing thickness | 35mm | ||
Working Range | 1500*800mm/3000*1600mm | ||
Clamp amount | 2-3pcs | ||
Punching frequency | 80 - 120HPM | 60 - 80HPM | |
Turret speed | ≤40m/min | ||
Processing precision | ±0.15mm | ||
Air Ventilation | 0.1m³/min | ||
Air pressure | 0.5MPa(5.0kgf/cm²) | ||
Power | 380V±5%/50HZ | ||
Number of stations in turret | 3-12pcs(Optional) | ||
powerful functions such production; automatic positioning; graphic conversion; mold management; graphic dialog programming;
one-button operation; failure alarm.

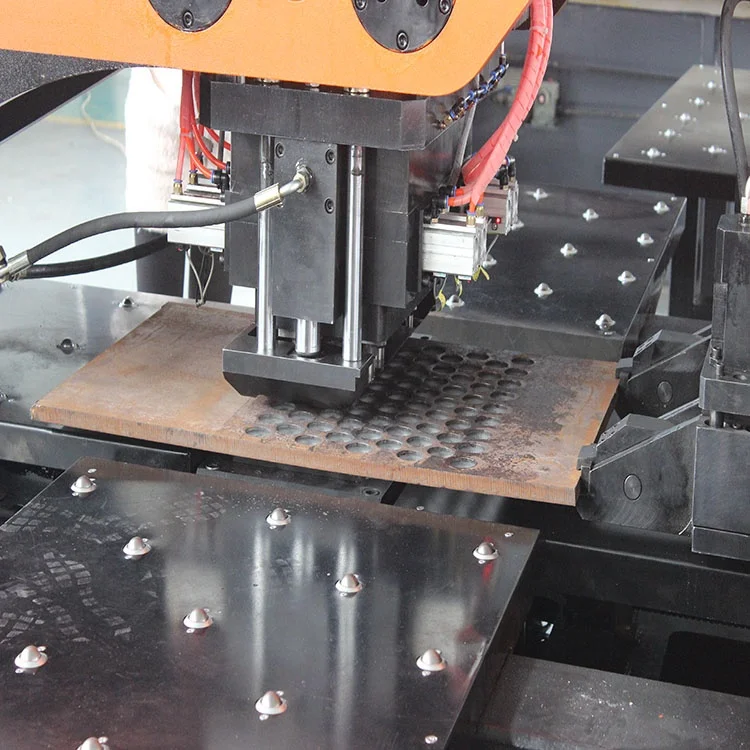

Using in-line type die st which researched and developed by our company,matching with thick plate stamping dedicated mould. the
processing sheet thickness can up to 35mm
AC servo motor
Using ESTUN servo motor, fast speed, fast response, simple operation, without manual programming, one-key operation.
1. Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents:
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
