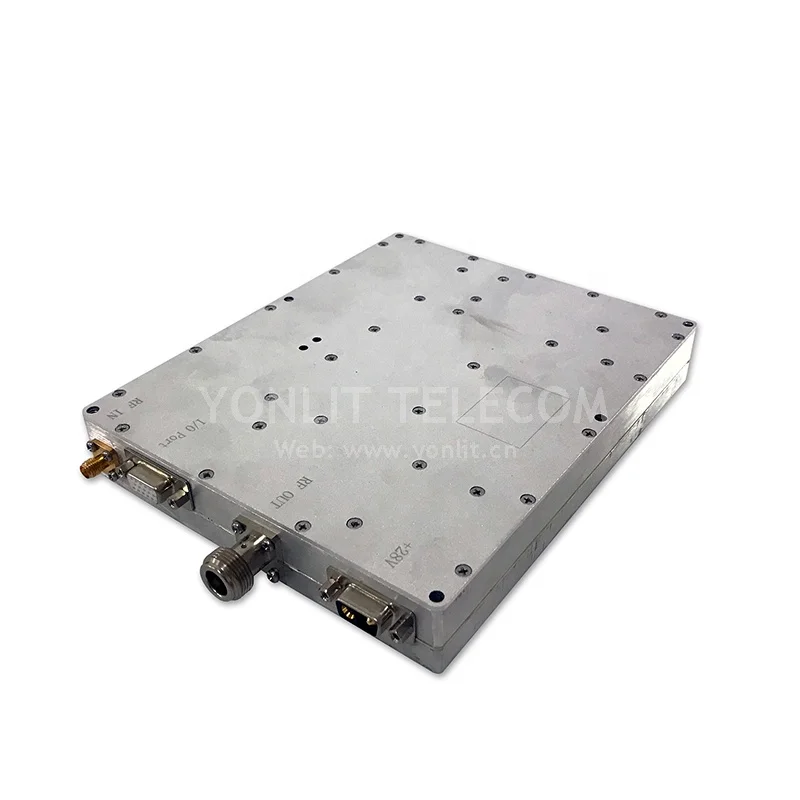

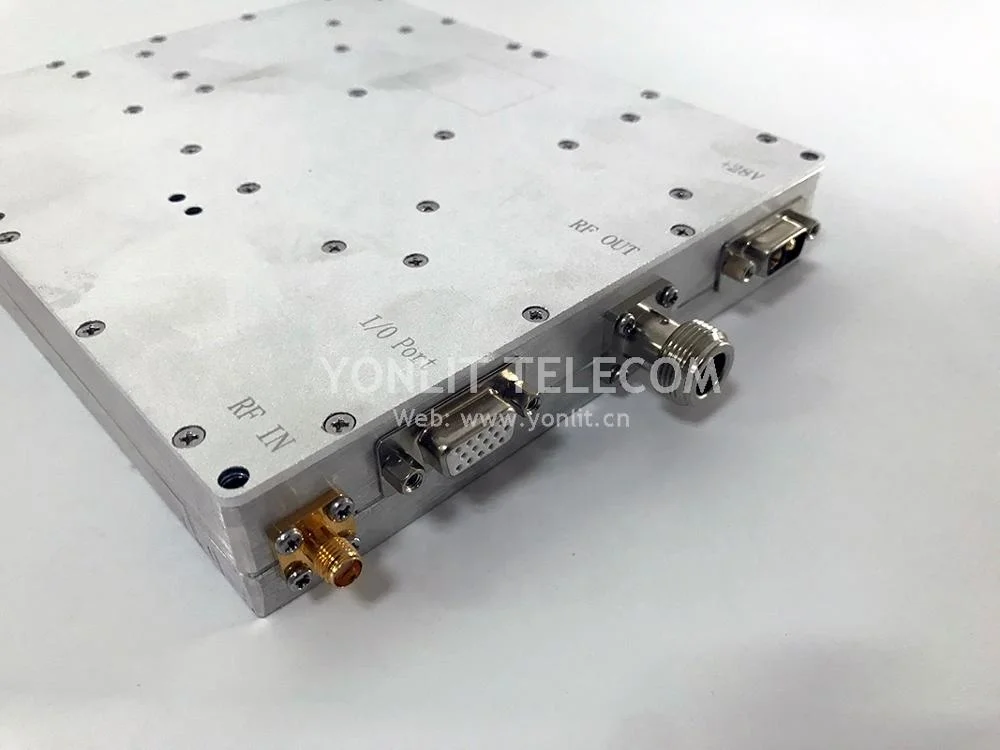

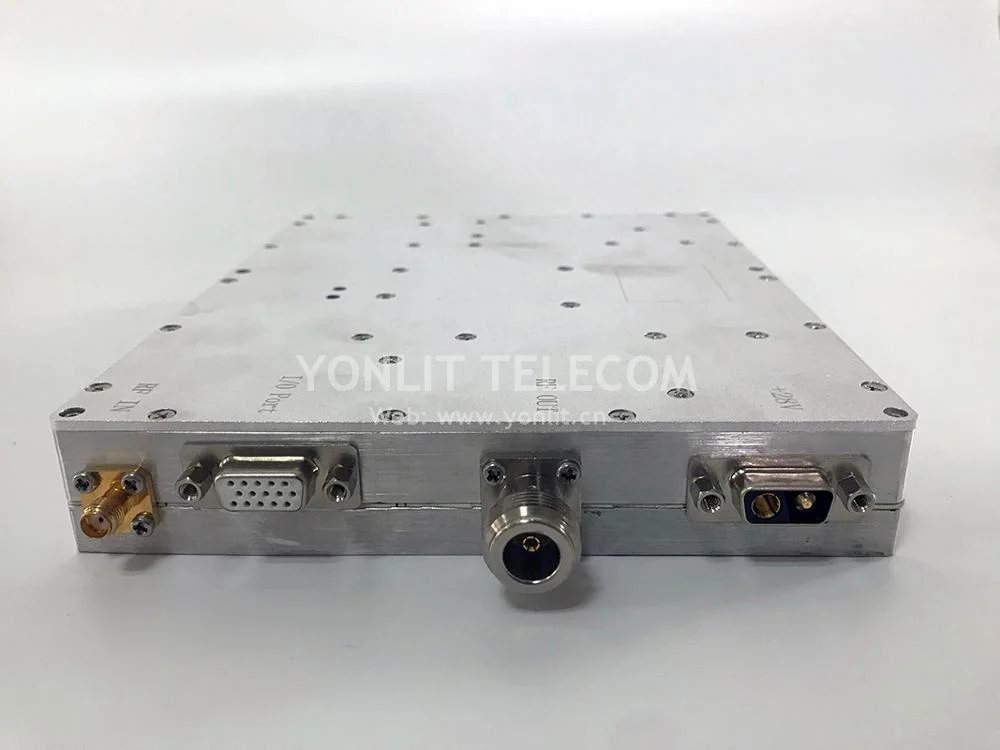

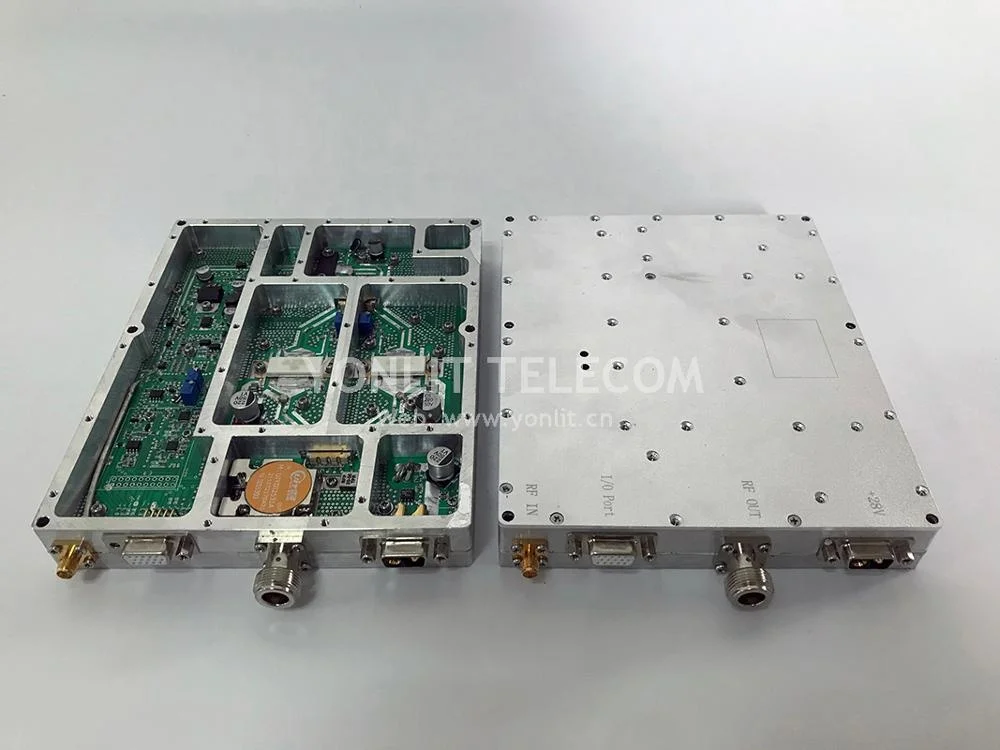

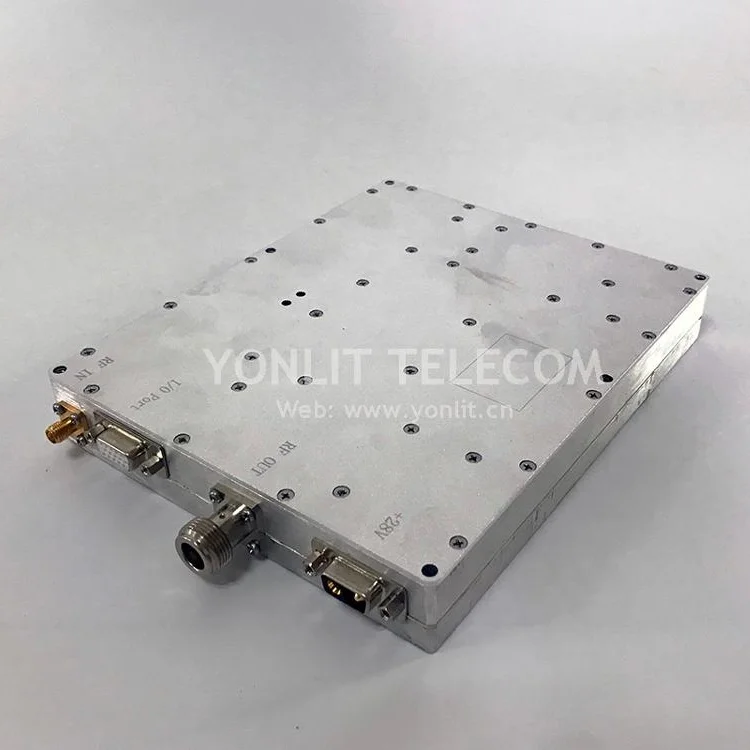

Усилитель мощности 200 Вт GSM GPS DCS 3G
- Категория: Усилители и компаратора >>>
- Поставщик: Shenzhen,Yonlit,Telecom,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.25 $* | 0.1 $* |
| Aug-19-2025 | 0.81 $* | 0.48 $* |
| Jul-19-2025 | 0.10 $* | 0.67 $* |
| Jun-19-2025 | 0.7 $* | 0.24 $* |
| May-19-2025 | 0.26 $* | 0.12 $* |
| Apr-19-2025 | 0.66 $* | 0.34 $* |
| Mar-19-2025 | 0.95 $* | 0.41 $* |
| Feb-19-2025 | 0.75 $* | 0.98 $* |
| Jan-19-2025 | 0.0 $* | 0.29 $* |
Характеристики
Product Description
Feature
* This high power amplifier can be used for Jammer, Lab equipment, etc.
* Efficiency is more than 30% for 200W
* Over-high VSWR to avoid or reduce the damage from any mismatch
* Over-high temperature protection, automatically shutdown when temp over than 75℃, auto-restart when temp less than 50℃
* Standard DB15 serial port, DB9 Parallel RS485 as optional(China Mobile Protocol).
* Pout is stable over -20~65℃
* Efficiency is more than 30% for 200W
* Over-high VSWR to avoid or reduce the damage from any mismatch
* Over-high temperature protection, automatically shutdown when temp over than 75℃, auto-restart when temp less than 50℃
* Standard DB15 serial port, DB9 Parallel RS485 as optional(China Mobile Protocol).
Main Specification
Frequency range:
851-894MHz/ 925-960MHz/ 1805-1880MHz/ 1930-1990MHz/ 2110-2170MHz/ 2620-2690MHz/ 2400-2500MHz
Customized
Output Power
200W (53dBm)
Power Supply
28V DC
Dimension
180*155*25mm (Exclusive Connector)
Contact us
For more details, please contact us. Thank you.
