Латунный кованый испытательный и дренажный гидравлический клапан для пожарной гидравлической системы смотровое стекло экономичная модель
- Категория: Ball Valves >>>
- Поставщик: Yuhuan,Beijinsi,Fluid,Control,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 14.27 $* | 14.16 $* |
| Jul-16-2025 | 11.70 $* | 11.63 $* |
| Jun-16-2025 | 14.37 $* | 14.74 $* |
| May-16-2025 | 14.99 $* | 14.84 $* |
| Apr-16-2025 | 11.0 $* | 11.26 $* |
| Mar-16-2025 | 13.80 $* | 13.52 $* |
| Feb-16-2025 | 13.94 $* | 13.93 $* |
| Jan-16-2025 | 13.50 $* | 13.77 $* |
Характеристики
BASIC INFORMATION

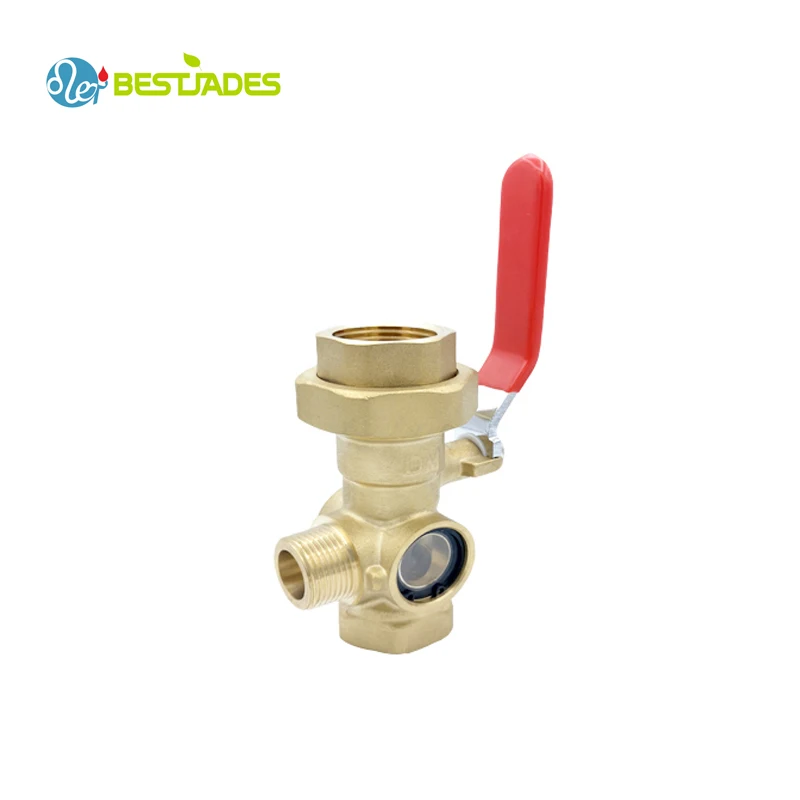

Descriptions: Brass Forged Test & Drain Valve with Sight Glass Economic Model
Model No.: BJ51007
Material: H58-3/CW617N
Size: MF 1'' for Firefighting system
Color: Brass Natural Color
Working Medium: Water
Working Pressure: 20 bar
Max Working Temprature: 90 °C
Material List
| Item No. | Name | Material |
| 1 | Body | Brass |
| 2 | Cap | Brass |
| 3 | Connection | Brass |
| 4 | Ball | Brass |
| 5 | Sight Glass | Acrylic |
| 6 | Gasket | NBR |
| 7 | Seal | EPDM |
| 8 | Handle | Steel |
FEATURES
>> It offers multi functions to open/close/test/drain the valve to control the water flow based on different status.
>> The sight glass structure makes the water flowing visible.
>> Economic model with competitive price, simple design to make the installation easy and fast
>> Forged brass process and engineered designed structure make the products in good resistance of compression, torsion and fracture.
>> 100% integrated leakage and explosion test under 20 bar provide strong support for quality
>> High precision machining, top quality finish, make the valve's quality stable and reliable
>> Professional engineered designed and produced, to give out excellent performance.
