1 03 дюймовый дисплей высокого разрешения micro oled 2560*2560 интерфейс mipi

1 03 дюймовый дисплей высокого разрешения micro oled 2560*2560 интерфейс mipi

Категория: OLED\/E-Paper Module >>>
Поставщик: Shanghai,Top,Display,Optoelectronics,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.39 $*	0.81 $*
Aug-16-2025	0.25 $*	0.72 $*
Jul-16-2025	0.89 $*	0.42 $*
Jun-16-2025	0.87 $*	0.44 $*
May-16-2025	0.16 $*	0.89 $*
Apr-16-2025	0.49 $*	0.81 $*
Mar-16-2025	0.28 $*	0.95 $*
Feb-16-2025	0.89 $*	0.70 $*
Jan-16-2025	0.7 $*	0.89 $*

Характеристики

Product Description

General Specification

Parameters	Specification
Size	1.03 inch
Resolution	2560*2560 dots
Pixel Size	7.2μm x 7.2μm
Active Area	18.432mm x 18.432mm
Brightness	1800cd/m² typical
Contrast Ratio	500,000:1 typical
Operating Voltage	VDDI=1.8V +/- 10% AVDD=5V~6V AVEE=-4V~-6V VDD=1.2V
Interface	MIPI (1-port C-PHY/2-port D-PHY)
Frame Rate	90Hz
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C

Product Application

1) AR/VR

2)Viewfinder

3)Gun sight

4)Binoculars

5)Military helmet

6)Industrial inspection

7) and so on

Structure diagram

2D drawing

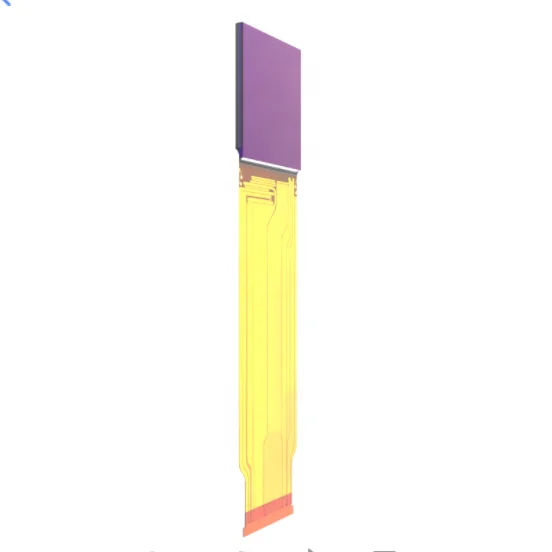

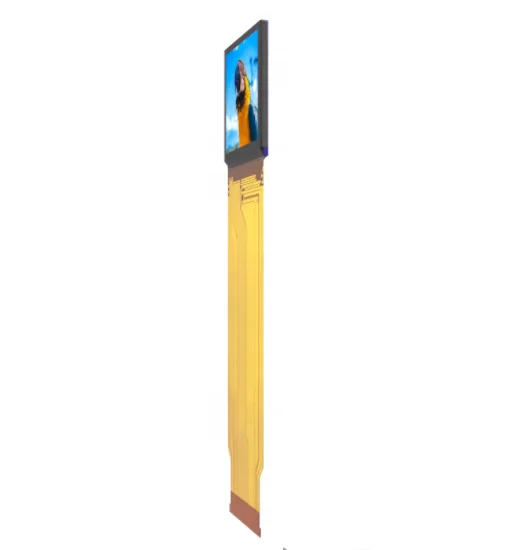

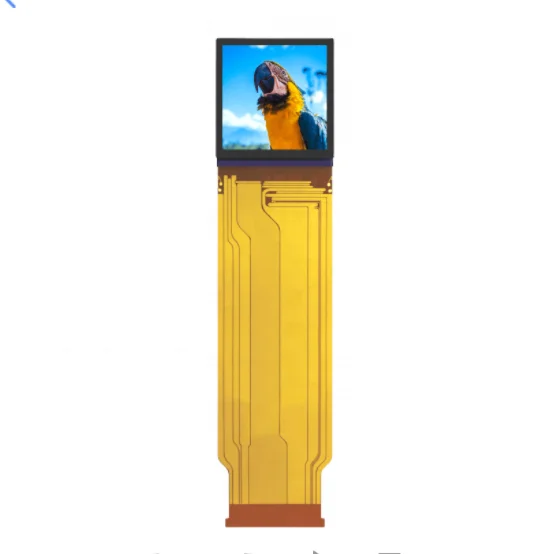

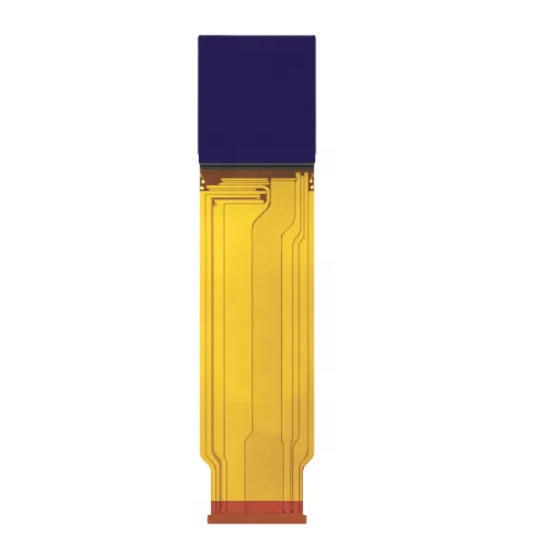

product picture

Micro OLED
