Products Description

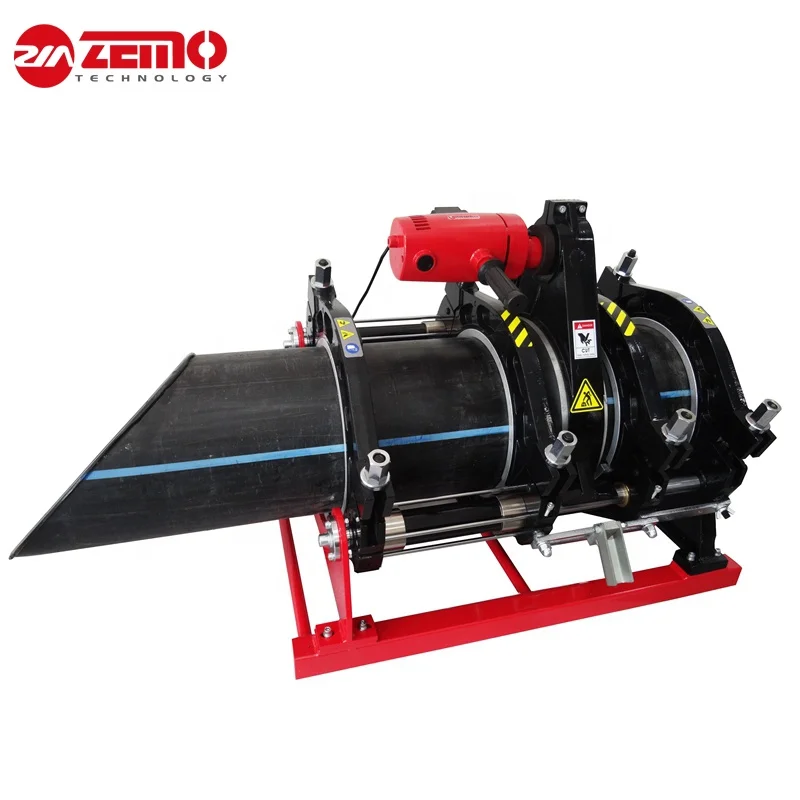

SMD-B315/90H Maquina Termofusion

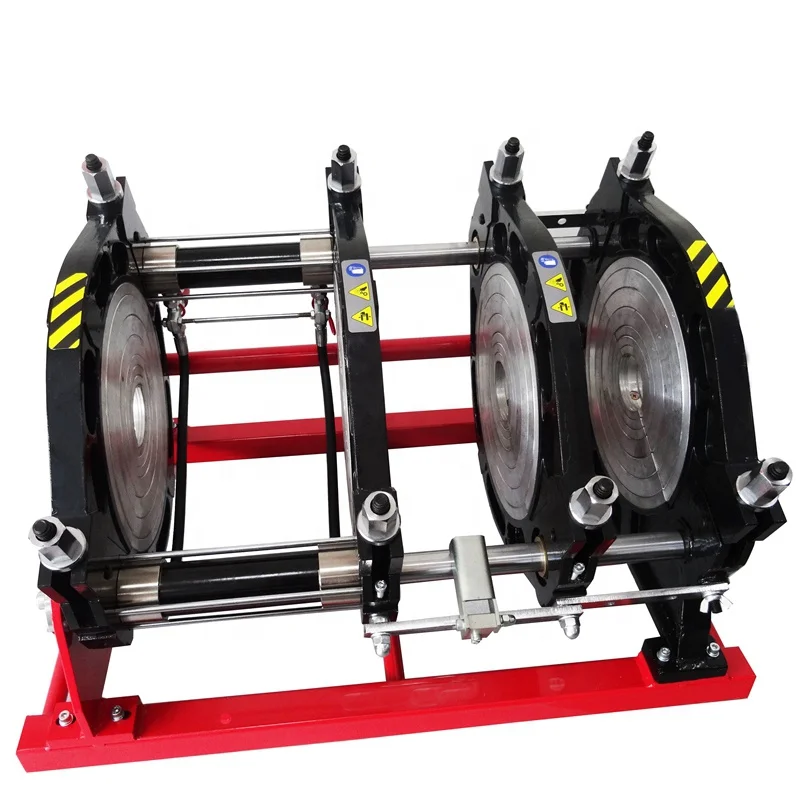

SMD-B315/90H Maquina Termofusion is able to weld pipes and fittings with material PE, PP and PVDF, operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool& heating plate, and optional parts
When our SMD-B315/90H HDPE Welding Machine welds pipe together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. Data Logger can store up to 1000 welding cycles and sum them into a encrypted EXCEL file. This report can be transferred to a PC/Laptop through a USB port.
Details Images
Product Paramenters
Model | SMD-B315/90H | ||
Pipe size (mm) | 90,110,125,140,160,180,200,225,250,280,315 | ||
Heating plate Max. Temperature | 270℃ | ||
Temp.deviation in surface (170-250 ℃) | ≤±7℃ | ||
Pressures Adjustable Ranges | 0-6.3Mpa | ||
Working Voltage | 220V , 50/60HZ , single phase | ||
Heating plate power | 3.5KW | ||

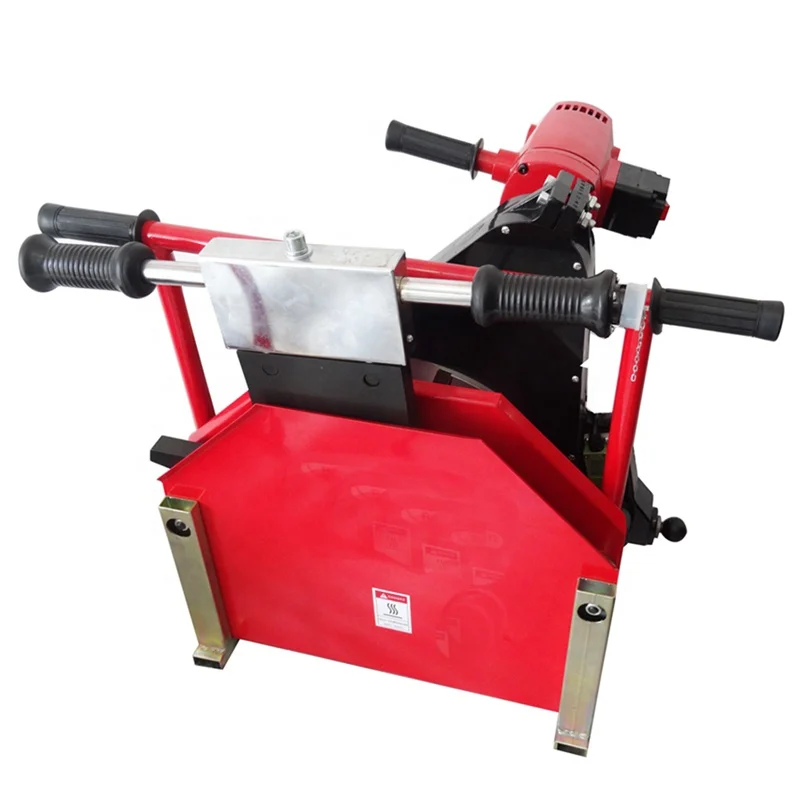

Planing tool power | 1.1KW | ||

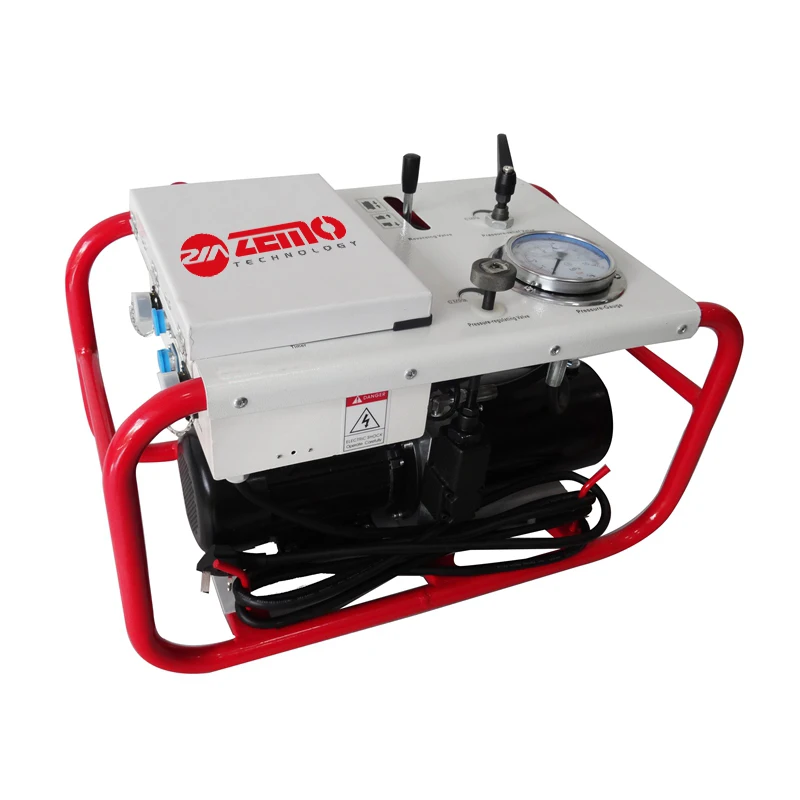

Hydraulic unit power | 0.75KW | ||
Total Power | 5.35KW | ||
Weight | 260KG | ||
Packing | Cases | 3 plywood cases | |
Volume | 1.07 CBM | ||
Product packaging
Company Profile
Zemo is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China
ZEMO products included Butt Fusion Machine,Socket Fusion Machine, Electrofusion Machine,Hot Air Welders,Hot Air Welding Machine Extrusion Welders, Geomembrane Overlap Wedge Welders,Band Saw,Workshop Fittings Machine,and Welding Accessories Required under theISO9001 system and approved to CE standards by SGS.
Plastic Welding Machine's One Stop sourcing Platform,ZEMO will serve world thermoplastic material industry.
ZEMO products included Butt Fusion Machine,Socket Fusion Machine, Electrofusion Machine,Hot Air Welders,Hot Air Welding Machine Extrusion Welders, Geomembrane Overlap Wedge Welders,Band Saw,Workshop Fittings Machine,and Welding Accessories Required under theISO9001 system and approved to CE standards by SGS.
Plastic Welding Machine's One Stop sourcing Platform,ZEMO will serve world thermoplastic material industry.
Customer operation
FAQ
1. What is your payment terms ?
100% TT in advance . Western Union , D/P . Credit card payment on line .
2. What’s your delivery time ?
3-5 days after payment
3.How about your Guarantee and Service ?
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
100% TT in advance . Western Union , D/P . Credit card payment on line .
2. What’s your delivery time ?
3-5 days after payment
3.How about your Guarantee and Service ?
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
