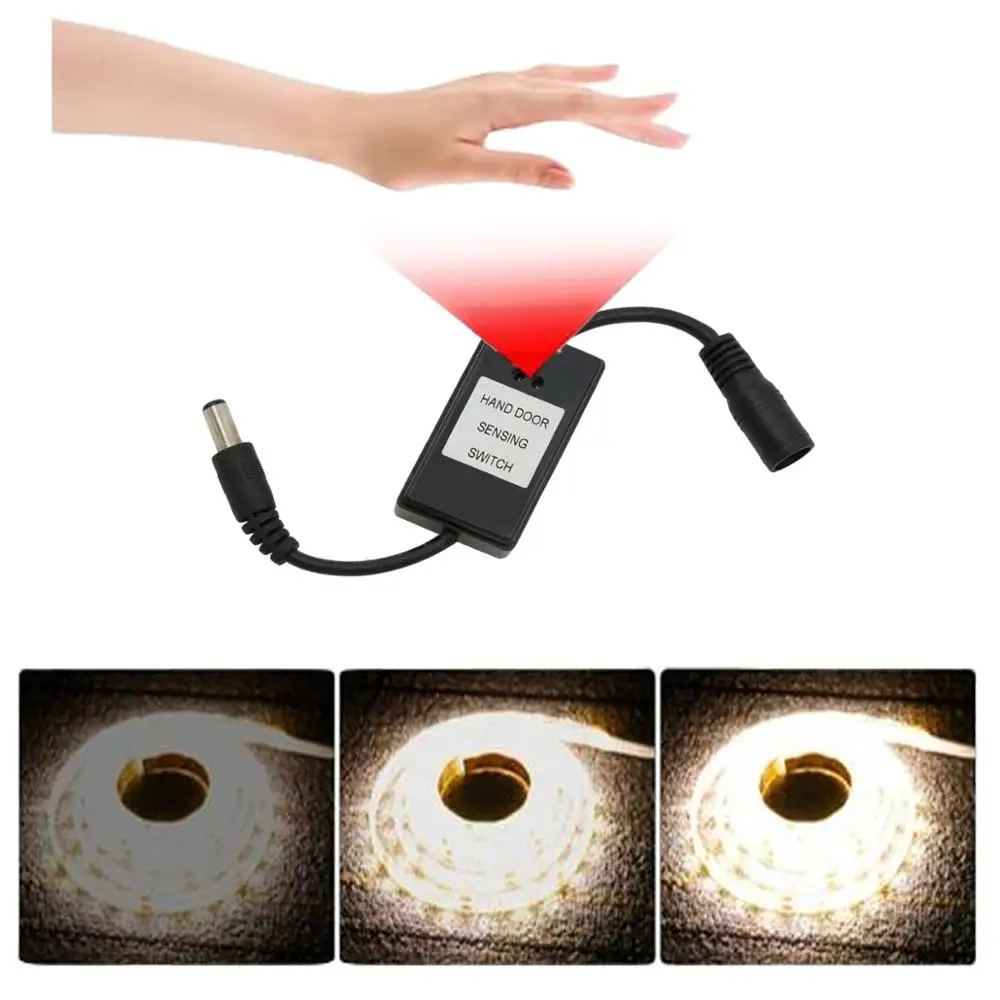

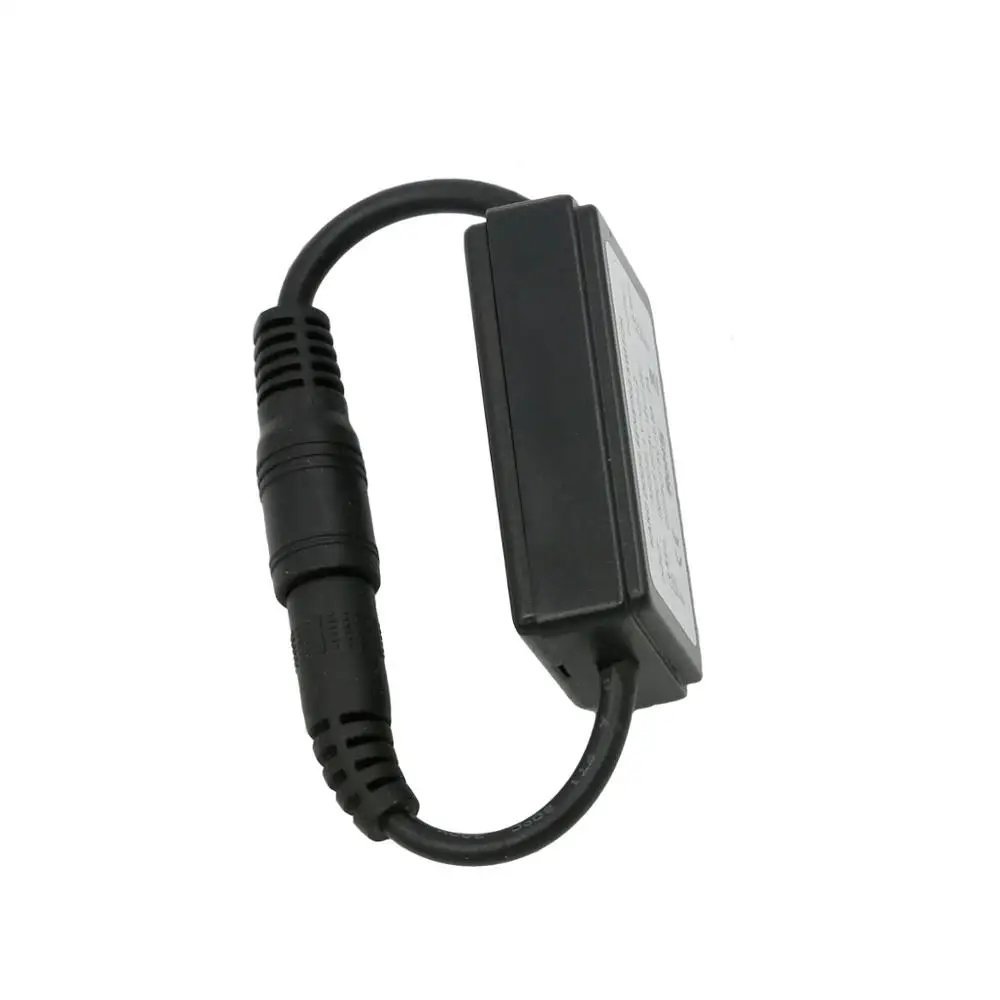

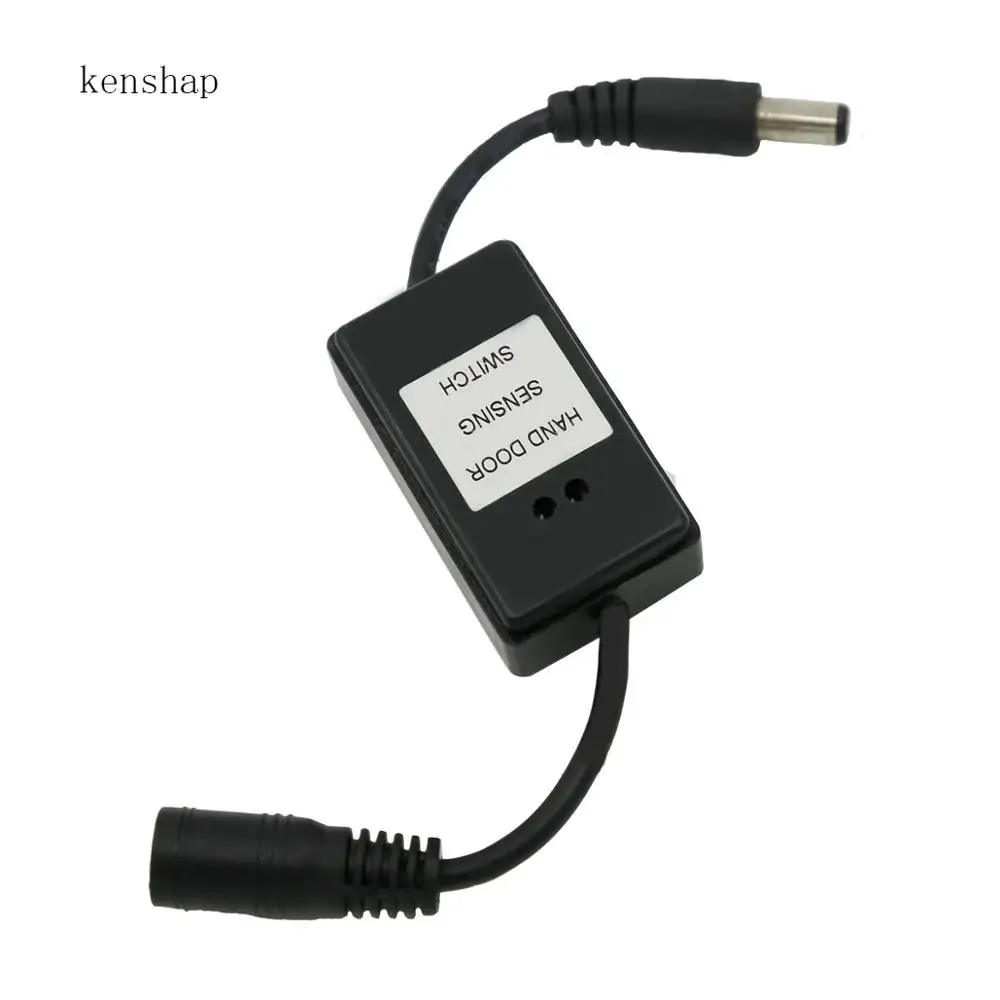

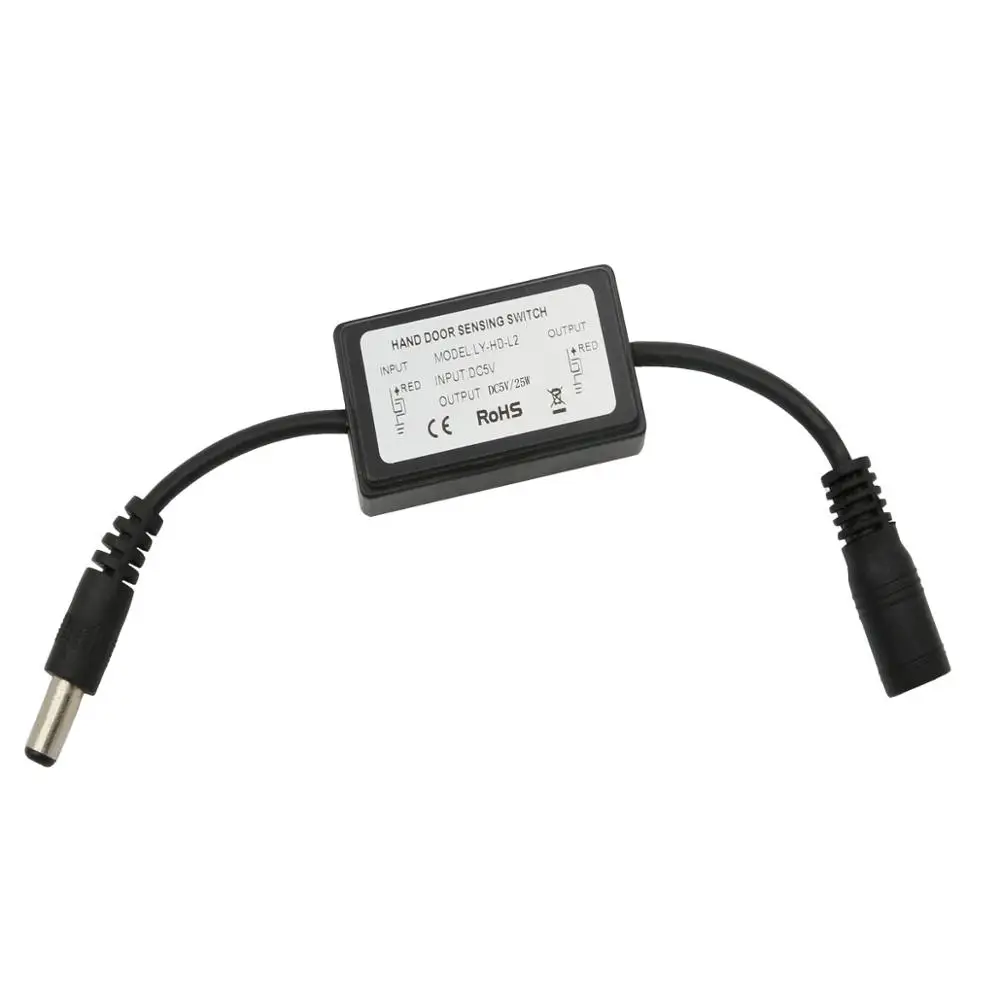

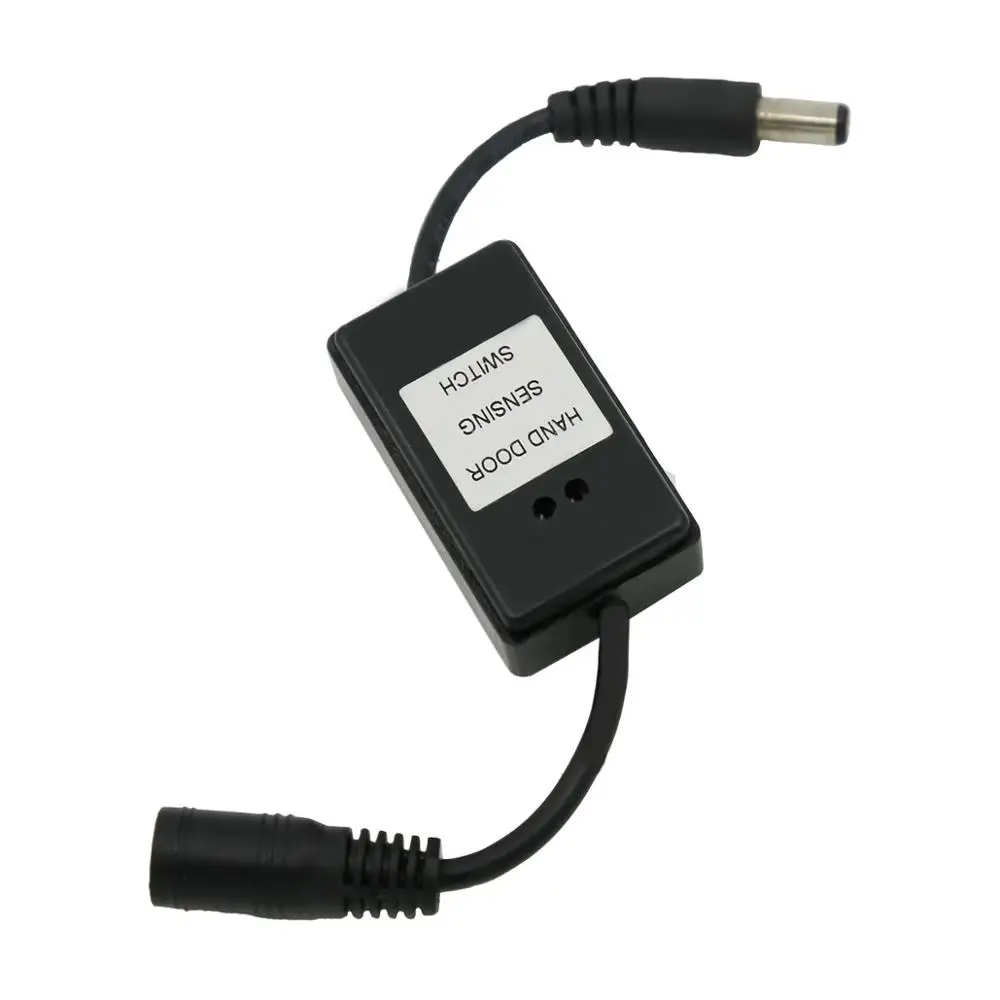

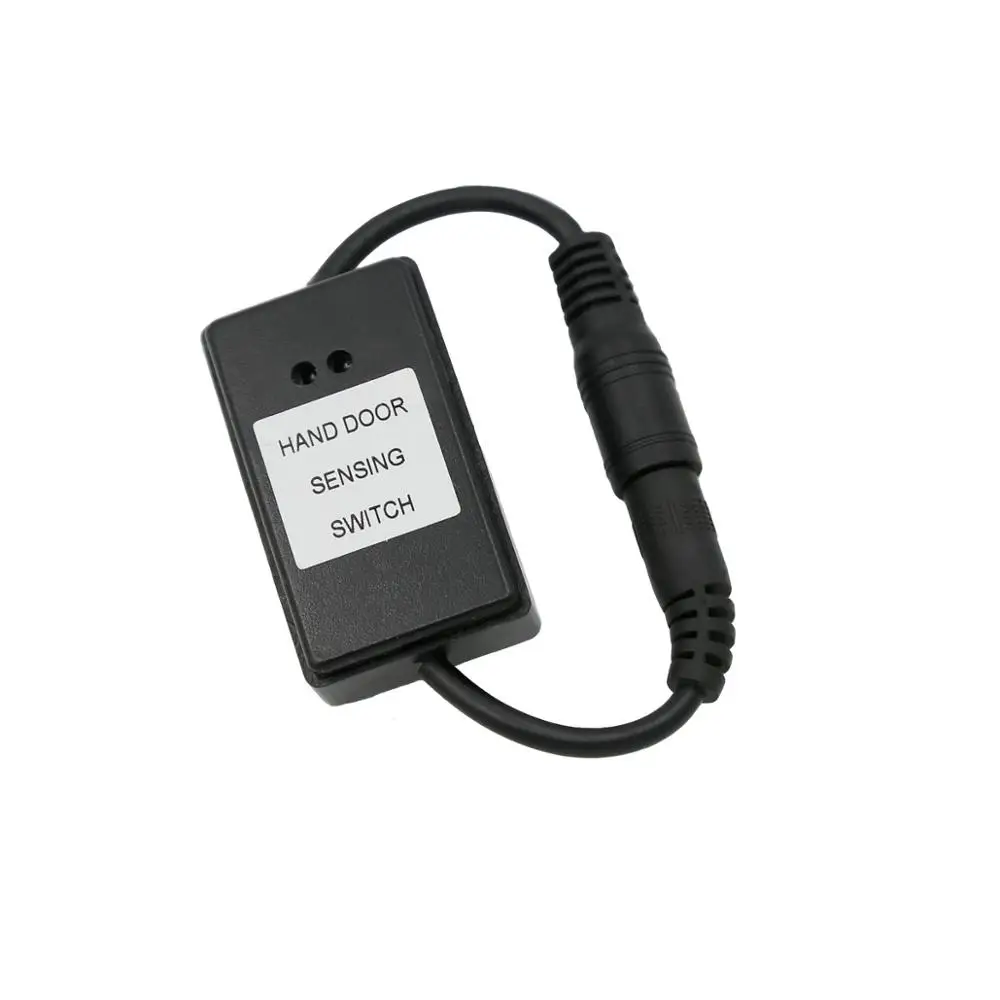

DC5V Инфракрасный Ручной сканирующий трехуровневый датчик

Описание и отзывы

Трекер стоимости

Характеристики

Quick Details



Place of Origin	Guangdong,China(Mainland)		Brand Name	kenshap
Model Number	LYXD-S04		Usage	Automatic Infrarde Tap Sensor
Input Voltage	DC 24V		Output Power	8W
Color	Brown		Line Lenhth
Quiescent Current	≤10mA		Scan cycle	500ms(Custmizable)



Supply Ability



Supply Ability:     5000 Piece/Pieces per Week





Packaging & Delivery



Packaging Details       500PCS/ctn



Port                              ShenZhen



Lead Time                   With 5 working days







Features:



1 infrared induction;

2 induction angle ≤ 20 °;

3 After induction, the three output modes can be customized, respectively, switch, third gear dimming, cabinet door sensing mode, default switching mode;

4 sensing distance can be customized, the default is 5-7CM;

5PCB board structure shape and module scheme can be customized;

6 applications: LED induction lighting.



Specifications:



1 \\Power input: DC24V;

2 \\ \\Induction angle: ≤20°

3 \\ sensor type: infrared diffuse reflection induction;

4 \\Power consumption: <1MA;

5 \\Output mode: default switch;

6 \\ working temperature: -10-60 ° C



Schematic design:









PCBLAYOUT:





Code write:







Note:



Customized by customers:including product function,PCB shape,plastic mold design and processing...!





Company building:







Company front desk:









Automated production workshop:









Product R & D Department:







Production workshop processing scene:











 Sensor International Exhibition:
